IS215UCVGH1A GE Mark VI Controller | UCVG Single Slot VME Board

IS215UCVGH1A – General Electric Mark VI UCVG VME Controller

Key Technical Specifications

• Brand: General Electric | Model: IS215UCVGH1A
• Series: Mark VI Speedtronic | Product Type: UCVG VME Controller Single Slot Board
• Processor: Intel Ultra Low Voltage Celeron 650 MHz
• Memory: 128 MB Flash memory and 128 MB SDRAM
• Operating System: QNX real-time multitasking OS
• Ethernet Ports: 2 x 10BaseT/100BaseTX with RJ-45 connectors
• Additional Ports: COM1 and COM2 RS-232C connections
• USB Ports: 2 individual USB connectors on front faceplate
• Video Port: SVGA monitor port for local display
• Power Requirements: +5 V dc at 4 A typical (5.4 A max), +12 V dc and -12 V dc at less than 1 mA typical
• Operating Temperature: 0°C to 70°C
• Board Size: 2.8 cm high x 8.6 cm | Weight: 0.45 kg (1 lb)
• Country of Origin: USA | Manual: GEI-100603A

Processor & Memory Architecture

• The IS215UCVGH1A uses an Intel Ultra Low Voltage Celeron 650 MHz processor for efficient power consumption.
• 128 MB of SDRAM provides working memory for real-time control applications.
• 128 MB of Flash memory stores application software and system configuration data.
• The QNX real-time operating system delivers high-speed, high-reliability performance for industrial control.
• This controller validates its toolbox configuration against existing hardware at every power-up.

Communication Ports & Network Connectivity

• Two 10BaseT/100BaseTX Ethernet ports provide flexible network integration for the IS215UCVGH1A.
• The first Ethernet port connects to the UDH for configuration and peer-to-peer communication.
• The second Ethernet port operates on a separate IP logical subnet for Modbus or private EGD network use.
• COM1 offers an RS-232C connection for initial system setup and configuration.
• COM2 provides RS-232C communication with distributed control systems (DCS) such as Modbus slave devices.
• Two USB connectors on the front faceplate support additional peripheral connections.
• An SVGA monitor port allows direct connection to a display for local monitoring.

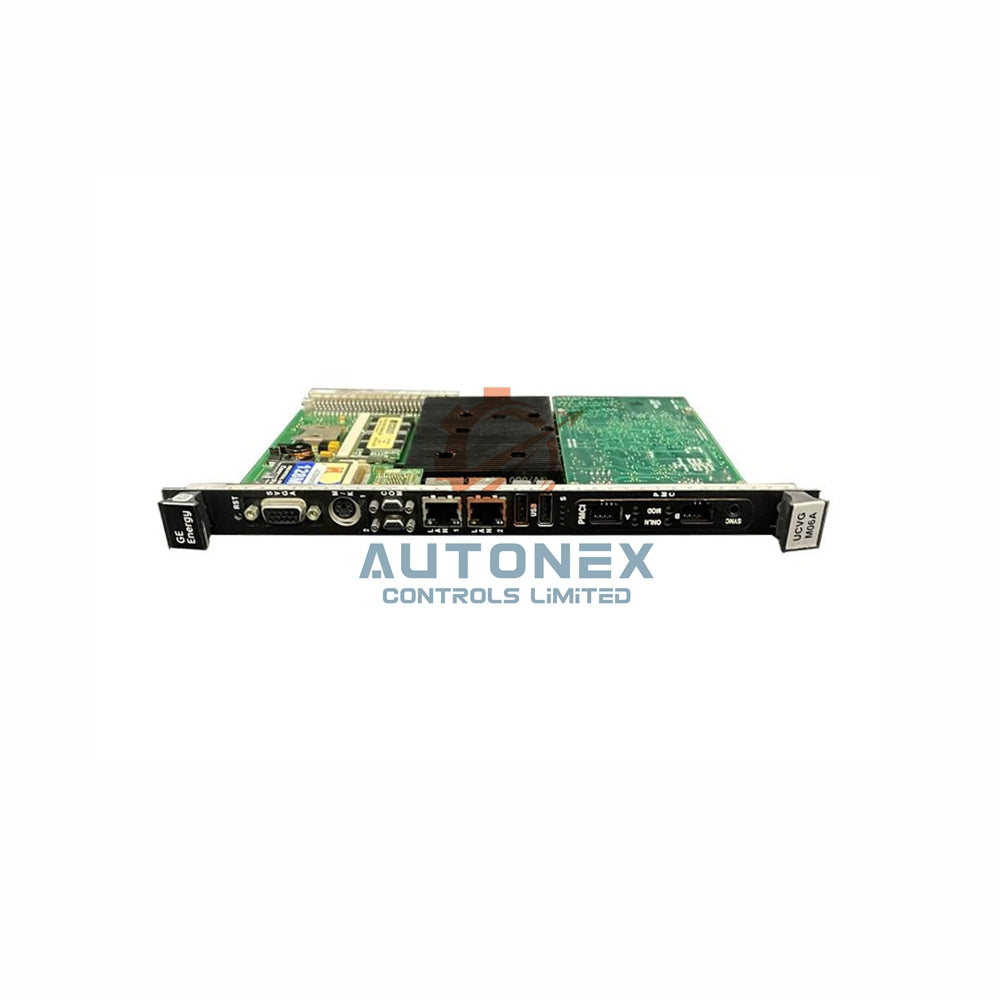

Hardware Features & Front Panel Layout

• The IS215UCVGH1A mounts as a single-slot board in a VME rack system.
• This controller can directly replace any previous UCV controller without requiring a backplane upgrade.
• The front faceplate includes a reset switch for system recovery operations.
• Four LED indicators provide clear visual status information for the controller.
• A keyboard and mouse port supports direct input device connection.
• Standoffs on the board allow for adding auxiliary components as needed.

Frequently Asked Questions (FAQ)

• Is the IS215UCVGH1A a brand new original product?
  Yes, we supply IS215UCVGH1A as a brand new original unit, factory-sealed and ready for installation.
• Do you have this model in stock?
  Yes, we keep IS215UCVGH1A in stock for immediate orders. Inventory is regularly updated.
• What is the typical lead time for shipping?
  We process and ship orders within 5 business days after payment confirmation.
• Which carriers do you use for delivery?
  We ship via FedEx, UPS, and DHL to ensure fast and reliable global delivery.
• What is your return policy?
  We support 30-day returns. If you are not satisfied, contact us within 30 days for return instructions.
• Can the IS215UCVGH1A replace older UCV controllers?
  Yes, this IS215UCVGH1A can directly replace any previous UCV controller in the Mark VI system without a backplane upgrade.
• What operating system does this controller use?
  The IS215UCVGH1A runs the QNX real-time, multitasking operating system designed for high-reliability industrial applications.
• How much memory does this board have?
  This controller includes 128 MB of SDRAM and 128 MB of Flash memory for program execution and storage.
• What communication ports are available?
  The IS215UCVGH1A provides two Ethernet ports, two COM ports (RS-232C), two USB ports, and an SVGA monitor port.
• What is the processor speed?
  This controller uses an Intel Ultra Low Voltage Celeron processor running at 650 MHz.
