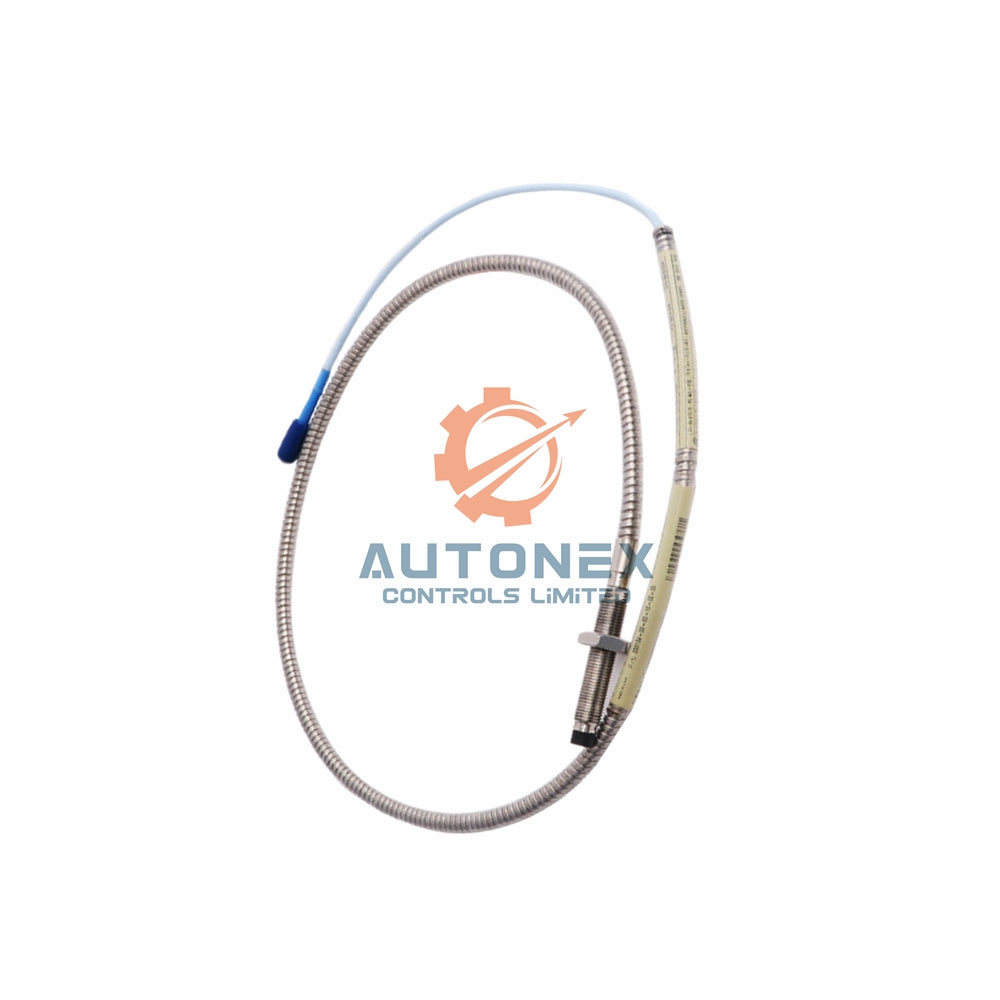

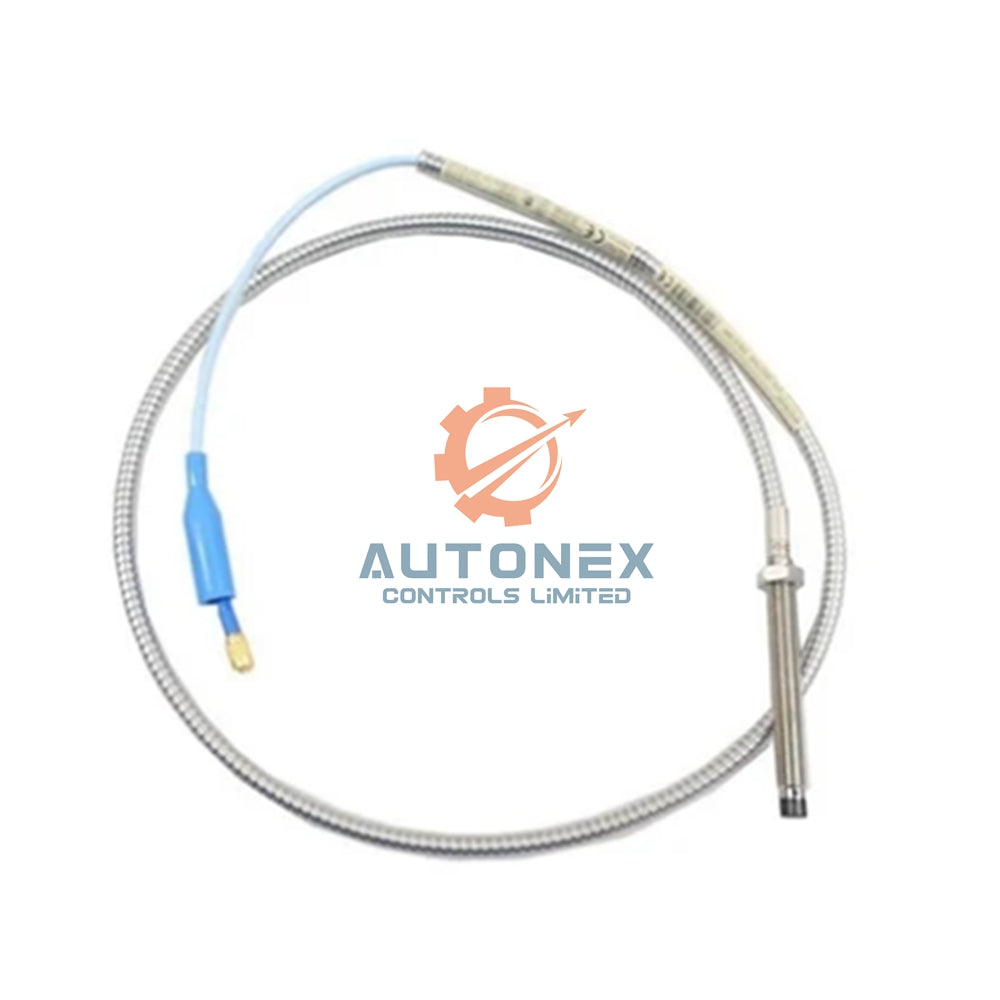

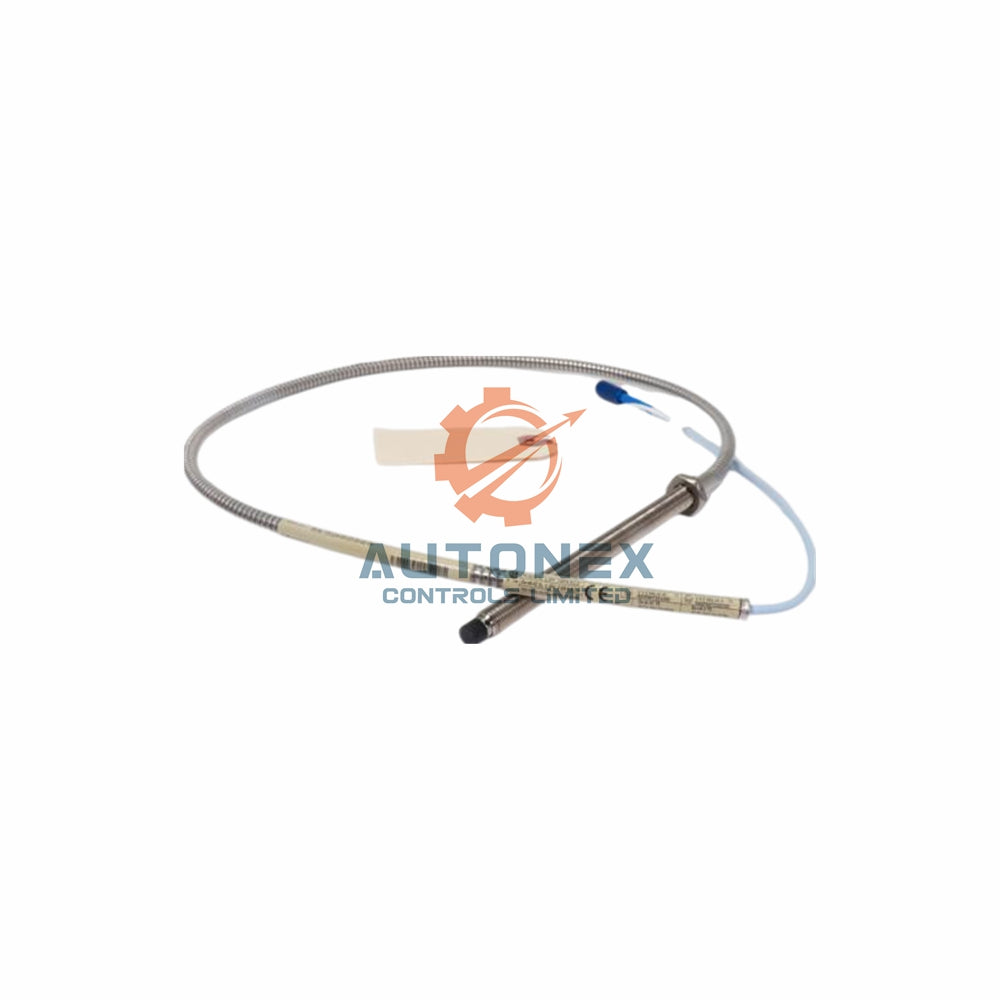

Bently Nevada 330910-05-25-10-02-00 3300 NSv Proximity Probe – Complete Technical Guide

• Manufacturer: Bently Nevada – a global leader in machine condition monitoring.
• Part Number: 330910-05-25-10-02-00 – includes M10X1 threads with armor.
• Unthreaded length option: -05 equals 50 mm.
• Overall case length option: -25 provides a 250 mm case.
• Total length option: -10 means a 1.0 meter (39 inches) probe cable.
• Connector type: -02 is a miniature coaxial ClickLoc connector with standard cable.
• Agency approval: -00 – not required for this version.

Key Technical Parameters for Model 330910-05-25-10-02-00

• Linear range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm.
• Output voltage in linear range: approximately -1 to -13 Vdc.
• Recommended gap setting: 1.0 mm (40 mils) for optimal performance.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from best fit straight line (DSL): less than ±0.06 mm (±2.3 mils).
• Frequency response: 0 to 10 kHz with +0, -3 dB typical using up to 305 m of field wiring.
• Probe DC resistance for 1.0m length: 4.2 ± 0.5 ohms from center to outer conductor.
• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical for system compatibility.
• Minimum target diameter (flat): 8.9 mm (0.35 inches); recommended at least 13 mm (0.5 inches).

Environmental & Mechanical Specifications

• Operating temperature range: -52°C to +177°C (-62°F to +351°F) for the probe.
• Storage temperature: same range -52°C to +177°C for both operation and storage.
• Probe tip material: Polyphenylene sulfide (PPS) for enhanced chemical resistance.
• Probe case material: AISI 304 stainless steel (SST) for harsh environments.
• Cable type: 75 Ω coaxial with FEP insulation in lengths of 0.5, 1, 5, or 7 meters.
• Minimum bend radius: 25.4 mm (1.0 inch) with or without stainless steel armor.
• Recommended mounting torque: Finger tight; maximum torque 0.56 N•m (5 in•lb).
• Connector-to-connector torque (case threads): maximum rated 33.9 N•m (300 in•lb).
• Recommended connector torque: 11.3 N•m (100 in•lb) for secure installation.
• Thread engagement limit for M10X1: first three threads with max rated 22.6 N•m (200 in•lb).
• System weight typical: 14 to 150 g (0.5 to 5.3 oz) depending on length.

Frequently Asked Questions (FAQ)

• Q: Is the 330910-05-25-10-02-00 fully interchangeable with the 3300 RAM probe?
  A: Yes, the 3300 NSv probe and extension cable are mechanically and electrically interchangeable with the previous 3300 RAM series.
• Q: What is the maximum frequency response with long field wiring?
  A: The probe delivers 0 to 10 kHz response typically with up to 305 meters of field wiring – see frequency rolloff graphs.
• Q: Can I use this probe both for axial and radial vibration?
  A: Yes, the 3300 NSv probe works for axial position measurements, but reduce gap for shaft diameters under 13 mm.
• Q: What happens if I exceed the recommended torque?
  A: Exceeding 0.56 N•m (5 in•lb) may damage the probe case or threads; always follow torque specs.
• Q: Are these probes pressure tested before shipment?
  A: No, Bently Nevada does not pressure test them. Contact their custom design department if you need a seal test.
• Q: Is the probe tip resistant to harsh chemicals?
  A: Yes, the PPS tip and Viton O-ring provide increased chemical resistance for process compressors.
