IC660EBA027 Electronic Assembly GE Fanuc

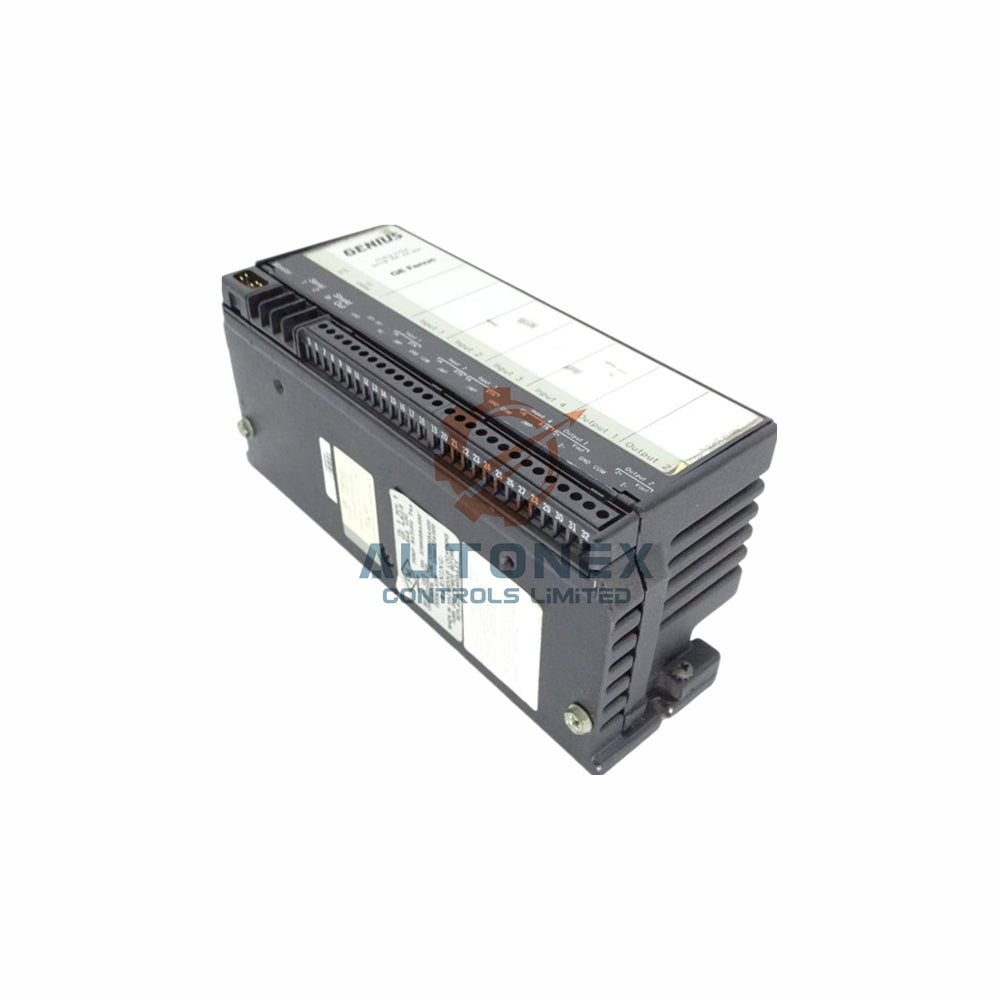

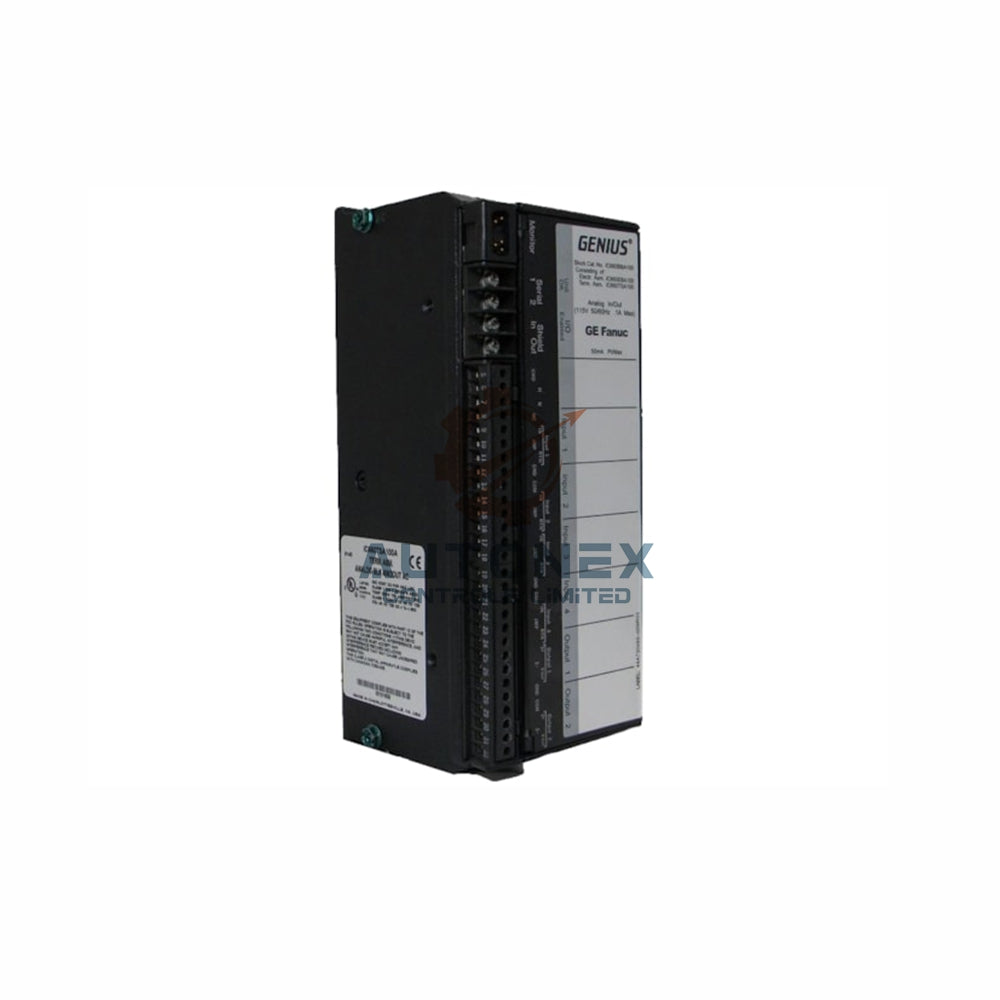

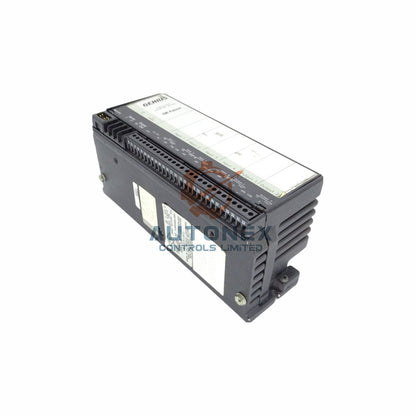

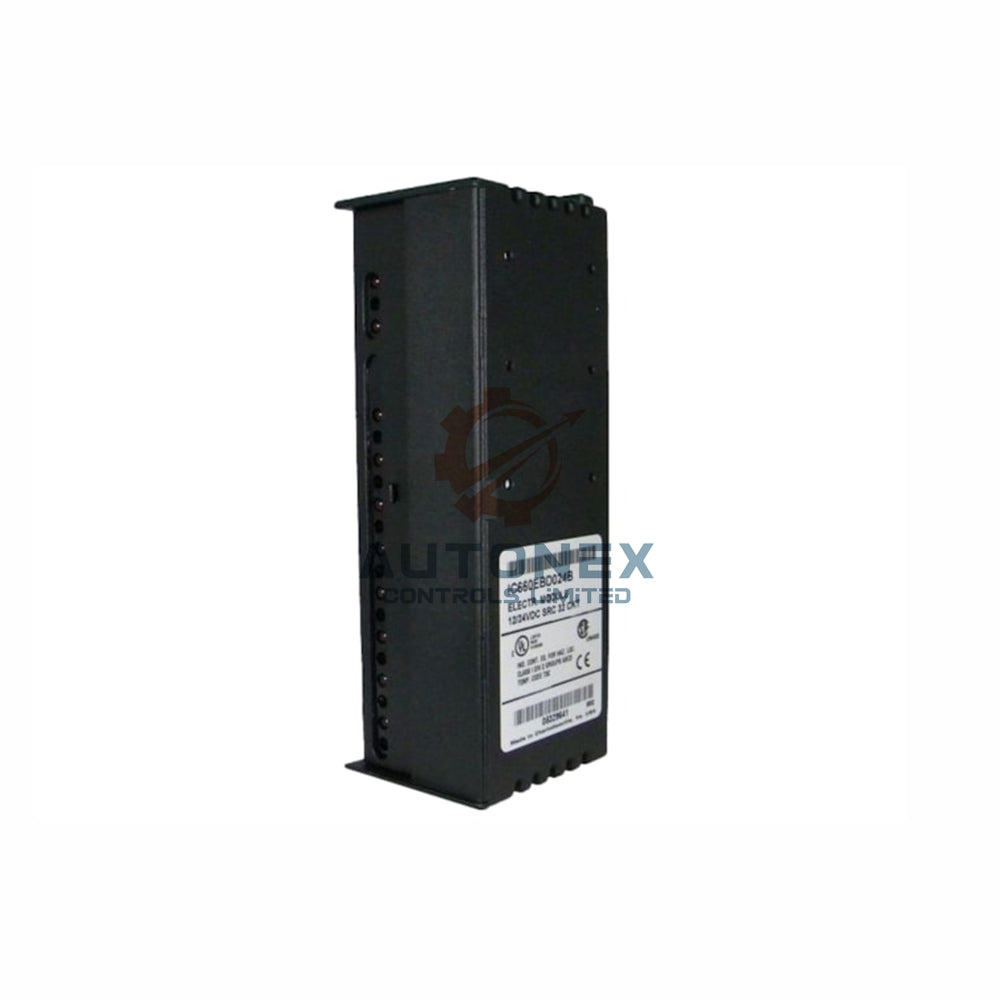

GE Fanuc IC660EBA027 Genius Analog Input Block Electronics Assembly

Core Technical Specifications

• Brand: GE Fanuc
• Model: IC660EBA027
• Series: Genius I/O
• Type: Electronic Assembly
• Power Supply Voltage: 18 to 56 Volts DC
• Signal Range: 4 to 20 milliamps
• Input Accuracy: 0.15% of full scale at 25°C
• Input Resolution: 1 µA
• Update Frequency: 25 milliseconds
• Maximum Current: 600 mA
• Maximum Ripple: 10%
• Heat Dissipation: 12 Watts maximum

Performance & Signal Characteristics

• The assembly provides a high input resolution of 1 microamp.
• Input conversion time is selectable from 16.6 to 400 milliseconds.
• It features a thermal drift specification of 70 PPM per degree Celsius.
• The input circuit has an impedance of 100 Ohms +/- 5%.
• It operates with a nominal block power of 115-125 VDC and 4-24 VDC.
• The unit functions with a power frequency of 47 to 63 Hertz.

Frequently Asked Questions (FAQ)

• Q: Is the IC660EBA027 new and original?
  A: Yes, we supply only 100% new and original GE Fanuc components.
• Q: What is the input signal type?
  A: It is designed for standard 4 to 20 milliamp analog input signals.
• Q: What is the input resolution?
  A: It provides precise measurement with 1 microampere (µA) resolution.
• Q: Do you have this item in stock?
  A: Yes, we maintain stock for immediate order processing and shipment.
• Q: What isolation does it provide?
  A: It offers safety with a 1500V RMS group-to-group isolation rating.
