3500/94M-03-00-01 Bently Nevada VGA Display Module Specs

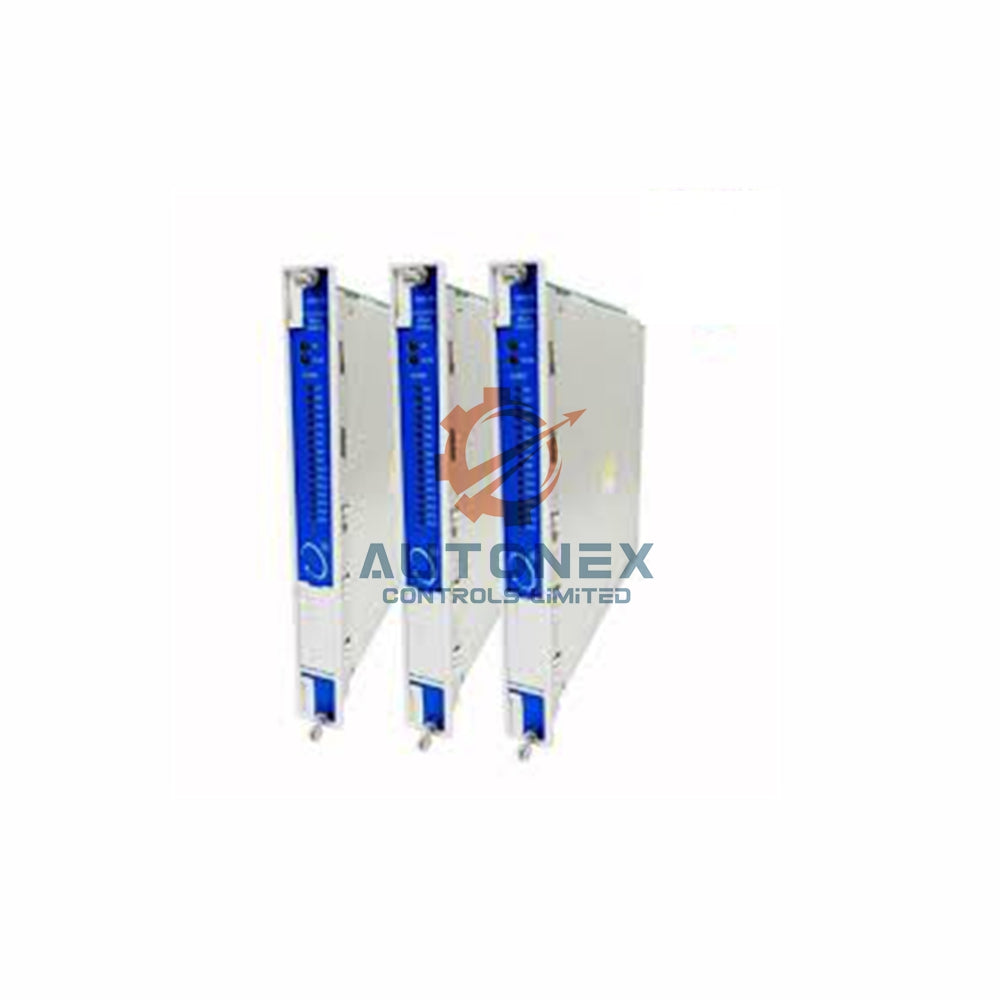

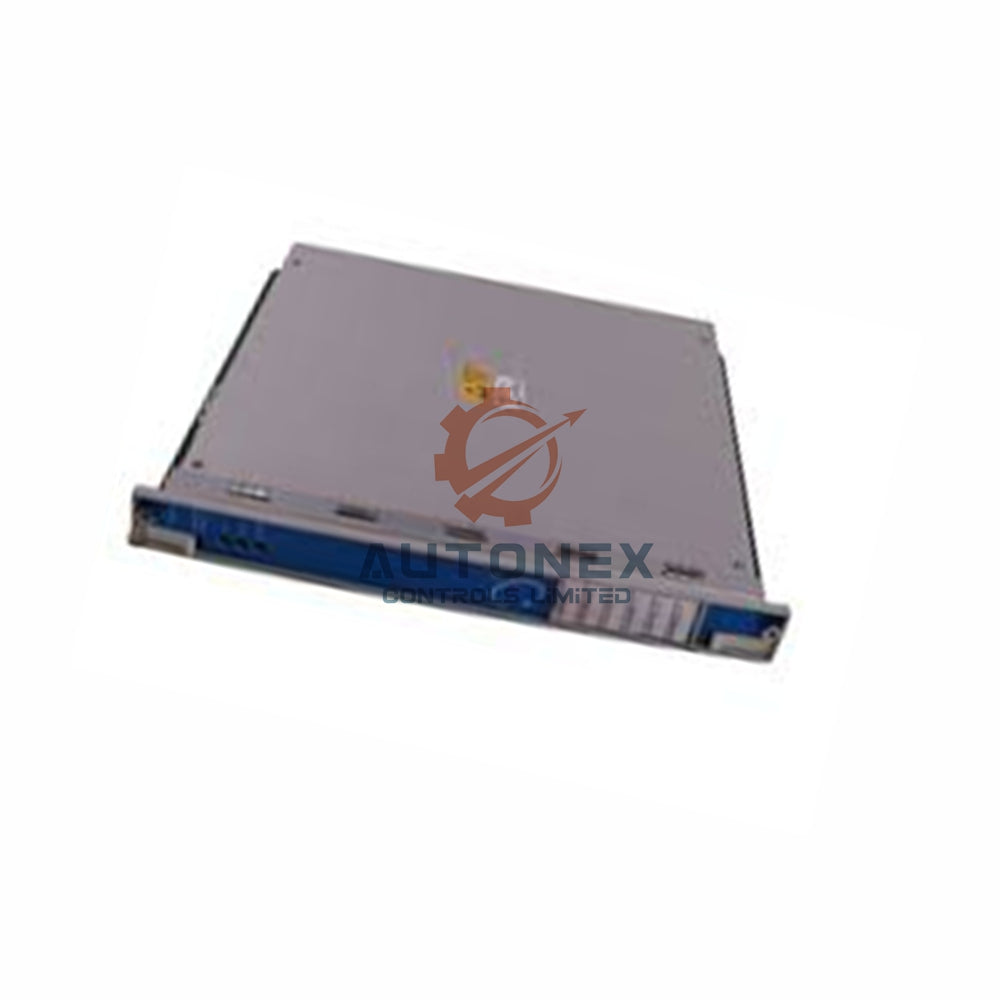

Bently Nevada 3500/94M-03-00-01 VGA Display Module

Key Technical Specifications

• Brand: Bently Nevada
• Model: 3500/94M-03-00-01
• Display Size and Mounting: 10" display, panel mount with included hardware
• KVM Extender and Cable: None (00 option)
• Agency Approval: CSA/NRTL/C (Class I, Division 2) - option 01
• Power Consumption: 4.6 watts maximum
• Operating Temperature: -20°C to 65°C (-22°F to 149°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity Tolerance: 95%, non-condensing
• Weight (Display Module): 0.73 kg (1.6 lb)
• I/O Module Weight: 0.34 kg (0.75 lb)
• Monitor Module Dimensions: 241.3 mm x 24.4 mm x 241.8 mm
• I/O Module Dimensions: 241.3 mm x 24.4 mm x 99.1 mm

Environmental and Compliance Features

• EMC Standards: EN 61000-6-2 and EN 61000-6-4
• Electrical Safety: CSA C22.2 61010-1, UL EN 61010-1
• Directives: 2014/30/EU, 2014/35/EU, and RoHS 2011/65/EU
• FCC Compliance: Part 15 - no harmful interference, accepts any received interference
• Operating Limit: Functions reliably from -20°C to 65°C without performance loss

Frequently Asked Questions (FAQ)

• Q: Is the 3500/94M-03-00-01 brand new?
  A: Yes, we supply only brand new and original Bently Nevada modules.
• Q: Do you have this VGA display module in stock?
  A: Yes, we currently have the 3500/94M-03-00-01 in stock for immediate orders.
• Q: What is the maximum operating temperature for the 10" display version?
  A: The 10" Advantech display works from -20°C to 65°C for harsh industrial use.
• Q: How long does delivery take?
  A: We ship within 5 business days after order confirmation.
• Q: Can I return this module if it does not fit my rack?
  A: Yes, we support a 30-day return policy from the delivery date.
• Q: Which firmware does the 3500/94M require?
  A: It needs firmware 4.06 Rev. C and a 3500/22 TDI module with Rev 1.71.
• Q: Is the KVM Extender approved for hazardous areas?
  A: Only the Receiver has Class I, Division 2 approval. The Transmitter requires a safe area.
