330192-00-08-05-CN Bently Nevada 3300 XL 8 mm Probe

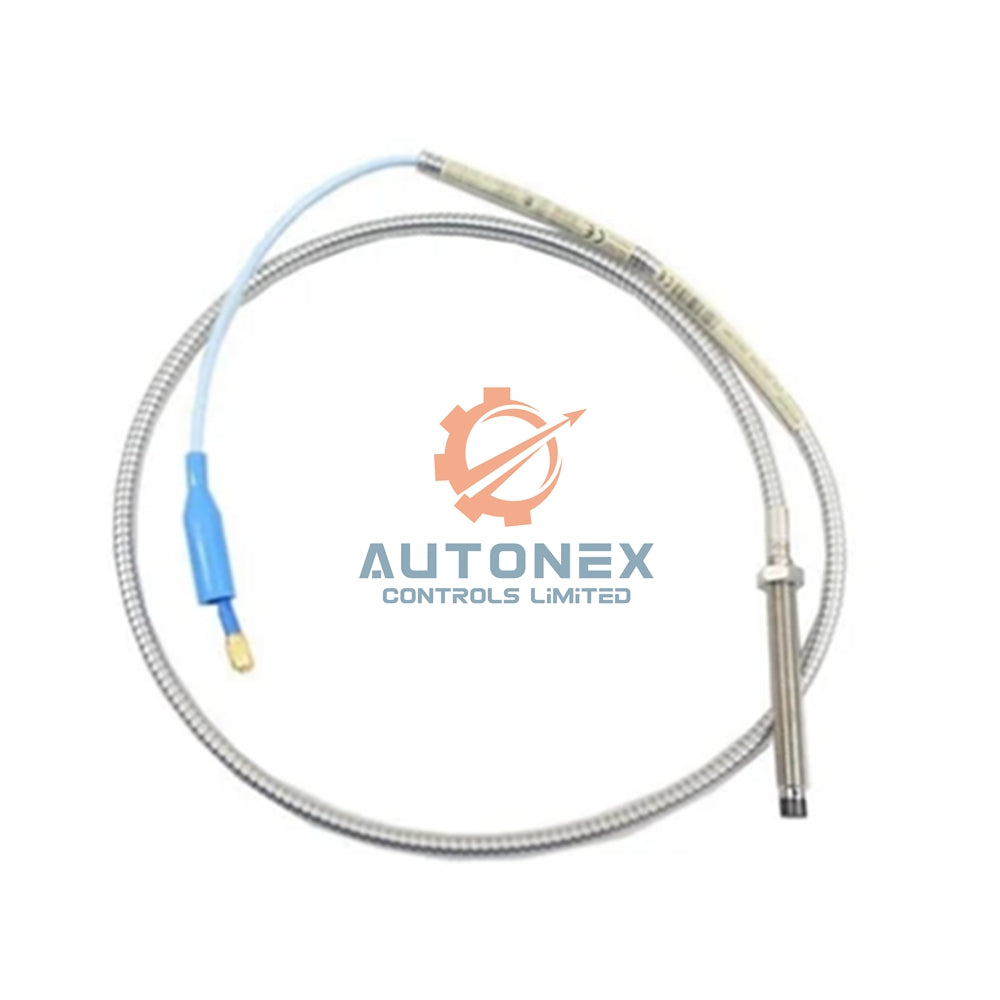

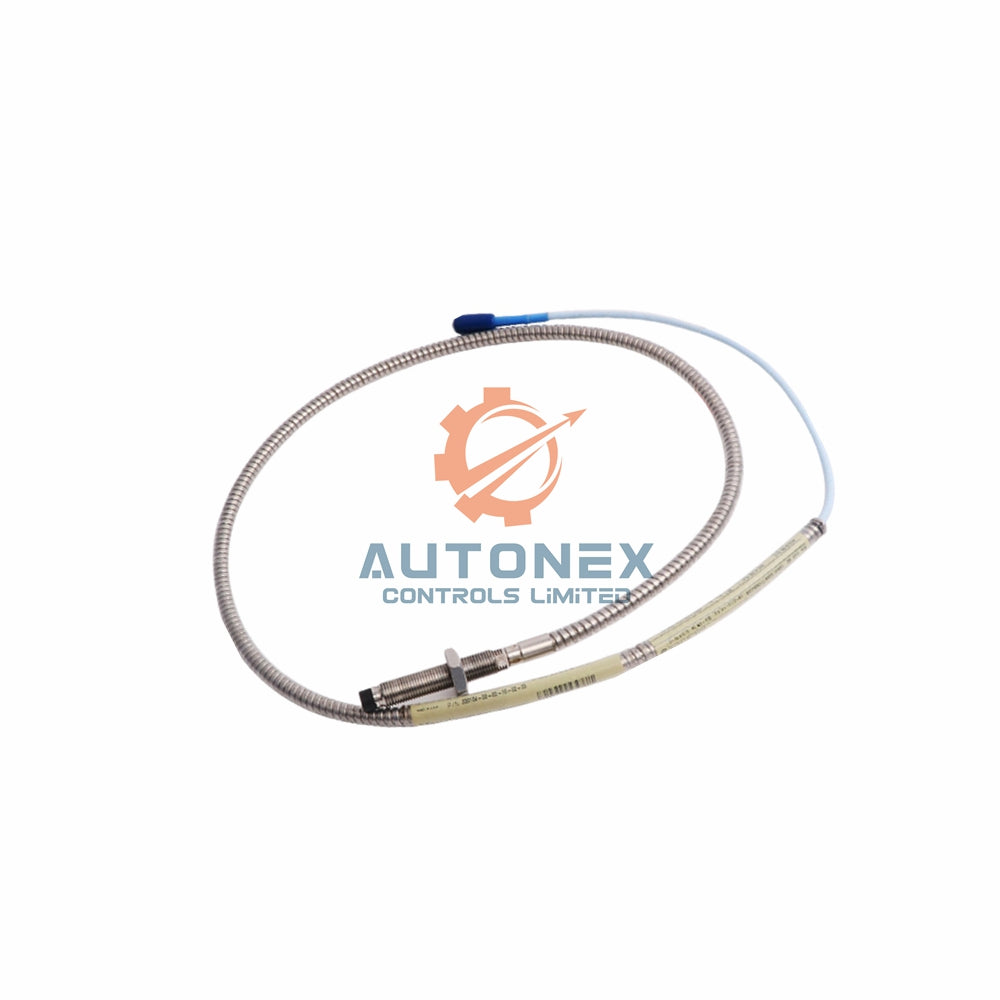

Bently Nevada 330192-00-08-05-CN 3300 XL 8 mm ETR Probe Overview

Key Technical Parameters

• Brand & Model: Bently Nevada 330192-00-08-05-CN (3300 XL 8 mm ETR Probe).
• Thread Type: 3/8-24 UNF thread with maximum thread engagement of 0.563 inches.
• Unthreaded Length: 0 inches (must stay at least 0.8 inches less than case length).
• Overall Case Length: 0.8 inches.
• Total Length (Probe Cable): 0.5 meter (1.6 feet).
• Agency Approval: CN = Country Specific approval.
• Probe DC Resistance (RPROBE): 7.45 ± 0.50 Ω for 0.5m length (center to outer conductor).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity per IEC 68-2-3 (up to 56 days).
• Standard Temperature Range: -52°C to +177°C (-62°F to +350°F) for storage and operation.
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F).
• Extended Cable & Connector Range: -51°C to +260°C (-60°F to +500°F).
• Pressure Seal Warning: Exposing below –34°C (-30°F) may cause premature pressure seal failure.
• Temperature Schedule (EPL Ga/Gc): T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
• Temperature Schedule (EPL Dc): T280°C @ Ta -55°C to +232°C, T225°C @ Ta -55°C to +177°C, T170°C @ Ta -55°C to +120°C, T130°C @ Ta -55°C to +80°C, T105°C @ Ta -55°C to +100°C, T90°C @ Ta -55°C to +40°C.
• Probe Pressure Design: Seals differential pressure between tip and case using a Viton® O-ring.

Frequently Asked Questions (FAQ)

• Do you have this specific model in stock?
  Yes, we keep adequate stock of the 330192-00-08-05-CN probe ready for immediate order processing.
• How quickly will you ship the probe?
  We ship within 5 days after order placement. Most orders ship within 48 hours.
• What carriers do you use for delivery?
  We use FedEx, UPS, and DHL for all shipments to ensure fast and traceable delivery.
• Can I return the probe if it does not meet my needs?
  We support returns within 30 days from delivery. Conditions apply but customer satisfaction is our priority.
• Does the probe handle high humidity environments?
  Yes, the Bently Nevada 330192-00-08-05-CN shows less than 3% ASF change after 56 days at 93% humidity per IEC 68-2-3.
• What is the maximum temperature for continuous use?
  The standard probe operates at -52°C to +177°C. For higher temperatures, use extended range up to +218°C at tip.
• Do you test the pressure seal before delivery?
  Bently Nevada does not pressure test each probe. Contact custom design department if you require a test.
• What thread engagement length should I expect?
  Maximum thread engagement for 3/8-24 UNF is 0.563 inches, which provides secure mounting.
• Is the probe cable replaceable?
  The cable is integral to the probe assembly. Please replace the whole 3300 XL 8 mm ETR Probe if damaged.
