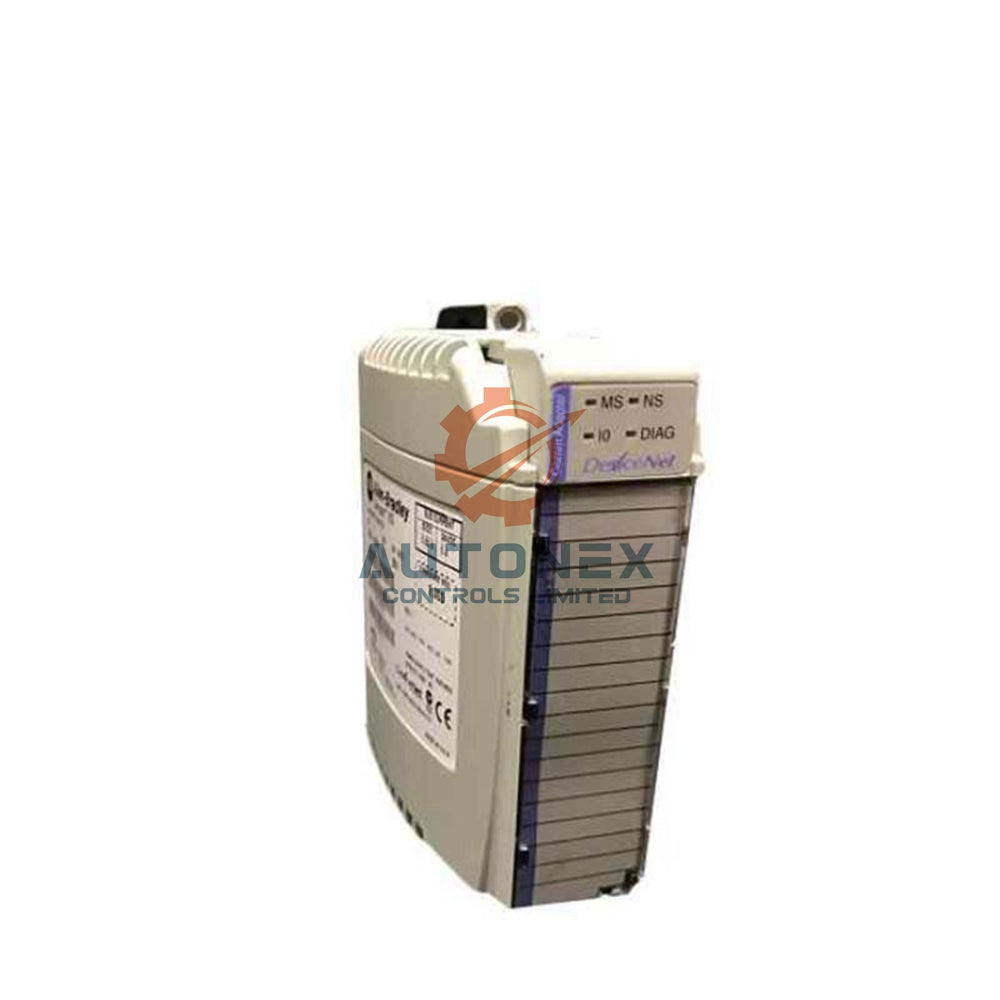

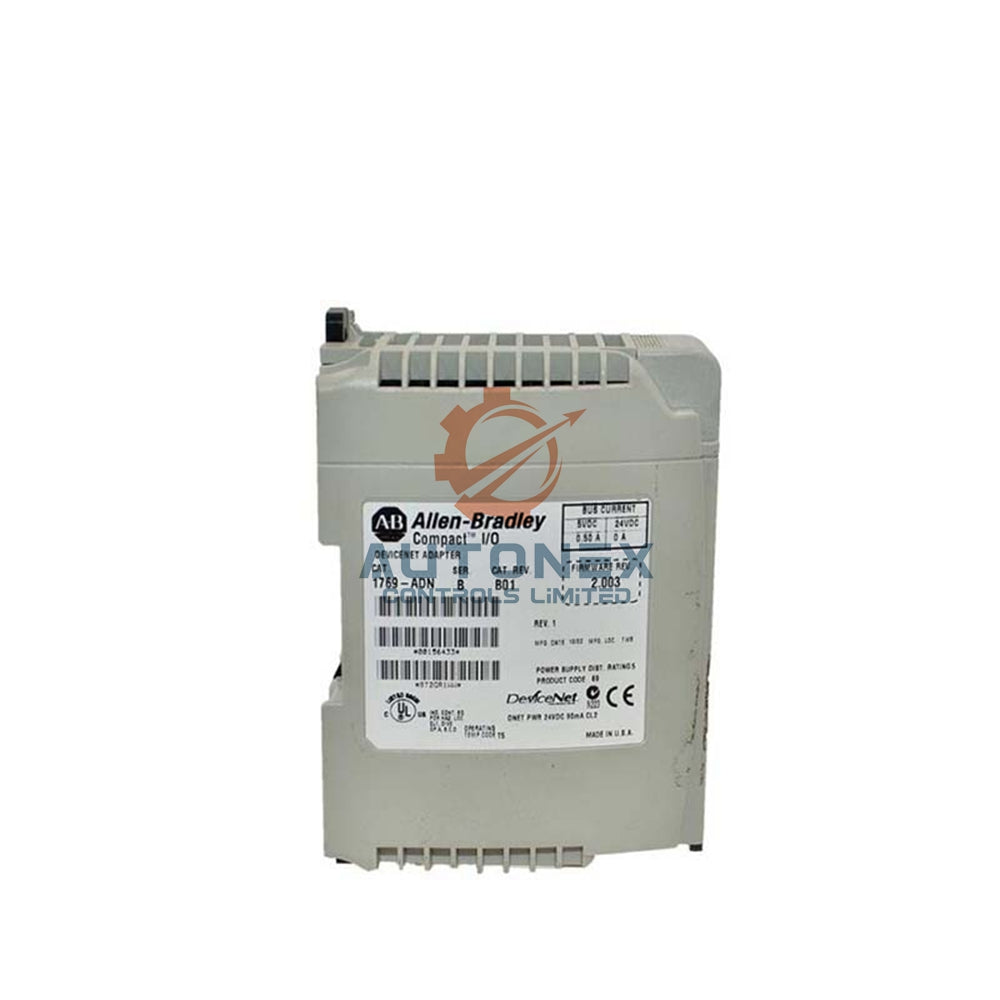

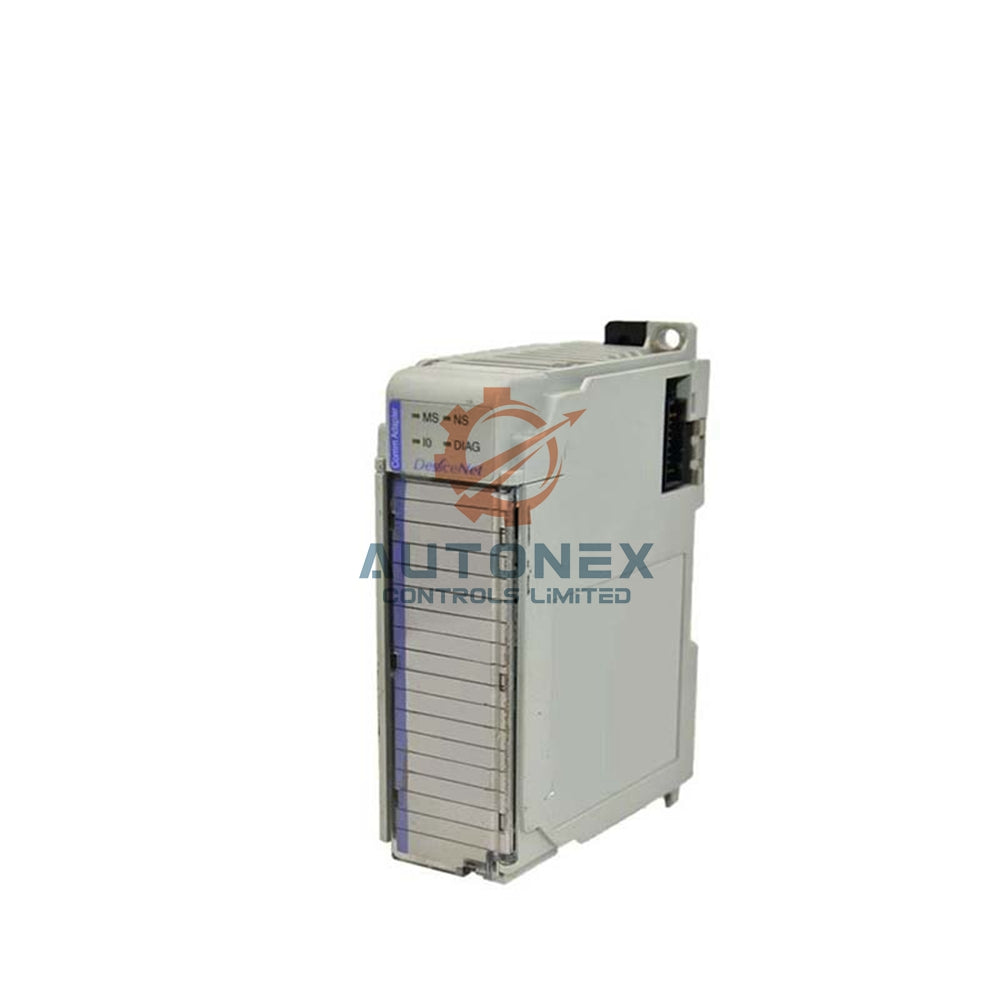

Allen-Bradley 1769-ADN DeviceNet Adapter Module

Core Technical Specifications

• Brand & Manufacturer: Allen-Bradley
• Model/Part Number: 1769-ADN
• Module Type: DeviceNet Scanner Adapter for Compact I/O
• Communication Port: One (1) integrated DeviceNet port
• Data Transfer Speed: Configurable at 125 Kbps, 250 Kbps, or 500 Kbps
• Network Distance: Up to 500m at 125Kbps, 250m at 250Kbps, 100m at 500Kbps
• Maximum I/O Nodes: Supports up to 30 nodes on the network
• Data Capacity: Handles 180 words of input and 180 words of output data
• Backplane Current: Series A: 450mA @ 5V DC; Series B: 500mA @ 5V DC
• DeviceNet Power: 90mA @ 24V DC (11-25V DC range)
• Isolation Voltage: 30 Volts continuous
• Power Dissipation: Approximately 4.7 to 7.5 Watts

Environmental & Physical Specifications

• Operating Temperature: 32°F to 140°F (0°C to 60°C)
• Storage Temperature: -40°F to +185°F (-40°C to +85°C)
• Humidity Rating: 5% to 95% non-condensing
• Enclosure Type: Open design for cabinet installation
• Mounting: DIN Rail or panel mounting

Frequently Asked Questions (FAQ)

• Q: What controllers work with the 1769-ADN module?
  A: The 1769-ADN is compatible with 1769 CompactLogix and MicroLogix 1500 controller platforms.
• Q: What is the maximum number of devices on the network?
  A: This adapter can manage a maximum of 30 I/O nodes on the DeviceNet network.
• Q: How do you determine the communication speed and distance?
  A: Speed and distance are inversely related: 500 Kbps for 100m, 250 Kbps for 250m, and 125 Kbps for 500m.
• Q: What is the condition of the module you sell?
  A: We supply only new, original, and factory-sealed Allen-Bradley products.
• Q: What is your shipping and return policy?
  A: We have stock available and ship within 5 days. We offer a 30-day return policy for unused items.
