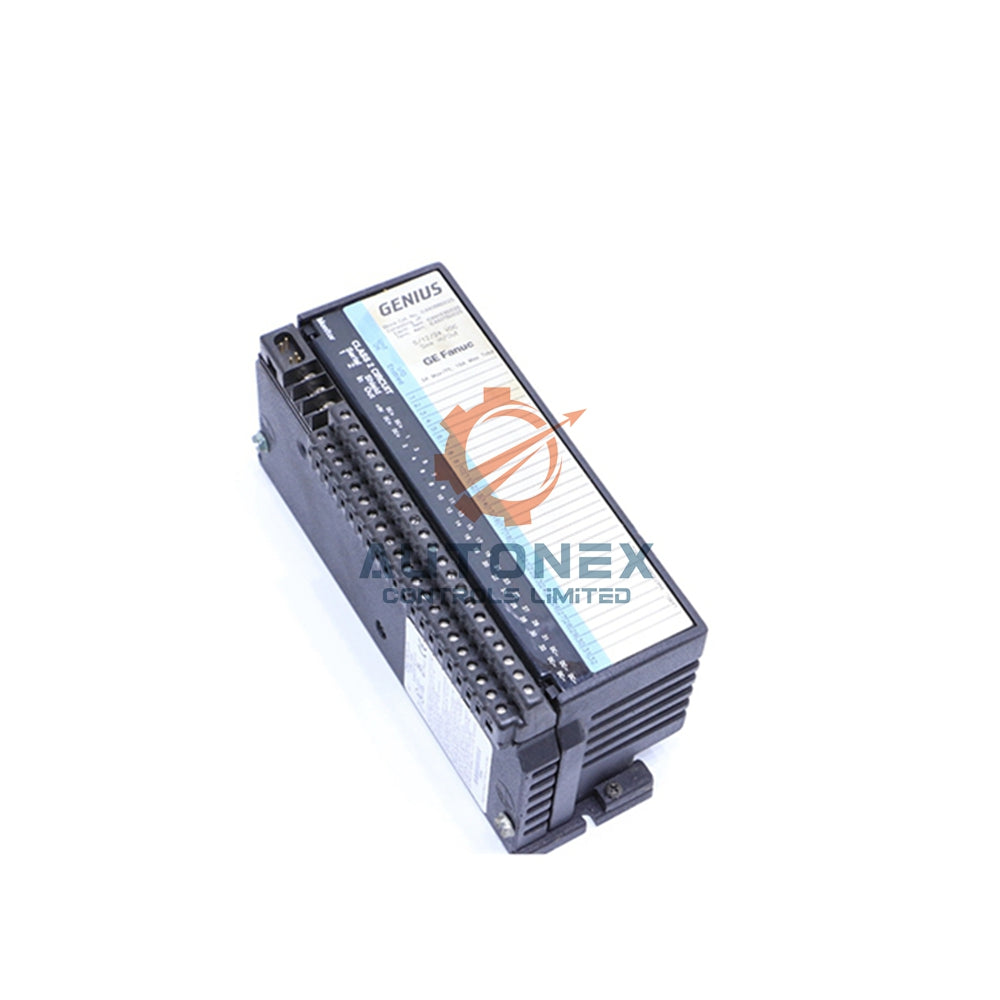

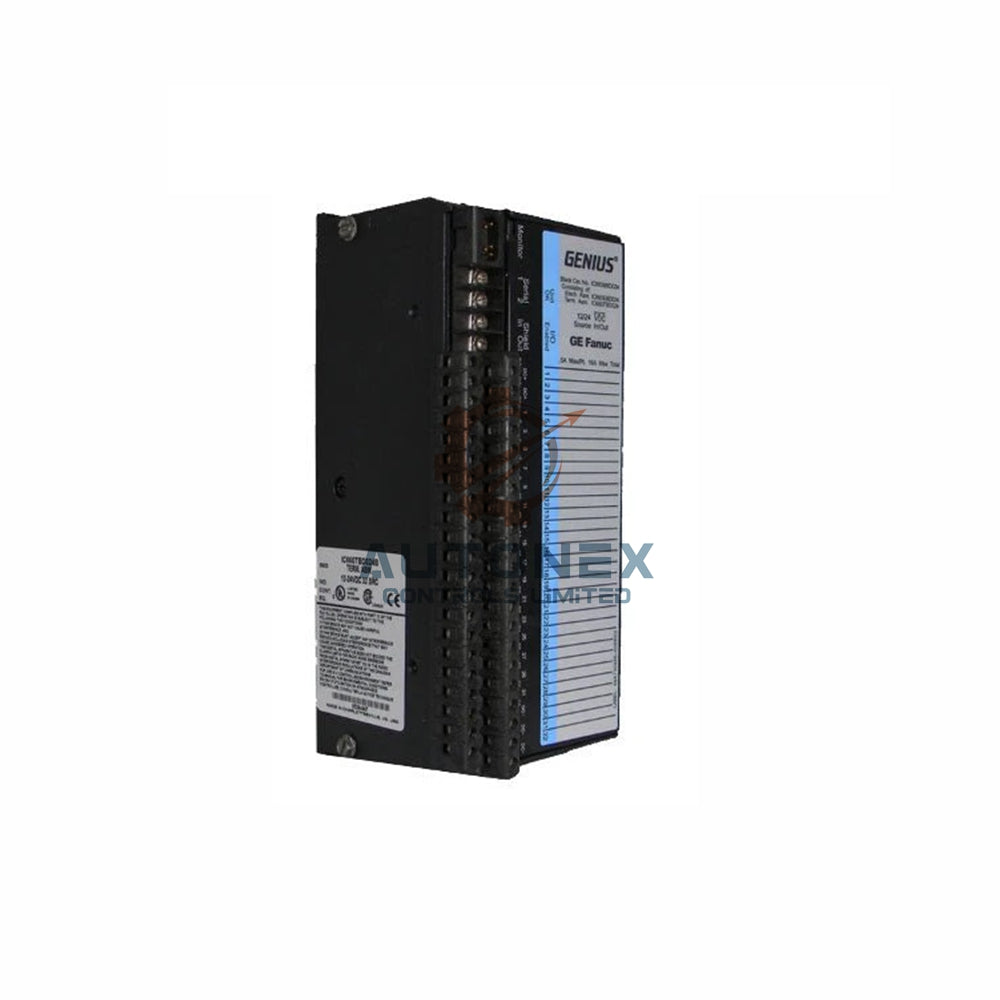

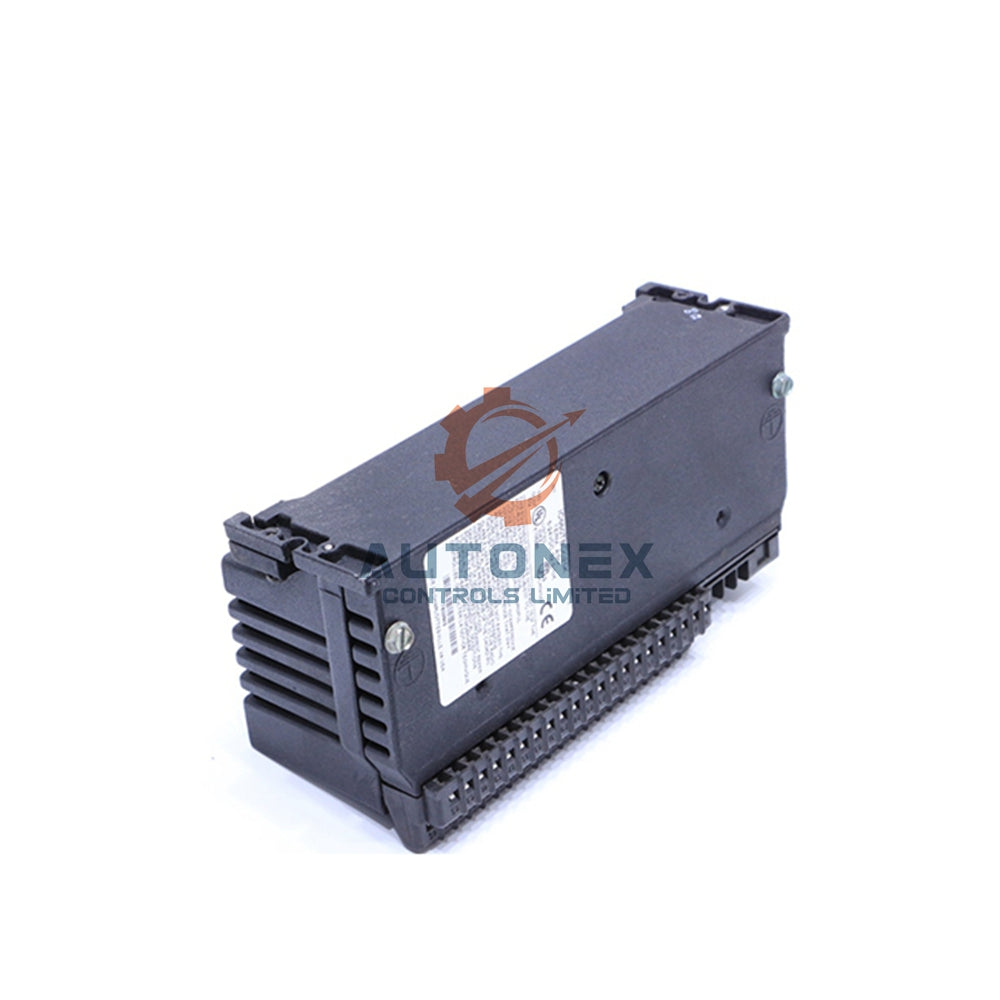

IC660BPM100 GE Fanuc Genius PowerTrac Monitor Block

IC660BPM100 GE Fanuc Genius PowerTrac Power Monitor Block for I/O Systems

• Technical Specifications
  Brand: GE Fanuc
  Series: Genius I-O
  Part Number: IC660BPM100
  Product Type: Power Monitor Block
  Input Voltage: 115/230 VAC or 125 VDC
  Communication: Genius I/O
  Max Distance to Host: 7500 feet
  Burden per Voltage Input: <0.1 VA
  Operating Temperature: 0 to +60°C (+32 to +140°F)
  Storage Temperature: -40 to +100°C (-40 to +212°F)
  Dimensions: 5.21 x 11 x 8.06 inches
  LED Indicators: Unit OK, Communications OK
  Update Rate: 2 per second
  Wire Size: AWG #12 or two AWG #14 for bus; up to AWG #10 for power, CTs, PTs
• Input and Measurement Capabilities
  The IC660BPM100 accepts voltage inputs from three potential transformers and current inputs from three line CTs plus one neutral CT. It measures line frequency and captures overcurrent waveforms with configurable thresholds. Overcurrent withstand is 50 Amps for 5 seconds at 10-minute intervals.
• Flexible System Integration
  This module works with Series 90-30, Series 90-70, PACSystem RX3i, and other Genius Bus Protocol devices. It supports both simplex and redundant bus topologies. The electronics assembly inserts or removes without disturbing field wiring or configuration.
• Standalone Operation
  The IC660BPM100 functions independently without a host controller for local monitoring applications. It converts analog measurements into digitized waveforms for simple parameter analysis.

Frequently Asked Questions

• What parameters does the IC660BPM100 measure?
  The IC660BPM100 measures RMS voltage, current, active power, reactive power, KWH, power factor, and line frequency. It also detects overcurrent transients.
• What input voltages does this power monitor accept?
  The IC660BPM100 accepts 115/230 VAC or 125 VDC inputs through its integral power supply.
• Can the IC660BPM100 operate without a PLC?
  Yes, this module supports standalone mode for local power monitoring without requiring a host controller.
• What is the maximum distance from the host?
  You can install the IC660BPM100 up to 7500 feet from the host controller using Genius I/O communication.
• How often does the block update measurements?
  The IC660BPM100 updates calculated values and status data approximately twice per second.
• Is this a genuine GE Fanuc product?
  Yes, we supply brand new original IC660BPM100 power monitor blocks, formerly GE Fanuc now under Emerson Automation.
• How quickly can you ship this item?
  We maintain stock of the IC660BPM100 and typically ship within 5 business days.
• Which shipping carriers do you use?
  We ship via DHL, FedEx, and UPS for reliable worldwide delivery.
• What is your return policy?
  We accept returns within 30 days for this item in its original condition.
