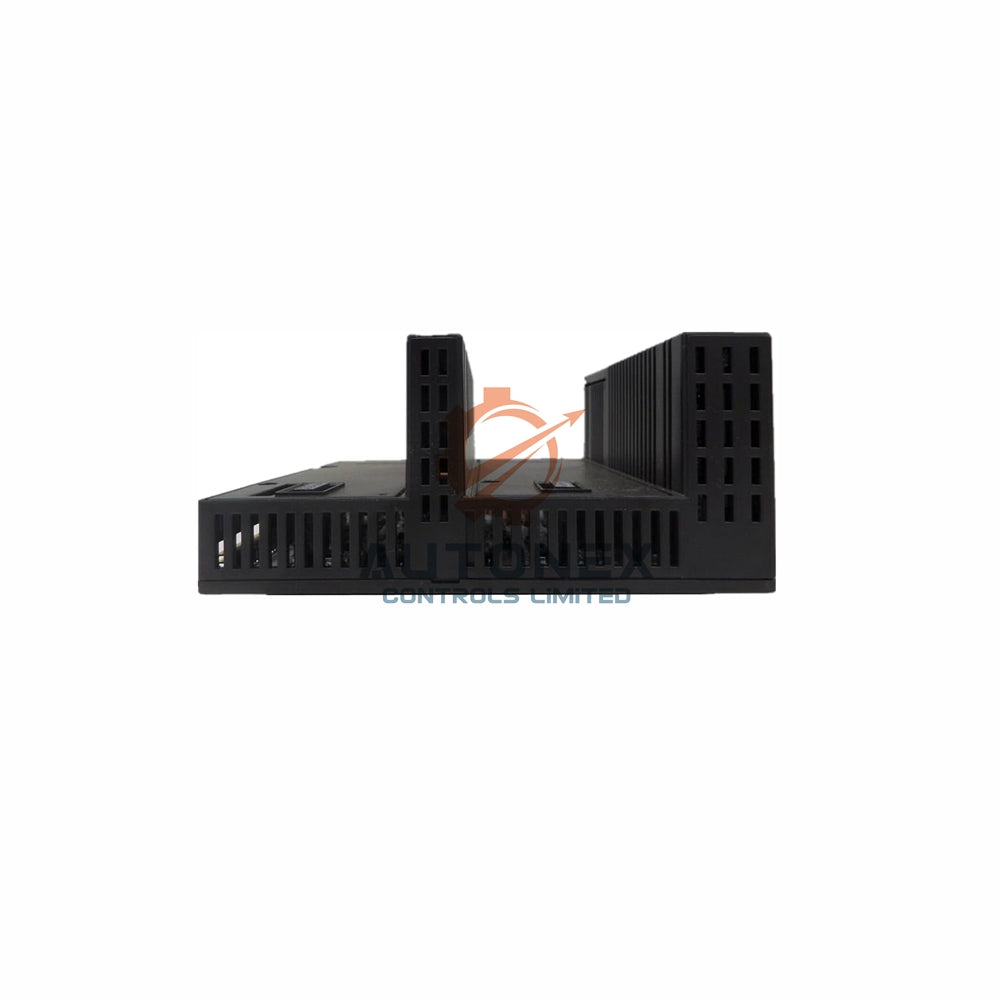

IC200PNS001 GE Fanuc Profinet NIU - VersaMax Remote

มีสินค้าในสต็อก (16 ชิ้น) พร้อมจัดส่งแล้ว

ผู้ขาย:
General Electric
ประเภท:
Network Interface Unit
Country of Origin:
USA
Dimensions:
13*13*4cm
Weight:
600 g
แท็ก: Network interface unit

จำนวน

IC200PNS001 GE Fanuc VersaMax Profinet Network Interface Unit

Technical Specifications
- Brand: GE Fanuc
- Model: IC200PNS001
- Series: VersaMax Profinet Network Interface Unit
- Product type: Remote I/O Profinet Network Interface Unit
- Supported protocol: PROFINET Version 2.2 Class A IO-Device
- Proficy Machine Edition version required: Version 7.0 or later
- Supported topologies: Linear, Star, Daisy chain, Ring (redundant)
- Number of ports: Two (2) RJ45 ports with embedded switch, single IP address
- Transmission rate: 10/100 Mbps
- Maximum cable distance: 100 meters per segment

I/O Capacity and Data Handling
- Discrete I/O total: 2880 bytes (1440 bytes input + 1440 bytes output)
- Analog I/O total: 2880 bytes (1440 bytes input + 1440 bytes output)
- PNS status and control bits: 32 input status bits + 32 output control bits
- Configurable I/O data update rates: 1ms, 2ms, 4ms, 8ms, 16ms, 32ms, 64ms, 128ms, 256ms, 512ms
- Maximum supported I/O modules: Eight (8) VersaMax I/O modules and carriers per instance

Compatible Controllers and Software
- Compatible controllers: Series 90-70, PACSystem RX7i, PACSystem RX3i
- Requires RX3i PLC CPU with Firmware version 7.0 or newer
- Requires Proficy Machine Edition software version 7.0 or later

Key Functions and Features
- Coordinates the VersaMax remote node with the Profinet I/O network
- Performs input data retrieval and output data delivery
- Supports PROFINET alarms and diagnostics reporting
- Allows hot swap of de-energized power supply units
- Supports Classless InterDomain Routing (CIDR) with supernetting and subnetting
- Firmware updates via USB port (for firmware upgrades only, not permanent connection)
- Reports diagnostics and alarms to the I/O controller
- Monitors I/O status when communication is lost

Frequently Asked Questions (FAQ)

Is the IC200PNS001 brand new and original?
Yes, we provide a brand new original unit from GE Fanuc with no third-party components.

How many I/O modules can the IC200PNS001 support?
The IC200PNS001 supports up to eight (8) VersaMax I/O modules and carriers per instance.

What is the maximum I/O data capacity of this Profinet NIU?
The module handles 2880 bytes of discrete I/O and 2880 bytes of analog I/O total.

What software version do I need for the IC200PNS001?
You need Proficy Machine Edition version 7.0 or later and RX3i CPU firmware version 7.0 or newer.

What network topologies does the IC200PNS001 support?
It supports linear, star, daisy chain, and ring (redundant) topologies.

What is the operating temperature range for this module?
The IC200PNS001 operates between 0 and 60 degrees Celsius surrounding air temperature without a fan.

Can I update the firmware on the IC200PNS001?
Yes, you can update the firmware via the USB port. Switch the controller to stop mode and disconnect the network cable before updating.
