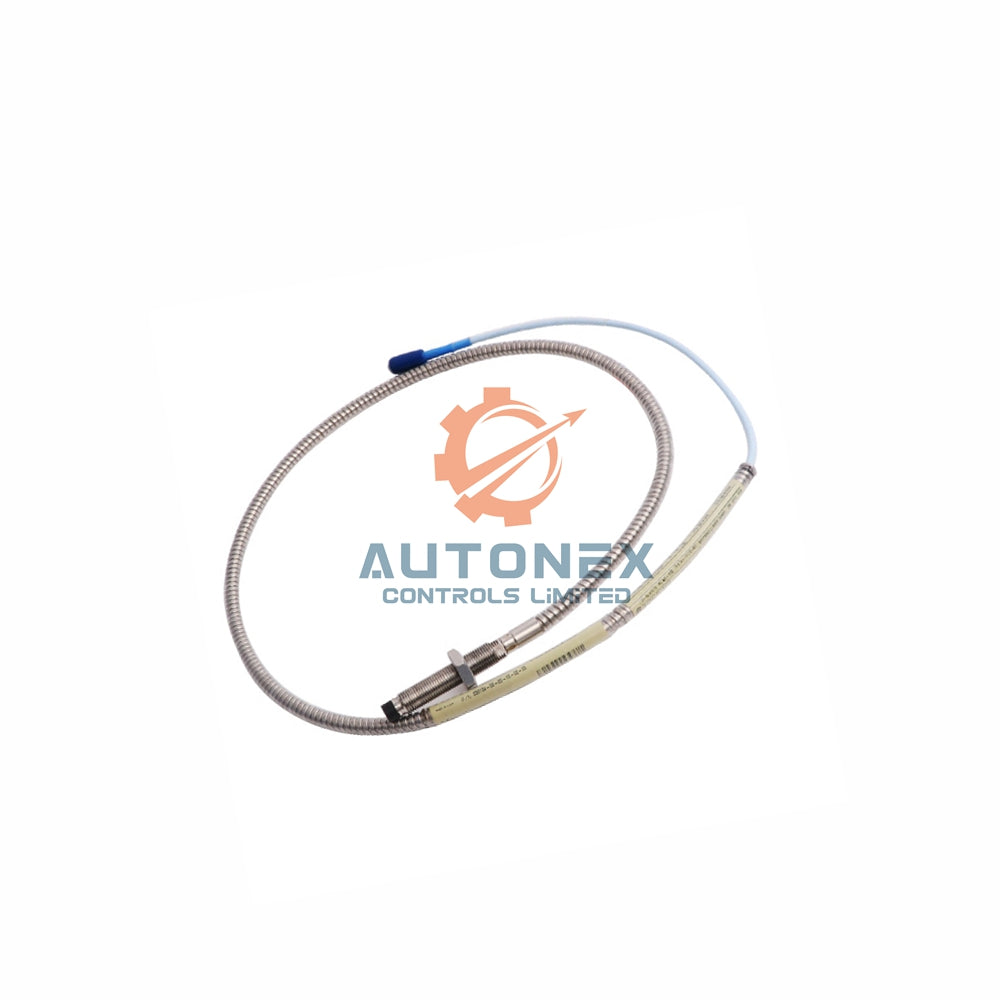

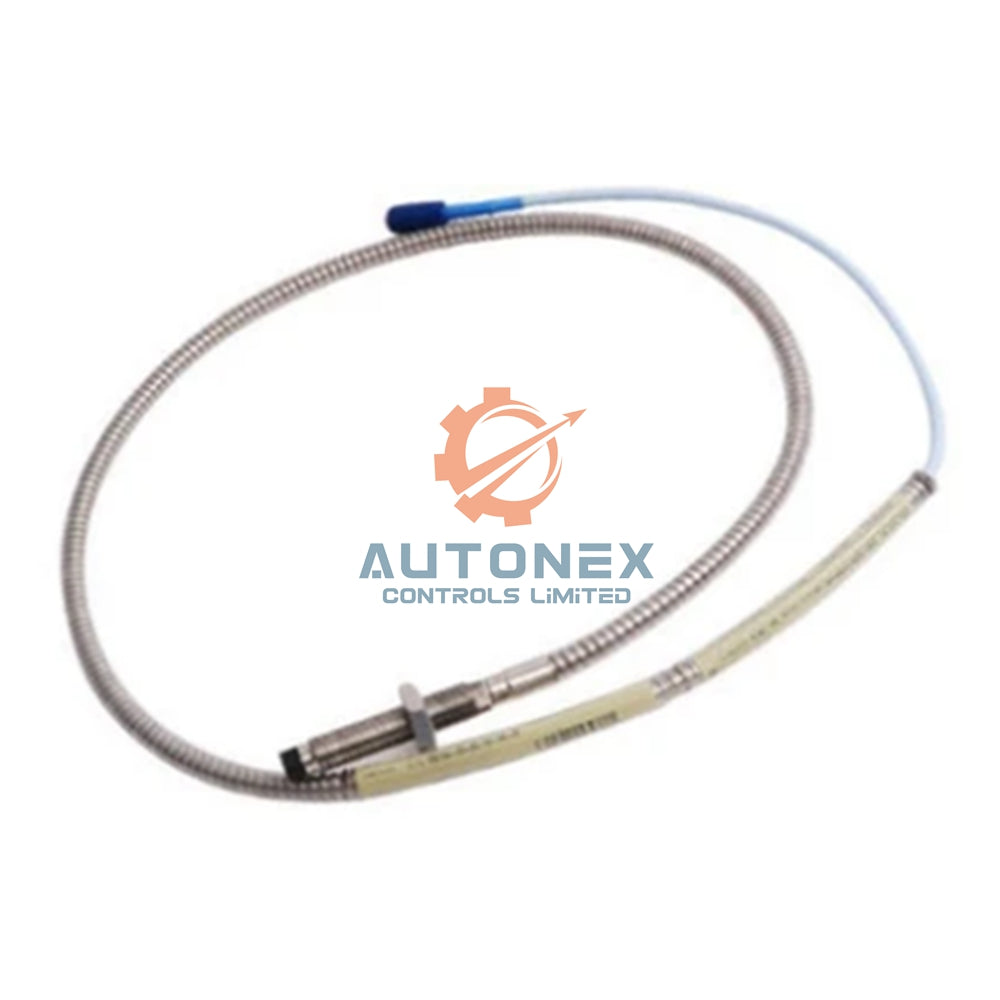

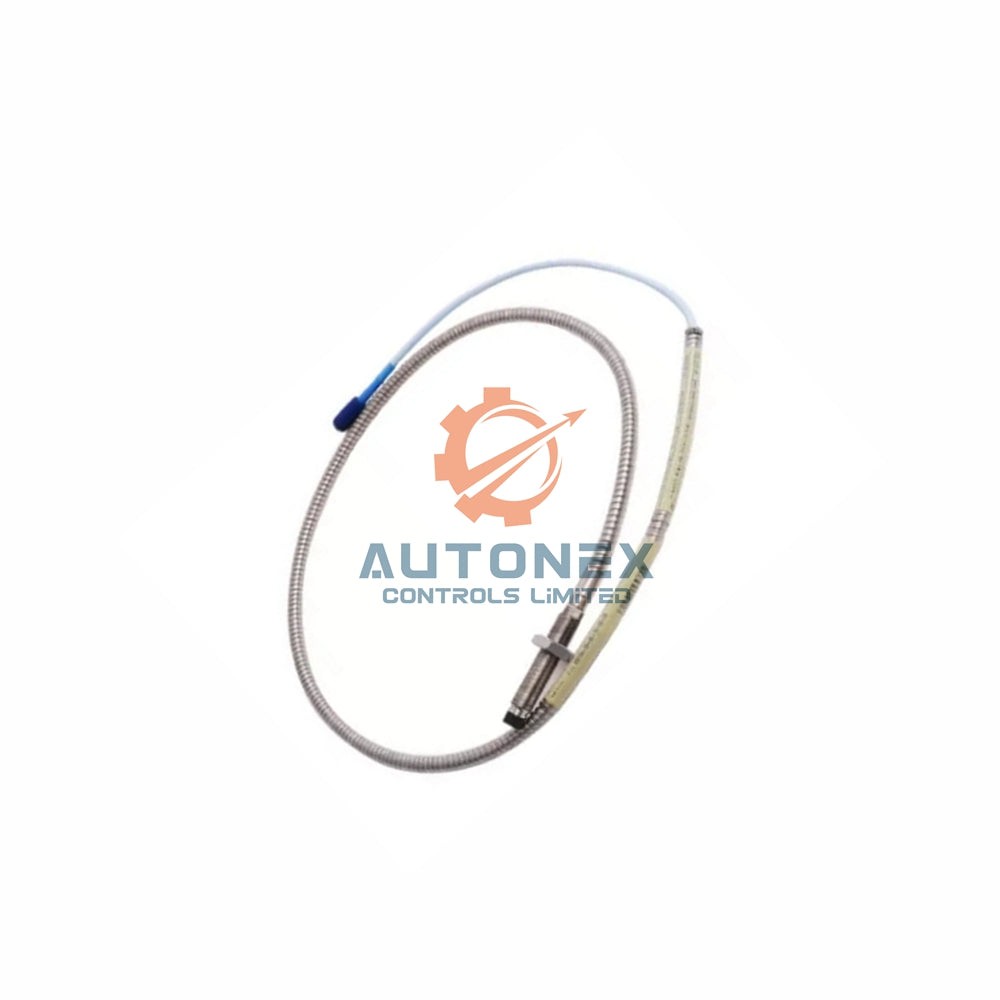

330704-010-100-10-01-05 Bently Nevada 3300 XL 11 mm Proximity Probe

มีสินค้าในสต็อก (16 ชิ้น) พร้อมจัดส่งแล้ว

ผู้ขาย:
Bently Nevada
ประเภท:
Proximity Probe
Country of Origin:
USA
Dimensions:
25*25*5cm
Weight:
323 g
แท็ก: Proximity probe

จำนวน

330704-010-100-10-01-05 Bently Nevada 3300 XL 11 mm Proximity Probe

Key Technical Specifications

Brand & Model: Bently Nevada 3300 XL 11 mm Proximity Probe, part number 330704-010-100-10-01-05.
Unthreaded Length: 10 mm (Option 010).
Overall Case Length: 100 mm (Option 100).
Total Length: 1.0 metre (3.3 feet) (Option 10).
Connector Type: Miniature coaxial ClickLoc connector with a connector protector and standard cable (Option 01).
Agency Approval: Multiple Approvals (Option 05).
Probe DC Resistance: 5.9 ± 0.5 ohms from center conductor to outer conductor for 1.0 metre length.
60 Hz Magnetic Field Effect (5m system): At 0.5 mm gap: 0.001 mV pp/gauss; at 2.5 mm gap: 0.009; at 4.6 mm gap: 0.027.
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 304 stainless steel (SST).
Cable Specification: 75 Ω triaxial FEP insulated cable, available in 1, 5, or 9 metres.
Maximum Case Torque: 63.3 N•m (560 in•lb); Recommended torque: 21.1 N•m (187 in•lb).
Thread Size: M14x1.5 with maximum thread engagement of 21 mm.
Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F). Exposure below -34°C may cause premature seal failure.
Temperature Schedule (EPL Ga/Gc): T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
Temperature Schedule (EPL Dc): T280°C (Ta -55°C to +232°C), T225°C (Ta -55°C to +177°C), T170°C (Ta -55°C to +120°C), T130°C (Ta -55°C to +80°C), T105°C (Ta -55°C to +100°C), T90°C (Ta -55°C to +40°C).

Frequently Asked Questions (FAQ)

Is the 330704-010-100-10-01-05 brand new and original?
Yes, we supply only New & Original Bently Nevada probes in factory packing.
Do you have this 3300 XL 11 mm probe in stock?
Yes, we have the 330704 series model in stock for immediate dispatch.
What is your return policy for this proximity probe?
We support 30-day returns for unused items in original condition.
How long does delivery take after I place the order?
We ship within 5 days via FedEx, UPS, or DHL. Transit time depends on your location.
Can I use the 330704 probe in high magnetic field areas?
Yes, the probe has specified performance up to 300 Gauss at 60 Hz with minimal output change.
What happens if I exceed the recommended torque on the M14x1.5 thread?
Exceeding 63.3 N•m may damage the probe case or the mounting thread.
Does the 1.0 metre total length include the connector?
Yes, the total length option 10 means 1.0 metre from probe tip to connector end.
What approvals does Option 05 include?
Option 05 means Multiple Approvals for hazardous area use (EPL Ga, Gc, Dc).
