330195-02-12-10-CN Bently Nevada 3300 XL Proximity Probe

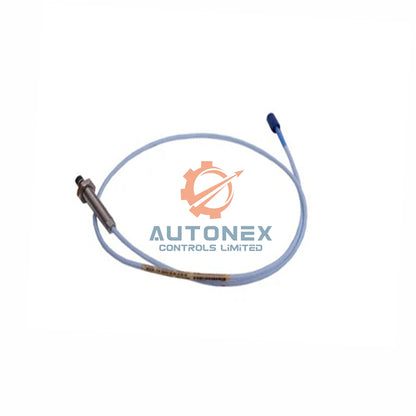

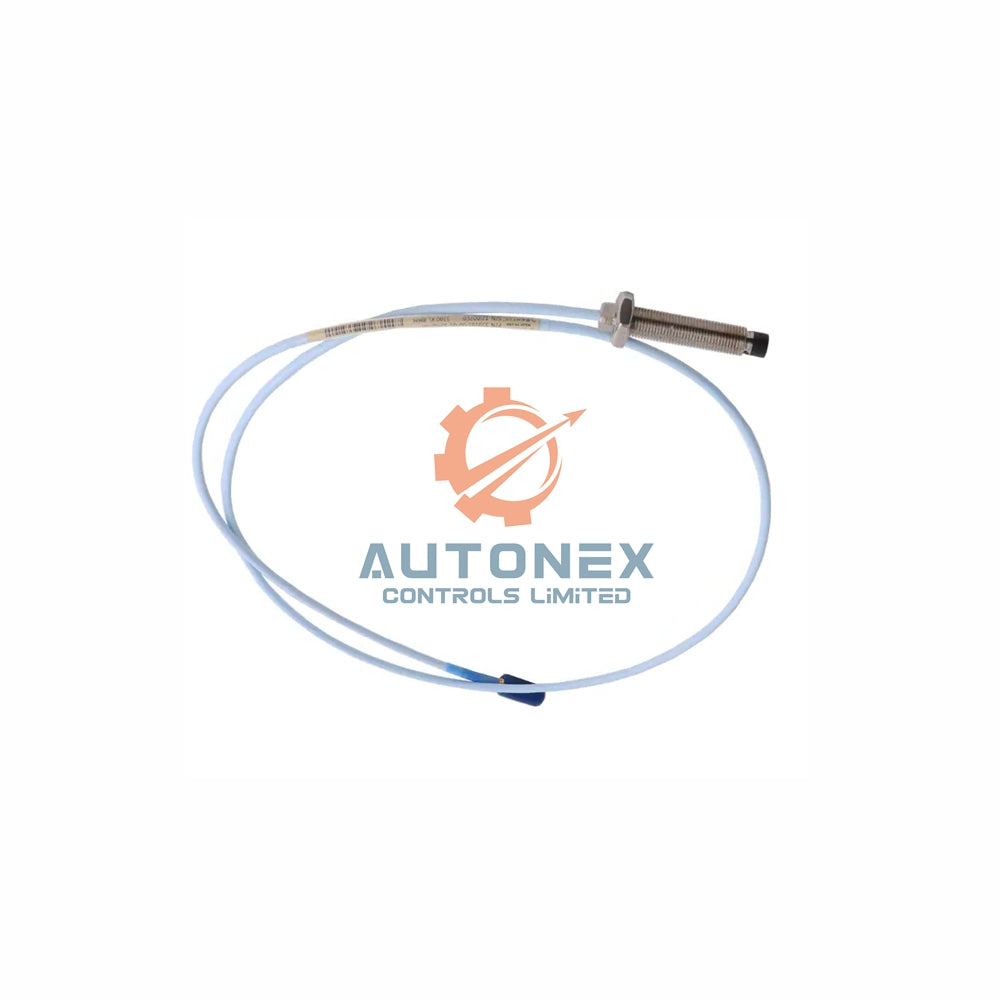

Bently Nevada 330195-02-12-10-CN: 3300 XL 8 mm Reverse Mount Proximity Probe

Key Technical Specifications

• Probe Type: 3300 XL 8 mm proximity probe, reverse mount configuration.
• Thread Size: 3/8-24 UNF threads with 0.563 inch maximum thread engagement.
• Total Length Option: 1.0 meter (3.3 feet) cable length.
• Agency Approval Option: CN = Country Specific approval for China region.
• Nominal DC Resistance (1.0m length): 7.59 ± 0.50 Ω from center to outer conductor.
• Operating & Storage Temperature (Standard Probe): -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F).
• Extended Range (Cable & Connector): -51°C to +260°C (-60°F to +500°F).
• Pressure Seal Warning: Exposing the probe below -34°C (-30°F) may damage the pressure seal.
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity per IEC 68-2-3 (up to 56 days).

Frequently Asked Questions (FAQ)

• Is the 330195-02-12-10-CN probe brand new and original?
  Yes, we only supply a brand new, original Bently Nevada probe.
• Do you have 330195-02-12-10-CN in stock?
  Yes, we keep this 3300 XL series probe in stock for immediate orders.
• How long does shipping take?
  We ship your order within 5 business days after payment confirmation.
• Which carriers do you use for delivery?
  We ship via FedEx, UPS, and DHL for reliable global delivery.
• Can I return this proximity probe after purchase?
  Yes, we support returns within 30 days of receiving the item.
• Does the probe work with existing Bently Nevada 3300 XL systems?
  Yes, 330195-02-12-10-CN fully integrates with Bently Nevada 3300 XL monitors.
• What approval does this reverse mount probe carry?
  This probe carries Country Specific (CN) approval for the China region.
