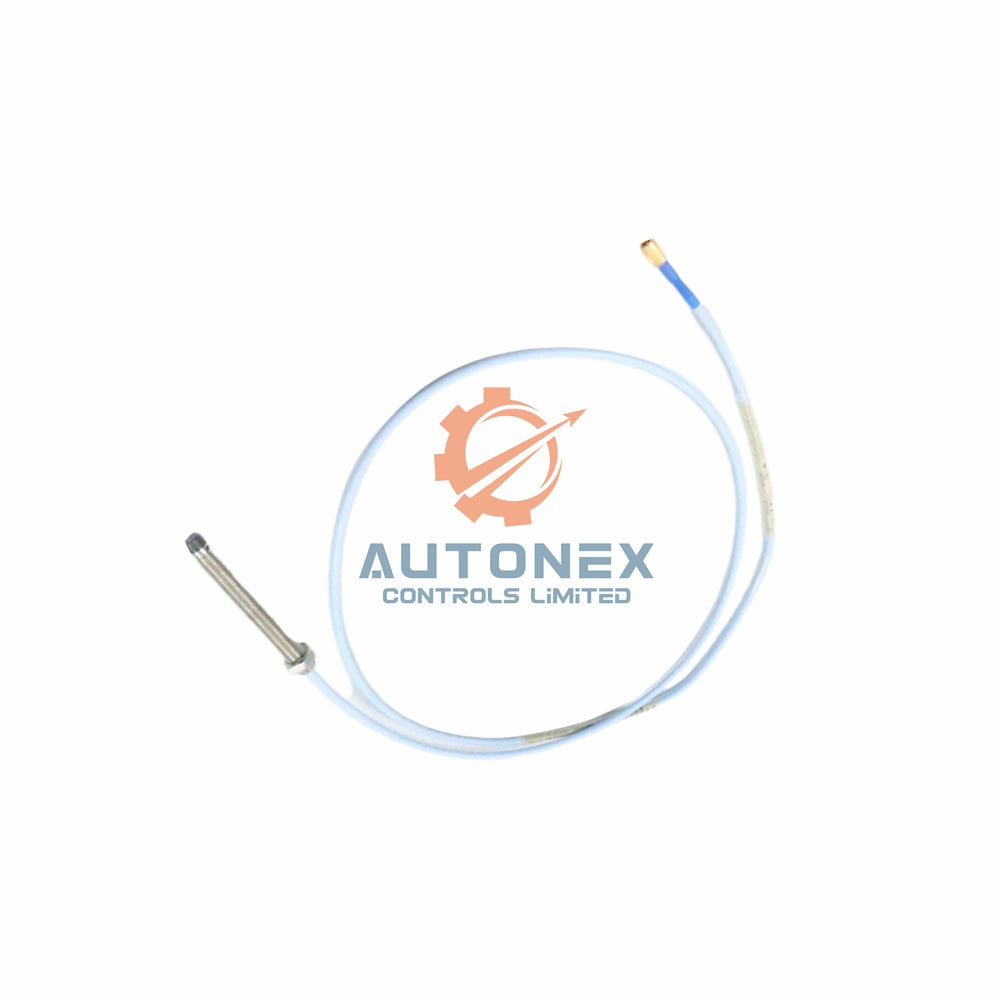

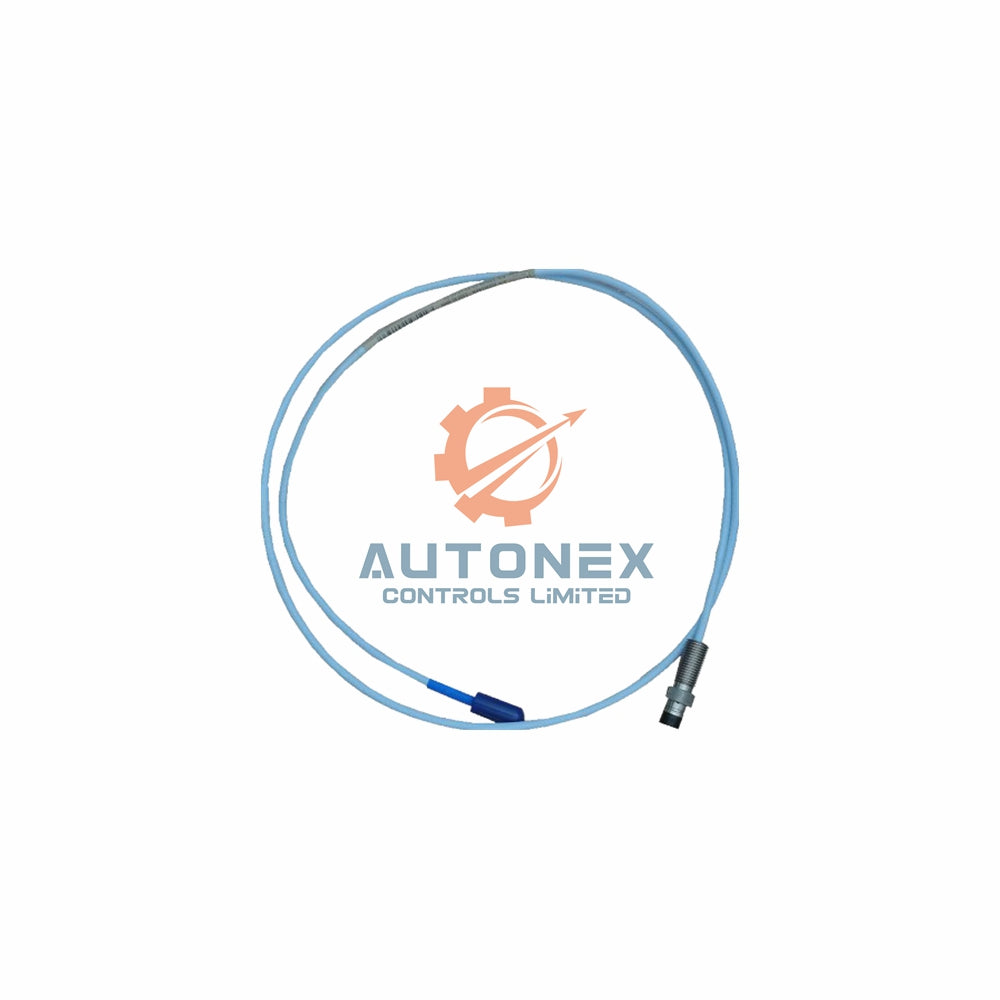

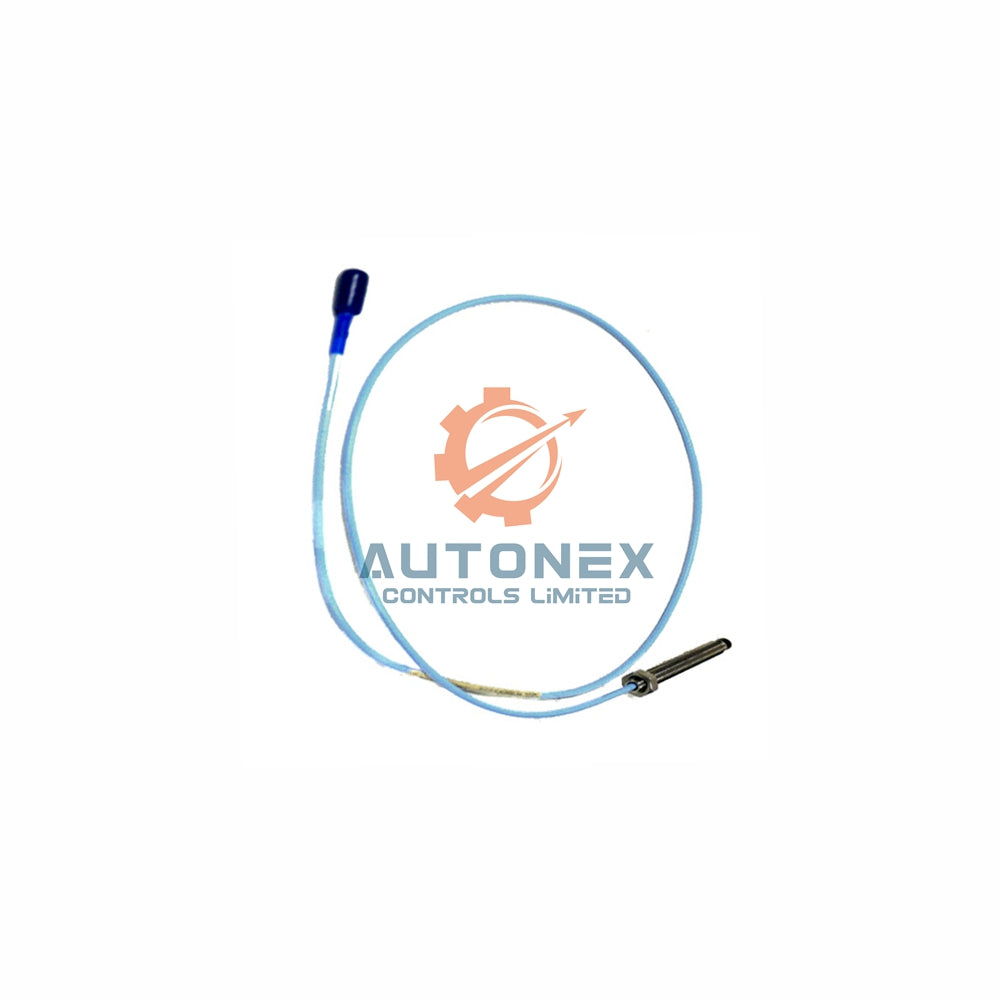

330101-48-71-20-02-CN Bently Nevada 3300 XL 8 mm Probe

มีสินค้าในสต็อก (16 ชิ้น) พร้อมจัดส่งแล้ว

ผู้ขาย:
Bently Nevada
ประเภท:
8 mm Probe
Country of Origin:
USA
Dimensions:
25*25*5cm
Weight:
323 g
แท็ก: 8 mm probe

จำนวน

Bently Nevada 3300 XL 8 mm Probe - Model 330101-48-71-20-02-CN

Technical Specifications

Brand: Bently Nevada.
Model: 330101-48-71-20-02-CN (3300 XL 8 mm Probe).
Unthreaded Length: 4.8 inches (Option 48).
Overall Case Length: 7.1 inches (Option 71).
Total Length: 2.0 meters or 6.6 feet (Option 20).
Connector and Cable: Miniature coaxial ClickLoc connector with standard cable (Option 02).
Country Specific: CN configuration.
Nominal DC Resistance (RPROBE): 7.88 ± 0.50 Ω for 2.0 meter probe length.
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), 3-conductor shielded triad, max 305 meters (1,000 feet).
Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
Recommended Gap for Radial Vibration: -9 Vdc (approximately 1.27 mm or 50 mils).
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for 1 or 2 meter system at 0°C to +45°C.
Deviation from Best Fit Straight Line (DSL): Less than ±0.025 mm (±1 mil) for standard system.
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Weight: 323 g per meter (11.4 oz per meter).
Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F).
Extended Temperature Range Probe Tip: -52°C to +218°C (-62°F to +425°F).
Probe Cable and Connector (ETR): -51°C to +260°C (-60°F to +500°F).
Pressure Seal: Viton® O-ring for differential pressure sealing.
Relative Humidity Test: Less than 3% ASF change at 93% humidity for 56 days per IEC 68-2-3.

Frequently Asked Questions (FAQ)

Is this probe brand new and original? Yes, we supply only brand new and original Bently Nevada parts.
Do you have this model in stock? Yes, we keep the 330101-48-71-20-02-CN in our warehouse.
What is your typical shipping time? We dispatch all orders within 5 business days.
Which carriers do you use for delivery? We ship via DHL, FedEx, or UPS based on your location.
Can I return this probe? Yes, we support returns within 30 days after delivery.
What is the linear range of this probe? The linear range is 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
Does the probe perform well in high humidity? Yes, it passes 93% humidity testing with less than 3% scale factor change.
Can I use this probe with long extension cables? Yes, but keep total field wiring under 305 meters (1,000 feet) for best performance.
What is the difference between standard and FluidLoc cable? This model uses standard cable (Option 02) without FluidLoc oil-blocking feature.
