330101-00-96-20-02-CN Bently Nevada 3300 XL Probe In Stock

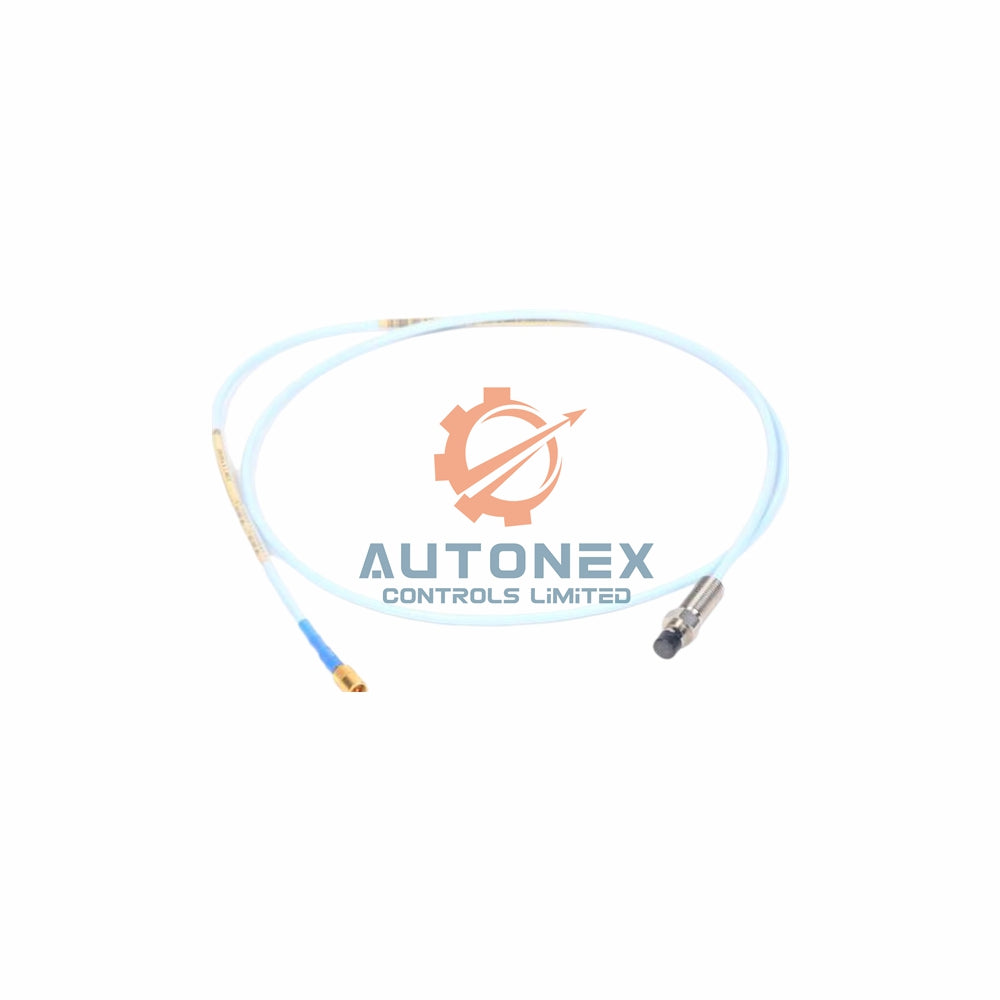

Bently Nevada 330101-00-96-20-02-CN 3300 XL 8 mm Probe

Key Technical Specifications

• Brand: Bently Nevada
• Model: 330101-00-96-20-02-CN
• Type: 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
• Unthreaded Length: 0.0 inches (option 00)
• Overall Case Length: 9.6 inches (option 96)
• Total Length: 2.0 meters (6.6 feet, option 20)
• Connector Type: Miniature coaxial ClickLoc connector, standard cable (option 02)
• Country Specific: CN version
• Nominal DC Resistance (RPROBE): 7.88 ± 0.50 Ω for 2.0m probe length
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils), output -1 to -17 Vdc
• Recommended Gap for Radial Vibration: -9 Vdc (approx. 1.27 mm / 50 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for 1 or 5 m system (0-45°C)
• Deviation from Best Fit Straight Line (DSL): Less than ±0.025 mm (±1 mil) for 1/5 m system at 0-45°C
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Probe Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range Probe: Tip up to +218°C (+425°F); Cable up to +260°C (+500°F)
• Pressure Seal: Viton® O-ring designed for differential pressure between tip and case
• Relative Humidity: <3% change in Average Scale Factor (ASF) after 56 days at 93% humidity (IEC 68-2-3)
• Pull Strength: 330 N (75 lbf) from CableLoc design
• Weight: 323 g/m (11.4 oz per meter)

Design & Environmental Robustness

• TipLoc molding method: This patented process creates a stronger bond between the probe tip and body.
• CableLoc technology: It securely attaches the probe cable to the probe tip preventing pull-out.
• FluidLoc cable option: Order this to prevent oil leakage through the cable interior.
• 8 mm probe benefits: Thicker PPS encapsulation and larger body diameter provide excellent physical abuse resistance.
• Operating humidity: The probe withstands 93% humidity with minimal scale factor change.
• Low temperature caution: Exposure below -34°C (-30°F) may damage the pressure seal.

Field Wiring & System Integration

• Field wiring size: Use 0.2 to 1.5 mm² (16 to 24 AWG) 3-conductor shielded triad cable.
• Maximum wiring length: 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and monitor.
• Standard system options: Available in 1, 5, or 9 meter system lengths with specific ISF tolerances.
• Extended temperature range (ETR): Offers ±6.5% ISF for 5 and 9 meter systems from 0°C to +45°C.
• DSL for 9m system: Less than ±0.038 mm (±1.5 mil) within standard temperature range.

Frequently Asked Questions (FAQ)

• Is this 330101-00-96-20-02-CN probe brand new and original? Yes, we supply only brand new, genuine Bently Nevada parts with full traceability.
• Do you have this 3300 XL 8 mm probe in stock? Yes, we have the 330101-00-96-20-02-CN available for immediate shipment.
• What is your shipping time? We dispatch within 5 days after order confirmation. Delivery usually takes 3-7 business days via DHL/FedEx/UPS.
• What is the linear range of this probe? The linear range equals 2 mm (80 mils) from 0.25 mm to 2.3 mm from target.
• How does the probe perform at high temperatures? Standard probe operates from -52°C to +177°C. Extended range option goes to +218°C at the tip.
• Can I use extension cables with this probe? Yes, the 3300 XL system supports extension cables with same capacitance characteristics.
• What is the return policy? We support 30-day returns for unused items in original condition.
• Does this probe resist oil leakage? The standard probe includes Viton® O-ring seal. Order FluidLoc cable option for extra leak prevention.
