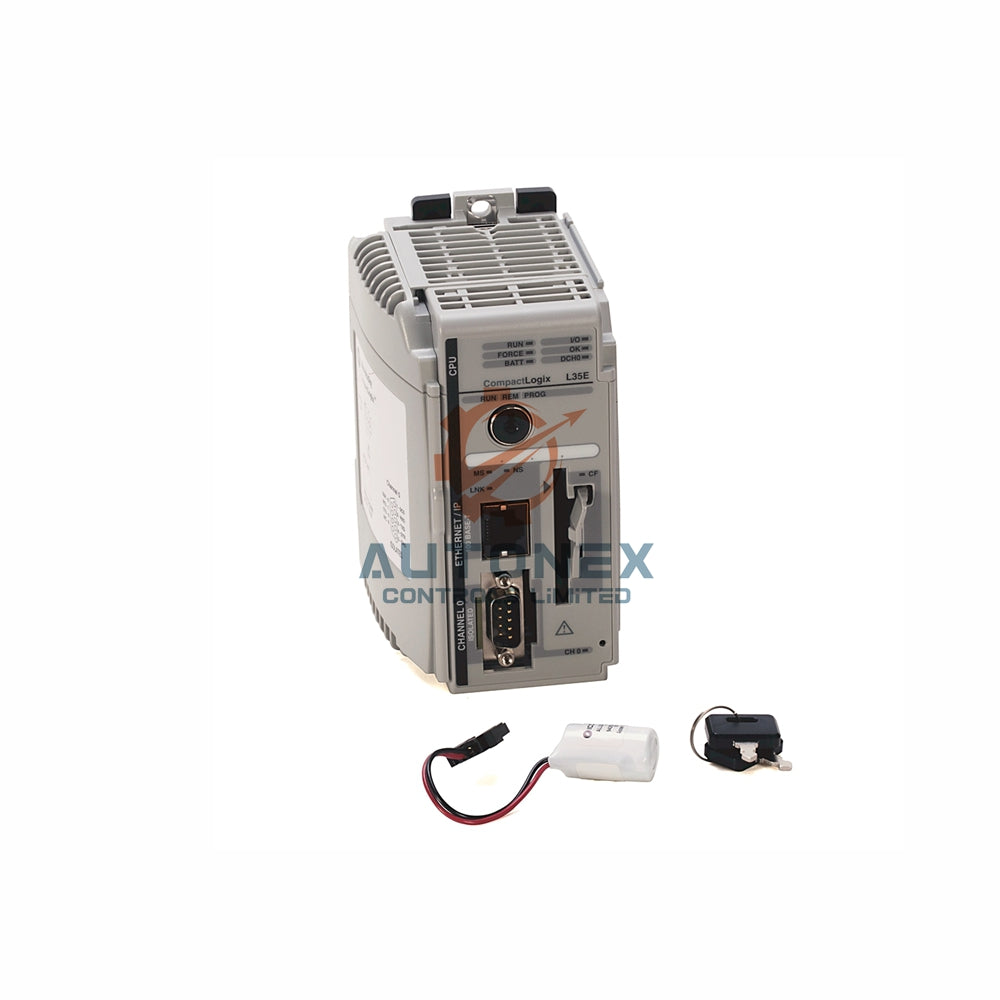

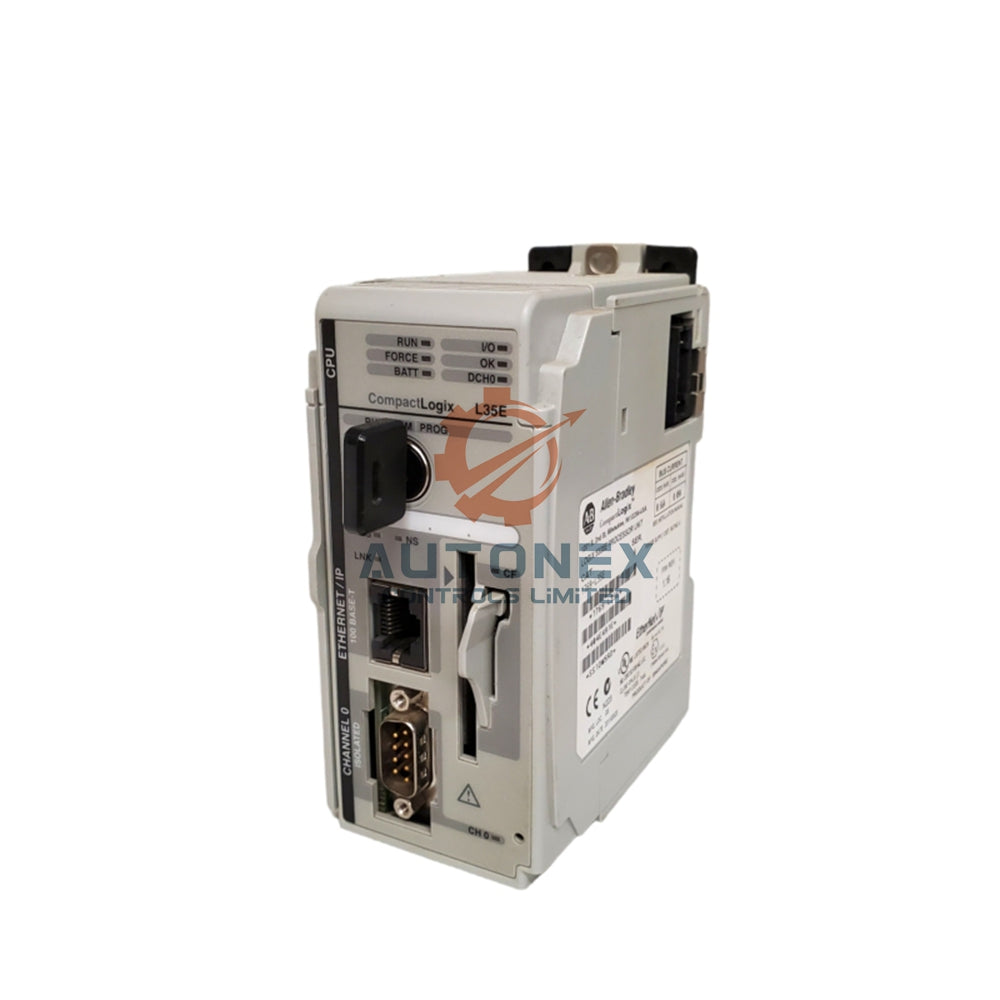

1769-L35E | Allen-Bradley CompactLogix Controller 1.5MB

มีสินค้าในสต็อก (17 ชิ้น) พร้อมจัดส่งแล้ว

ผู้ขาย:
Allen-Bradley
ประเภท:
Processor Module
Country of Origin:
USA
Dimensions:
13*6.7*8.7cm
Weight:
426 g
แท็ก: Processor module

จำนวน

Allen-Bradley 1769-L35E CompactLogix Controller: High-Performance PAC for Medium-Scale Control

Manufacturer: Allen-Bradley
Product Line: CompactLogix
Part Number: 1769-L35E
Product Type: Processor Module (CompactLogix Controller)
User Memory: 1.5 MB
Non-Volatile Memory Option: 1784-CF128 CompactFlash card
Embedded Communication Ports: One (1) RS232 and one (1) Ethernet port
Supported Protocols: DF1, DH485, ASCII, EtherNet/IP
Maximum I/O Modules: 30 modules (local)
Maximum I/O Banks: 3 banks with two expansion cables
Power Supply Distance Rating: 4 modules

Technical Specifications for the 1769-L35E Controller

Backplane Current Draw at 5V DC: 660 mA
Current Draw at 24V DC: 90 mA
Heat Dissipation: 5.5 Watts
Maximum Insulation Voltage: 30 Volts
Ethernet Transfer Rate: 10/100 Mbps with auto-negotiation
Maximum Ethernet Cable Length: 100 meters (Cat5/Cat6)
RS232 Cable Length Limit: 15.2 meters with 9-pin DB9 connector
Required Programming Cable: 1747-CP3 or 1756-CP3
Battery Type: 1769-BA (lithium, replaceable)
Operating Temperature Range: 0°C to +60°C (+32°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 0% to 95%, non-condensing
Vibration Resistance (Operating): 5G at 10 to 500 Hz
Shock Rating (Panel Mount): 30G
Shock Rating (DIN Rail Mount): 20G
Mounting Torque: 1.1 to 1.8 N-m
Weight: Approximately 0.30 kg (0.66 lbs)
Shipping Dimensions: 8 x 8 x 5 inches

Frequently Asked Questions (FAQ) about the 1769-L35E

Q: Is the 1769-L35E a brand new original unit?
A: Yes, we supply only brand new and original Allen-Bradley products.
Q: Do you have the 1769-L35E in stock?
A: Yes, we keep the 1769-L35E in stock for immediate orders.
Q: What is the typical shipping time?
A: We dispatch all orders within 5 business days after payment confirmation.
Q: Which carriers do you use for delivery?
A: We ship via FedEx, UPS, and DHL for fast and reliable service.
Q: Can I return the 1769-L35E if I change my mind?
A: Yes, we support a 30-day return policy from the delivery date.
Q: What software do I need to program the 1769-L35E?
A: Use Studio 5000 Logix Designer for revisions 21.00 and later. For older revisions (16, 17, 19.015, 20.013), use the corresponding RSLogix 5000 version.
Q: How many CIP connections does the Ethernet port support?
A: The Ethernet/IP port supports up to 32 CIP connections.
Q: What programming languages does this controller support?
A: It supports Ladder Diagram, Function Block, Structured Text, Sequential Function Chart, and Statement List per IEC-61131-3.
