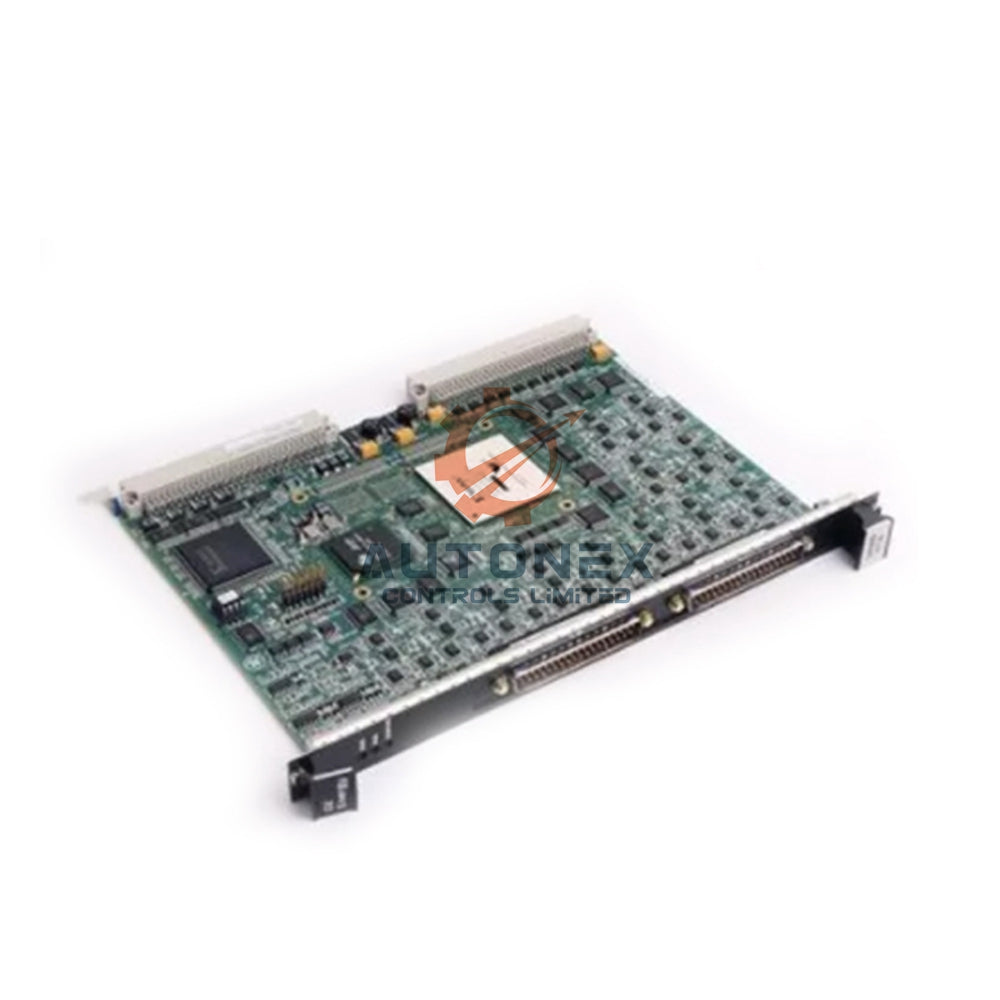

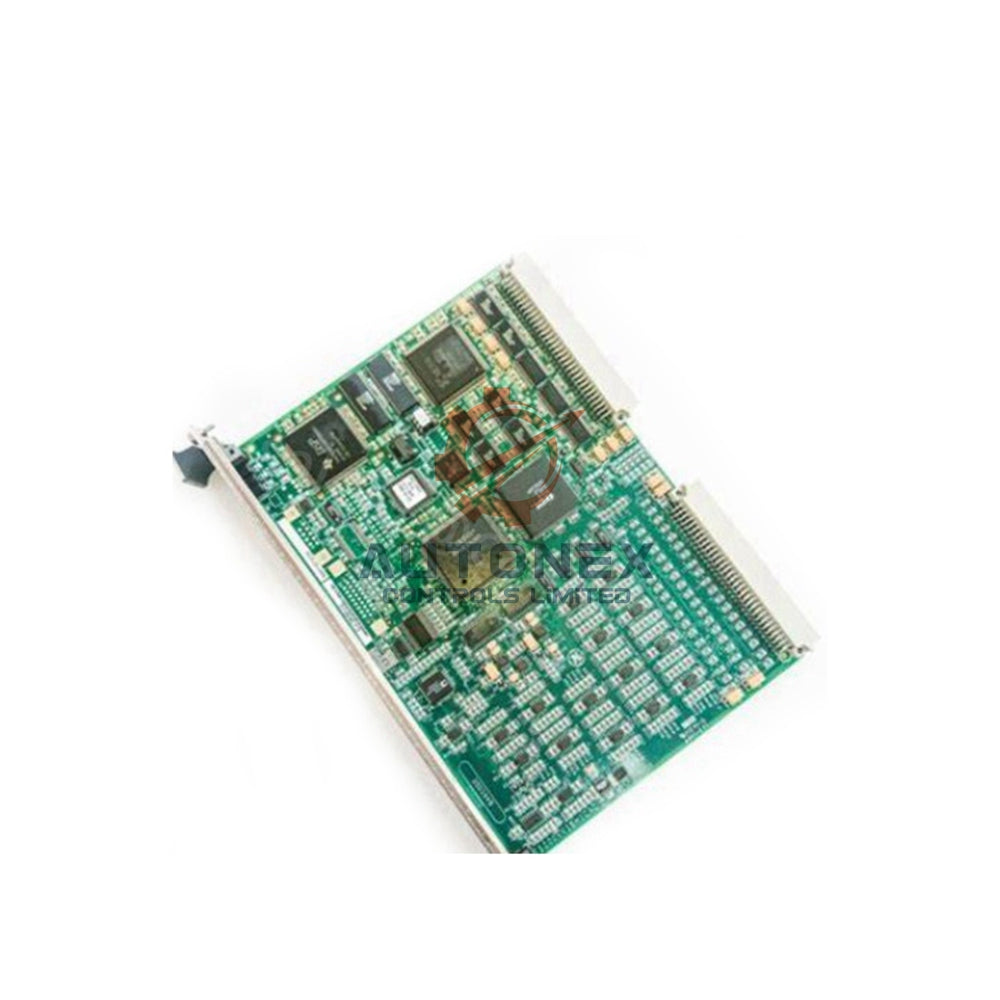

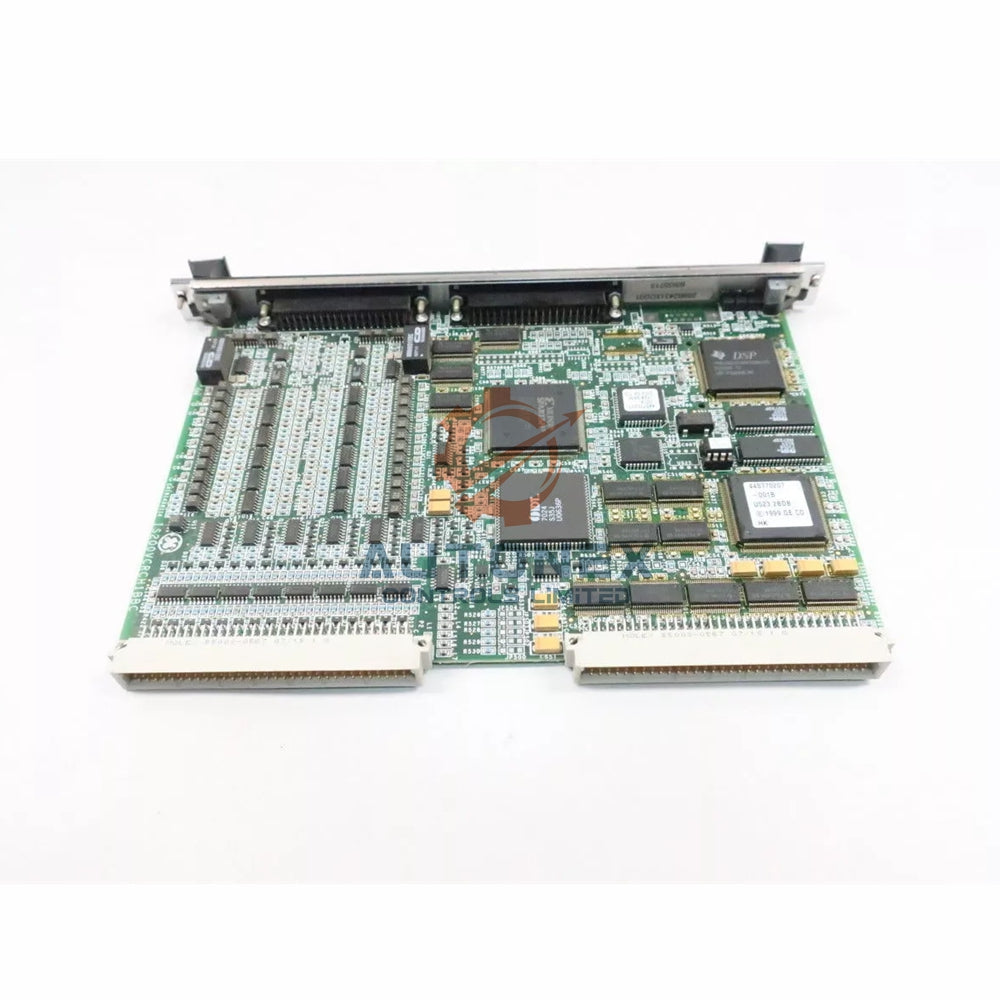

IS200VRTDH1DAB GE RTD Processor Board Mark VI 16 Channels

IS200VRTDH1DAB Resistance Temperature Device Processor Board Overview

Key Technical Specifications

• Brand: General Electric (USA). Model: IS200VRTDH1DAB provides 16 channels for RTD temperature sensing.
• Input Span & Common Mode Voltage: Span ranges from 0.3532 to 4.054 V. Common mode voltage range at 5 V.
• Lead Resistance & Scan Speed: Maximum lead resistance at 15 ohms. Fast scan time at 40 ms (25 Hz).
• Power Consumption: Less than 12 W typical operation. Manufactured in the United States of America.
• Operating Temperature: -30°C to 65°C for industrial environments. Board uses surface mount technology.
• Redundant Pacemakers: RTD multiplexing uses redundant pacemakers for fault tolerance. Prevents signal loss from cable or board failure.
• Out of Range Detection: RTD short and open circuits trigger out of range detection. System removes faulty RTDs from scanned inputs.
• Automatic Reinstatement: Out of range RTDs reinstate automatically every 20 seconds when within range. Manual reinstatement also available.

Frequently Asked Questions (FAQ)

• Q: Is the IS200VRTDH1DAB a genuine new part?
  A: Yes, we supply only brand new and original General Electric boards. No refurbished or counterfeit units.
• Q: How many RTD channels does this board support?
  A: The IS200VRTDH1DAB supports 16 channels for resistance temperature device monitoring.
• Q: What is the input span for this board?
  A: The input span ranges from 0.3532 to 4.054 V. Common mode voltage range is 5 V.
• Q: What is the fast scan time?
  A: Fast scan time is 40 ms, which equals 25 Hz scanning frequency.
• Q: Do you have IS200VRTDH1DAB in stock?
  A: Yes, we keep this RTD processor board in stock. We dispatch within 5 days via FedEx, UPS, or DHL.
• Q: How does the board detect faulty RTDs?
  A: RTD short and open circuits create out of range values. The system removes these RTDs from scanned inputs automatically.
• Q: Can faulty RTDs return to normal operation automatically?
  A: Yes, out of range RTDs reinstate automatically every 20 seconds when values return within range. Manual reinstatement also works.
• Q: What is the return policy for this item?
  A: You can return the board within 30 days. The unit must remain unused and in original packaging.
