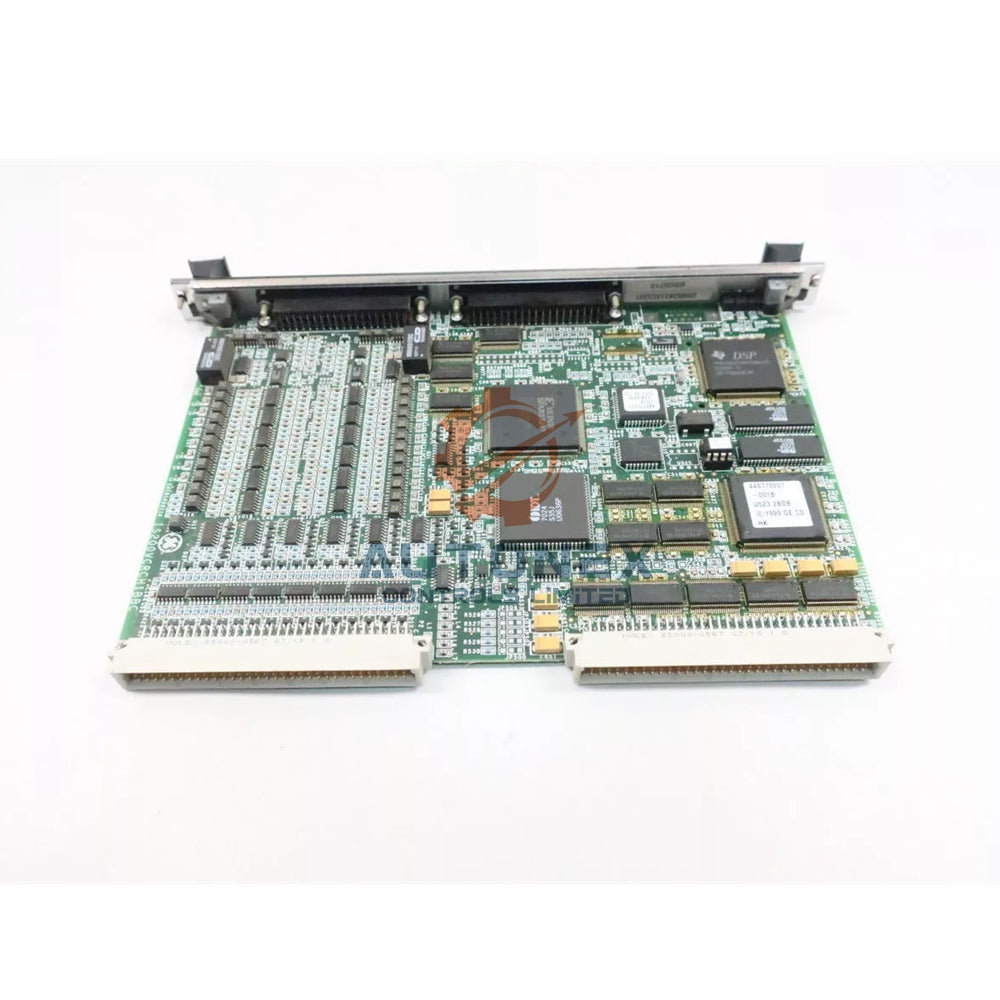

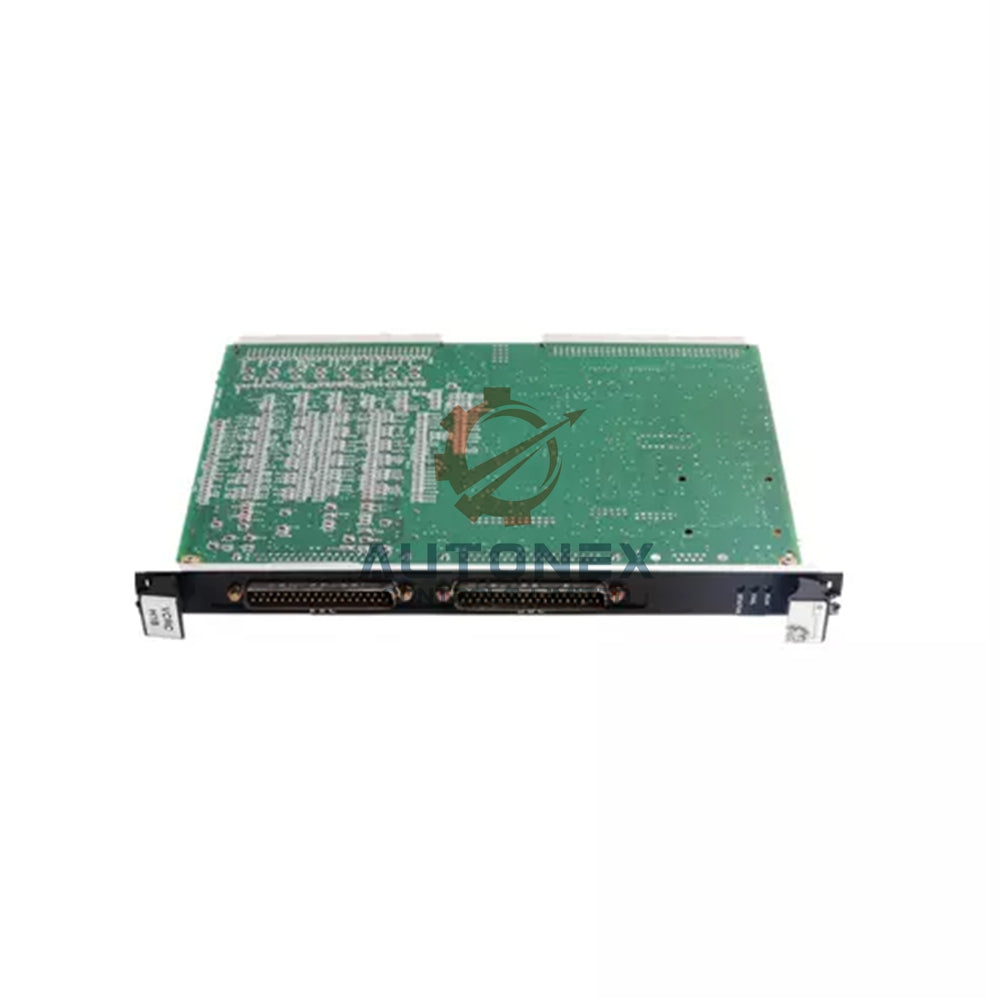

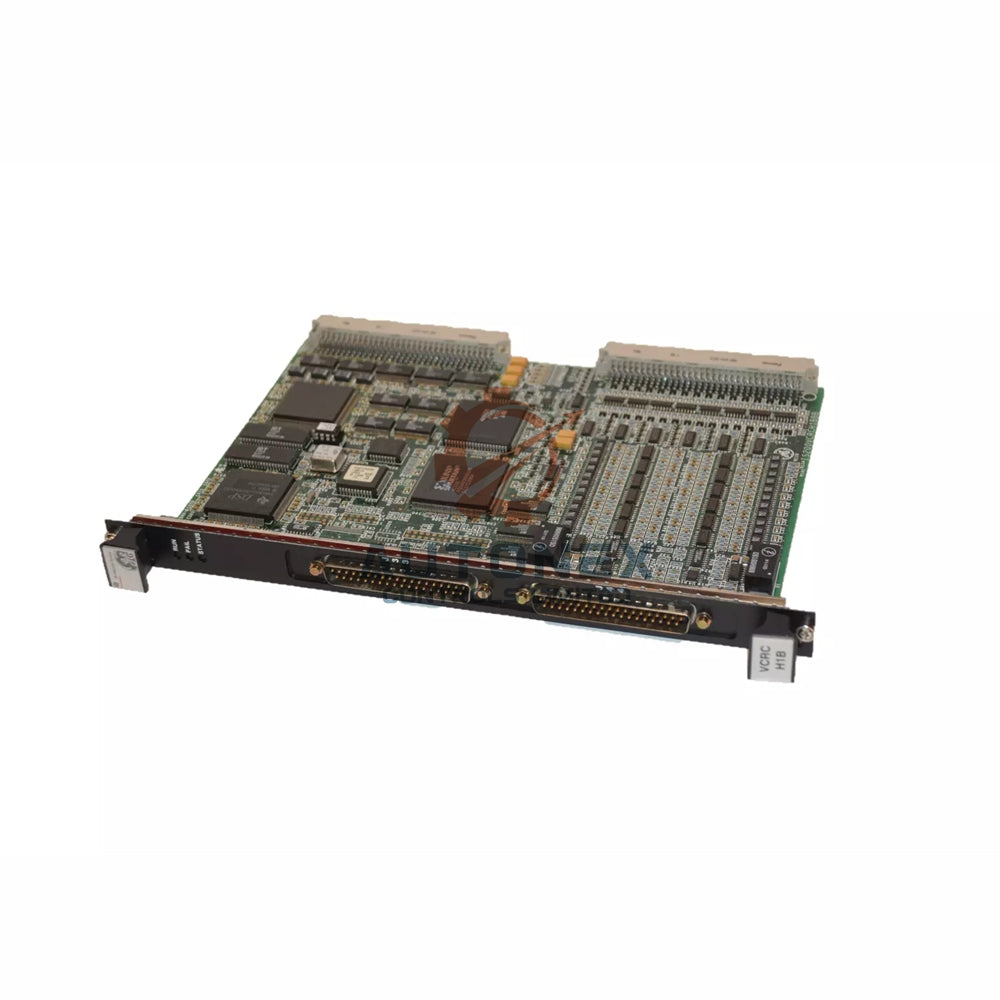

IS200DAMBG1ACB GE Gate Driver Board 24 Channels

GE IS200DAMBG1ACB Gate Driver Board – 24-Channel Mark VI Series

Key Technical Specifications

• Brand: General Electric (GE).
• Model Number: IS200DAMBG1ACB.
• Series: EX2100 / Mark VI Drive Control.
• Product Type: Gate Driver Board (Gate Driver Card).
• Number of Channels: 24 channels.
• Number of Relay Channels: 12 relay channels.
• Power Requirements: +5 V dc at 6 A.
• Trip Solenoid Rating: 125 V dc.
• Power Supply Voltage: 28 V dc (range 18 - 32 VDC).
• Excitation Voltage: 125 Vdc.
• Mounting Type: DIN-rail mounting.
• Technology: Surface mount.
• Operating Temperature: 40 to 70°C.
• Size: 17.8 cm wide x 33.02 cm.
• Functional Acronym: DAMB.
• PCB Coating: Normal coating.
• Functional Revision 1: A.
• Functional Revision 2: C.
• Artwork Revision: B.
• Country of Origin: United States.
• Repair Time: 3-7 days.
• Availability: In stock.

Frequently Asked Questions (FAQ)

• Q: Is the IS200DAMBG1ACB a brand new original GE board?
  A: Yes, we supply this board as a brand new, original General Electric product.
• Q: Do you have this gate driver board in stock?
  A: Yes, we have the IS200DAMBG1ACB in stock and ready for immediate orders.
• Q: How many days until you ship the board?
  A: We ship all orders within 5 business days after payment confirmation.
• Q: Which carriers do you use for shipping?
  A: We use FedEx, UPS, and DHL for fast and reliable worldwide delivery.
• Q: Can I return the board if it does not meet my needs?
  A: Yes, we support a 30-day return policy from the delivery date.
• Q: What IGBT does this board work with?
  A: The IS200DAMBG1ACB works with the Powerrex IGBT CM600HA-28H type.
• Q: How many channels does this gate driver have?
  A: This board has 24 channels total, with 12 relay channels.
• Q: What is the operating temperature range?
  A: The board operates normally between 40°C and 70°C.
• Q: Does the board include overcurrent protection?
  A: Yes, the board includes overcurrent, overvoltage, and fault detection features.
