31000-28-10-00-087-03-02 - Bently Nevada Proximity Probe Housing

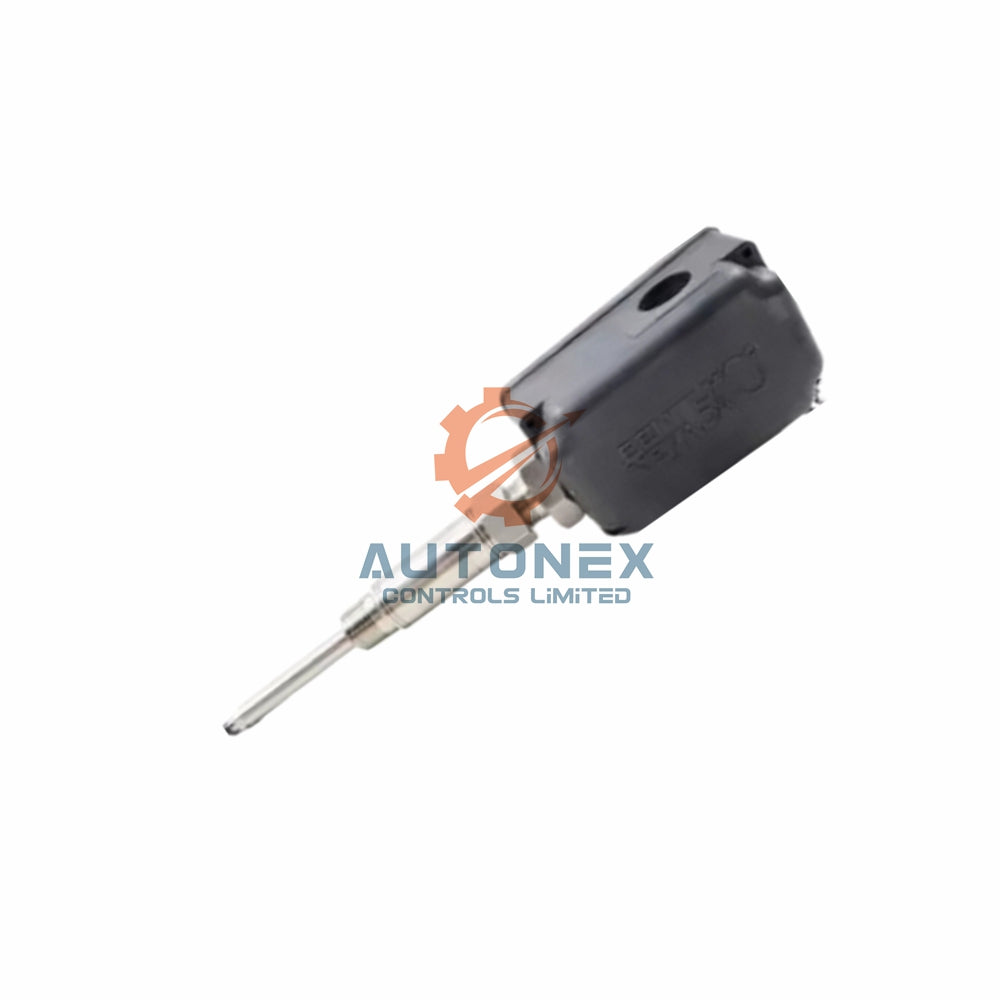

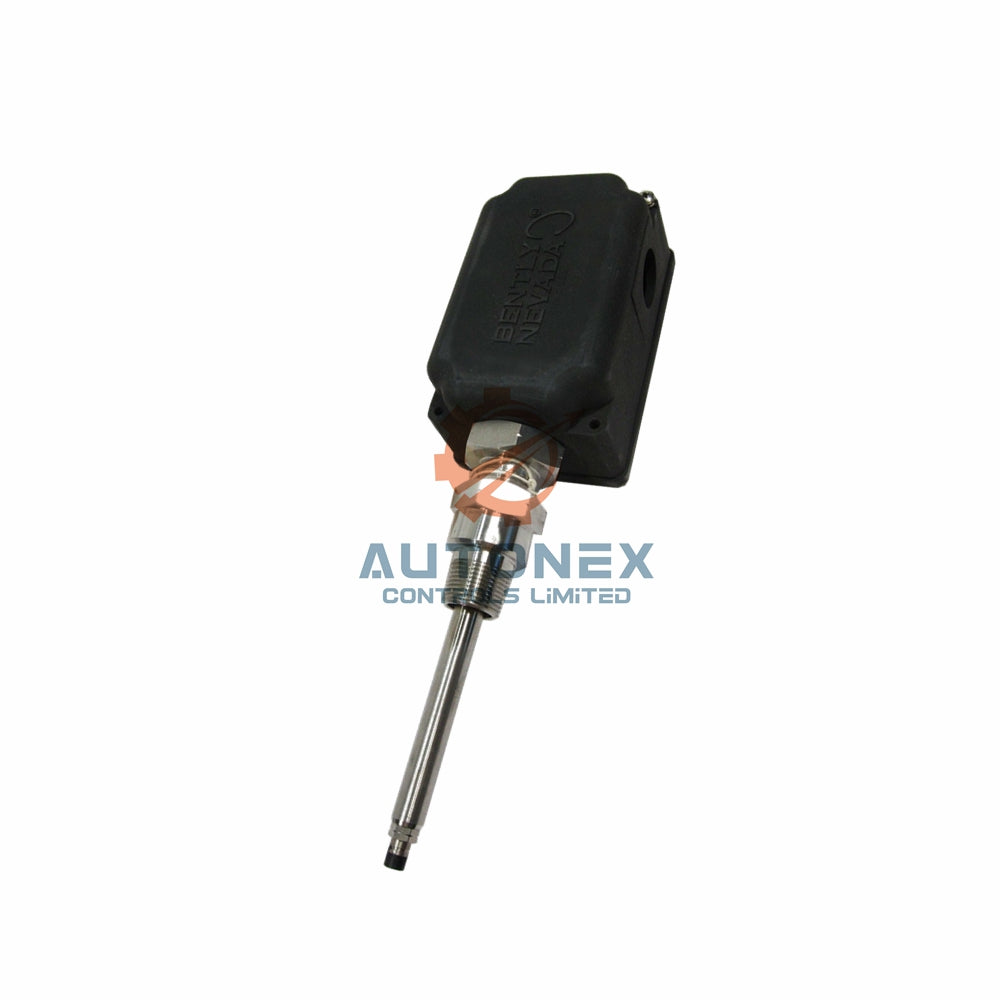

31000-28-10-00-087-03-02 Proximity Probe Housing Overview

• Brand & Model: Bently Nevada 31000-28-10-00-087-03-02 (31000 Series).
• Probe Option: 28 = 3300 XL 8 mm probe with multiple approvals.
• Probe Cable Length: 10 = 1.0 meter (39 inches).
• Standoff Adapter: 00 = No standoff adapter included.
• Probe Penetration: 087 = 8.7 inches.
• Fittings Option: 03 = Two plugs with one 3/4-14 NPT fitting; includes one 3/4-14 to 1/2-14 NPT SST reducer and one cable seal grip with grommets for three cable sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, 5/16 to 3/8 inches.
• Mounting Thread Option: 02 = 3/4-14 NPT (required when ordering standoff adapter).

Protection and Environmental Ratings

• Protection Ratings: Type 4X rating certified by Canadian Standards Association (CSA). IP66 rating verified by SC115582-1 (e) 106. CENELEC standard EN50014 rating for electrostatic dissipation of plastic material in hazardous areas.
• Temperature Rating: -51°C to +105°C (-60°F to +221°F).
• Housing Impact Strength: BASEEFA certified to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F). CSA verified samples withstand a 7 Joule (5.2 ft·lb) impact at ambient room temperature.
• Housing Strength (Typical): Supports 912 N (205 lb) placed 38 mm (1.5 inches) from the unsupported end with cover fastened and grounding liner installed.

Materials and Mechanical Specifications

• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers.
• Sleeve Material & Retaining Chain: AISI 304 stainless steel.
• Outer Sleeve & Exterior Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene®.
• Recommended Torque (retaining nut): 29.4 N·m (260 in·lb).
• Weight: 1.2 kg (2.6 lb) typical.

Frequently Asked Questions (FAQ)

• Is this housing brand new and original?
  Yes, we supply only brand new, original Bently Nevada parts.
• Do you have the 31000-28-10-00-087-03-02 in stock?
  Yes, we have this model in stock and ready to ship.
• What is the temperature range for this housing?
  It operates from -51°C to +105°C (-60°F to +221°F).
• Can this housing withstand high-pressure applications?
  No, it is not designed for internal or external pressure. It only seals against hose-directed water per NEMA 4X and IP66.
• What probe does this housing work with?
  It works exclusively with the Bently Nevada 3300 XL 8 mm probe.
• What is your return policy?
  We support returns within 30 days of delivery, provided the item is unused and in original packaging.
• How quickly do you ship?
  We ship within 5 days after order confirmation.
