21000-34-05-30-039-03-02 Bently Nevada Probe Housing | 3300 XL 8mm

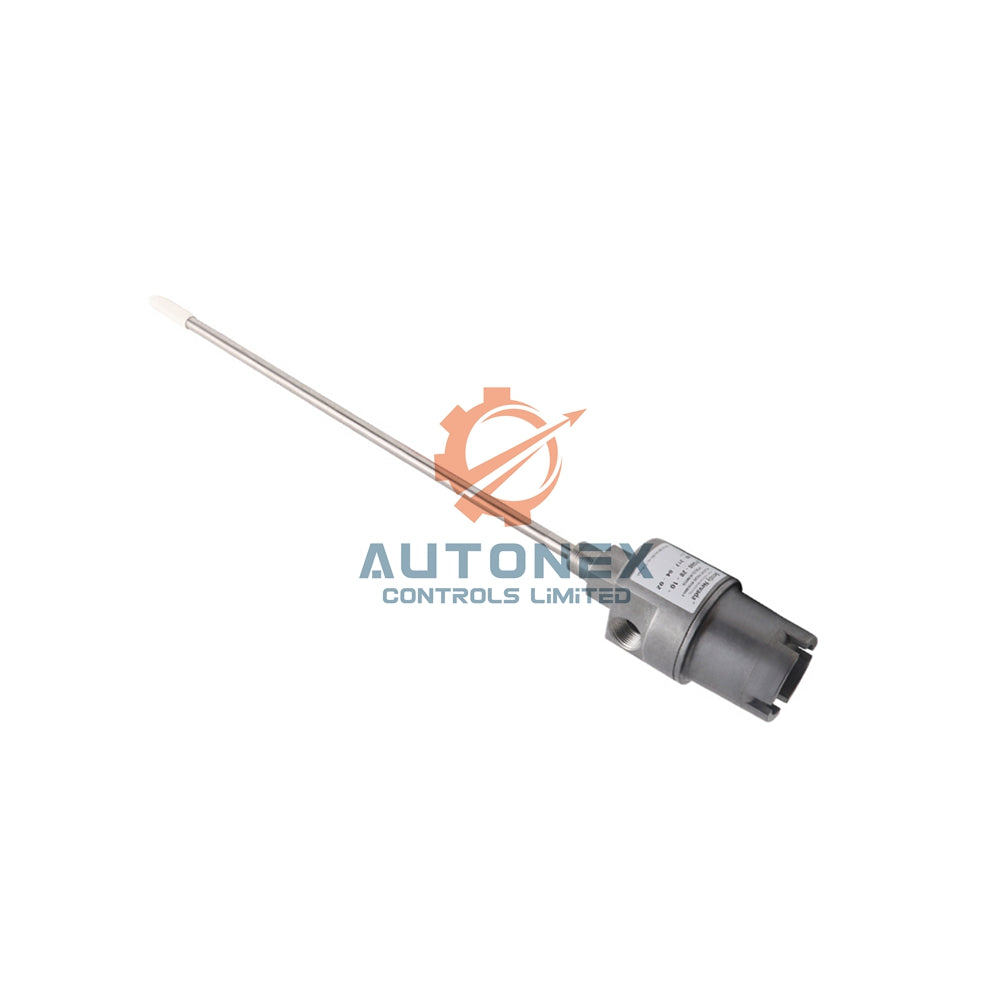

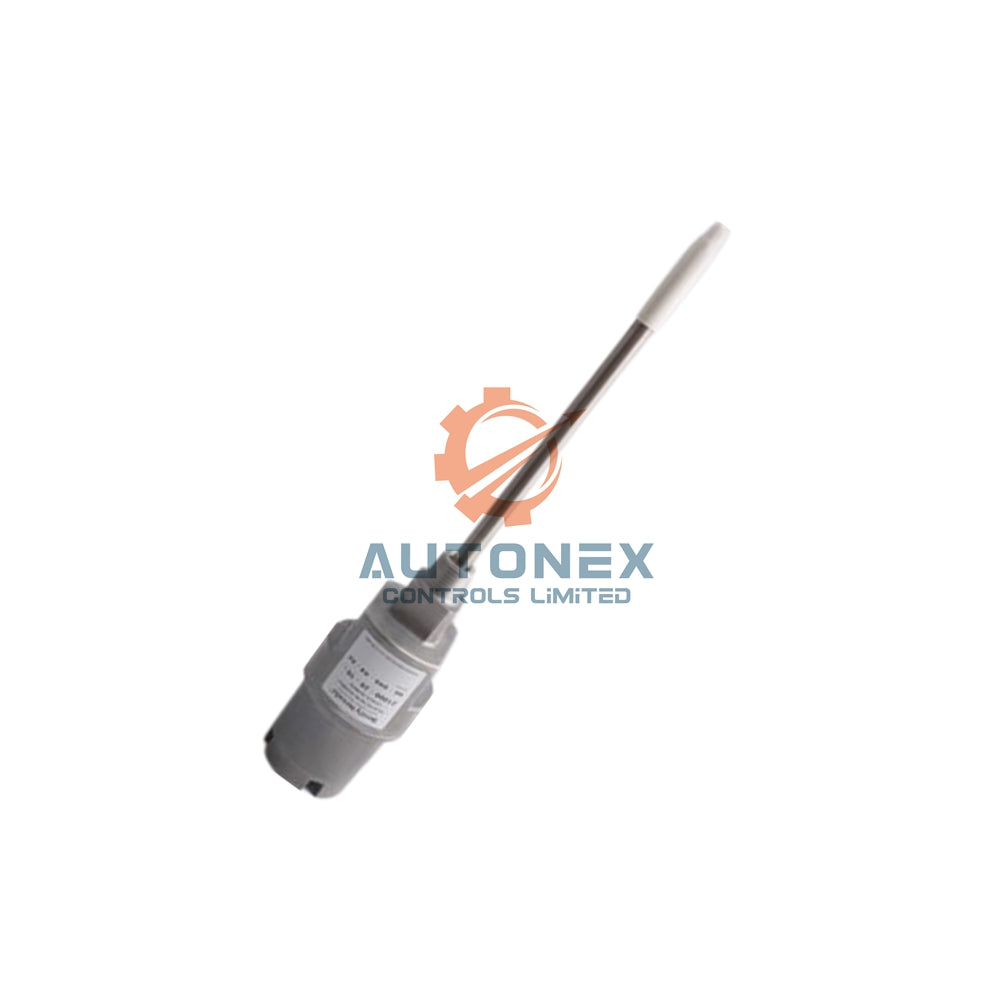

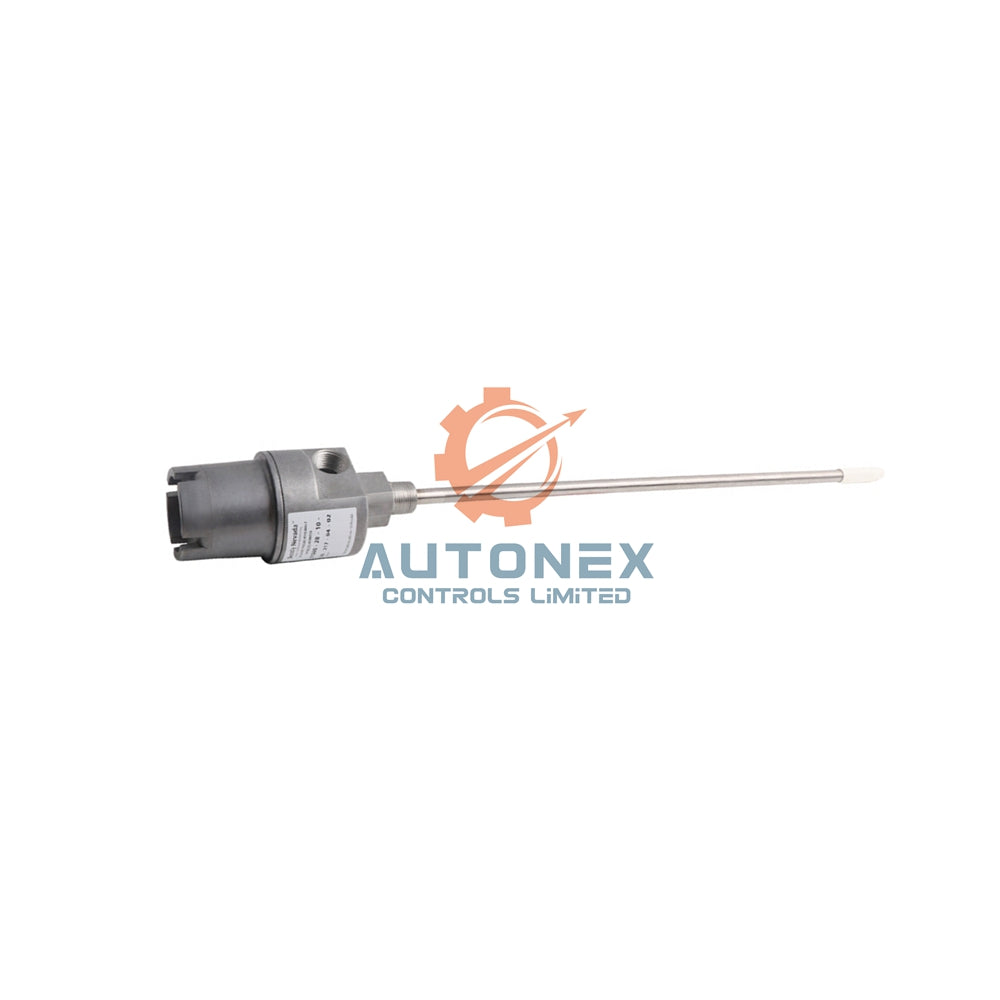

Bently Nevada 21000 Proximity Probe Housing Assemblies – Technical Overview

Key Technical Specifications

• Brand: Bently Nevada
• Model: 21000-34-05-30-039-03-02 – Proximity Probe Housing Assemblies
• Material: Aluminum body with a 304 stainless steel sleeve
• Probe Option: 3300 XL 8 mm probe with connector protector and selectable hazardous area approvals
• Probe Cable Length: 0.5 m (20 in)
• Standoff Adapter: 3.0 in
• Probe Penetration: 3.9 in
• Mounting Thread Option: 3/4-14 NPT
• Maximum (C) + (D) Dimension: 13.5 in (34.3 cm)
• Weight: 1.1 kg (2.4 lb) typical without fittings
• Temperature Range: Suitable for hazardous area applications with CSA Type 4 enclosure rating
• Environmental Tolerance: Explosion-proof rating when ordered with CA versions and E:00, E:01, E:02, or E:04 options
• Interference Rejection: Fully compliant with API 670 Standard for externally mounted proximity probe housings

Complete Suffix Information (Tree Structure)

• 21000 – Proximity Probe Housing Assemblies
  • 34 – Probe Option: 3300 XL 8 mm probe with connector protector, selectable hazardous area approvals
  • 05 – Probe Cable Length: 0.5 m (20 in)
  • 30 – Standoff Adapter: 3.0 in
  • 039 – Probe Penetration: 3.9 in
  • 03 – Fitting Option
    • One 3/4-14 NPT plug
    • One 3/4-14 to 1/2-14 NPT reducer
    • One cable seal grip with grommets for cable sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, 5/16 to 3/8 inches
  • 02 – Mounting Thread Option: 3/4-14 NPT (must order if Standoff Adapter Length Option is not -00)

Frequently Asked Questions (FAQ)

• Is the 21000-34-05-30-039-03-02 brand new and original?
  Yes, this unit is completely new and original in factory packing.
• Do you have this model in stock?
  We keep the 21000-34-05-30-039-03-02 in stock and ready to ship.
• What is the typical lead time for shipping?
  We ship this item within 5 days after order confirmation.
• Which carriers do you use for delivery?
  We use FedEx, UPS, and DHL for fast and reliable global shipping.
• Does this housing support CSA explosion-proof requirements?
  Yes, but only CA versions ordered with E:00, E:01, E:02, or E:04 options carry CSA explosion-proof rating.
• Can I return this product?
  You can return the item within 30 days from delivery for a full refund.
• Is this housing compliant with API 670 standard?
  Yes, both aluminum and stainless steel versions fully comply with API 670.
