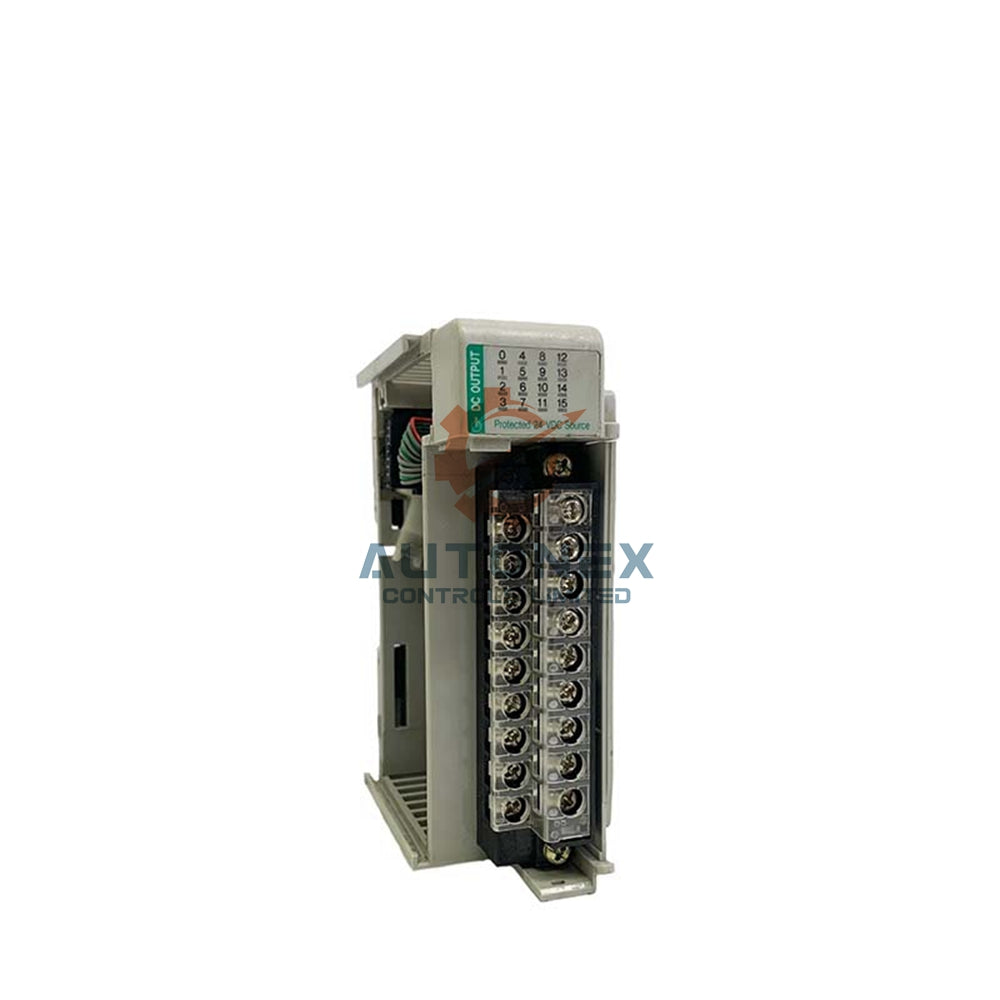

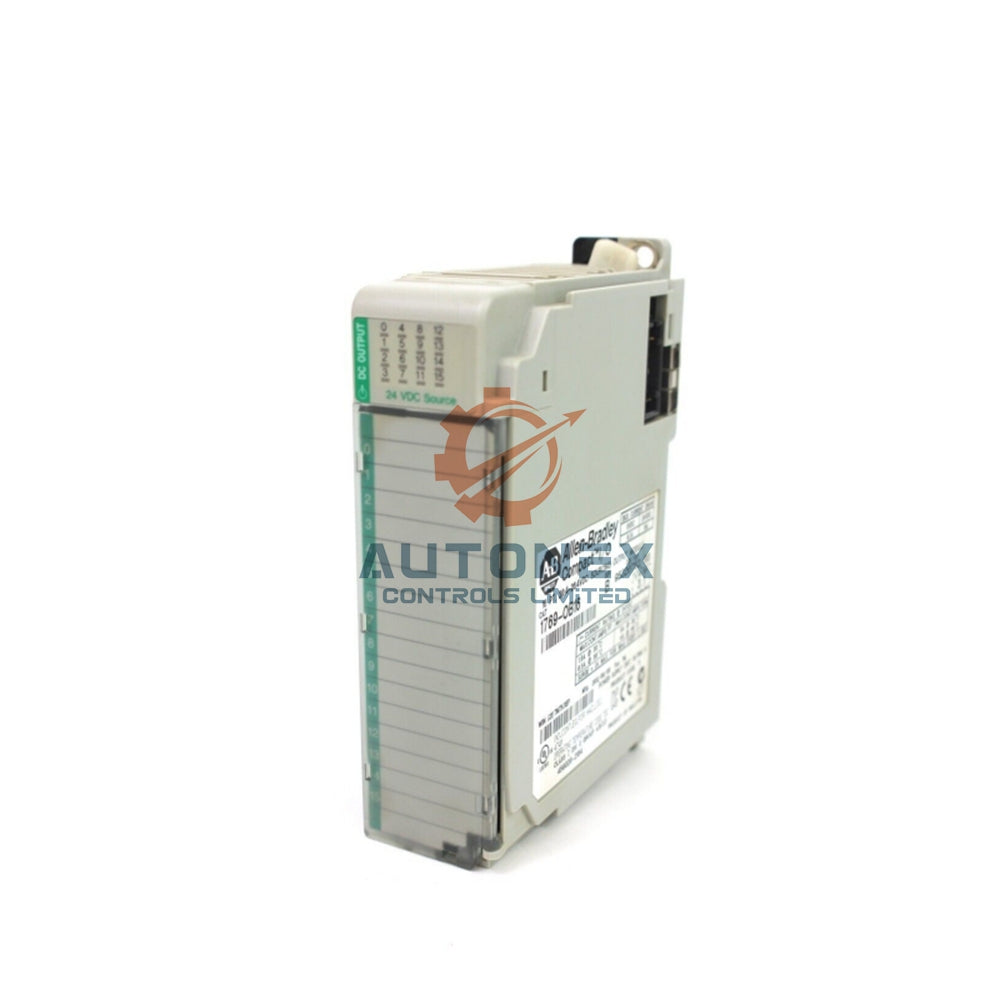

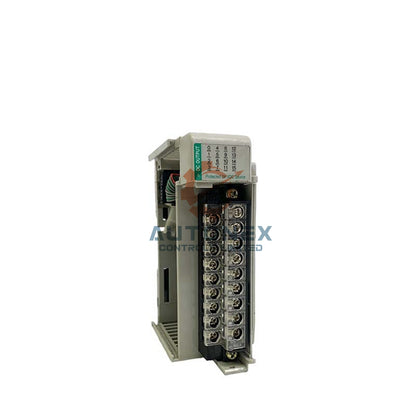

1769-OV16 Allen-Bradley 16-Point 24VDC Sinking Output Module

Allen‑Bradley 1769‑OV16 Discrete Output Module Overview

Key Technical Specifications

• Manufacturer: Allen‑Bradley
• Model: 1769‑OV16
• Product Type: Discrete output module
• Number of Outputs: 16
• Number of Groups: 1 output group
• Wiring Configuration: Sink
• Output Voltage Range: 20.4 – 26.4 VDC
• Output Current per Point:
  • 0.5 A at 60 °C (140 °F)
  • 1.0 A at 30 °C (86 °F)
• Output Current per Module:
  • 4.0 A at 60 °C (140 °F)
  • 8.0 A at 30 °C (86 °F)
• Output Delay Time, ON: 0.1 ms
• Output Delay Time, OFF: 1.0 ms
• Surge Current: 2.0 A for 10 ms, repeatable every 2 s
• OFF‑state Leakage Current: 1.0 mA at 26.4 VDC
• Resolution: 14 bits across 21V (1.3 mV)
• Backplane Current Draw at 5.1V: 200 mA

Environmental and Physical Specifications

• Operating Temperature: 0 °C to +60 °C (32 °F to +140 °F)
• Storage Temperature: –40 °C to +85 °C (–40 °F to +185 °F)
• Operating Humidity: 5 % to 95 % non‑condensing
• Operating Altitude: Up to 2000 meters (6561 feet) without derating
• Operating Vibration: 5G at 10 to 500 Hz
• Operating Shock:
  • 30G for panel mount
  • 20G for DIN rail mount
• Enclosure Type: Open‑style with finger‑safe cover
• Weight: 0.61 lb (277 g)
• Dimensions: 4.65 x 1.38 x 3.43 in (118 x 35 x 87 mm)
• Shipping Dimensions: 8 x 8 x 5 in

Installation and Compatibility

• Compatible Controllers:
  • CompactLogix
  • MicroLogix 1500
• Power Supply Distance Rating: 8 modules from the power supply
• Compatible Power Supplies:
  • 1769‑PA2
  • 1769‑PB2
  • 1769‑PA4
  • 1769‑PB4
• Mounting Options:
  • Panel mount
  • DIN rail mount
• Wire Type: Copper‑90 °C
• Solid Wire Size: 22‑14 AWG
• Stranded Wire Size: 22‑16 AWG

What’s in the Box

• One 1769‑OV16 discrete output module
• Removable terminal block with finger‑safe cover
• Replacement door for the module

Frequently Asked Questions (FAQ)

• Is the 1769‑OV16 a new or refurbished unit?
  We supply only brand new, original Allen‑Bradley modules.
• Do you have the 1769‑OV16 in stock?
  Yes, we maintain stock and ship within 5 business days.
• Which shipping carriers do you use?
  We ship via DHL, FedEx, and UPS for reliable global delivery.
• Can I return the module if it does not meet my needs?
  We accept returns within 30 days of purchase.
• Does the 1769‑OV16 support sourcing or sinking wiring?
  This module supports sink wiring configuration only.
• What is the maximum current per output at high temperature?
  At 60 °C, each output handles 0.5 A; the module total is 4.0 A.
• What is the output delay for this module?
  The ON delay is 0.1 ms, and the OFF delay is 1.0 ms.
