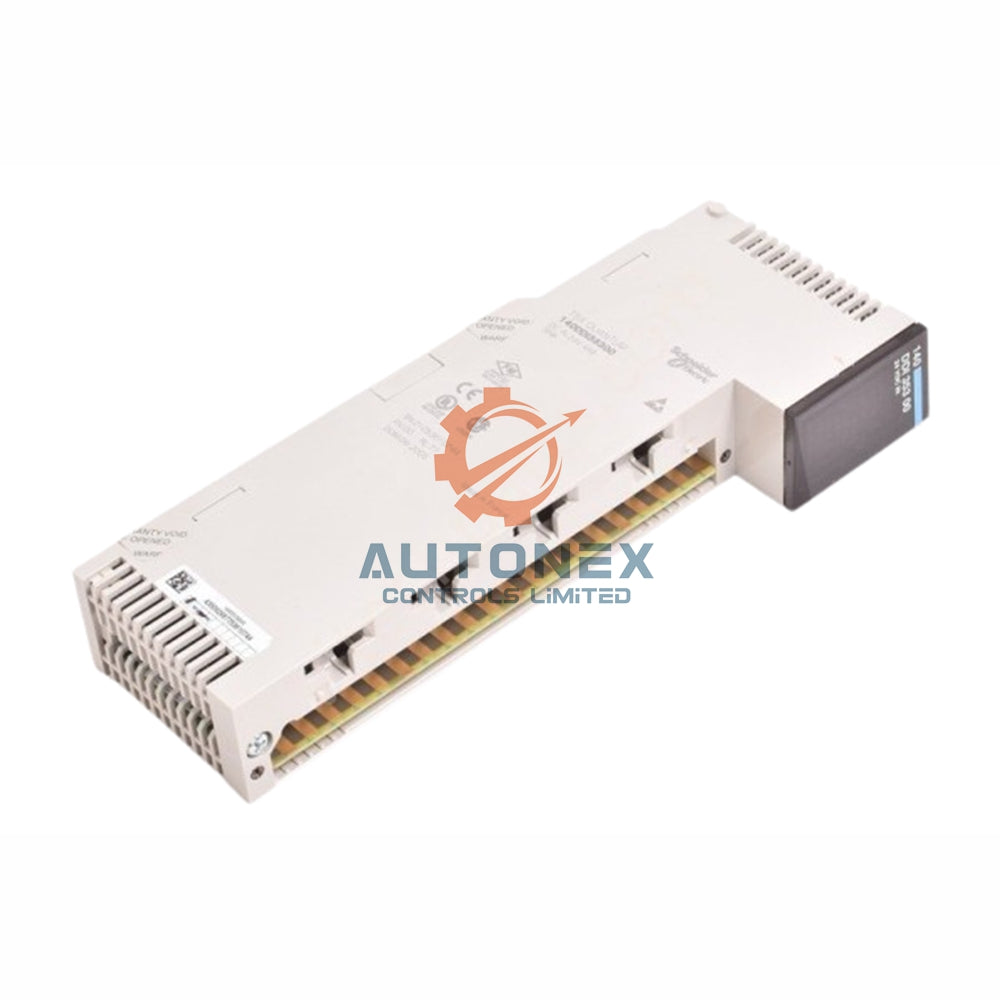

Schneider Electric 140DDI35310 - 32 Input Quantum DC Module

Schneider Electric Quantum 140DDI35310 Discrete Input Module

Detailed Technical Parameters

• Brand: Schneider Electric
• Model: 140DDI35310
• Product Type: Discrete Input Module
• Input Channels: 32 points, Sinking (Negative Logic)
• Input Voltage: 24V DC Nominal (19.2 - 30 V DC Range)
• "1" State Signal: -30 to -15 V DC, ≥ 2.5 mA at -14V
• "0" State Signal: -5 to 0 V DC, ≤ 0.5 mA
• Input Impedance: 2400 Ohms
• Backplane Current: 330 mA
• Power Dissipation: 1.5 W + (0.26 x number of active points)
• Isolation: 1780 Vrms between field and bus, 500 Vrms between channel groups.

Environmental Durability & Compliance

• The module operates reliably in a wide temperature range from 0°C to 60°C.
• It can be stored at temperatures from -40°C to 85°C.
• It functions at up to 95% relative humidity without condensation and at altitudes up to 5000 meters.
• The unit has strong noise immunity (9.1 V/m) and ESD protection (4 kV contact, 8 kV air).

Installation & Packaging

• The module uses a standard Quantum form factor for easy installation in your PLC rack.
• Addressing requires two consecutive input words in your controller's I/O map.
• We ship each Schneider Electric 140DDI35310 as one piece per box, securely packed.
• Your order includes the module unit only. All documentation is available for download.
• We process and ship orders quickly using reliable carriers like FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

• Is this module brand new and authentic? Yes, we supply only 100% Brand New Original Schneider Electric products.
• Do you have this item in stock? Yes, we maintain strong stock levels for fast fulfillment.
• How quickly will my order ship? We typically process and ship orders within 5 business days.
• What shipping methods do you offer? We use global express carriers like DHL, FedEx, and UPS.
• What is the return policy? We offer a 30-day return period for unused items in original packaging.
• How are the 32 inputs grouped? The channels are arranged in four groups, which provides electrical isolation between each group.
• What is the minimum input current to register an ON signal? The guaranteed "ON" state requires at least 2.5 mA at -14V DC.
