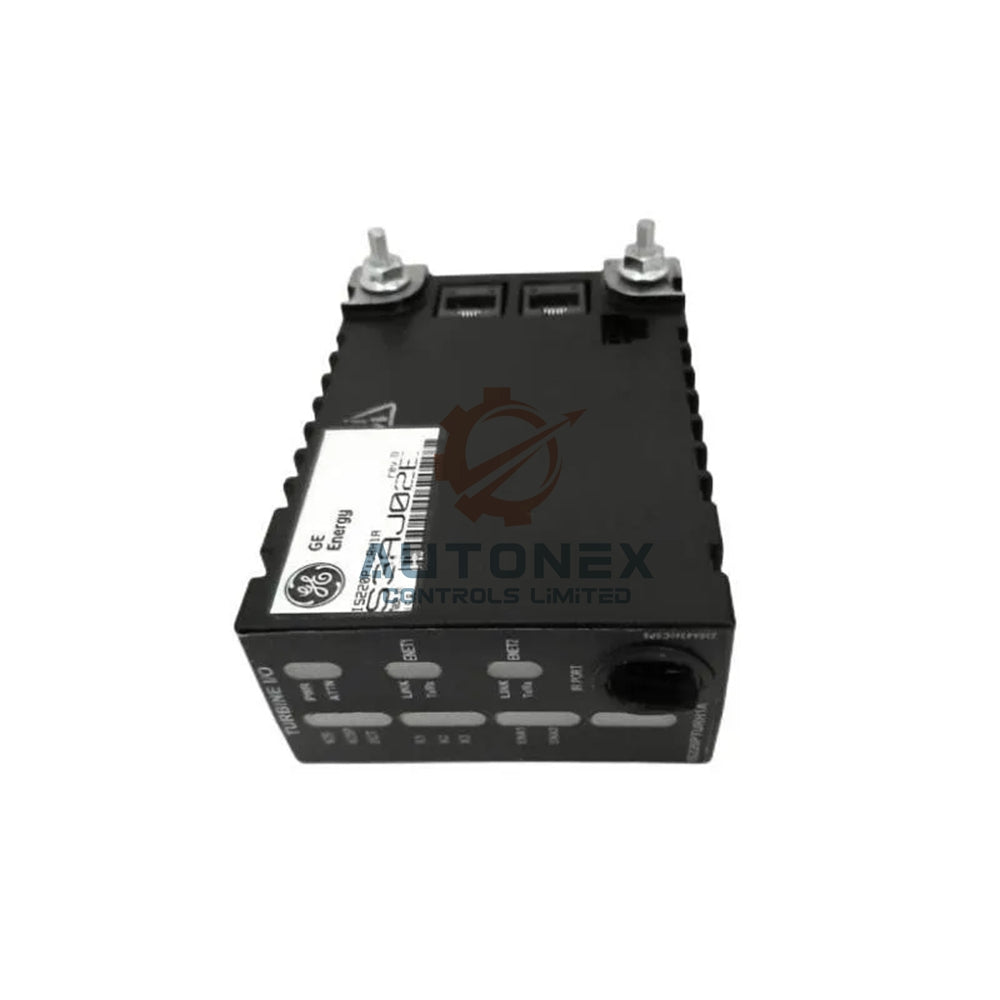

IS220YTURS1A General Electric Turbine I/O Pack

IS220YTURS1A Primary Turbine Protection I/O Module Overview

Key Technical Specifications

• Brand: General Electric (USA). Model: IS220YTURS1A offers 6 channels for versatile I/O handling.
• Power & Voltage: Input voltage 120V AC with operating range 90V to 265V AC. Output voltage from 5V to 24V DC. Power to contacts uses 125V DC.
• Signal & Communication: Analog feedback via 4-20mA signal. Supports Modbus communication protocols.
• Speed & Flame Inputs: Four passive magnetic speed inputs from 2 to 20,000 Hz. Eight flame sensors with pulse detection above 2.5V.
• Environmental Range: Operating temperature from 0°C to 60°C. Ambient rating from -30°C to +65°C per factory specs.
• Mounting & Size: DIN-rail mounting. Dimensions 3.4 in x 6.37 inch and weight 2.00 lbs.
• Compatible Terminal Boards: Works with TTUR, TRPA, TTURS1C, TRPAS1A, TRPAS2A, TRPGS1B, and TRPGS2B.

Frequently Asked Questions (FAQ)

• Q: Is the IS220YTURS1A a genuine new part?
  A: Yes, we supply only brand new and original General Electric modules. No refurbished or counterfeit units.
• Q: What terminal boards work with IS220YTURS1A?
  A: It works with TTUR, TTURS1C, TRPAS1A, TRPAS2A, TRPGS1B, TRPGS2B, and TRPA boards.
• Q: How many speed inputs does this module support?
  A: The IS220YTURS1A supports up to four passive magnetic speed inputs. Frequency range is 2 to 20,000 Hz.
• Q: What is the operating temperature range?
  A: The module operates reliably from 0°C to 60°C ambient. Storage allows -30°C to +65°C.
• Q: Do you have IS220YTURS1A in stock?
  A: Yes, we keep this primary turbine protection module in stock. We dispatch within 5 days via FedEx, UPS, or DHL.
• Q: Can I use this module for wind turbine control?
  A: Yes, the Mark VIeS series supports wind turbine applications alongside gas and steam turbines.
• Q: What is the return policy for this item?
  A: You can return the module within 30 days. The unit must remain unused and in original packaging.
• Q: Which manual covers this module's test procedures?
  A: Refer to GEH-6721P for detailed test instructions and acceptance criteria.
