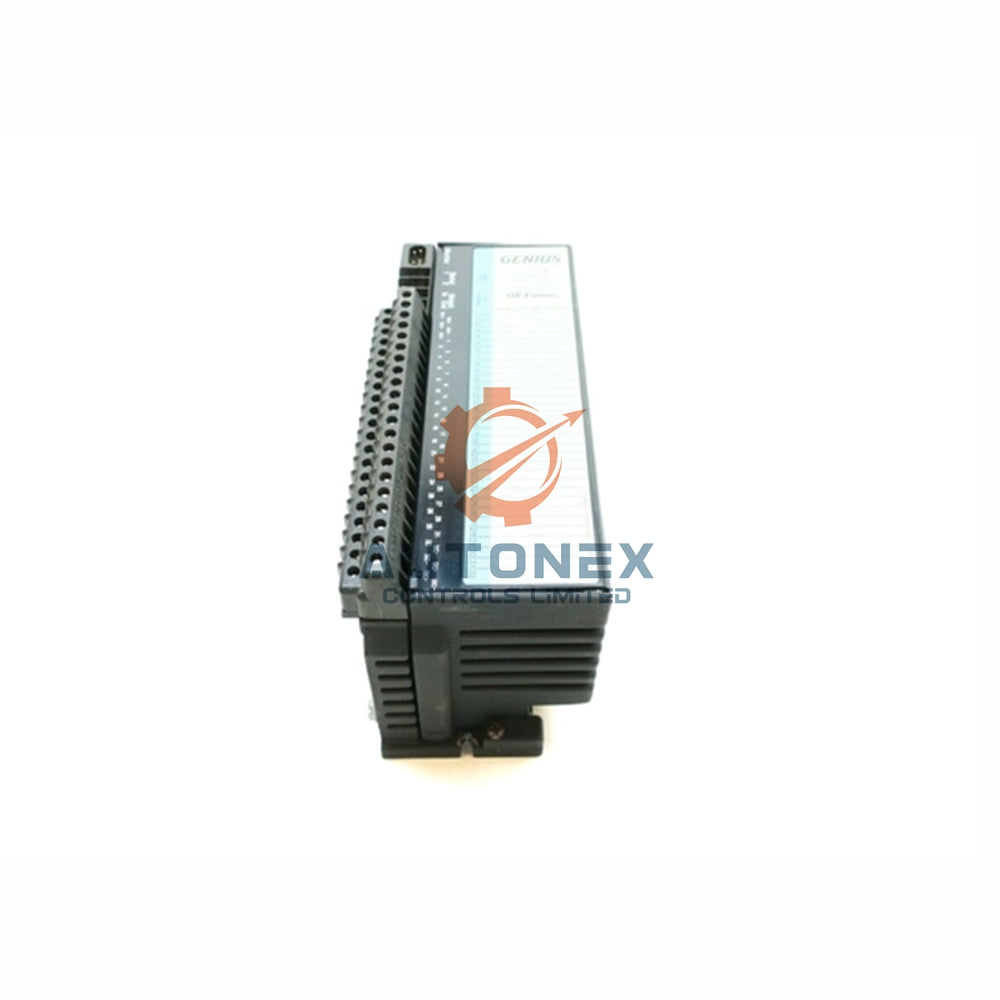

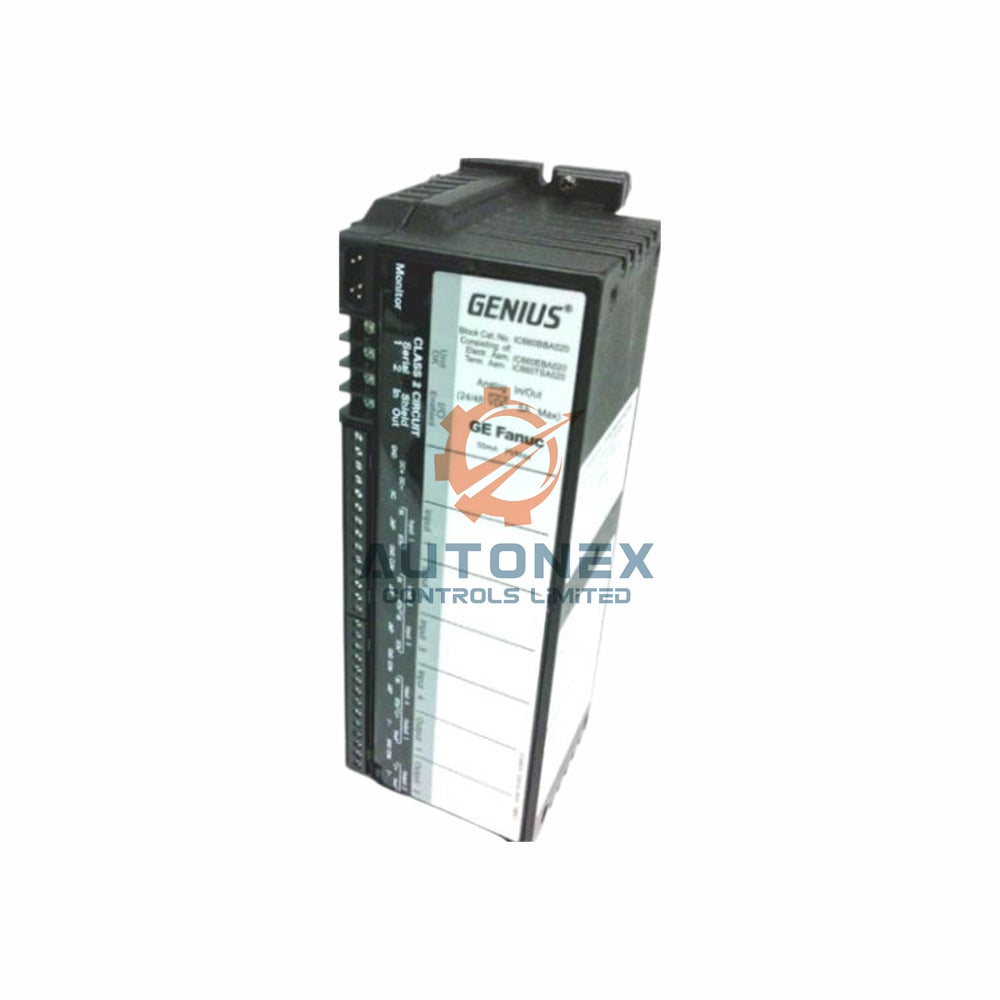

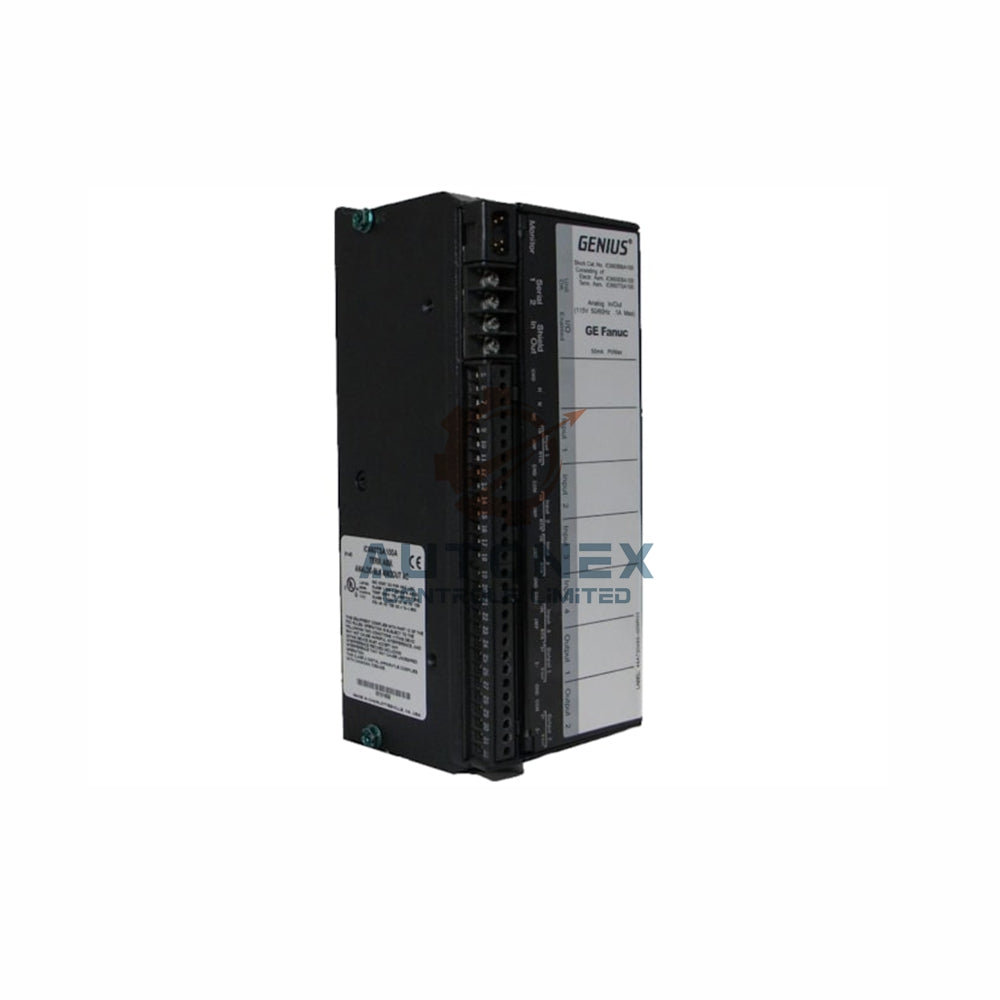

GE Fanuc IC660TPM100 Terminal Assembly for Genius I/O

GE Fanuc IC660TPM100 Terminal Assembly Overview

Key Technical Specifications

• Brand: GE Fanuc
• Model: IC660TPM100
• Compatible Block: IC660BPM100 Power Monitoring Block
• Product Type: Terminal Assembly
• Operating Temperature: 0 to 60 degrees Celsius
• Terminal Details: 32 total terminals, including 2 serial and shield-in/out terminals
• Wire Support: Accepts both solid and stranded wires, up to 10 AWG for power
• Power Input: Integral supply accepts 115/230V AC or 125V DC
• Mounting: Uses #12 screws with star washers for secure installation

Installation & Wiring Guide

• Always turn off the system before installation to avoid communication breaks.
• Drill four mounting holes as shown in the block's data sheet for placement.
• Separate the electronics assembly from the terminal base before mounting.
• Align the notches on the IC660TPM100 with your drilled holes.
• Secure the assembly firmly using the provided #12 screws and star washers.
• For wiring, you can use bare wires or spade/ring lugs on the screw clamp terminals.
• Use spaghetti tubing on shield wires to prevent contact between in and out lines.

Features & Diagnostics

• Forms the mechanical and electrical base for the Genius I/O module.
• Uses mechanical and electrical keys to ensure compatibility with the correct electronics.
• Allows safe removal of the I/O block without changing field wiring.
• Includes an EEPROM unit to store the block's configuration data.
• Provides diagnostic facilities to detect EEPROM and wiring errors.
• The "UNIT OK" LED indicator shows correct attachment to the electronics assembly.
• Supports connection for up to five different power sources.

Packing List & Shipping

• 1 x IC660TPM100 Terminal Assembly
• Mounting screws and hardware
• Product documentation
• We ship all items from our stock via major carriers like FedEx, UPS, or DHL within 5 business days. We support a 30-day return policy for your convenience.

FAQ

• Q: Is the IC660TPM100 new and original?
  A: Yes, we supply only brand new, original GE Fanuc components.
• Q: What block is this terminal assembly compatible with?
  A: It is specifically designed for the IC660BPM100 power monitoring block.
• Q: What types of wire can I use with this terminal assembly?
  A: The IC660TPM100 supports both solid and stranded copper wires, up to 10 AWG.
• Q: How is the assembly powered?
  A: It has an integral power supply that accepts 115/230 Volts AC or 125 Volts DC input.
• Q: How quickly can you ship this product?
  A: We have stock available and typically ship orders within 5 business days.
