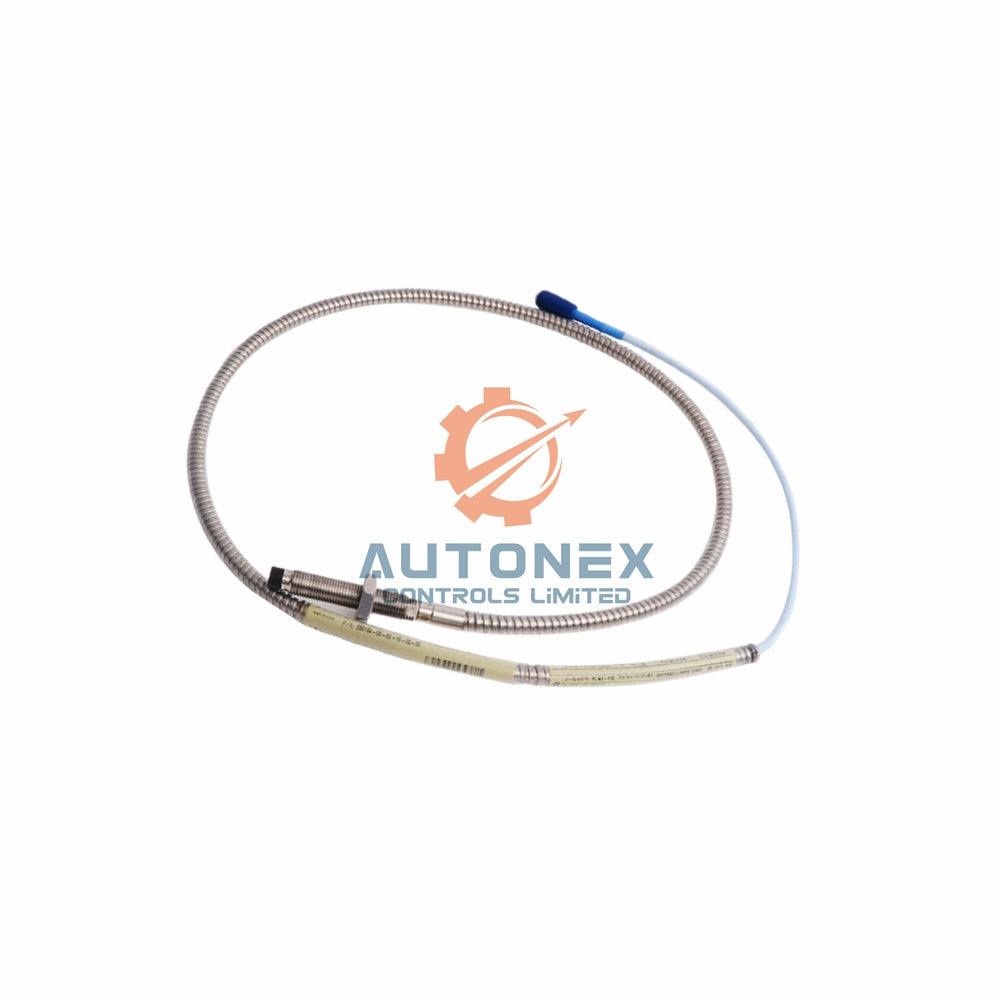

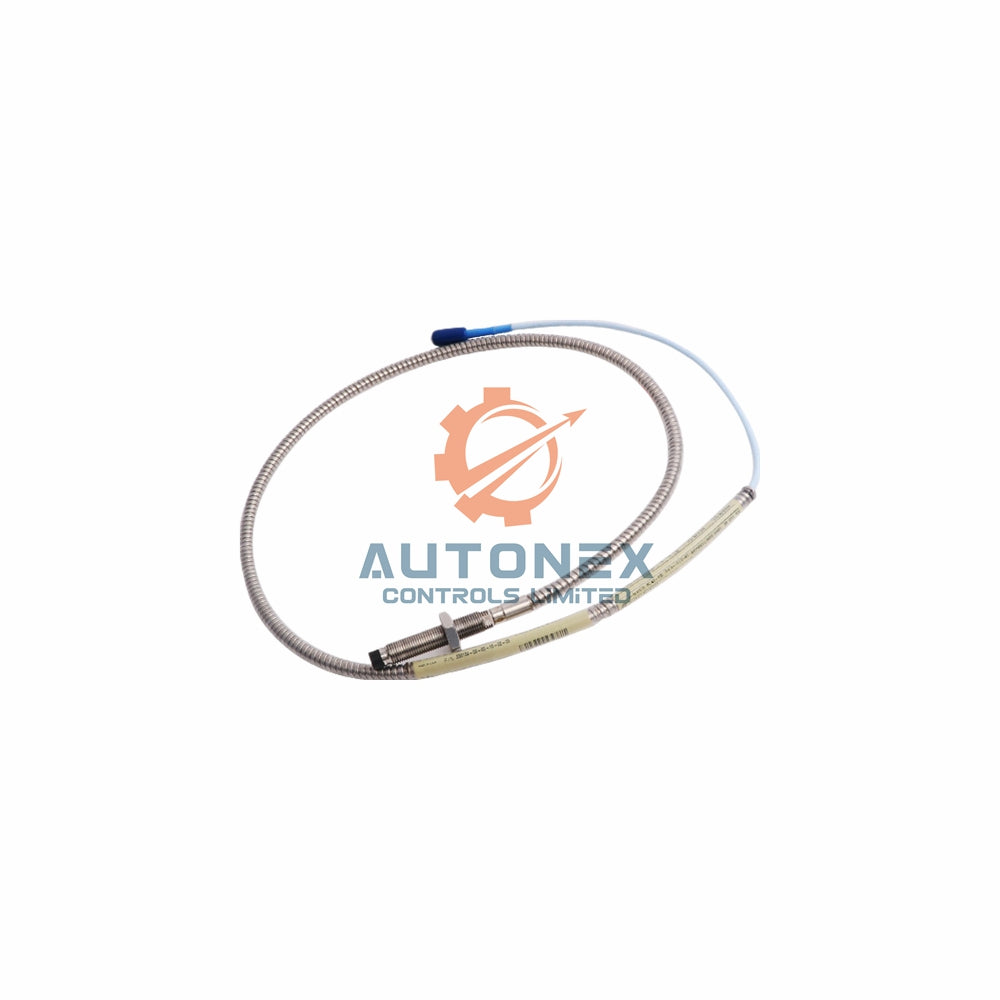

330192-00-08-15-CN Bently Nevada 3300 XL 8 mm ETR Probe

Bently Nevada 330192-00-08-15-CN 3300 XL 8 mm ETR Probe Overview

• Brand: Bently Nevada
• Model Number: 330192-00-08-15-CN
• Product Type: 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armor

Key Technical Specifications

• Unthreaded Length Option: Minimum 0.0 inch. Unthreaded length must be at least 0.8 inch less than case length.
• Overall Case Length Option: 08 = 0.8 inch
• Total Length Option: 15 = 1.5 meter (4.9 feet)
• Agency Approval Option: CN = Country Specific
• Probe Pressure Seal: Viton® O-ring seals differential pressure between tip and case. The manufacturer does not pressure test probes before shipment.
• Nominal DC Resistance (RPROBE): 7.73 ± 0.50 Ω for 1.5 meter length.
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Maximum Thread Engagement Length: 0.563 inch for 3/8-24 thread

Temperature and Environmental Ratings

• Standard Operating Temperature: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F)
• Extended Range (Cable & Connector): -51°C to +260°C (-60°F to +500°F)
• Warning: Exposing the probe below –34°C (-30°F) may damage the pressure seal.
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) after 56 days at 93% humidity per IEC 68-2-3.

Frequently Asked Questions (FAQ)

• Q: Is the 330192-00-08-15-CN probe brand new and original?
  A: Yes, we supply only brand new, original Bently Nevada units.
• Q: Do you have this 3300 XL probe in stock?
  A: Yes, we have the 330192-00-08-15-CN in stock now.
• Q: How long until you ship the probe?
  A: We ship within 5 days after order confirmation.
• Q: Which carriers do you use for delivery?
  A: We use DHL, FedEx, and UPS for fast and reliable shipping.
• Q: Can I return the probe?
  A: Yes, we accept returns within 30 days from receipt.
• Q: What happens if I use the probe below -34°C?
  A: Temperatures below -34°C may cause early failure of the pressure seal.
