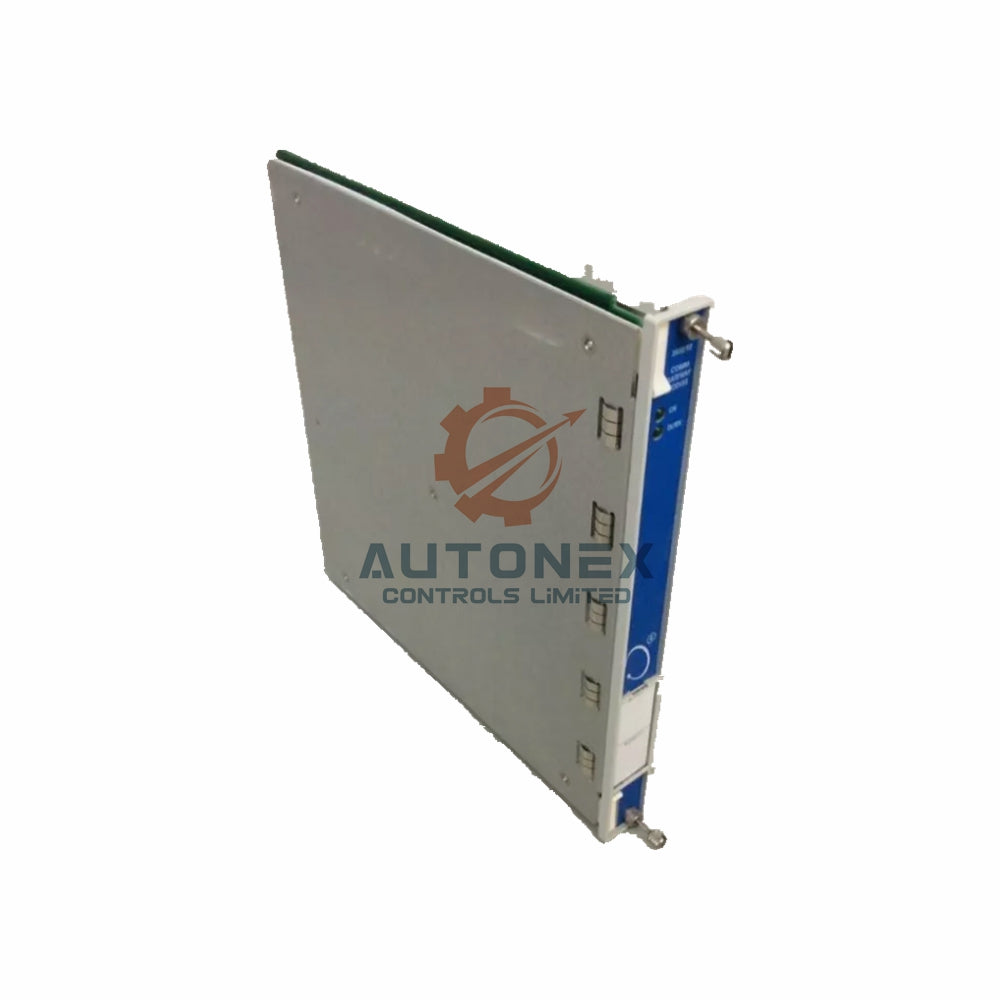

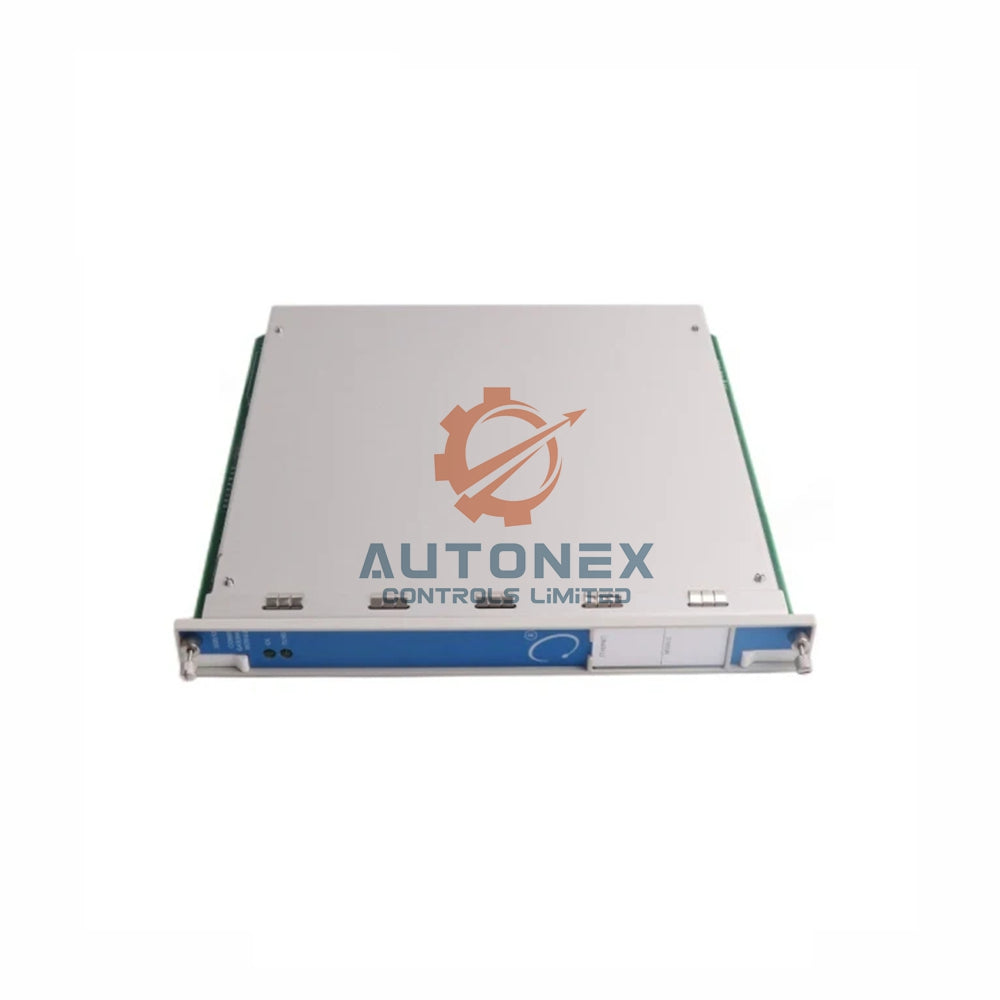

3500/92-04-01-00 136180-01 Bently Nevada Communication Gateway

Bently Nevada 3500/92-04-01-00 136180-01 Communication Gateway – Reliable Data Exchange for 3500 Rack Systems

• Brand: Bently Nevada (Made in U.S.A).
• Product Number: 3500/92-04-01-00 136180-01.
• Product Type: 3500/92 Communication Gateway.
• I/O Module Type: 04 = Ethernet/RS485 Modbus I/O Module.
• Memory Type: 01 = Low Memory.
• Agency Approval Option: 00 = None.

Technical Specifications – Main Board & I/O Modules

• Main Board Dimensions: 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in).
• I/O Module Dimensions: 241 mm x 24.4 mm x 99.1 mm.
• Total Weight: 1.26 Kg (Main board 0.82 kg).
• Power Consumption: 5.0 Watts typical with Modbus RS232/RS422 I/O Module; 5.6 Watts typical with Modbus RS485 I/O Module.
• Operating Temperature: -30°C to +65°C (-22°F to +149°F).
• Storage Temperature: -40°C to +85°C (-40°F to +185°F).
• Humidity: 95% non-condensing.
• Rack Space Requirement: 1 full-height front slot.

Communication Protocols and Interfaces

• Ethernet: 10Mbps, conforms to IEEE802.3, uses RJ-45 connector for 10BASE-T cabling.
• Protocols: Ethernet TCP/IP frame, Modbus/TCP, and BNC Host Protocol.
• Modbus Mode: Based on AEG Modicon PI-MBUS-300 with Remote Terminal Unit (RTU) transmission.
• Data Types Collected: Current measured values with time stamp, module statuses, and current alarm statuses.
• Update Rate: Data collection rate depends on rack configuration but never exceeds 1 second for all modules.

Frequently Asked Questions (FAQ)

• Q: Is this a genuine Bently Nevada part?
  A: Yes, it is a brand new original unit made in the U.S.A.
• Q: Does the 3500/92-04-01-00 136180-01 work with Modbus TCP/IP?
  A: Yes, it supports Ethernet TCP/IP and Modbus/TCP protocols.
• Q: What is the maximum operating temperature?
  A: The unit operates from -30°C to +65°C (-22°F to +149°F).
• Q: How fast does it collect data?
  A: The update time is ≤1 second for all modules in the 3500 rack.
• Q: What shipping carriers do you use?
  A: We use FedEx, UPS, and DHL for fast delivery.
• Q: Can I return the product?
  A: Yes, we accept returns within 30 days from delivery.

For inquiries, please contact us at sales@nex-auto.com or +86 153 9242 9628 (WhatsApp).
