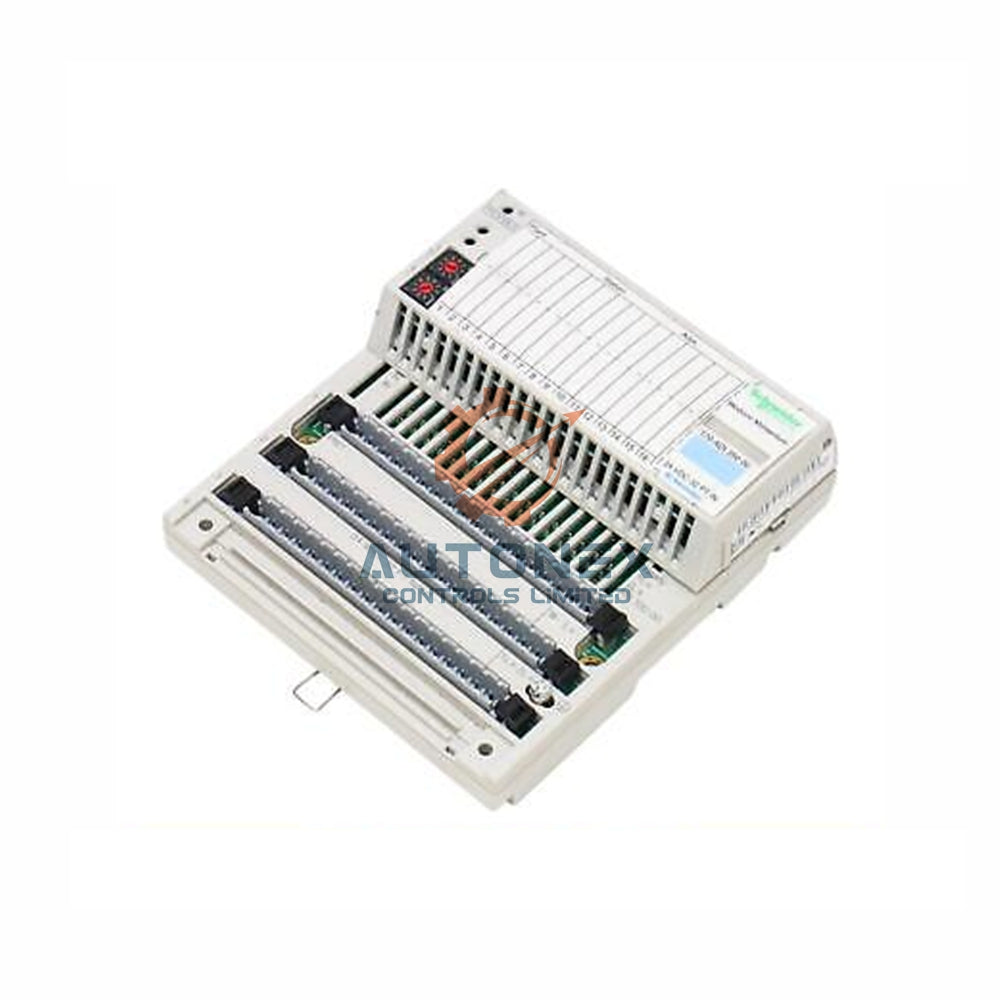

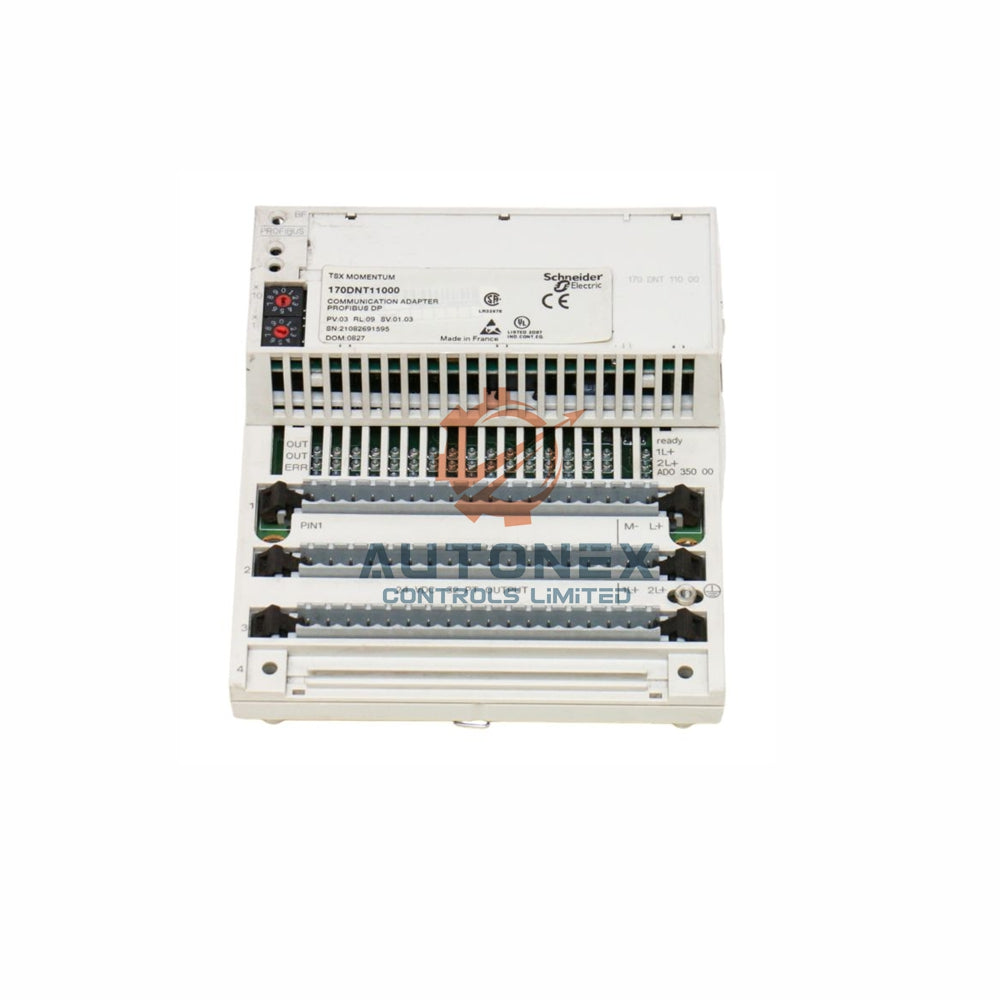

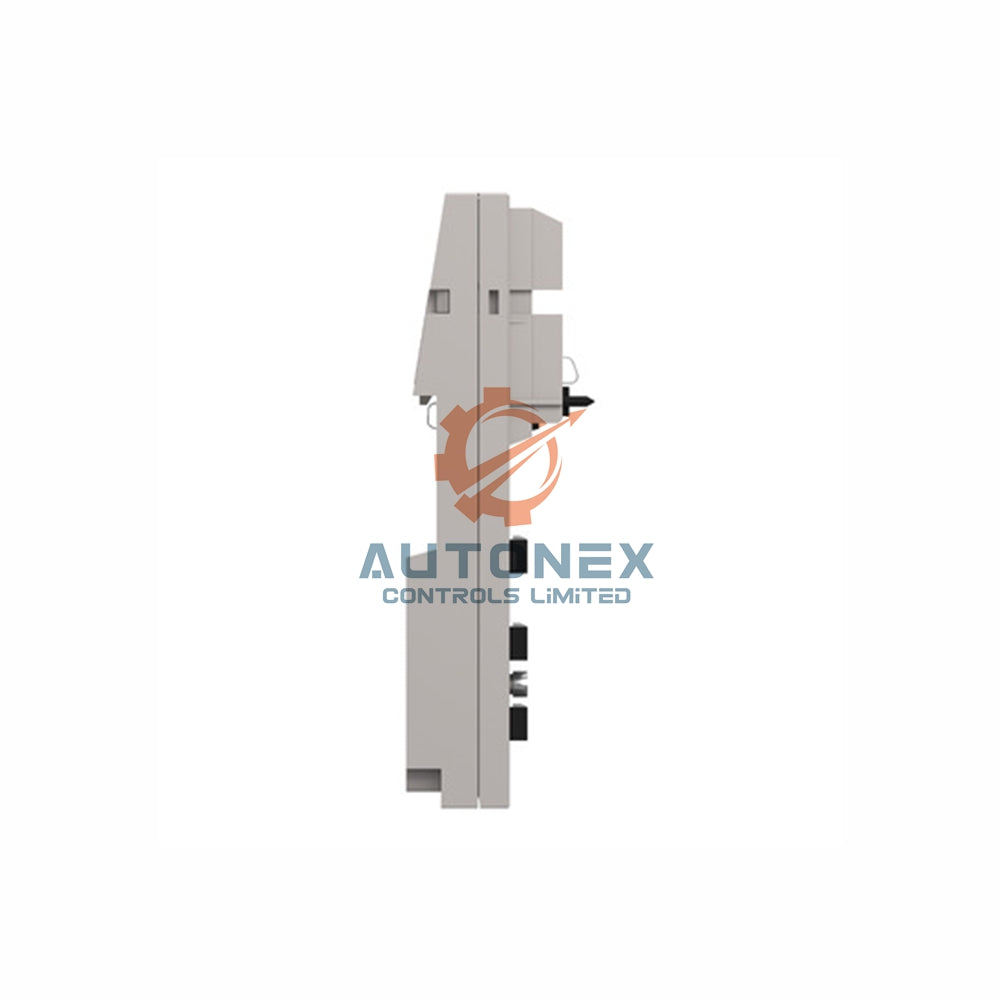

170ADO53050 8 Outputs 120V AC Triac Module Schneider

170ADO53050 Discrete Output Module – Reliable 120V AC Control

Technical Specifications at a Glance

• Brand: Schneider Electric
• Model: 170ADO53050
• Product Line: Modicon Momentum
• Category: Discrete Output Module
• Number of Outputs: 8
• Voltage Rating: 120V AC
• Output Type: Triac
• Current per Channel: 2A
• Total Current Rating: 16A
• Short-Circuit Protection: Internal fuse, 5A slow-blow per group
• Surge Current: 10A for 2 cycles / 15A for 1 cycle / 5A for 3 cycles
• Minimum Output Current: 5mA
• Maximum Leakage Current: 1.9mA
• Maximum Voltage Drop: <1.5V at 2A
• Output Overload Protection: Internal fuse
• Response Time: 0.5 line cycle
• Channel Isolation: 1780V AC for 1 minute
• Power Dissipation: 6W typical / 7.5W maximum
• Weight: 1.00 lbs (0.45 kg)

Frequently Asked Questions (FAQ)

• Q: Is the 170ADO53050 a brand new original part?
  A: Yes, we supply only brand new and original Schneider Electric modules. No counterfeits or used units.
• Q: What is the total current rating for all 8 outputs?
  A: The module supports a total of 16A across all channels. Each channel handles up to 2A simultaneously.
• Q: Does the module include short-circuit protection?
  A: Yes, an internal 5A slow-blow fuse protects each group of outputs. This fuse prevents damage during overloads.
• Q: What is the response time for output state changes?
  A: The response time equals 0.5 line cycle for both turning on and off. This delivers fast and predictable switching.
• Q: How do you ship this module and how long does it take?
  A: We ship via DHL, FedEx, or UPS within 5 days after order. Delivery times depend on your location.
• Q: Can I return the 170ADO53050 if it does not meet my needs?
  A: Yes, we support a 30-day return policy from the delivery date. Items must remain unused and in original packaging.
• Q: What is the minimum output current requirement?
  A: The module requires a minimum output current of 5mA. Below this value, the Triac may not latch properly.
• Q: Does the module provide channel isolation?
  A: Yes, it offers 1780V AC isolation for one minute between channels and logic. This ensures safe operation.
