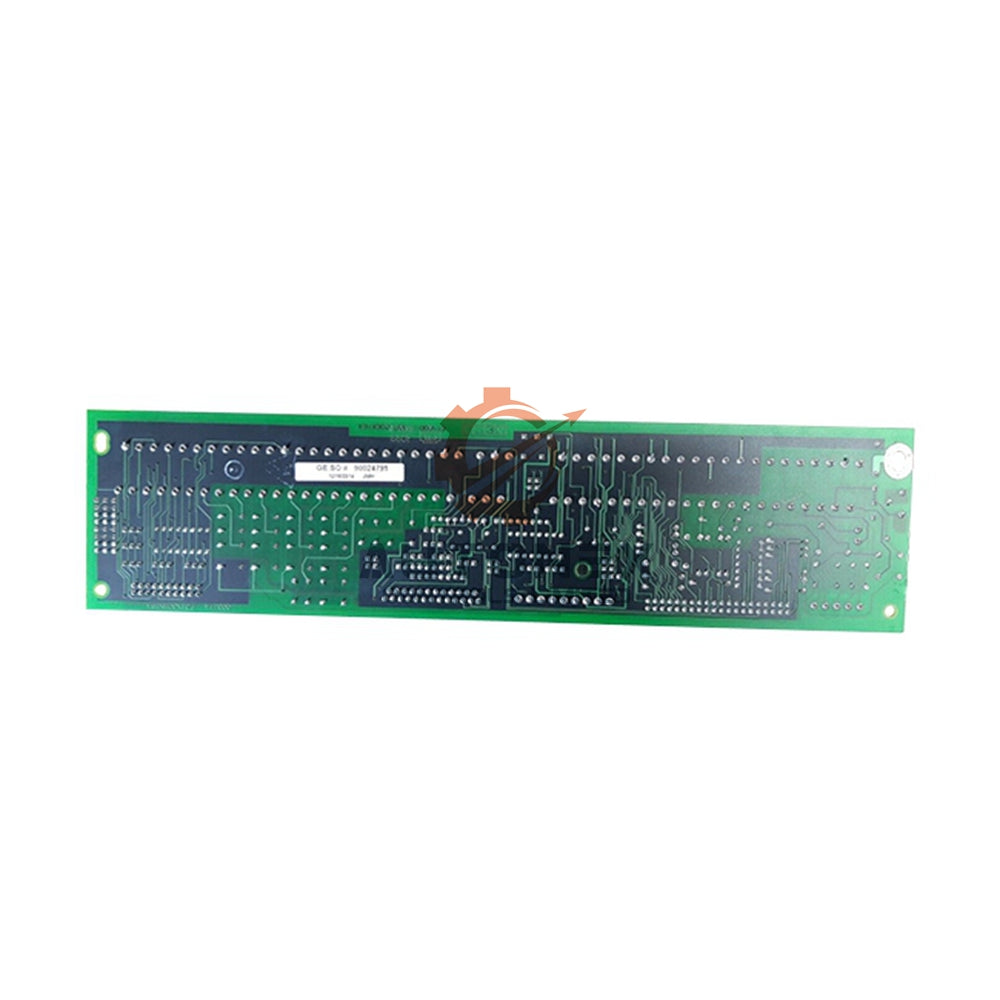

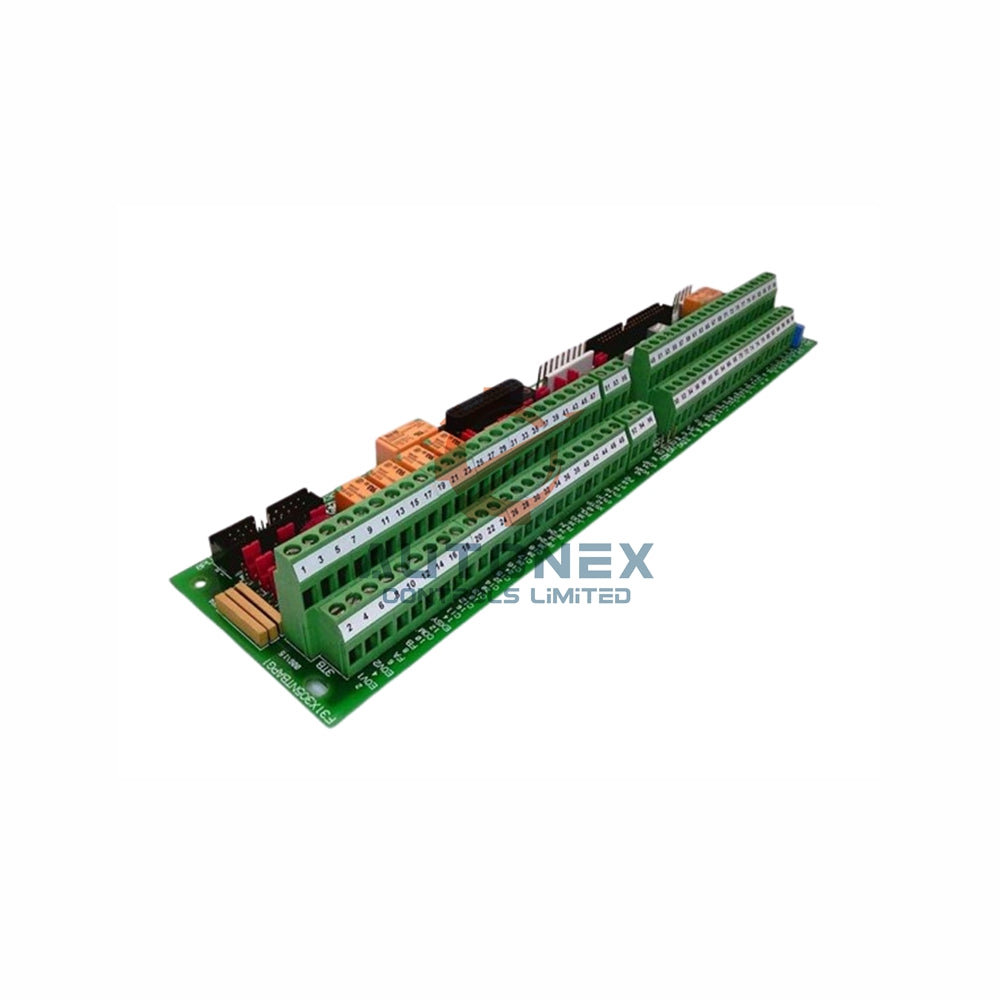

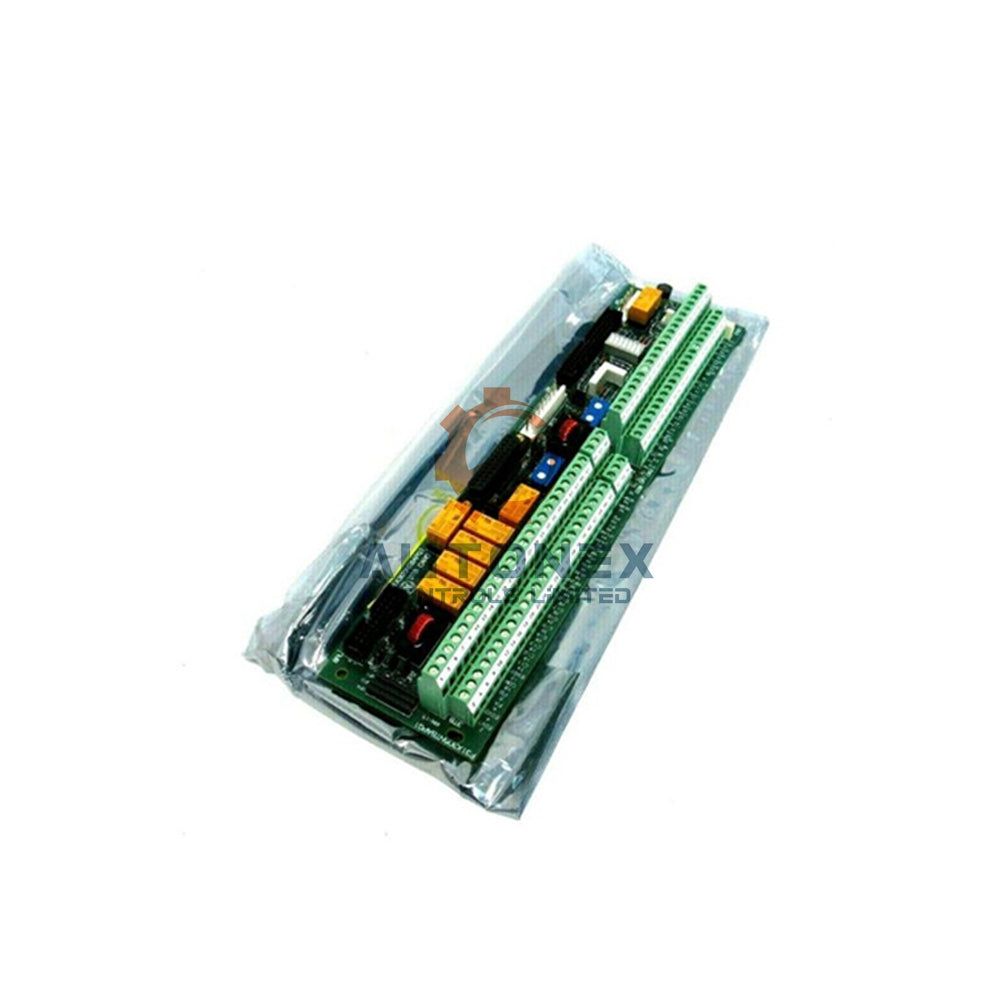

531X305NTBANG1 GE EX2000 NTB Terminal Board

GE 531X305NTBANG1 NTB/3TB Terminal Board Overview

• Part Number: 531X305NTBANG1.
• Manufacturer: General Electric (GE).
• Country of Origin: United States (USA).
• Product Type: NTB/3TB Terminal Board.
• Series: EX2000 excitation system.
• Core Software: Independent control simulator for field and generator behavior.
• Microprocessor Application Card: Simulates feedback signals for transducing algorithms.
• RS-232C Serial Port: Built into the board for communication.
• D/A Outputs: Digital-to-analog conversion outputs for testing.
• Auxiliary VCO Inputs: Voltage controlled oscillator inputs for analog control.

Technical Specifications

• Regulated Power Supplies: 5 VDC and 15 VDC outputs.
• Unregulated Power Supplies: 24 VDC or 125 VAC outputs.
• Encoder Configuration: Onboard jumpers support 5V and 15V encoders.
• Relay Outputs: Seven relay outputs (Form A or Form C).
• Relay Contact Rating: 120 VAC per relay contact.
• Potentiometers: Four units for scaling low-level analog I/O.
• Isolated Circuits: Available for communication inputs to the exciter.
• Non-Isolated Circuits: Also available for communication inputs.
• Programmer Module: Keypad and display for local interaction.

Frequently Asked Questions (FAQ)

• Is this a brand new board? Yes, this is brand new and original GE stock.
• Do you have the 531X305NTBANG1 in stock? Yes, we have this terminal board in stock now.
• How fast do you ship? We ship within 5 business days after order confirmation.
• What shipping carriers do you use? We use DHL, FedEx, and UPS.
• Can I return this board? Yes, we support returns within 30 days.
• What is the independent control simulator? It simulates field and generator behavior within the core software.
• Do I need a programmer module? The keypad and display are optional for local control.
• What happens if I skip reading the manual? You risk incorrect wiring and possible board damage.
