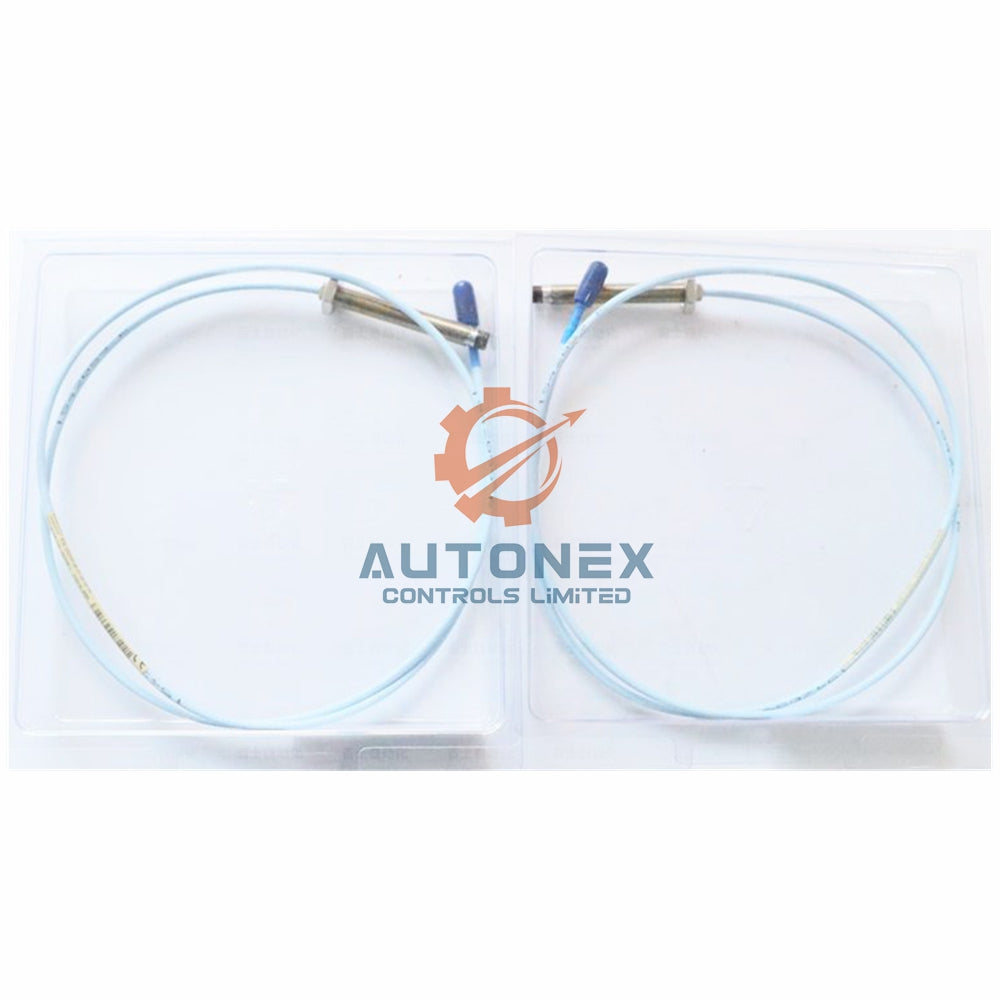

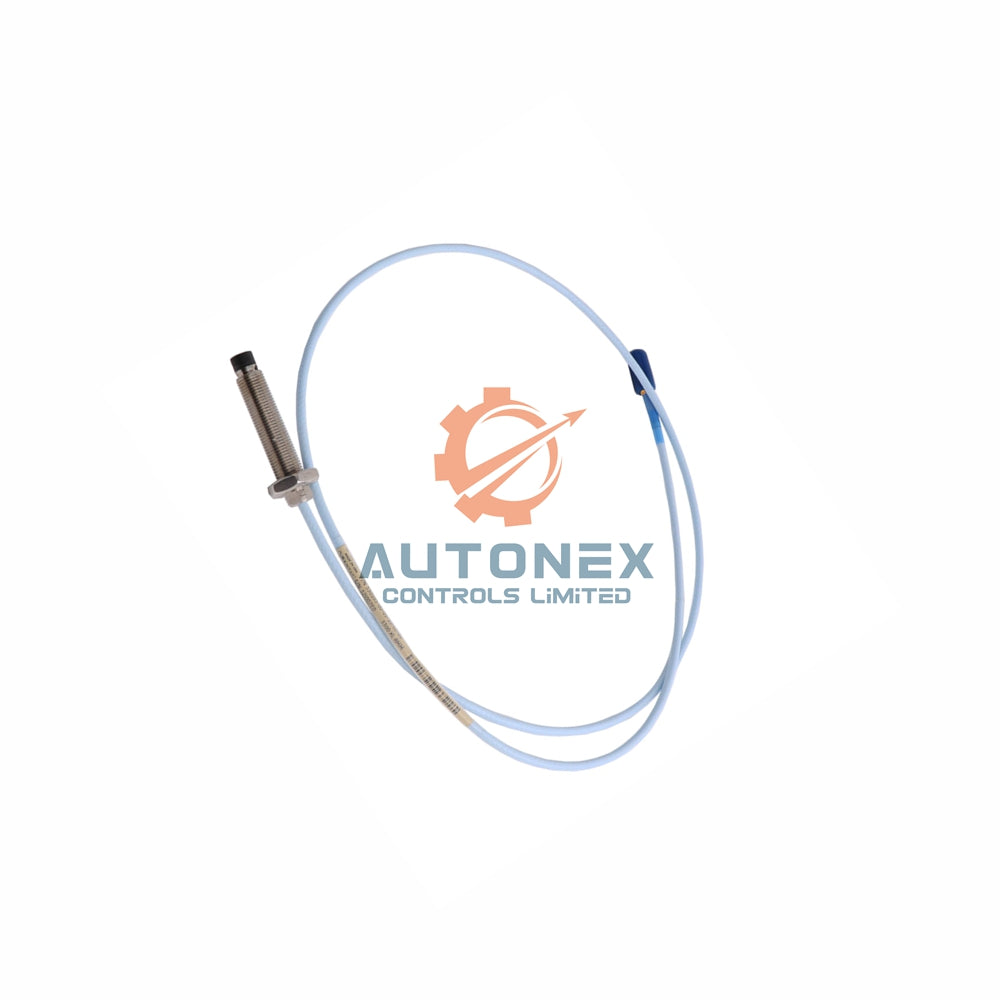

330901-22-40-05-01-05 3300 NSv Proximity Probe Bently Nevada

3300 NSv Proximity Probes – Precision Eddy Current Sensors for Critical Machinery

Key Technical Specifications

• Brand: Bently Nevada (GE Measurement & Control).
• Model Number: 330901-22-40-05-01-05 – 3300 NSv Proximity Probes series.
• Unthreaded Length Option: 2.2 inches (Option 22).
• Overall Case Length: 4.0 inches (Option 40).
• Total Length Option: 0.5 meter (20 inches, Option 05).
• Connector Type: Miniature coaxial ClickLoc with connector protector (Option 01).
• Agency Approval: Multiple approvals (Option 05).
• Probe Case Material: AISI304 stainless steel (SST).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Cable Specification: 75Ω coaxial, FEP insulated. Available lengths: 0.5, 1, 5, or 7 meters.
• DC Resistance (RPROBE): 4.0 ± 0.5 ohms for 0.5m length.
• Maximum Recommended Torque: 5.1 N•m (45 in•lb). Maximum rated: 7.3 N•m (65 in•lb).
• Thread Engagement Limit: Max 0.375 inches for 1/4-28 thread.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Pressure Seal Note: Uses Viton O-ring; seals differential pressure between tip and case.
• Weight Range: Approximately 14 to 150 grams (0.5 to 5.3 oz).

Frequently Asked Questions (FAQ)

• Q: Is this probe brand new and original?
  A: Yes, we supply only 100% brand new, original Bently Nevada 3300 NSv Proximity Probes.
• Q: Do you have stock for model 330901-22-40-05-01-05?
  A: Yes, we maintain ample stock of this exact configuration.
• Q: What is the probe's total length including cable?
  A: Total length option 05 gives you 0.5 meter (20 inches) from tip to connector.
• Q: Can I use this probe below -34°C continuously?
  A: Prolonged exposure below -34°C may cause premature pressure seal failure. Keep within -52°C to +177°C but avoid sustained low extremes.
• Q: How soon will you ship?
  A: We ship within 5 days after payment clears. Express options with DHL, FedEx or UPS.
• Q: What is the return policy?
  A: We support 30-day returns for unused items in original packaging.
• Q: Does this probe work with 3300 NSv extension cables?
  A: Yes, it mates with standard 3300 NSv series extension cables using ClickLoc connectors.
• Q: Is the probe pressure tested before shipping?
  A: Bently Nevada does not pressure test each probe prior to shipment, but the design uses Viton O-ring for differential pressure sealing.
