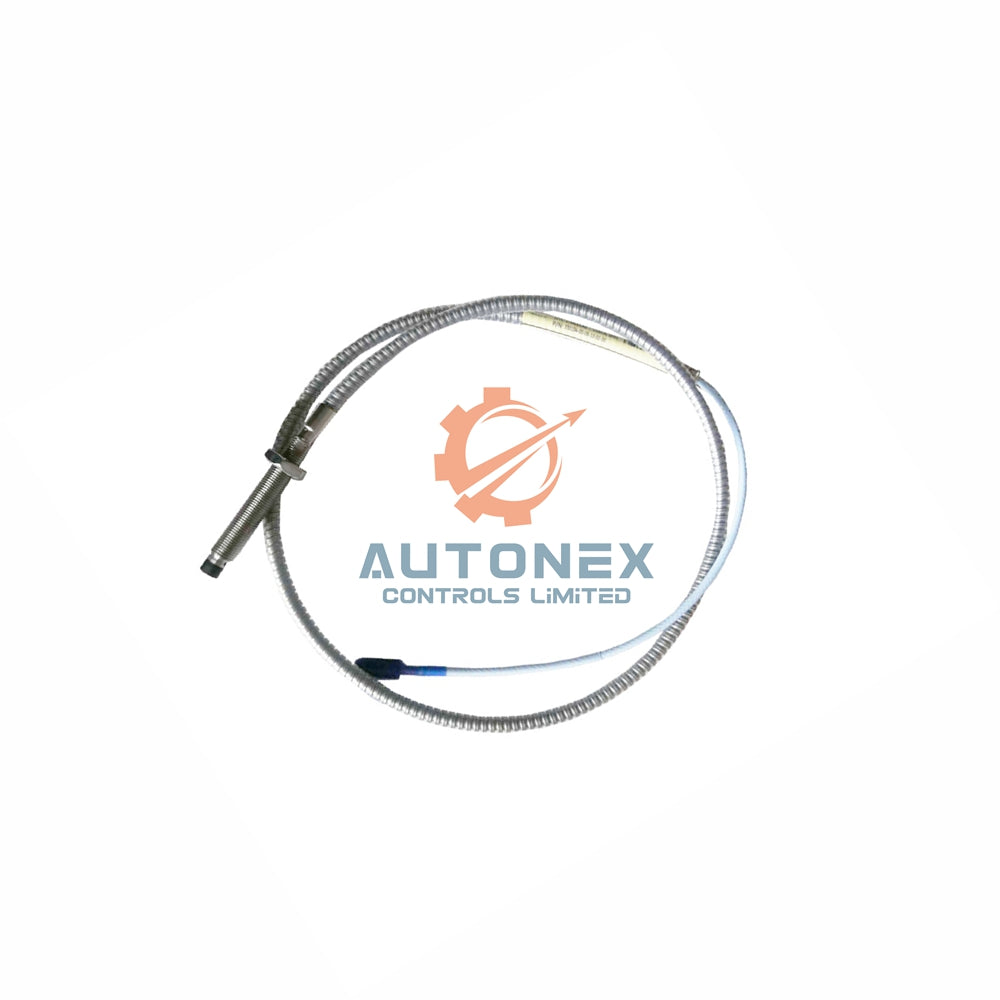

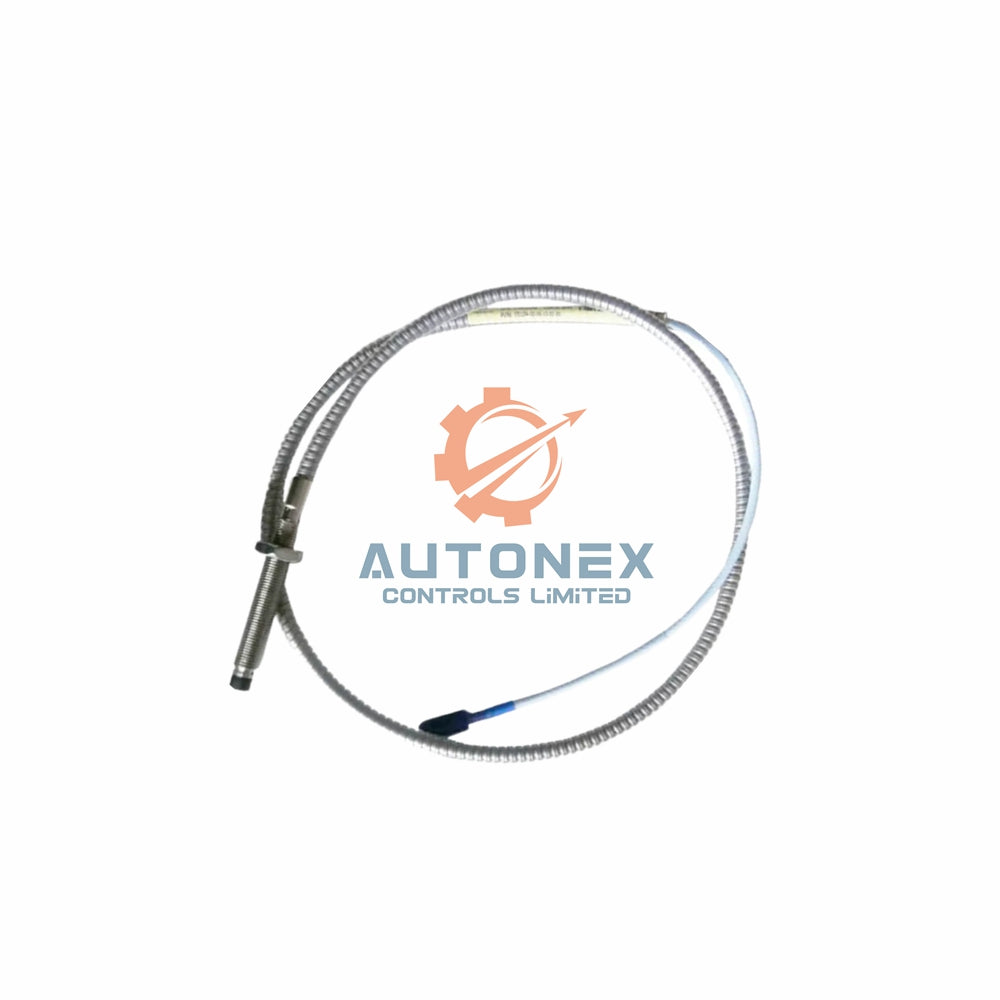

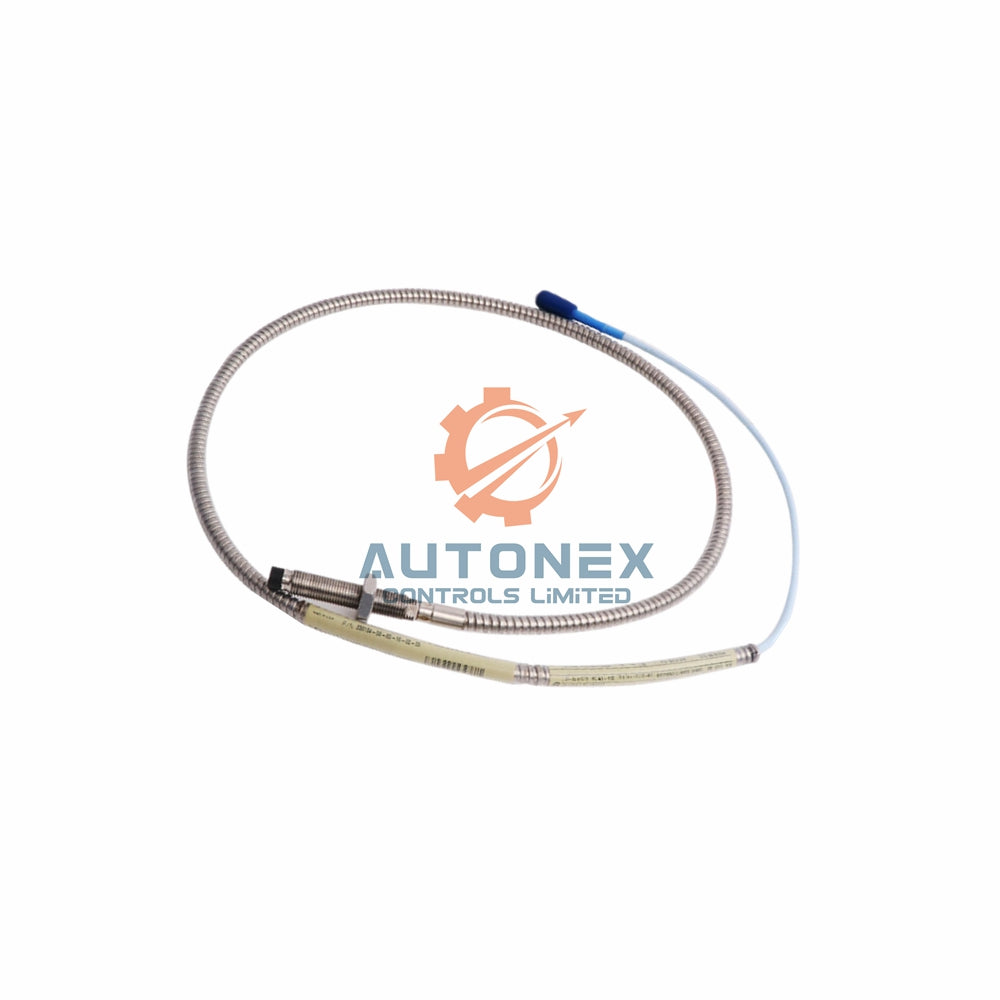

Bently Nevada 330704-000-100-10-01-CN – 11 mm Proximity Probe with 100mm Case Length

Key Technical Specifications

• Brand: Bently Nevada – a leader in vibration and position sensing.
• Model: 330704 defines 3300 XL 11 mm probe, M14 x 1.5 thread, with armor.
• Unthreaded Length Option: 000 = 00 mm (standard design).
• Overall Case Length: 100 = 100 mm for standard mounting applications.
• Total Length Option: 1.0 metre (3.3 feet) cable assembly.
• Connector Type: Miniature coaxial ClickLoc connector with connector protector, standard cable.
• Agency Approval Option: CN – country specific certification for China.
• Probe DC Resistance: 5.9 ± 0.5 ohms from center conductor to outer conductor.
• Effects of 60 Hz Magnetic Fields (5m system): Output in mV pp/gauss – Gap 0.5 mm: 0.001; Gap 2.5 mm: 0.009; Gap 4.6 mm: 0.027.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable Specification: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated. Total lengths available: 1, 5, or 9 meters.

Frequently Asked Questions (FAQ)

• Is this probe brand new and original? – Yes, we supply 100% brand new, original Bently Nevada probes in factory sealed packing.
• Do you have the 330704-000-100-10-01-CN in stock? – Yes, we maintain ready stock of this exact configuration.
• What is your return policy? – We support 30-day returns for unused items in original condition.
• Can I use this probe with existing 3300 XL systems? – Absolutely, the 330704 is fully compatible with Bently Nevada 3300 XL monitors.
• What is the minimum order quantity? – No minimum; single piece orders are welcome.
• Does cable length affect DC resistance? – For 1.0m length, resistance is 5.9 ± 0.5 ohms; longer cables (5m/9m) add approximately 5.9 ohms per meter.
• Will low temperature damage the probe? – Operating below -34°C may harm the pressure seal, but the probe withstands -52°C if avoiding rapid thermal changes.
• What does the CN approval mean? – The CN option indicates country specific certification for China, meeting local regulatory requirements.
