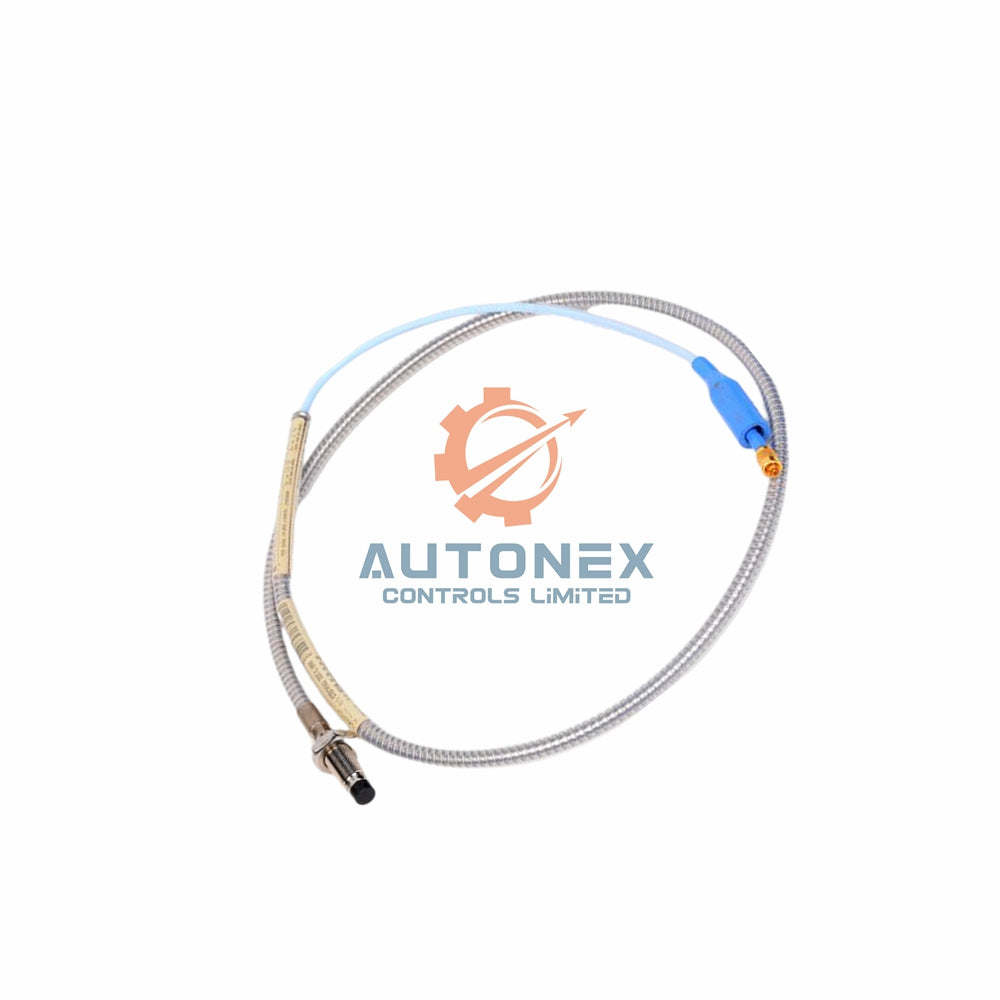

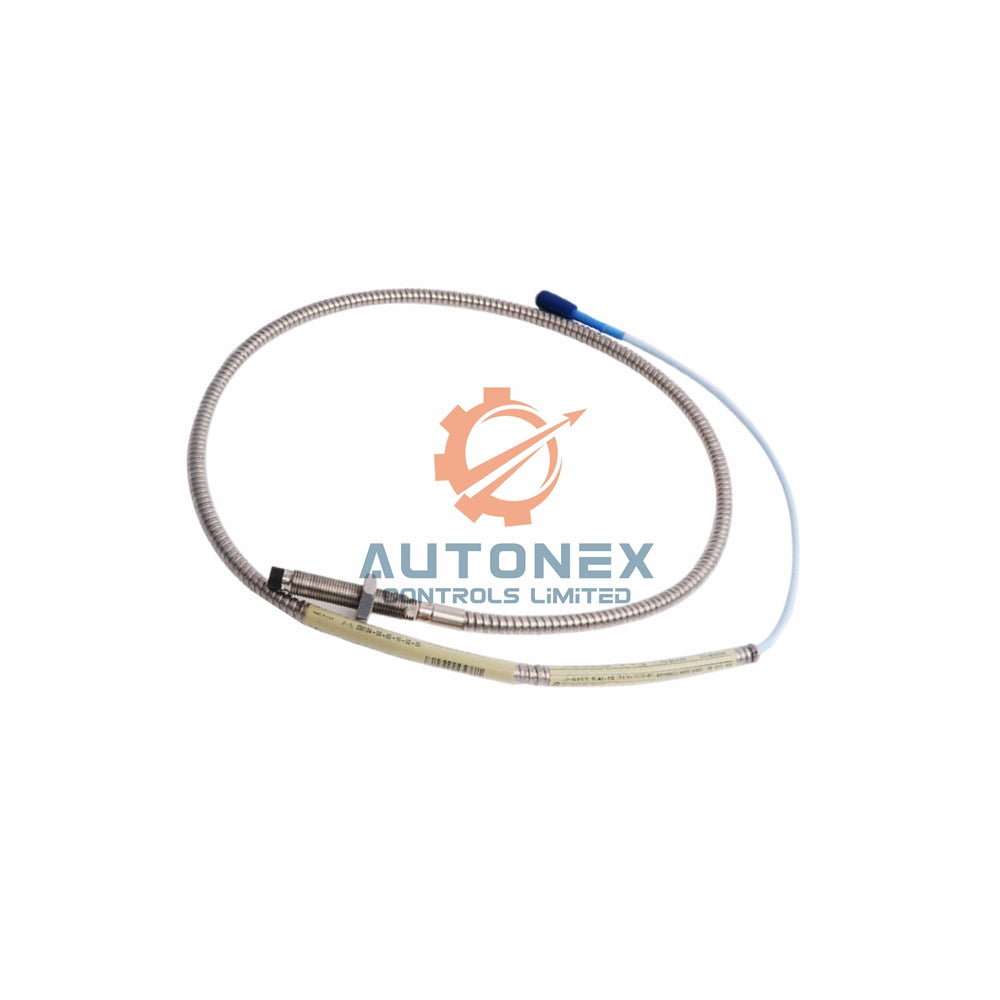

330910-02-10-70-01-00 Bently Nevada 3300 NSv Proximity Probe Sensor

330910-02-10-70-01-00 Bently Nevada 3300 NSv Proximity Probe – Technical Overview

Key Technical Specifications

• Manufacturer: Bently Nevada provides this original 330910-02-10-70-01-00 model with full factory warranty.
• Probe Model: 330910-02-10-70-01-00 belongs to the 3300 NSv Proximity Probes series with M10X1 thread armor.
• Unthreaded Length Option: -02 specifies 20 mm unthreaded length (20 mm less than case length).
• Overall Case Length: Option -10 equals 100 mm total case length.
• Total Probe Length: -70 means 7.0 meters (23.0 feet) complete assembly.
• Connector Type: -01 includes miniature coaxial ClickLoc connector with protector and standard cable.
• Agency Approval: -00 indicates no special approval required for this configuration.
• Probe DC Resistance: For 7.0 meter length, resistance from center to outer conductor is 5.9 ± 0.9 ohms.
• Probe Tip Material: Polyphenylene sulfide (PPS) provides excellent chemical and thermal resistance.
• Probe Case Material: AISI 304 stainless steel (SST) resists corrosion and mechanical stress.
• Cable Specification: 75 Ω coaxial cable uses fluoroethylene propylene (FEP) insulation.
• Minimum Bend Radius: You can bend the cable up to 25.4 mm (1.0 inch) without damage, even with SST armor.
• Probe Weight Range: The sensor weighs approximately 14 to 150 grams (0.5 to 5.3 oz).
• Maximum Thread Engagement: M10x1 case requires 15 mm thread engagement length.

Temperature Ratings and Schedules

• Operating Temperature: The probe works from -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: It survives the same range -52°C to +177°C without degradation.
• Important Caution: Sustained exposure below -34°C (-30°F) may damage the pressure seal prematurely.
• EPL Ga/Gc Temperature Classes: T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
• EPL Dc Temperature Classes: T280°C (-55°C to +232°C), T225°C (-55°C to +177°C), T170°C (-55°C to +120°C), T130°C (-55°C to +80°C), T105°C (-55°C to +100°C), T90°C (-55°C to +40°C).

Frequently Asked Questions (FAQ)

• Is this probe brand new and original? Yes, we supply only new and original Bently Nevada probes with factory packing.
• What is the total length of 330910-02-10-70-01-00? The total probe length is 7.0 meters or 23.0 feet exactly.
• Can I use this probe in high temperature areas? Yes, the sensor operates up to +177°C, but avoid long periods below -34°C.
• Do you have this model in stock? Yes, we maintain stock of 3300 NSv Proximity Probes for quick dispatch.
• How long does delivery take? We ship within 5 days, and FedEx/UPS/DHL deliver in 3-7 business days typically.
• What is the minimum bend radius for the cable? You must not bend the cable tighter than 25.4 mm (1.0 inch).
• What torque should I apply to the probe case? Use 11.3 N·m (100 in·lb) recommended, never exceed 33.9 N·m (300 in·lb).
