330905-05-10-10-02-00 3300 NSv Probe Bently Nevada

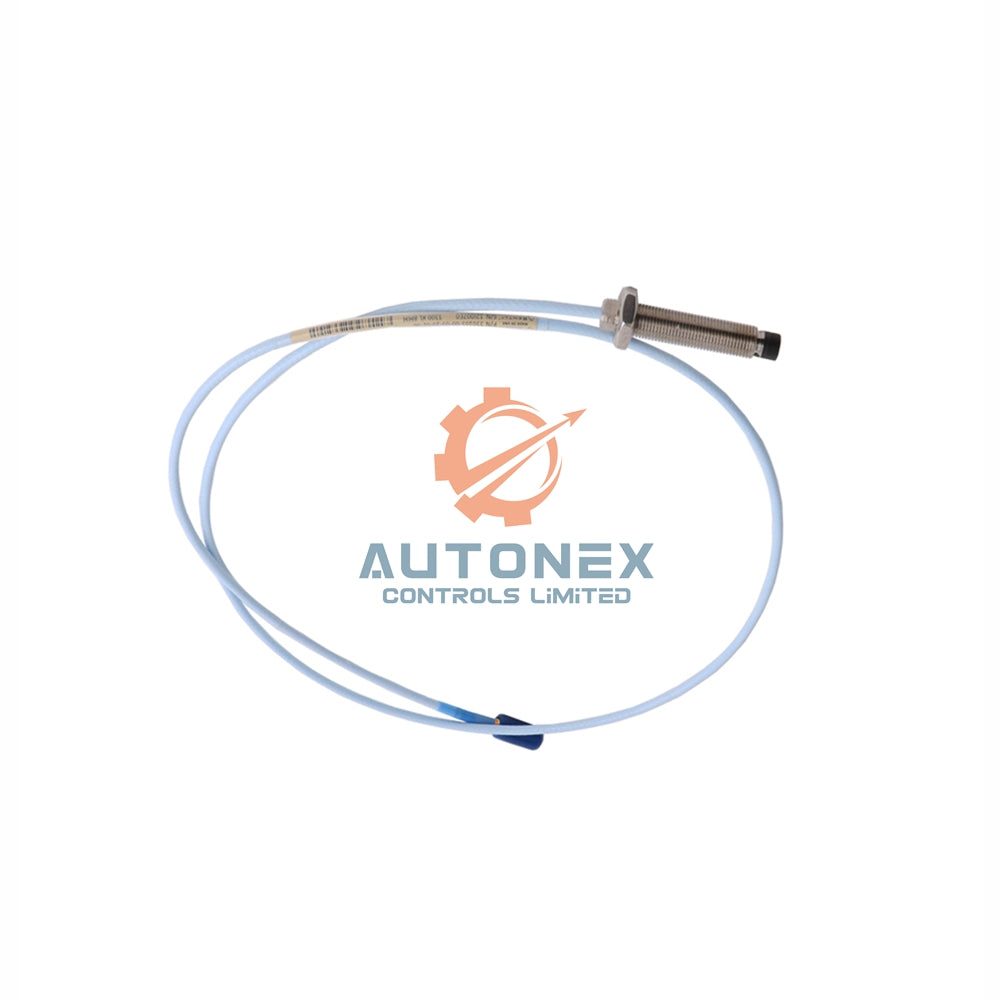

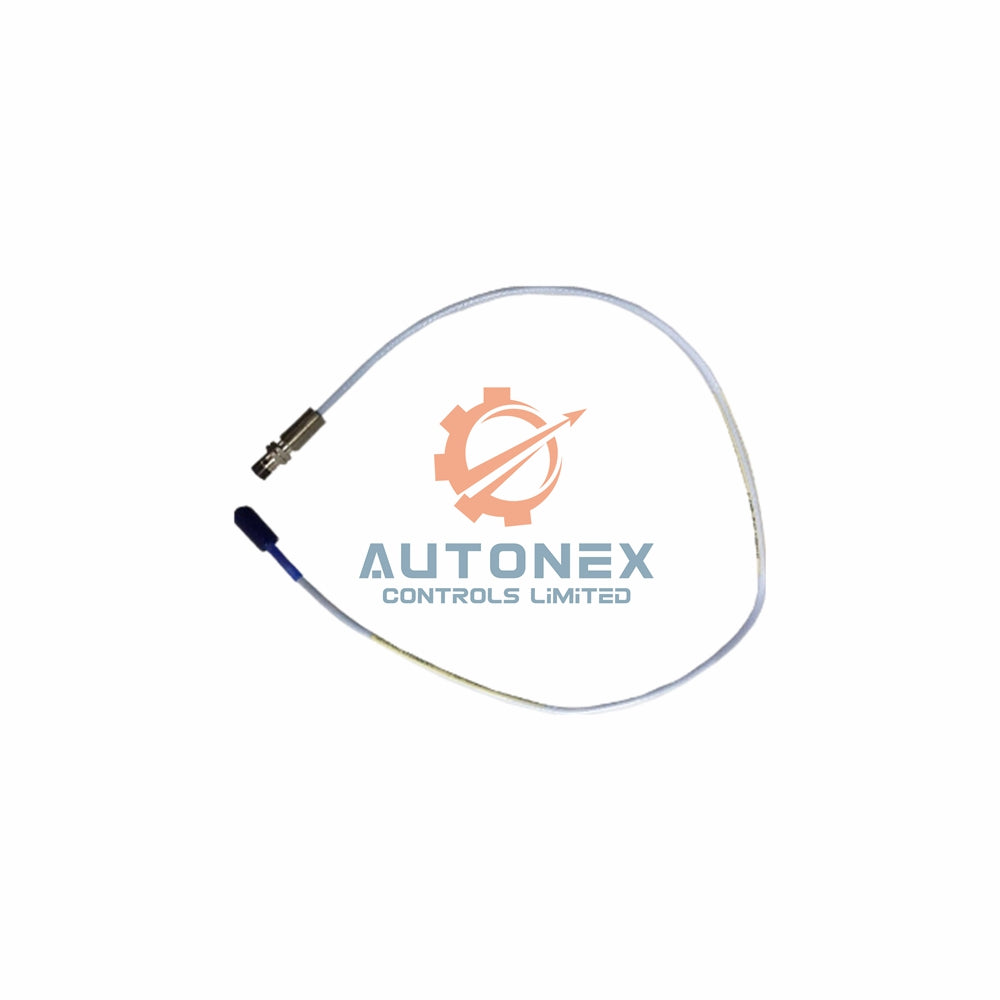

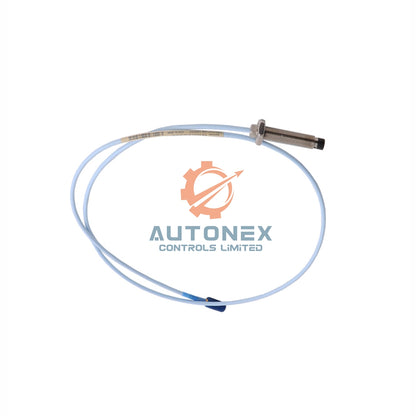

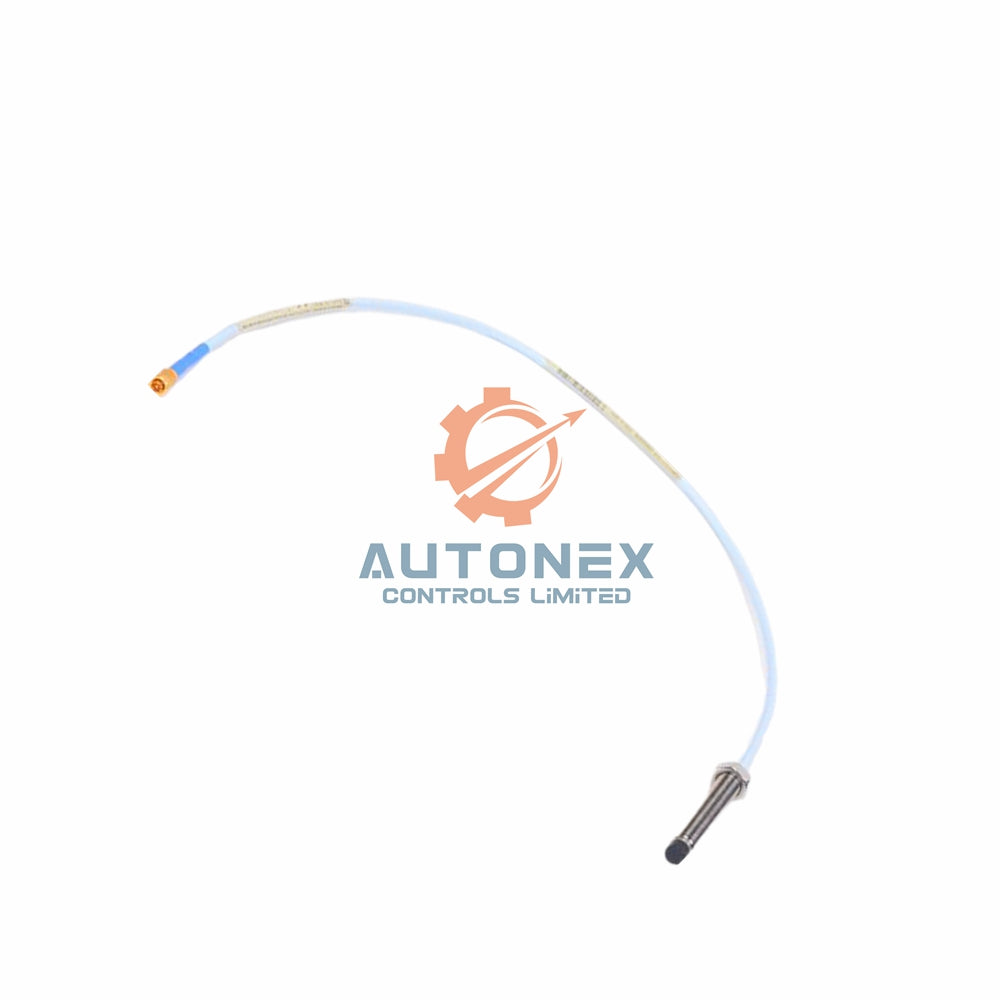

330905-05-10-10-02-00 – Bently Nevada 3300 NSv Proximity Probe

Core Technical Specifications

• Brand & Model: Bently Nevada 3300 NSv Proximity Probe – Full part number 330905-05-10-10-02-00.
• Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm (10 to 70 mils). Output voltage spans approximately -1 to -13 Vdc.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error over 0.25 mm steps.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils) – excellent linearity.
• Frequency Response: 0 to 10 kHz typical: +0, -3 dB with up to 305 m (1000 ft) of field wiring.
• Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance.
• Probe DC Resistance (1.0m length): 4.2 ± 0.5 ohms (center conductor to outer conductor).
• Extension Cable DC Resistance: Center conductor 0.220 Ω/m (0.067 Ω/ft); Shield 0.066 Ω/m (0.020 Ω/ft).
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.

Environmental & Mechanical Robustness

• Operating Temperature: -52°C to +177°C (-62°F to +351°F) for the probe.
• Storage Temperature: Same wide range: -52°C to +177°C (-62°F to +351°F).
• Probe Tip Material: Polyphenylene sulfide (PPS) – excellent chemical resistance.
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable Insulation: Fluoroethylene propylene (FEP), 75 Ω coaxial. Total probe length: 1.0 meter (39 inches) as per part.
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without stainless steel armor.
• Maximum Torque for Probe Case: 0.56 N•m (5 in•lb) – finger tight recommended.
• M10x1 Probe Case Thread: Maximum length of thread engagement: 15 mm. Case torque maximum 22.6 N•m (200 in•lb).
• Connector Type: Miniature coaxial ClickLoc connector with standard cable, model option 02.

Frequently Asked Questions (FAQ)

• Q: Is the 330905-05-10-10-02-00 probe fully compatible with older Bently Nevada 3300 RAM systems?
  A: Yes, the 3300 NSv probe and extension cable are mechanically and electrically interchangeable with the previous 3300 RAM proximity probe.
• Q: What is the maximum field wiring distance I can use with this probe?
  A: You can use up to 305 meters (1000 feet) of field wiring between the 3300 XL NSv Proximitor Sensor and the monitor.
• Q: Does this probe work on small diameter shafts?
  A: For shafts smaller than 13 mm (0.5 in), reducing the gap helps limit scale factor changes. We recommend a 13 mm minimum target diameter.
• Q: Is the probe pressure tested before shipment?
  A: Probes are not pressure tested prior to shipment. Contact our custom design department if you require a pressure seal test for your application.
• Q: What is the stock availability for the 330905-05-10-10-02-00?
  A: We have this model in stock and ready to ship within 5 days after order confirmation.
• Q: What shipping methods do you offer?
  A: We ship via FedEx, UPS, and DHL for fast and reliable worldwide delivery.
• Q: What is your return policy?
  A: We support a 30-day return window for unused items in original factory packing.
