330880-28-00-035-00-02 Transducer Bently Nevada

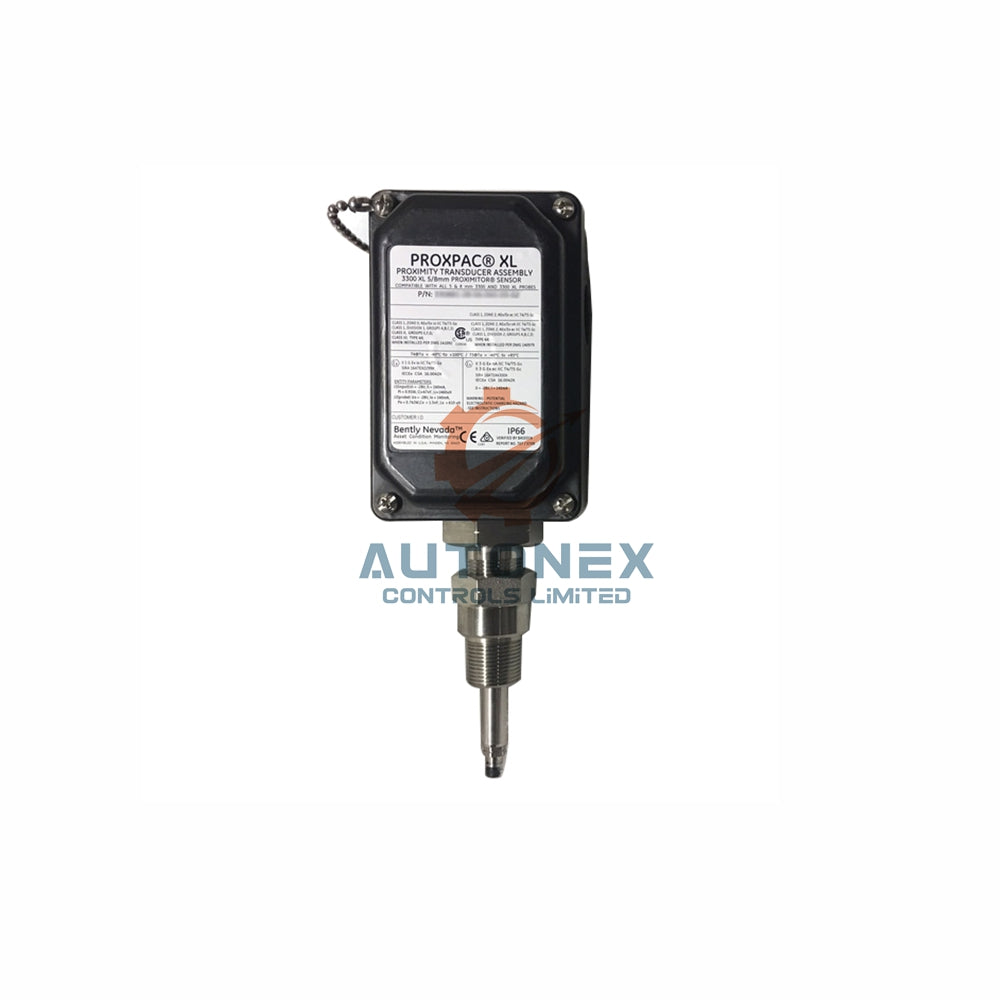

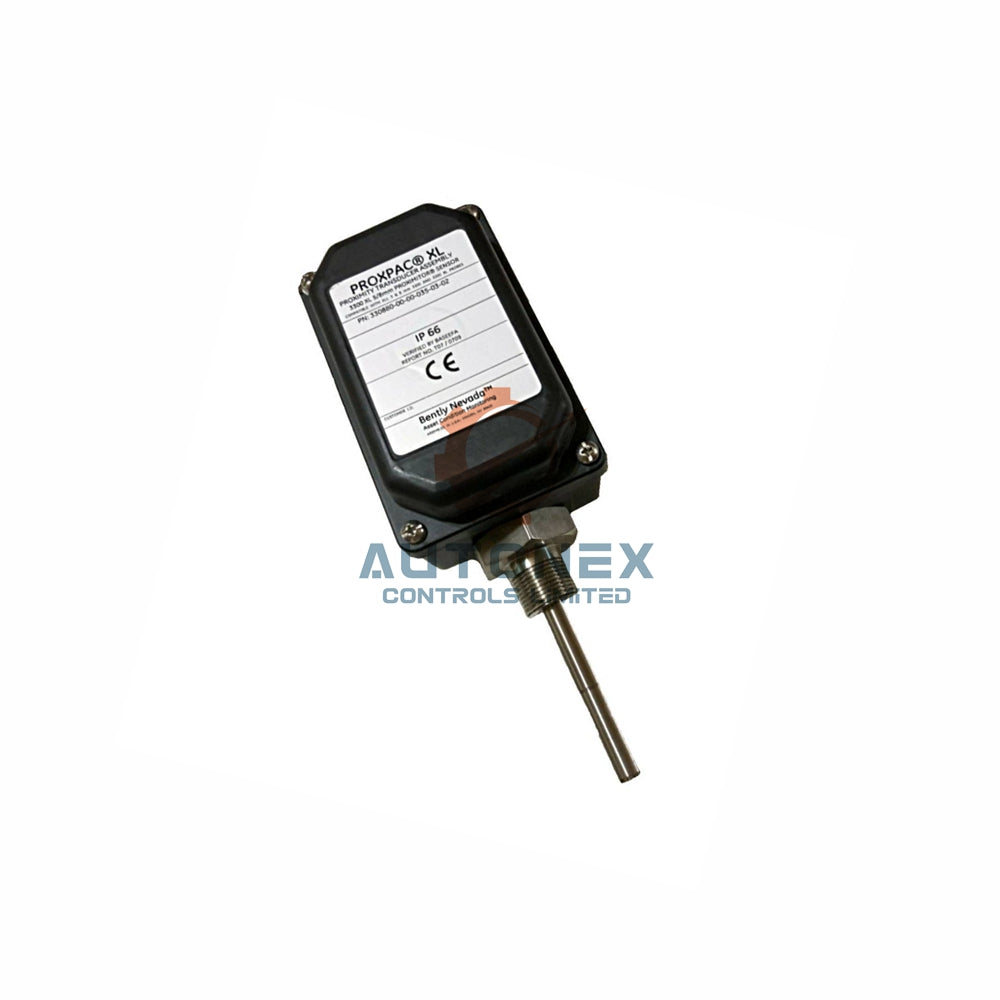

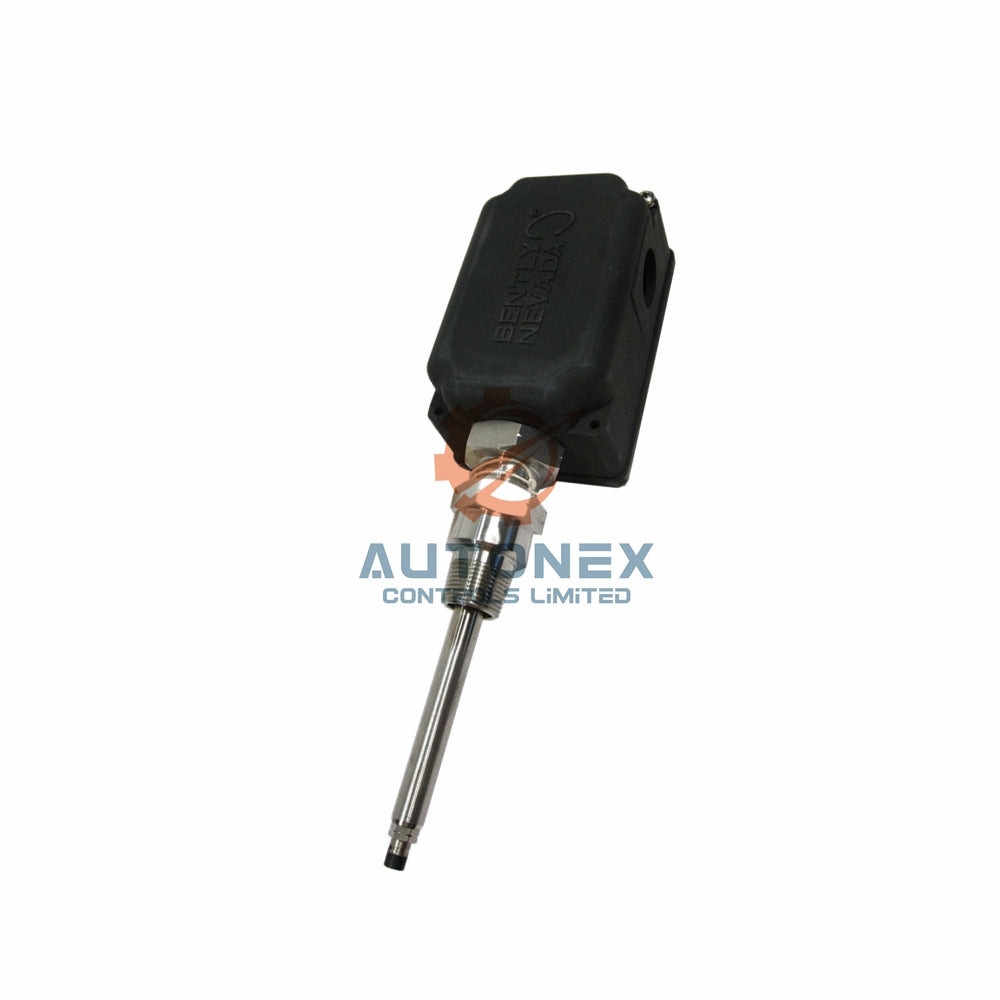

Bently Nevada 330880-28-00-035-00-02 PROXPAC XL Proximity Transducer Overview

• Manufacturer & Model: Bently Nevada manufactures this 330880-28-00-035-00-02 transducer. The device carries the PROXPAC XL series name.
• Probe & Approvals: This unit includes a 3300 XL 8 mm probe with multiple approvals. The standoff adapter measures 0.0 in (Option 00). The probe penetration equals 35 mm (Option 037).
• Linear Range & Scale Factor: The system covers a 2 mm (80 mils) linear range. It starts at 0.25 mm (10 mils) from the target. The incremental scale factor measures 7.87 V/mm (200 mV/mil) ±5%. This value includes interchangeability error.
• Frequency Response & Wiring: The frequency response spans 0 to 10 kHz (+0, -3 dB). You can use up to 305 meters (1000 feet) of field wiring. Field wiring requires 3-conductor shielded triax cable. The output resistance equals 50 Ω.
• Power Requirements & Sensitivity: It needs -17.5 Vdc to -26 Vdc without barriers. With barriers, use -23 Vdc to -26 Vdc. The supply sensitivity stays less than 2 mV change per volt change. Operation above -23.5 Vdc reduces linear range.
• Probe & Environmental Limits: The probe tip uses Polyphenylene Sulfide (PPS). Its case comes from AISI 304 stainless steel. The probe operates from -51 °C to +177 °C (-60 °F to +350 °F). Avoid exposing the probe below –34 °C (-29 °F) to prevent seal failure.
• Housing & Impact Ratings: The housing material resists UV and reinforces with glass. It carries an IP66 rating from BASEEFA (report T07/0709). The housing withstands two separate 4 Joule impacts at -39°C and 115°C. CSA confirms a 7 Joule impact resistance at room temperature.
• Physical Strength & Torque Values: Probe tensile strength reaches 330 N (75 lb) maximum. The retaining nut torque requires 29.5 N·m (260 in·lb). The probe sleeve locknut torque needs 39.3 N·m (350 in·lb). The housing supports 912 N (205 lbf) on an unsupported end.
• Minimum Target & Shaft Diameter: The minimum target size equals 15.2 mm (0.6 in) diameter flat target. The minimum shaft diameter measures 50.8 mm (2.0 in).

Frequently Asked Questions (FAQ)

• Is the 330880-28-00-035-00-02 brand new and original? Yes, this listing provides a brand new original unit. We stock genuine Bently Nevada parts.
• Do you have this PROXPAC XL model in stock? Yes, we have inventory available. You can order immediately for fast processing.
• What is the shipping time for this transducer? We dispatch all orders within 5 business days. Delivery times depend on your location.
• Which carriers do you use for shipping? We ship via DHL, FedEx, and UPS. You can choose your preferred option at checkout.
• Can I return the 330880-28-00-035-00-02? Yes, we accept returns within 30 days of delivery. The item must be unused and in original packaging.
• What happens if I operate the probe below -34 °C? Operating below -34 °C may cause premature pressure seal failure. Follow the temperature limits carefully.
• Does this unit include the 3300 XL 8 mm probe? Yes, option 28 adds the 3300 XL 8 mm probe with multiple approvals.
