330500-01-01 Bently Nevada Velomitor Sensor CSA Approved

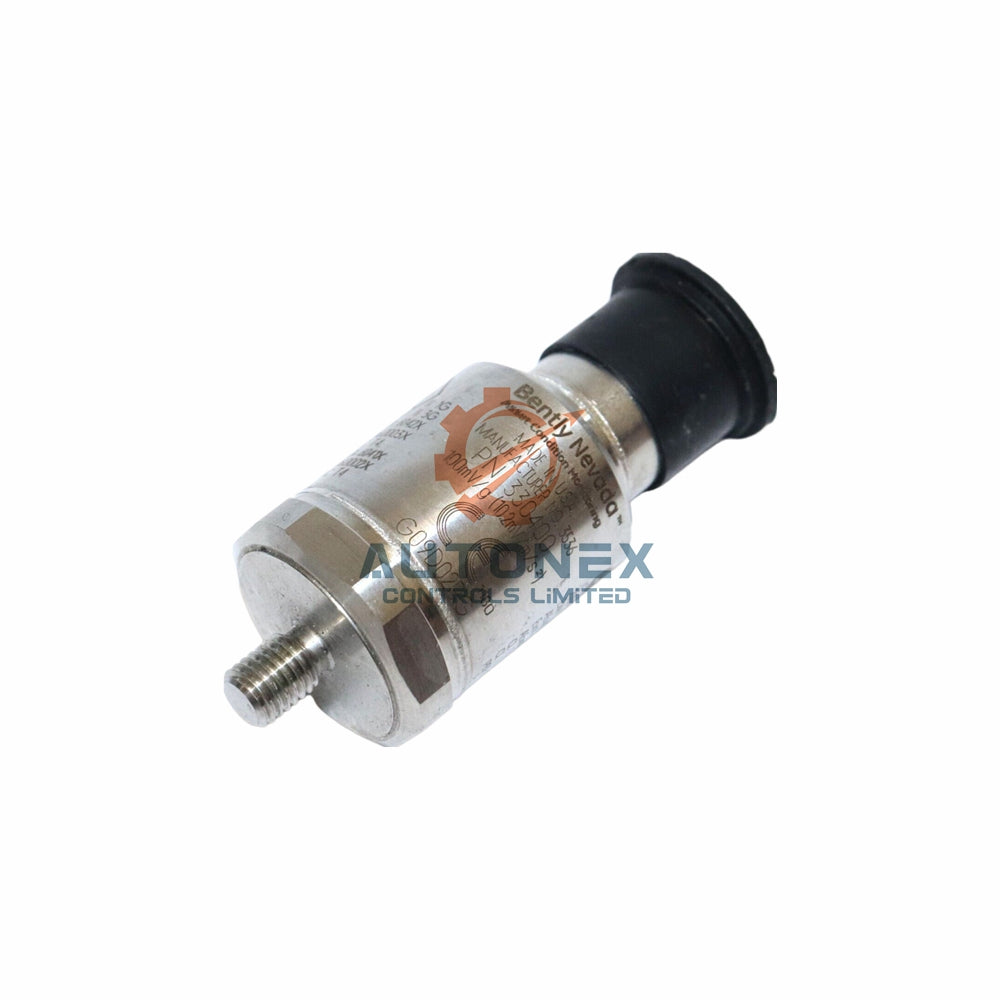

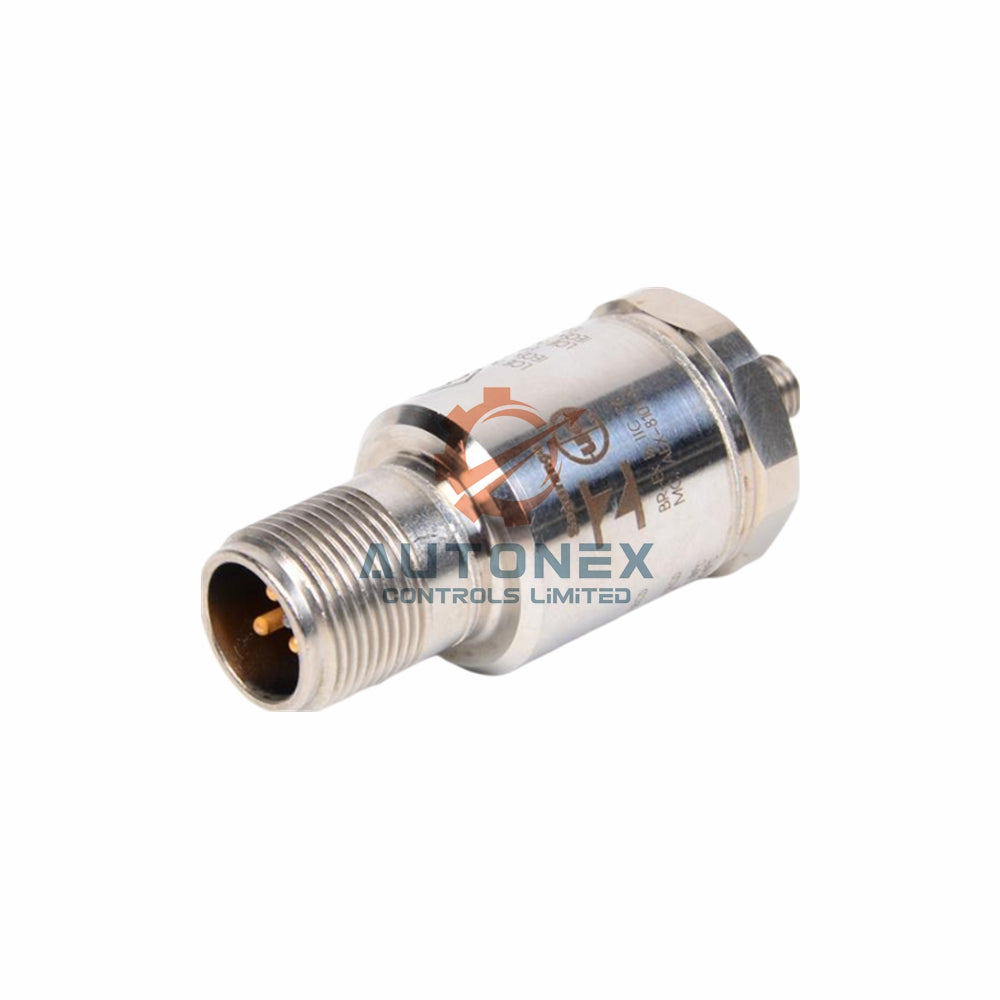

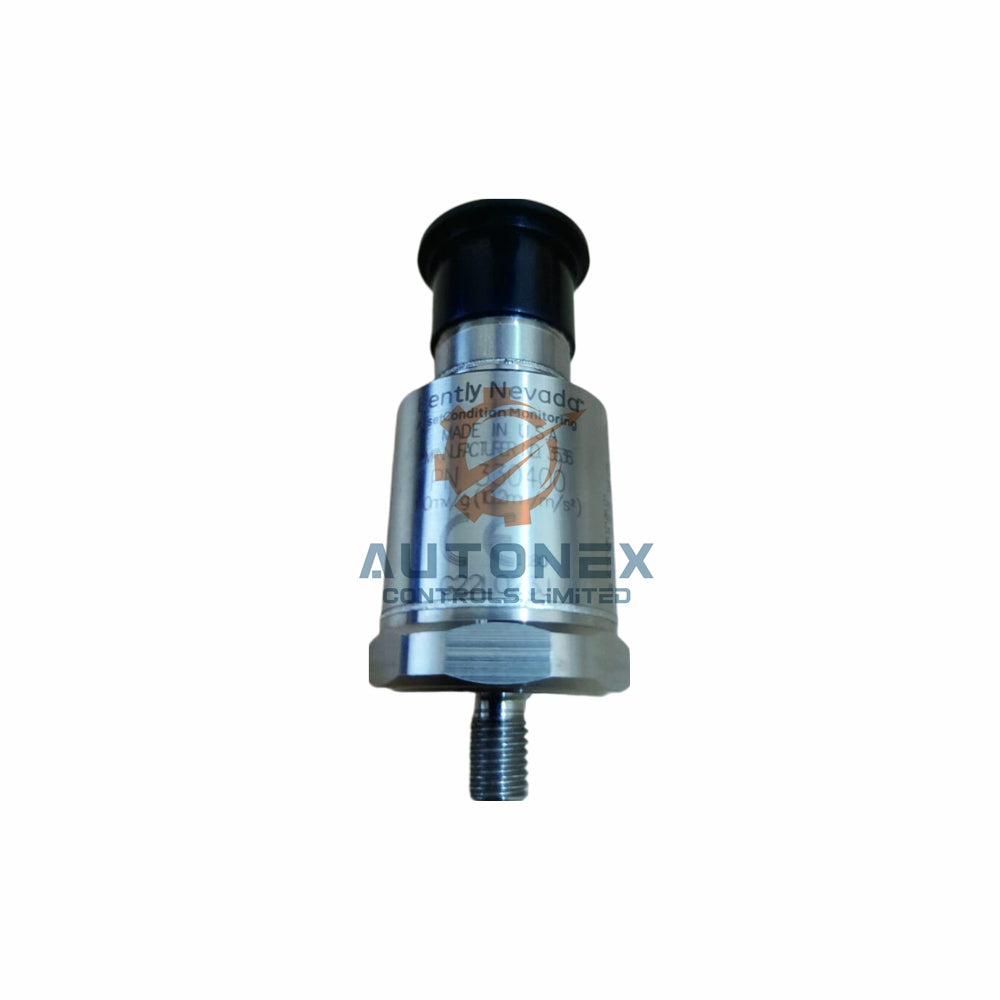

Bently Nevada 330500-01-01 Velomitor Piezo-velocity Sensor

Key Technical Specifications

• Brand: Bently Nevada
• Model Number: 330500-01-01
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5% at 100 Hz
• Frequency Response: 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB; 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB
• Velocity Range: 1270 mm/s (50 in/s) peak
• Amplitude Linearity: ±2% up to 152 mm/s (6 in/s) peak
• Broadband Noise Floor: 0.004 mm/s (160 μin/s) rms nominal (4.5 Hz to 5 kHz)
• Output Bias Voltage: -12 ±3.0 VDC referenced to Pin A over temperature
• Dynamic Output Impedance: Less than 2400 Ω
• Mounted Resonant Frequency: Greater than 12 kHz
• Transverse Sensitivity: Less than 5% of sensitivity
• Grounding: Case isolated
• Temperature Sensitivity: -14% to +7.5% typical over operating temperature range

Environmental and Physical Limits

• Operating Temperature Range: -55°C to 121°C (-67°F to 250°F)
• Shock Survivability: 5,000 g peak maximum
• Relative Humidity: Up to 100% non-submerged (hermetically-sealed case)
• Base Strain Sensitivity: 0.005 in/s/mstrain
• Magnetic Field Susceptibility: Less than 51 min/s/gauss (50 gauss, 50-60Hz)
• Weight: 142 grams (5.0 oz) typical
• Diameter: 25.3 mm (0.995 in)
• Height: 63.2 mm (2.49 in)
• Case Material: 316L stainless steel
• Connector: 2-pin Mil-C-5015 hermetically-sealed, 316L stainless steel shell

Frequently Asked Questions (FAQ)

• Q: Is the Bently Nevada 330500-01-01 a new original sensor?
  A: Yes, we supply only new original Bently Nevada sensors with full factory traceability.
• Q: What thread does the -01 mounting option provide?
  A: The -01 option gives you a 1/2 - 20 UNF thread for standard mounting.
• Q: What is the sensitivity of the 330500 Velomitor sensor?
  A: The sensor delivers 3.94 mV/mm/s (100 mV/in/s) ±5% at 100 Hz reference.
• Q: Can I use this sensor in extreme temperatures?
  A: Yes, the operating range spans -55°C to 121°C (-67°F to 250°F).
• Q: What approvals does the -01 option include?
  A: The -01 option includes CSA/US/C certification for hazardous locations.
• Q: How long does shipping take?
  A: We ship within 5 days via FedEx, UPS, or DHL. Delivery times depend on your location.
• Q: Do you have the 330500-01-01 in stock?
  A: Yes, we keep this model in stock for immediate dispatch.
• Q: What is the maximum cable length for this sensor?
  A: You can use up to 305 meters (1,000 feet) of Bently Nevada cable 02173006 without signal loss.
• Q: Can I return the sensor if it does not meet my needs?
  A: Yes, we accept returns within 30 days of delivery.

For inquiries or to place an order, please contact us: sales@nex-auto.com or +86 153 9242 9628 (WhatsApp).
