31000-16-05-00-65-03-02 | Bently Nevada Probe Housing

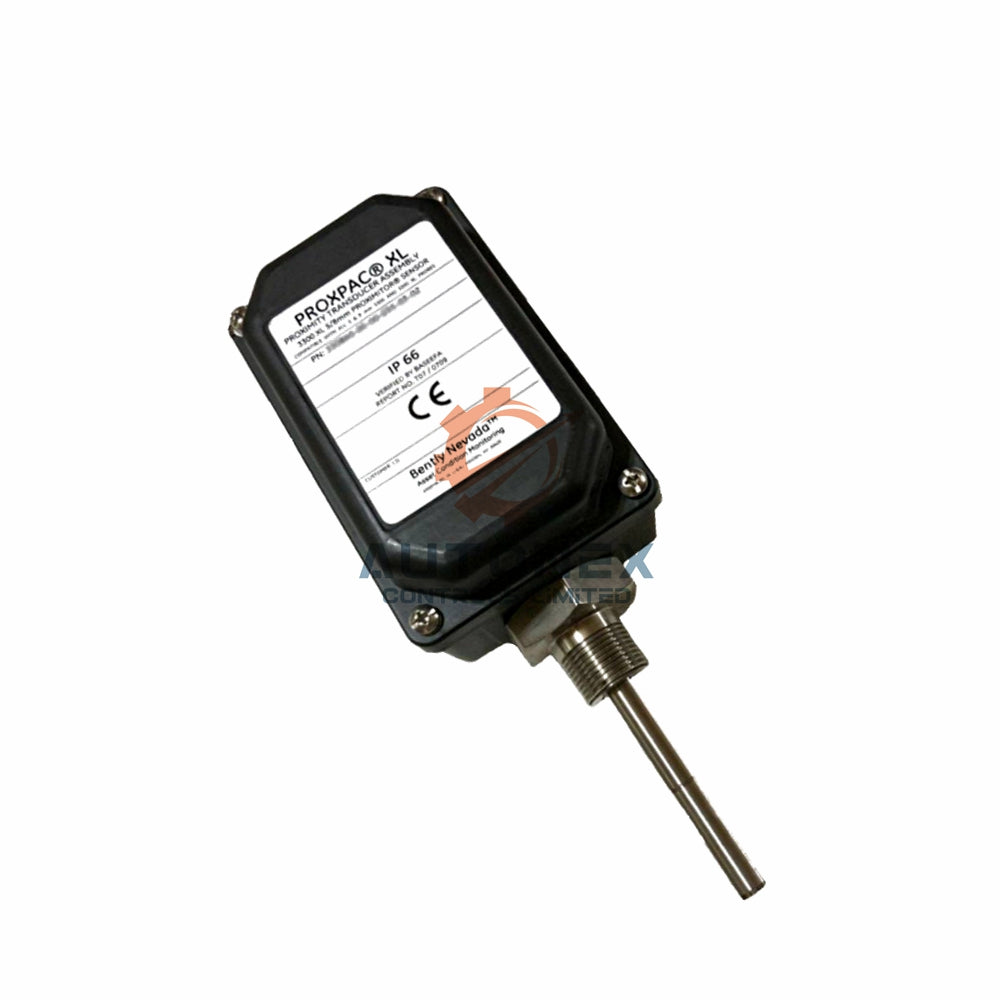

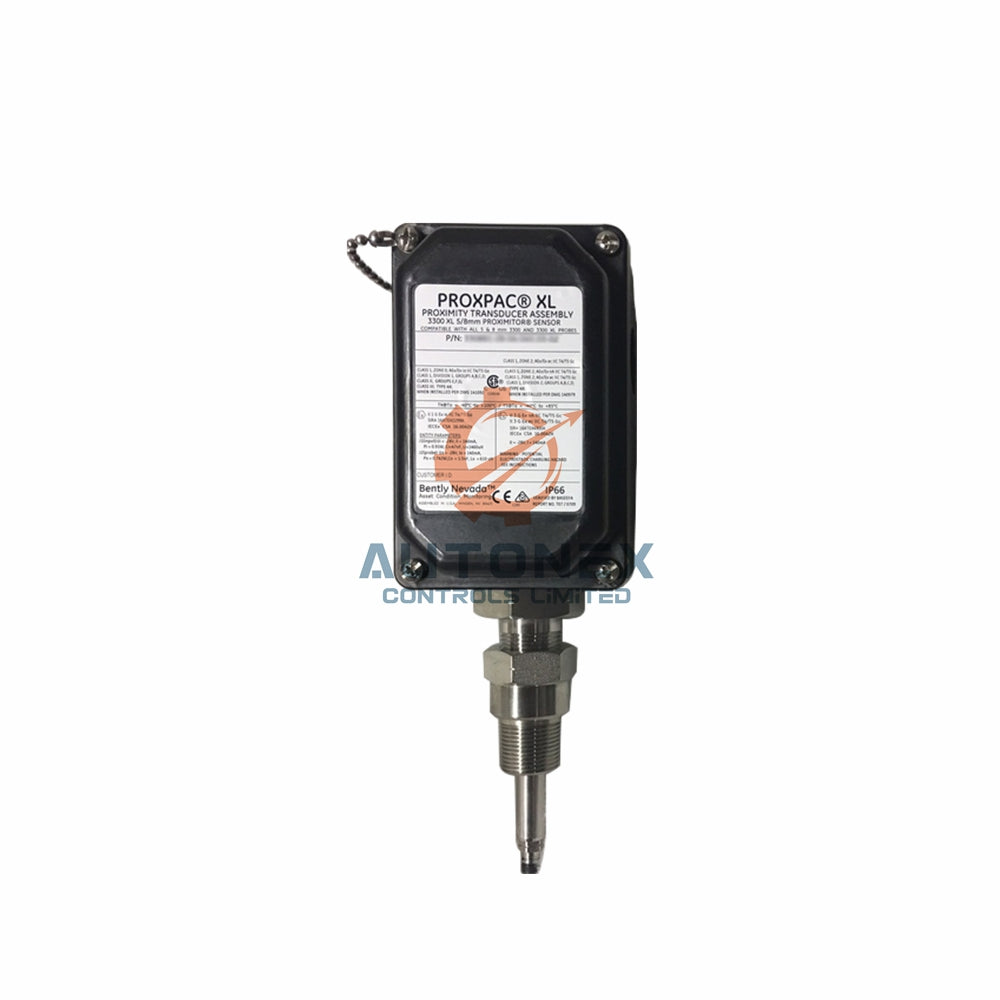

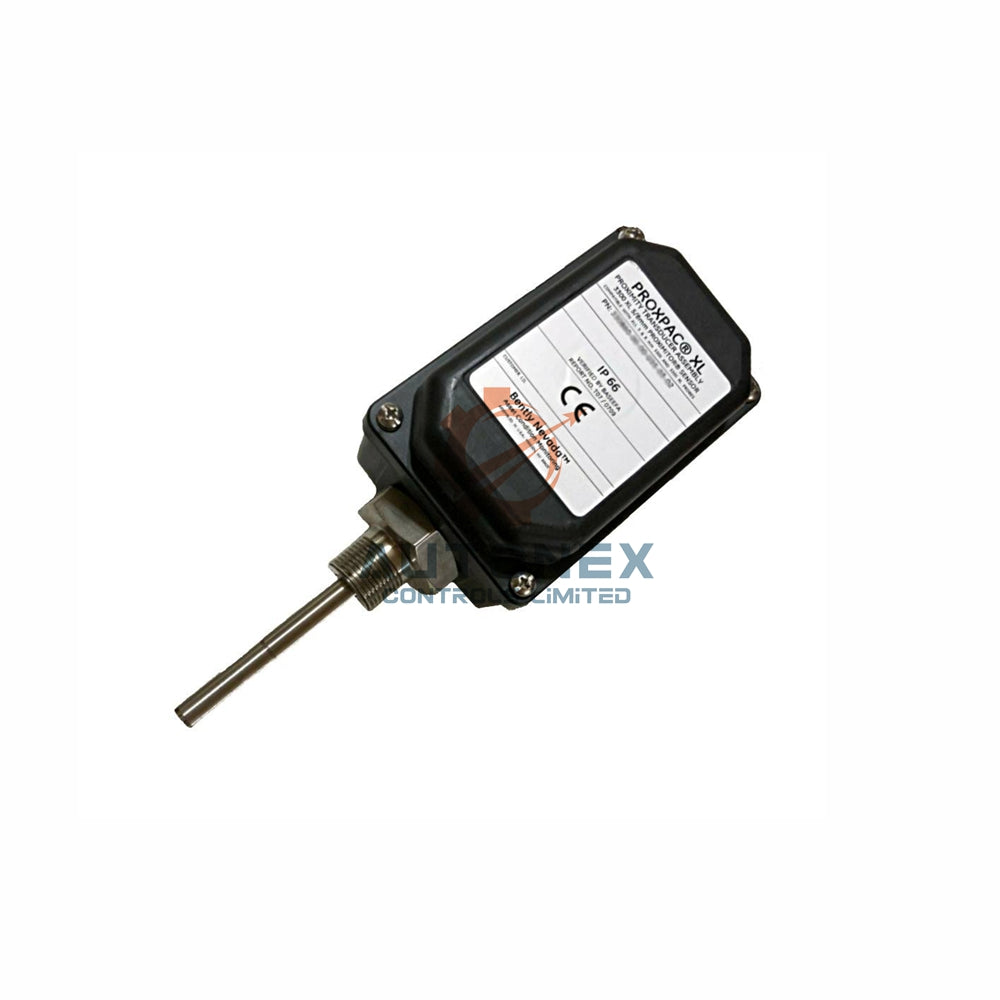

31000-16-05-00-65-03-02 Proximity Probe Housing by Bently Nevada

Technical Specifications

• Brand: Bently Nevada； Model: 31000-16-05-00-65-03-02
• Probe Option: 16 = 3300 XL 8 mm probe
• Probe Cable Length: 05 = 0.5 m (20 inches)
• Standoff Adapter Option: 00 = No standoff adapter
• Probe Penetration Option: 65 = 6.5 inches
• Fittings Option: 03 = Two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, one cable seal grip with grommets for three cable sizes
• Mounting Thread Option: 02 = 3/4-14 NPT
• Protection Ratings: Type 4X (CSA certified)； IP66 (verified by SC115582-1 (e) 106)； CENELEC EN50014 for electrostatic dissipation
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
• Sleeve and Retaining Chain Material: AISI 304 stainless steel
• Outer Sleeve and Exterior Screws Material: AISI 303 stainless steel
• O-Ring Material: Neoprene
• Recommended Torque (retaining nut): 29.4 N·m (260 in·lb)
• Housing Strength (typical): Supports 912 N (205 lb) at 38 mm from unsupported end

Frequently Asked Questions (FAQ)

• Is this item new and original? Yes, we supply brand new original Bently Nevada units.
• Do you have the 31000-16-05-00-65-03-02 in stock? Yes, we keep this model in stock for immediate orders.
• What is the typical shipping time? We dispatch all orders within 5 business days.
• Which carriers do you use for shipping? We commonly use FedEx, UPS, and DHL for fast delivery.
• Can I return this product? Yes, we accept returns within 30 days of receipt.
• Is the housing pressure tested before shipment? No, probes do not undergo pressure testing prior to shipping.
• What is the lowest temperature this housing can withstand? The housing operates reliably from -51°C (-60°F) up to +105°C (221°F).
• What cable sizes does the included seal grip support? It supports three sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches.
