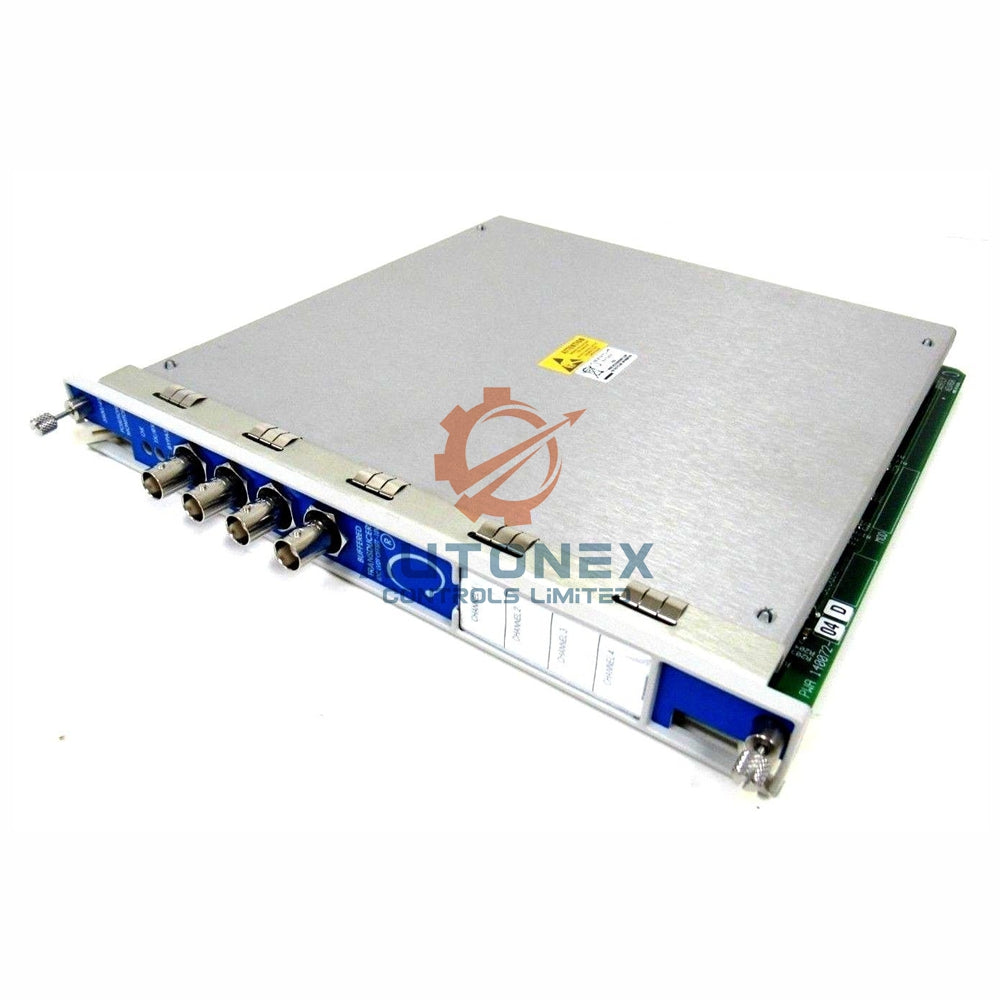

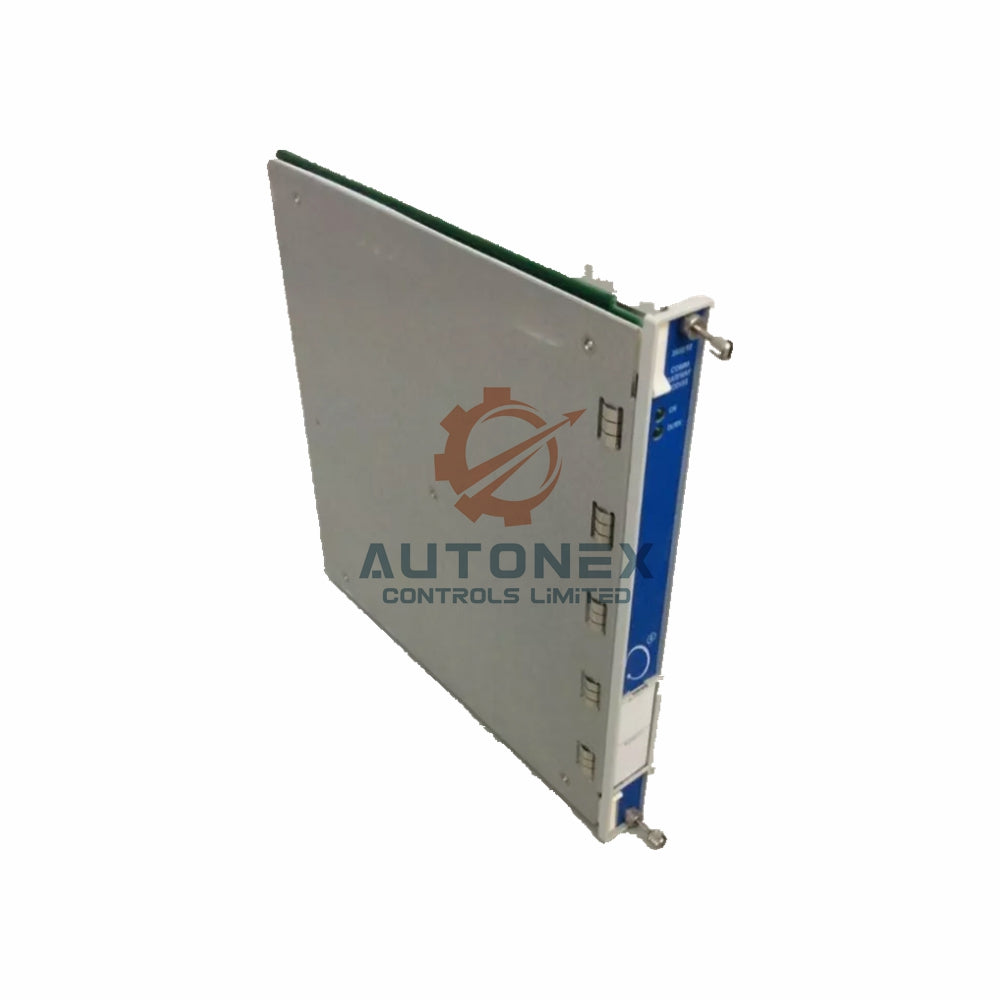

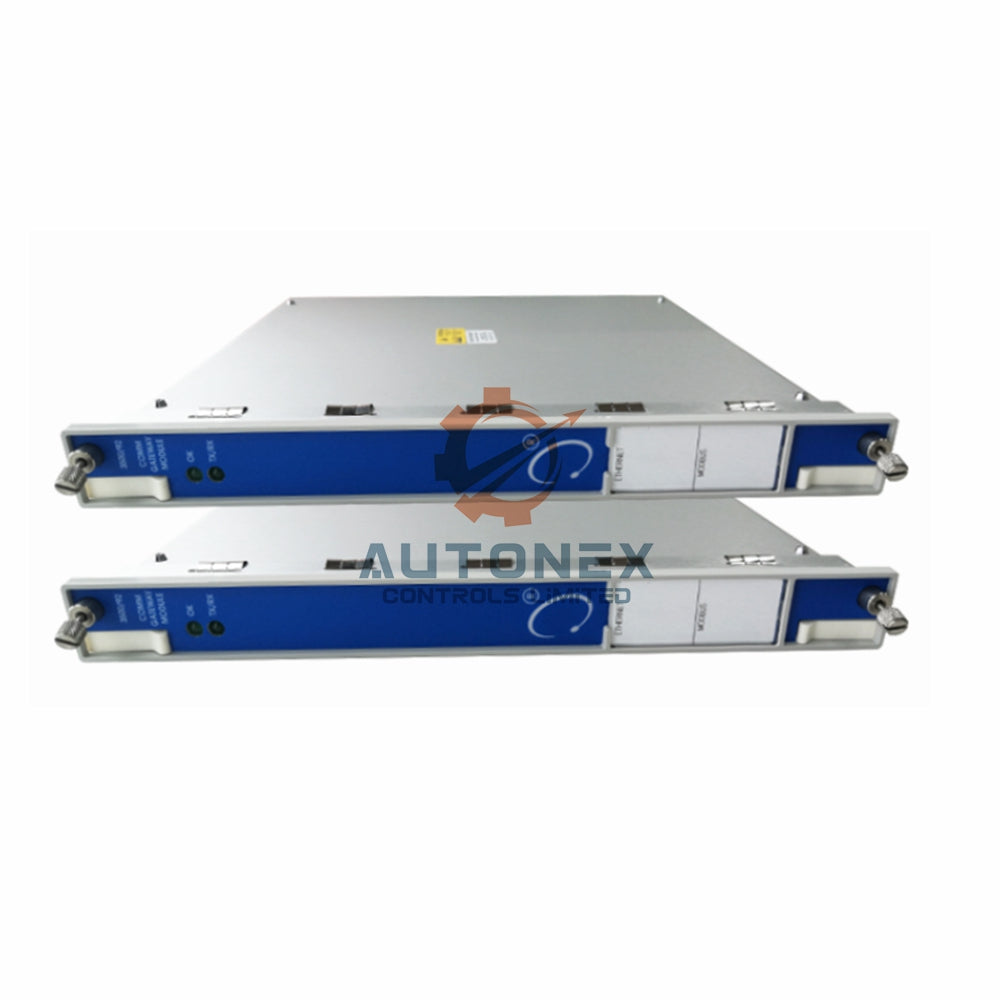

3500/94M-05-00-01 Bently Nevada - VGA Display Module

Bently Nevada 3500/94M-05-00-01 VGA Display Module – Hazardous Area Ready

Key Technical Specifications of 3500/94M VGA Display Unit

• Brand: Bently Nevada
• Model No.: 3500/94M-05-00-01
• Product Type: VGA Display Module
• Display Size and Mounting: 15" display, 19" rack mount
• KVM Extender and Display Router Box Cables: None (00)
• Agency Approval Option: CSA/NRTL/C (Class I, Division 2) – 01
• Weight (module): 0.73 kg (1.6 lb)
• Total system weight including I/O module: 1.07 kg

Power, Inputs and Outputs – Clear Communication

• Power consumption: 4.6 watts maximum
• High-speed network: Monitors status, data and values
• RS232 port (I/O): Transmits touch controller data
• OK LED: Indicates proper operation of the 3500/94M module
• TX/RX LED: Shows communications between other system modules
• VGA port (I/O): Provides analog red, green, blue and sync signals to the display
• Front Port: Supplies 24 Vdc power out, VGA signal out, and receives touch commands

Environmental Limits – Built for Tough Conditions

• Operating Temperature: -20°C to 65°C (-22°F to 149°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 95% non-condensing
• Anti-interference ability: Complies with EN 61000-6-2 and EN 61000-6-4 EMC standards
• Electrical Safety: Meets CSA C22.2 61010-1, UL EN 61010-1, Directive 2014/35/EU
• RoHS compliant: Follows Directive 2011/65/EU

Physical Characteristics and Dimensions – Rack Ready

• 3500/94M VGA Display Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in)
• I/O Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
• Rack Space – Monitor Module: 1 full-height front slot
• Rack Space – I/O Module: 1 full-height rear slot

Display Monitor – Advantech 15" Integration (FPM-8151H)

• Manufacturer: Advantech – Model FPM-8151H (15" diagonal)
• Type: LCD with LED backlight, industrial hardened
• Mounting Styles: 19" rack mount or panel mount
• Power Supply: Includes 24 Vdc power supply (range 12 Vdc to 24 Vdc)
• Inrush Current: 2.62 A @ 24 V (< 500 µs) | Operating Current: < 500 mA
• IP65 rating: Yes, protects front panel from dust and water jets
• Temperature range: 0°C to 60°C (32°F to 140°F) – requires heated enclosure below 0°C
• Touch Interface: Resistive | Agencies: CE, UL, Class I Div 2
• Weight: 8.5 kg (18.75 lb) shipping

Frequently Asked Questions (FAQ) about 3500/94M-05-00-01

• Q: Is this module brand new original?
  A: Yes, we provide 100% new original Bently Nevada 3500/94M-05-00-01 modules
• Q: What hazardous area approval does this version carry?
  A: The 3500/94M-05-00-01 includes CSA/NRTL/C certification for Class I, Division 2 locations in North America
• Q: What is the operating temperature range for this display?
  A: The main module works from -20°C to 65°C, but the Advantech 15" display works from 0°C to 60°C
• Q: What power supply does the 15" display need?
  A: The Advantech FPM-8151H uses 24 Vdc (acceptable range 12 Vdc to 24 Vdc)
• Q: Do you have the 3500/94M in stock?
  A: Yes, we keep the 3500/94M-05-00-01 in stock and ship within 5 days
• Q: Which couriers do you use for delivery?
  A: We ship with FedEx, UPS, or DHL for global fast delivery
• Q: Can I return the module if it doesn't fit my system?
  A: Yes, we support a 30-day return policy from the delivery date
• Q: Does this module require a TDI module?
  A: Yes, the 3500/94M needs the 3500/22 TDI module for proper operation
• Q: What is the humidity tolerance for the main unit?
  A: The module withstands 95% humidity non-condensing without failure
