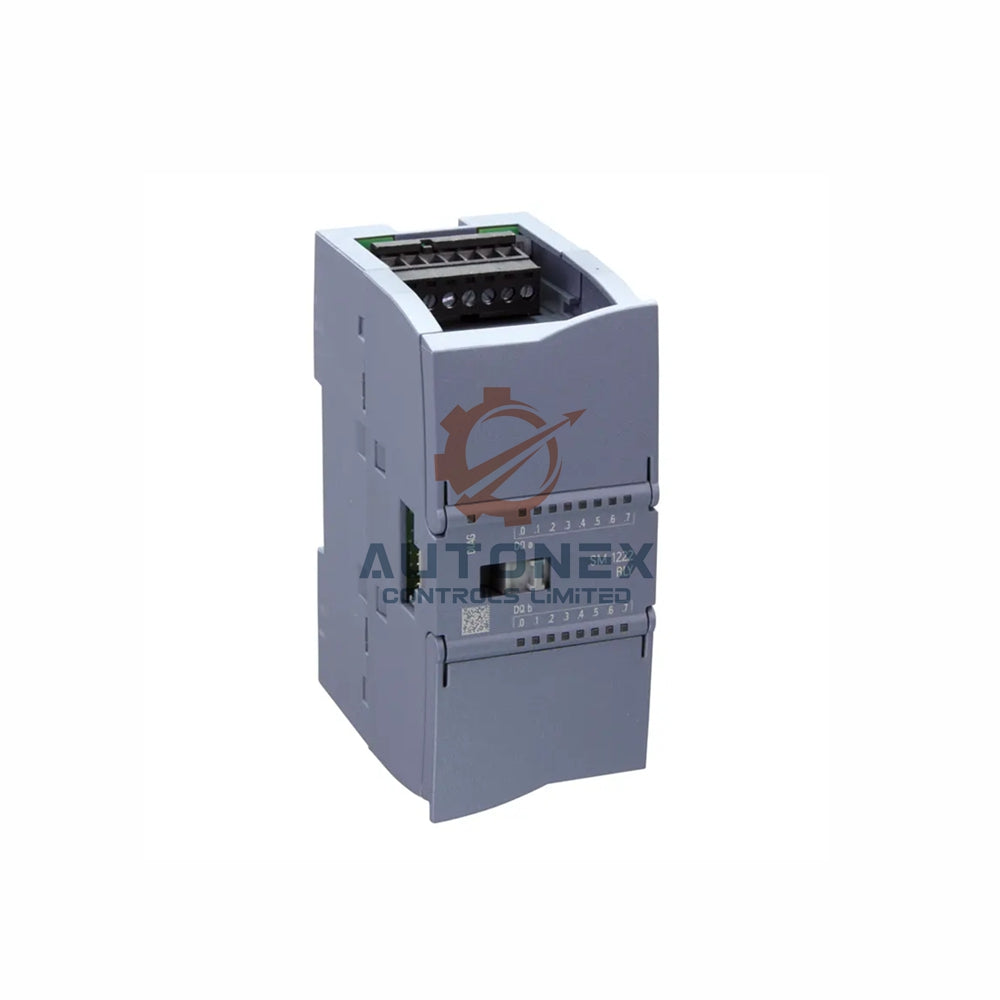

6ES7232-4HD32-0XB0 Siemens SM 1232 Analog Out Module

6ES7232-4HD32-0XB0 - Siemens SM 1232 Analog Output Module

Key Technical Specifications

• Brand & Model: Siemens 6ES7232-4HD32-0XB0 | Type: SM 1232, AQ 4x14 bit
• Supply voltage: Rated 24 V DC; typical current consumption 45 mA.
• Power loss: 1.5 W typical; backplane bus draws 80 mA at 5 V DC.
• Analog outputs: 4 channels (voltage or current configurable).
• Output ranges: Voltage -10V to +10V; Current 0 to 20 mA (4-20 mA compatible).
• Load impedance: Voltage output min. 1000 Ω; Current output max. 600 Ω.
• Resolution: Voltage: 14-bit with overrange; Current: 13-bit.
• Cable length (shielded twisted pair): max. 100 meters.

Accuracy & Environmental Robustness

• Basic error limit (25°C): ±0.3% for voltage and current relative to output range.
• Temperature error: At 25°C ±0.3%; up to 55°C ±0.6% of total measurement range.
• Common mode voltage max: 12 V ensures excellent interference immunity.
• Operating temperature: -20°C to 60°C (horizontal); vertical installation up to 50°C.
• Storage temperature: -40°C to 70°C for harsh industrial environments.
• Relative humidity: 95% non-condensing at 25°C with pollutant resistance (SO₂, H₂S).
• Air pressure range: 795 hPa to 1080 hPa (operation) ensures stable function at various altitudes.
• IP protection: IP20, suitable for control cabinet installation.

Frequently Asked Questions (FAQ)

• Is this Siemens SM 1232 brand new and original?
  Yes, we supply 100% genuine brand new Siemens 6ES7232-4HD32-0XB0 units from authorized channels.
• What is the resolution for current output mode?
  The current output (0-20 mA / 4-20 mA) provides 13-bit resolution; voltage mode provides 14-bit.
• Can I use this module vertically? What are the temperature limits?
  Yes, vertical installation works up to 50°C ambient. Horizontal mounting allows up to 60°C.
• How long can the cable run be?
  You can run shielded twisted-pair cables up to 100 meters without significant signal loss.
• Does the module detect wire breaks or short circuits?
  Absolutely. It includes wire-break and short-circuit diagnostics with LED status indicators.
• Do you have stock? How fast do you ship?
  Yes, we maintain consistent stock. We dispatch within 5 days via FedEx, UPS, or DHL.
• What is your return policy?
  We accept returns within 30 days from delivery for unused items in original packaging.
