330707-00-50-50-02-CN Bently Nevada Proximity Sensor 1m

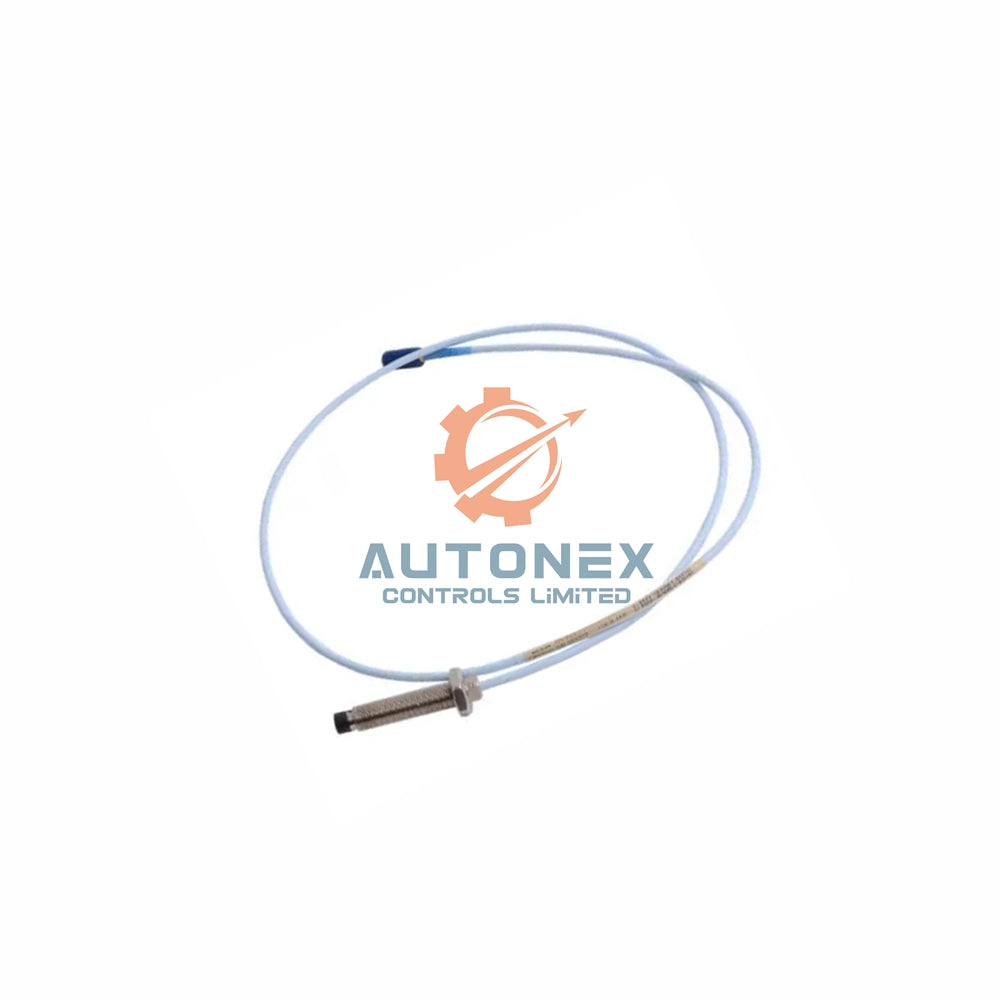

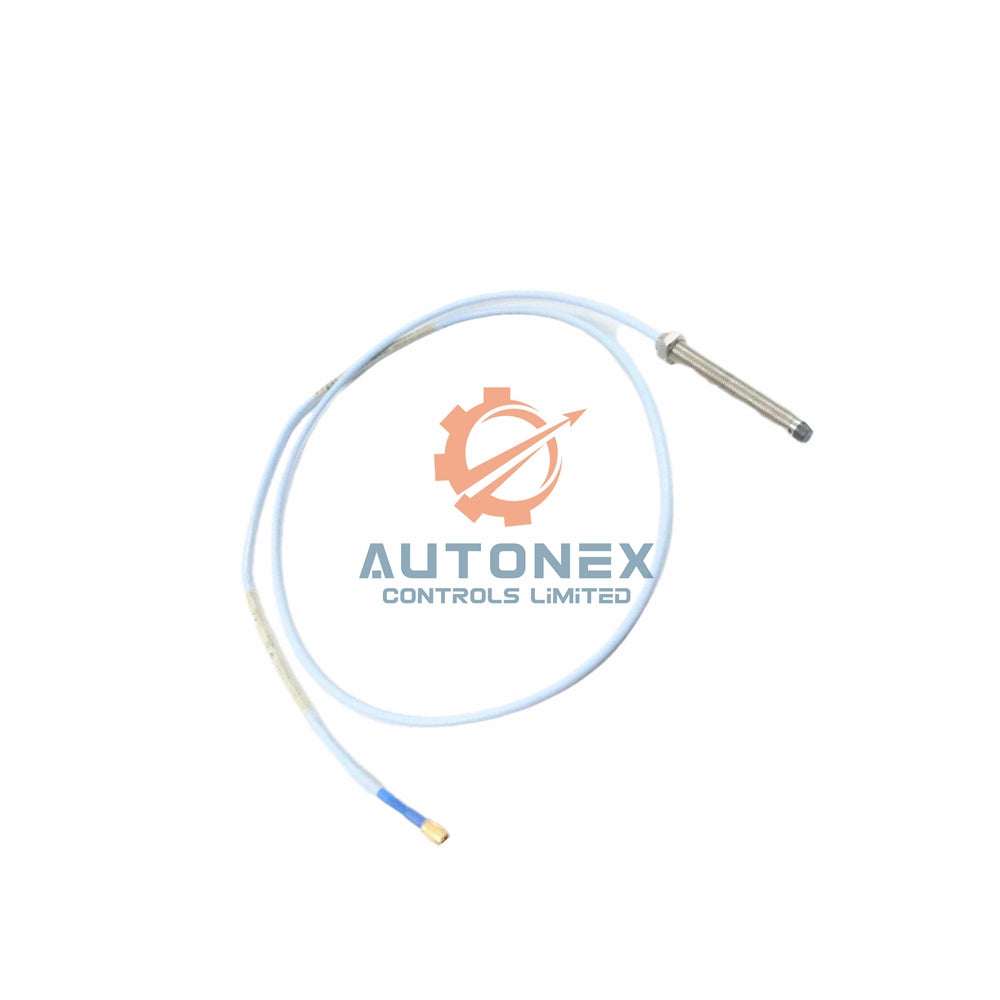

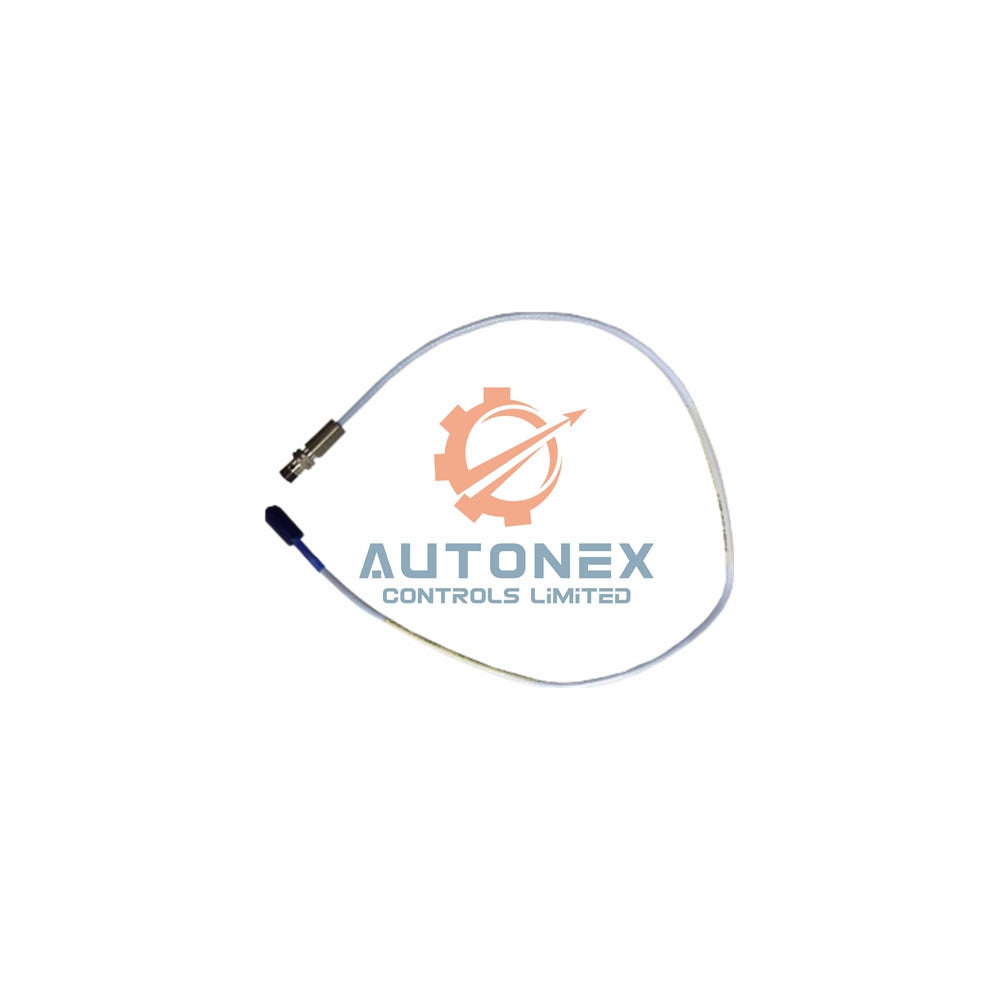

Bently Nevada 330707-00-50-50-02-CN 3300 XL 11 mm Proximity Probe Introduction

• Brand & Model: Bently Nevada 330707-00-50-50-02-CN (3300 XL series).
• Cable Type: 75 ohm triaxial cable with FEP insulation and FluidLoc sealing.
• Thread Details: 1/2-20 UNF thread with armor protection.
• Case Length: 2.6 inches; total probe length is 1.0 meter (3.3 feet).
• Connector: ClickLoc miniature coaxial connector with protector; approval is CN (Country Specific).

Materials & Measurement Range

• Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance.
• Probe Case Material: AISI 304 stainless steel for corrosion protection.
• Available Cable Lengths: Choose from 1 meter, 5 meter, or 9 meter options.
• Operating Temperature Range: -51°C to +177°C for harsh conditions.
• Minimum Bend Radius: 25.4 mm (1 inch) to prevent cable damage.
• Maximum Thread Engagement: 0.75 inch for proper installation fit.

Performance & Physical Specifications

• DC Resistance at 1 meter: 5.9 ± 0.5 ohm for accurate signal transmission.
• Probe Weight: 0.17 kg (lightweight for easy mounting).
• Pressure Seal: Viton O-ring seals pressure between tip and case.
• Warranty Coverage: One year manufacturer warranty included.
• Origin: Made in the U.S.A; COO documentation available upon request.

FAQ

• Is this probe brand new and original? Yes, we supply only brand new and original Bently Nevada units.
• Do you have stock for 330707-00-50-50-02-CN? Yes, we have this model in stock with immediate availability.
• What is the typical shipping time? We dispatch all orders within 5 days after order confirmation.
• Which carriers do you use for delivery? We ship via FedEx, UPS, and DHL for fast and reliable service.
• Can I return this probe within 30 days? Yes, we support a 30-day return policy for this product.
• Does the probe work with armored cables? Yes, this model features a 1/2-20 UNF thread with armor.
• What is the maximum temperature for storage? Storage temperature ranges from -51°C to +177°C.

For a complete technical reference, please download the official datasheet: 3300 XL 11 mm Proximity Transducer System Datasheet (PDF).
