330707-00-15-90-02-00 | Bently Nevada 3300 XL 11 mm Probe

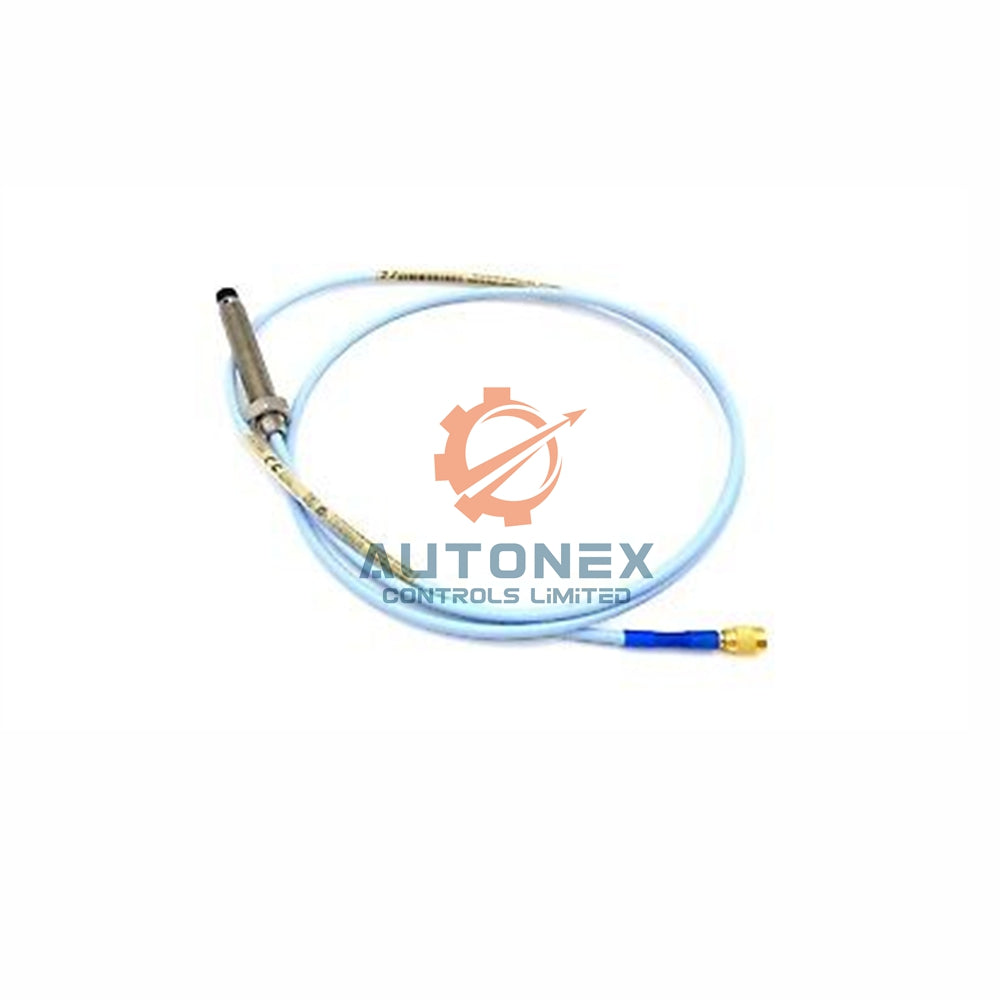

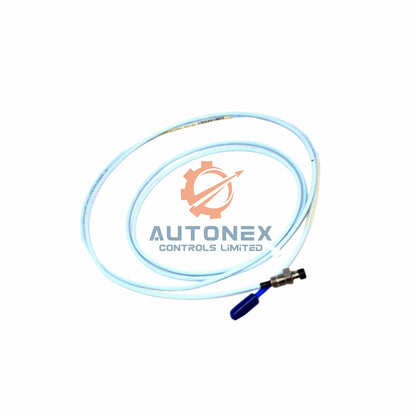

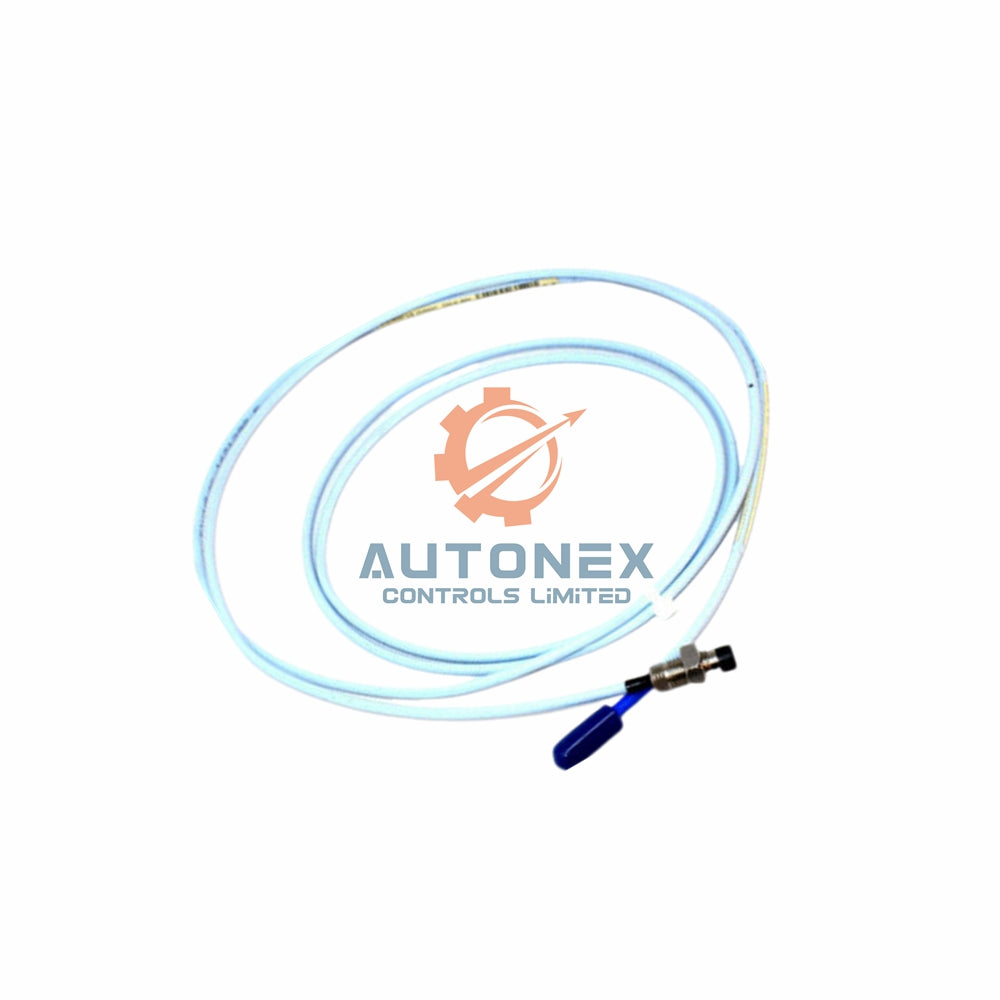

Bently Nevada 3300 XL 11 mm Proximity Probe – Model 330707-00-15-90-02-00

Key Technical Specifications

• Brand & Model: Bently Nevada – 330707-00-15-90-02-00 (3300 XL 11 mm Probe).
• Probe Type: 11 mm proximity probe, 5/8-18 UNF thread, without armor.
• Unthreaded Length: 0 inches (00 option).
• Overall Case Length: 1.5 inches (15 option).
• Total Probe Length: 9.0 meters (29.5 feet) – 90 option.
• Connector & Cable: Miniature coaxial ClickLoc connector with standard cable (02 option).
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability and chemical resistance.
• Probe Case Material: AISI 304 stainless steel (SST).
• Cable Specification: 75 Ω triaxial cable, FEP insulation.
• Operating & Storage Temperature: -51°C to +177°C (-60°F to +351°F).
• DC Resistance (9m length): 8.5 ± 1.1 ohms (center to outer conductor).
• Probe Pressure Seal: Viton O-ring, designed for differential pressure sealing.
• Maximum Thread Engagement: 0.938 inches (5/8-18 thread).
• Probe Case Torque: Maximum rated 45.2 N•m (400 in•lb); Recommended 15.2 N•m (133 in•lb).
• Connector Torque: Finger tight recommended; Maximum 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 inch) with or without stainless steel armor.
• Temperature Schedule (EPL Ga/Gc): T1 (-55°C to +232°C) through T5 (-55°C to +40°C).
• Temperature Schedule (EPL Dc): T280°C @ Ta (-55°C to +232°C) down to T90°C @ Ta (-55°C to +40°C).
• Agency Approval: Not required (00 option).

Frequently Asked Questions (FAQ)

• Is the 330707-00-15-90-02-00 brand new and original?
  Yes, we supply only brand new and original Bently Nevada products with full factory authenticity.
• Do you have this model in stock?
  Yes, we have stock available for immediate order fulfillment.
• What is the shipping time and carrier?
  We ship within 5 days after order confirmation using FedEx, UPS, or DHL based on your location.
• Can I return this probe if it does not meet my needs?
  Yes, we support a 30-day return policy for unused items in original condition.
• What is the recommended torque for the probe case?
  Use 15.2 N•m (133 in•lb) for the case. Do not exceed 45.2 N•m to avoid damage.
• What is the minimum bend radius for the probe cable?
  Maintain a minimum 25.4 mm (1.0 inch) bend radius even with stainless steel armor.
• Can this probe withstand high temperatures?
  Yes, it operates from -51°C to +177°C, and specific temperature classifications cover various hazardous zones.
• Does the 3300 XL probe require a special connector?
  It uses a miniature coaxial ClickLoc connector for secure, reliable connection.
• What is the difference between standard cable and FluidLoc cable?
  Standard cable offers reliable performance; FluidLoc adds extra protection against oil and moisture ingress.
