330104-00-06-10-01-00 Bently Nevada Proximity Probe 60mm

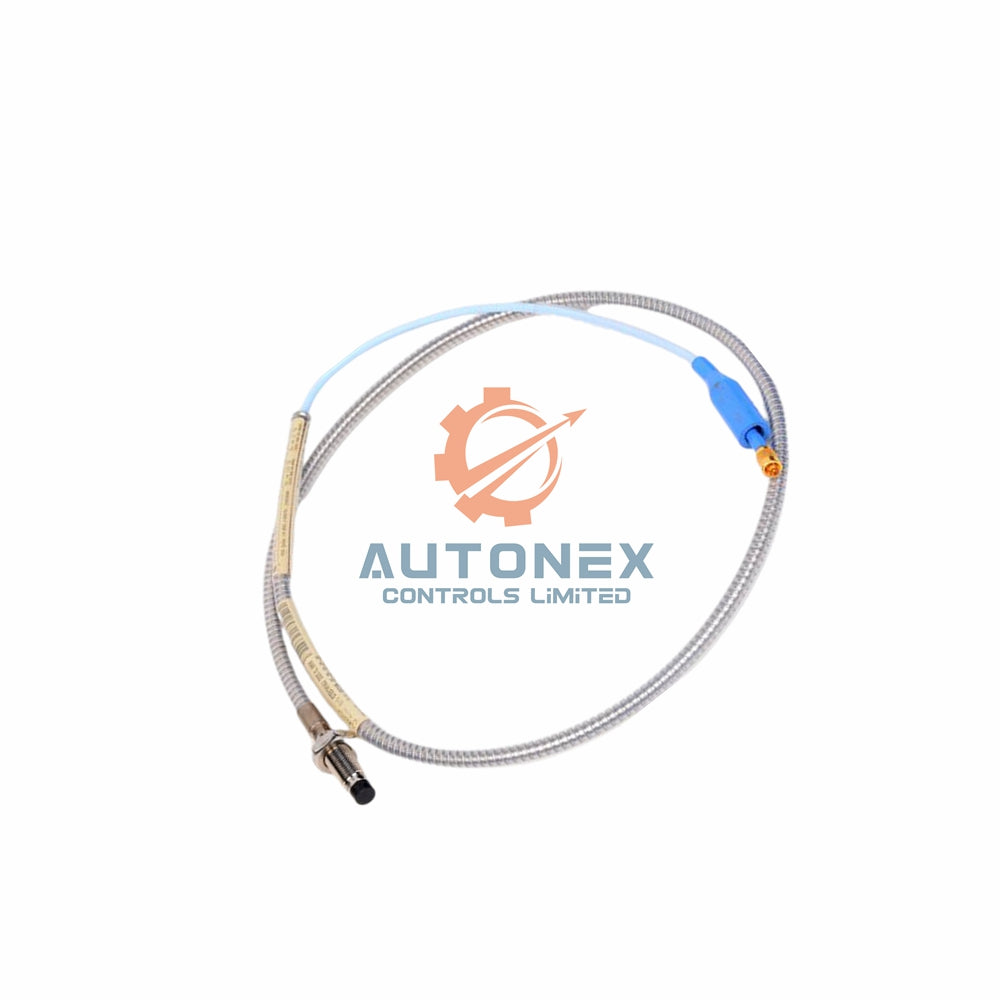

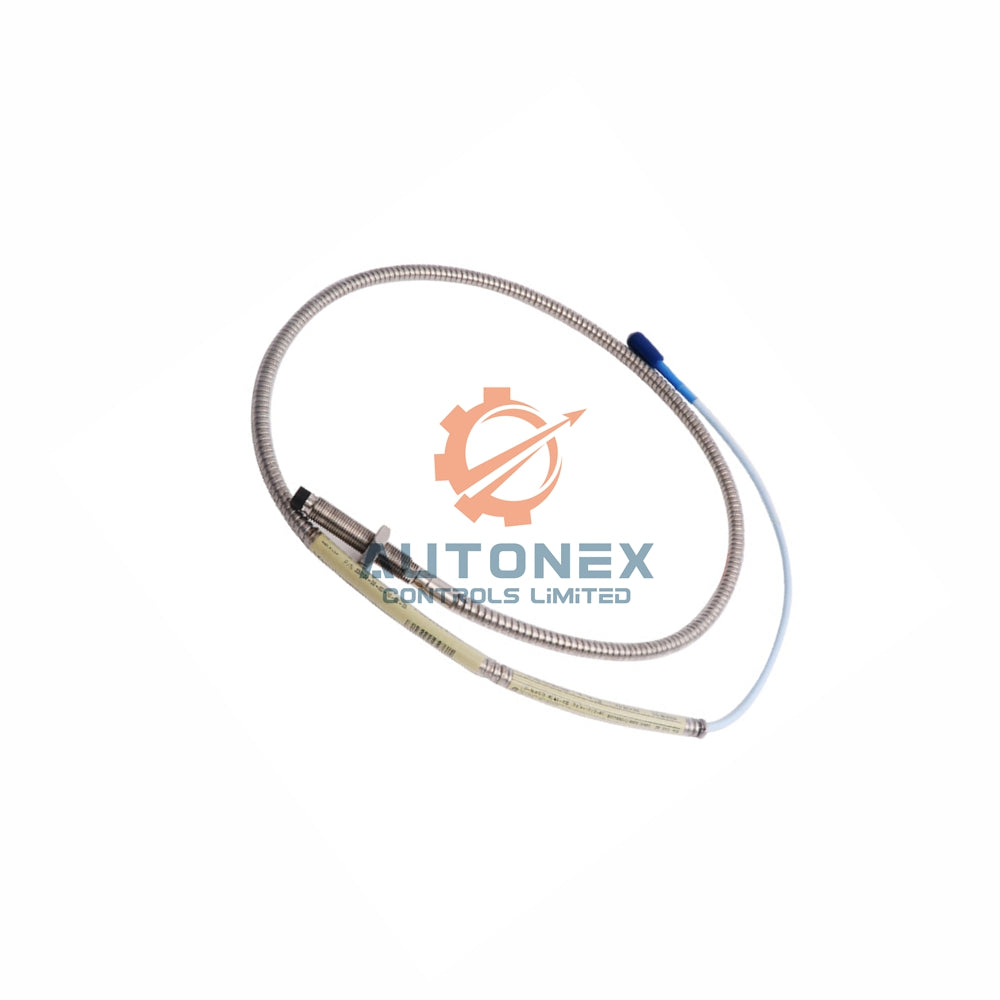

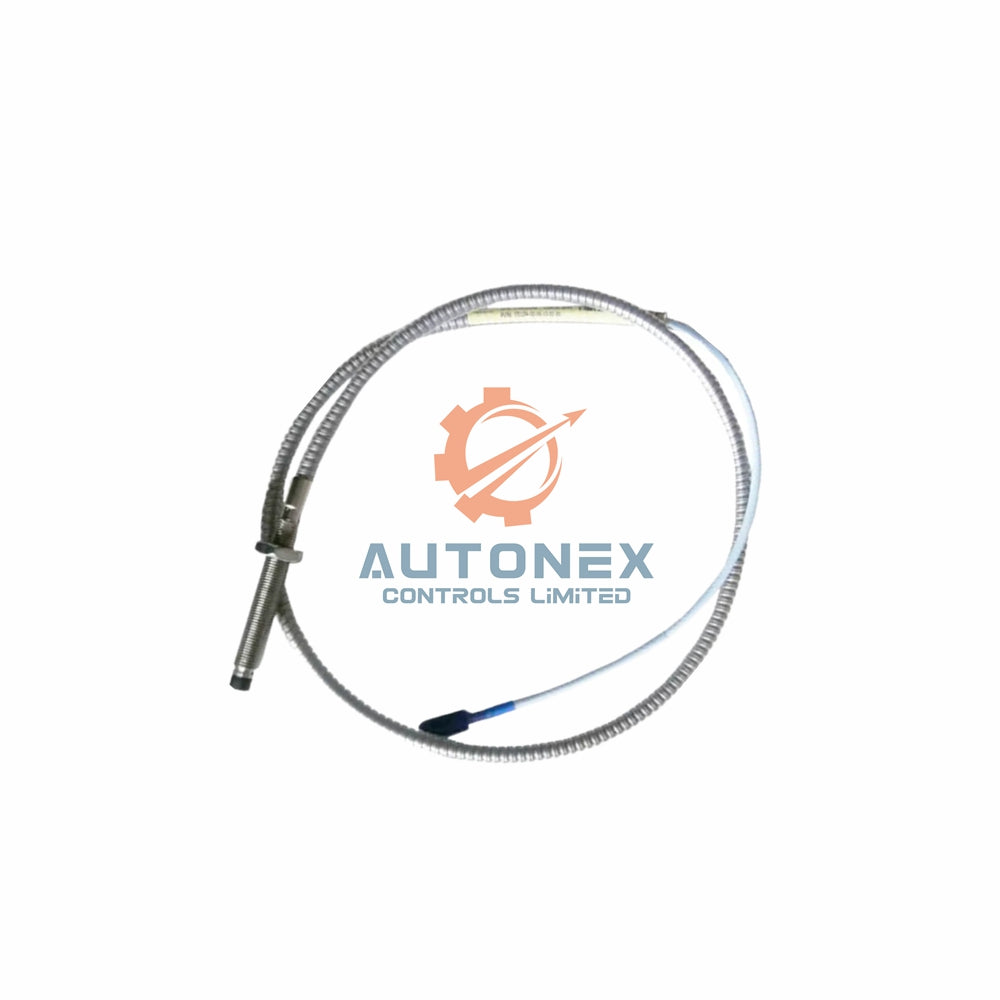

Bently Nevada 330104-00-06-10-01-00: 3300 XL 8 mm Proximity Probe

Key Technical Specifications

• Brand and Model: Bently Nevada, 330104-00-06-10-01-00 from the 3300 XL series.
• Unthreaded Length Option: 0 mm (Option 00).
• Overall Case Length Option: 60 mm (Option 06).
• Total Length Option: 1.0 meter (3.3 feet) (Option 10).
• Connector Type: Miniature coaxial ClickLoc connector with connector protector, standard cable (Option 01).
• Agency Approval Option: 00 = Not required for this configuration.
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Thread Type: M10 x 1 with maximum engagement length of 15 mm.
• Nominal DC Resistance: 7.59 ± 0.50 Ω for 1.0 meter length.
• Operating Temperature Range: Standard probe works from -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Option: Probe tip reaches -52°C to +218°C (-62°F to +425°F). Cable and connector reach -51°C to +260°C (-60°F to +500°F).
• Humidity Tolerance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity for up to 56 days (IEC 68-2-3).
• Field Wiring: Use 0.2 to 1.5 mm² (16 to 24 AWG) 3-conductor shielded triad cable. Maximum length between sensor and monitor is 305 meters (1,000 feet).

Frequently Asked Questions (FAQ)

• Is the 330104-00-06-10-01-00 brand new and original?
  Yes, we supply only brand new and original Bently Nevada products.
• Do you have this 3300 XL probe in stock?
  Yes, we have the 330104-00-06-10-01-00 in stock ready for dispatch.
• What is the linear range of this 8 mm probe?
  The linear range is 2 mm (80 mils) from 0.25 mm to 2.3 mm gap.
• What is the overall case length for this specific model?
  The 330104-00-06-10-01-00 has 0 mm unthreaded length and 60 mm overall case length.
• Can I use this probe in high humidity environments?
  Yes, it passes IEC 68-2-3 humidity testing with less than 3% scale factor change.
• Does the probe withstand high differential pressure?
  It includes a Viton® O-ring seal, but Bently Nevada does not test each probe's pressure seal before shipment.
• What is the maximum field wiring length?
  The maximum length between the 3300 XL Proximitor Sensor and monitor is 305 meters (1,000 feet).
• How long does delivery take?
  We ship within 5 days. FedEx, UPS, or DHL typically deliver in 3-7 business days.
