31000-16-10-00-162-00-02 Bently Nevada Proximity Probe Housing

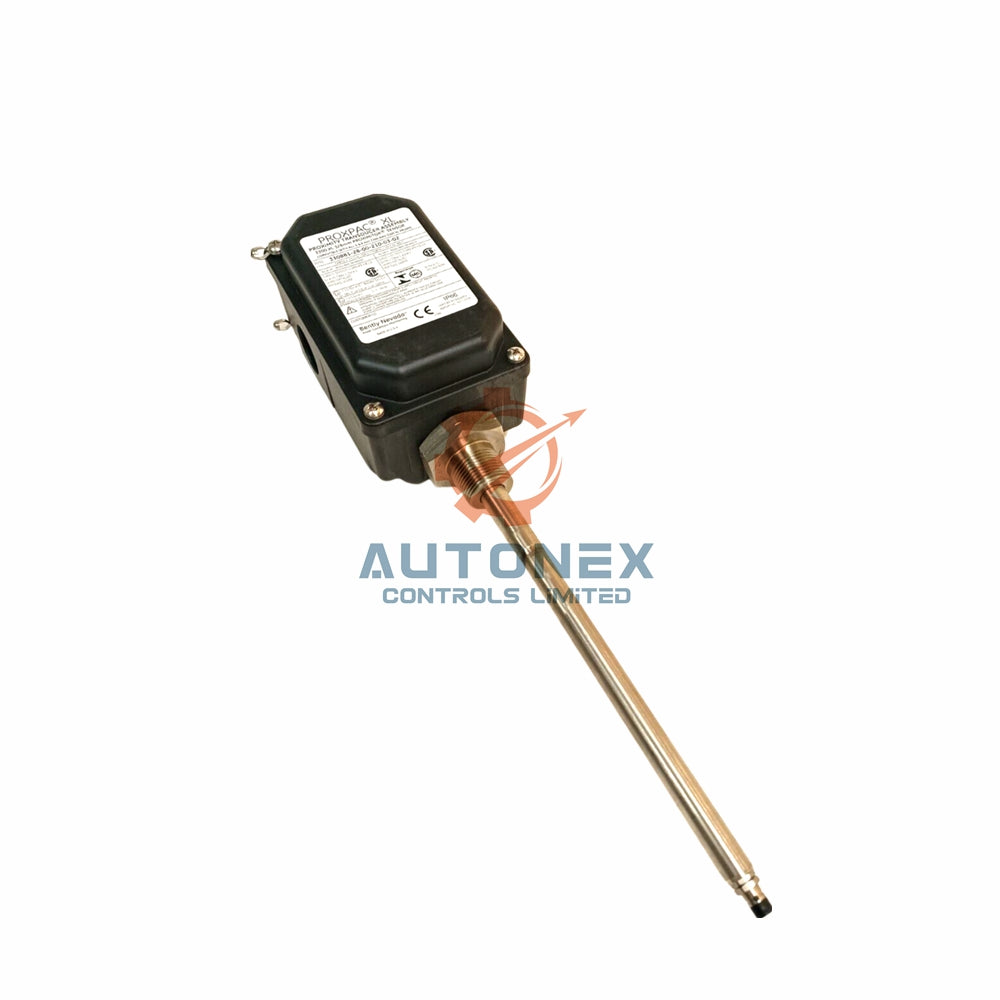

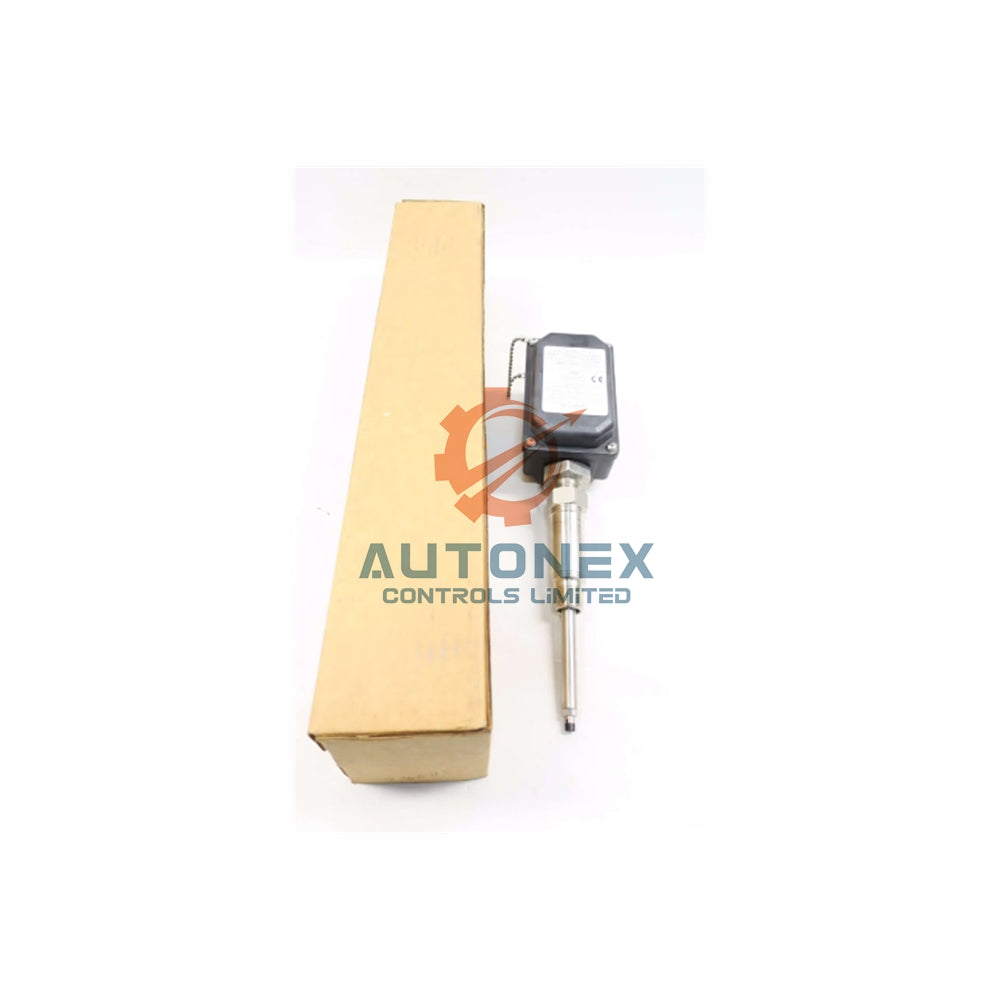

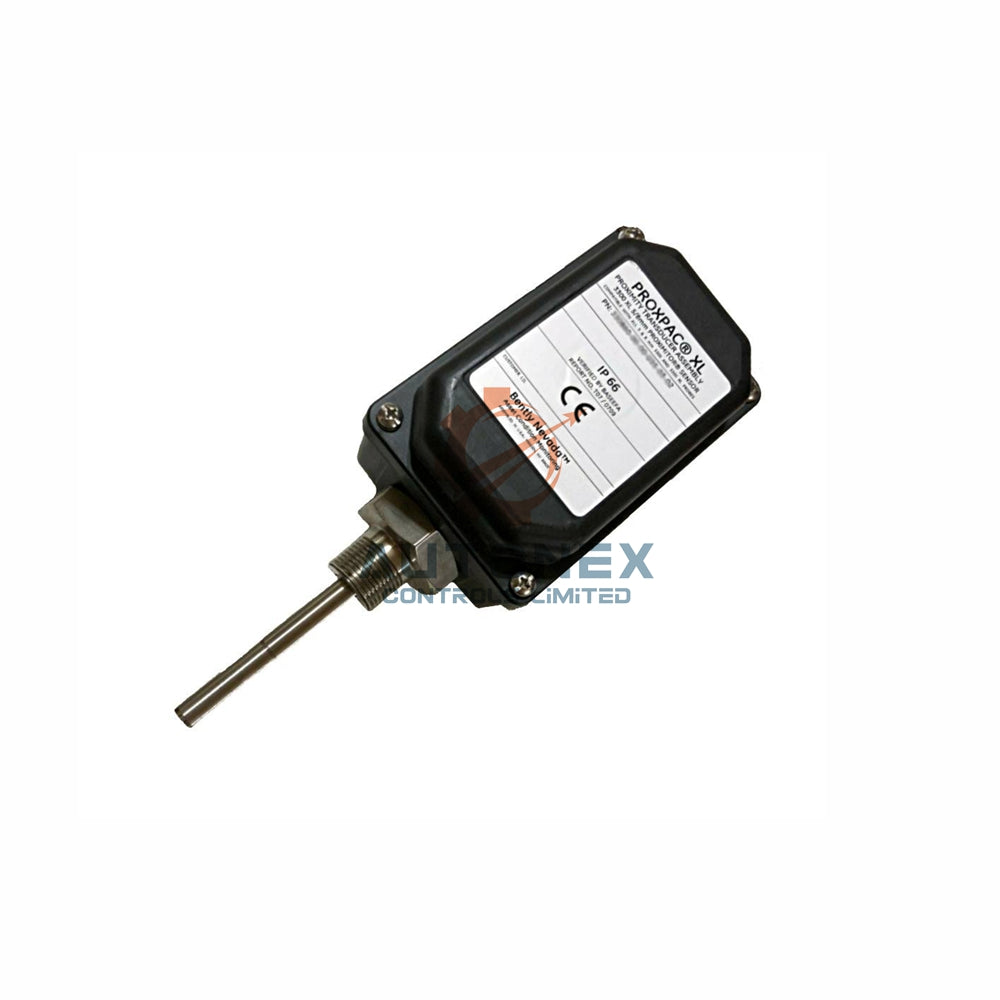

Bently Nevada 31000-16-10-00-162-00-02 Proximity Probe Housing

Key Technical Specifications

• Brand: Bently Nevada
• Model Number: 31000-16-10-00-162-00-02
• Probe Option: 3300 XL 8 mm probe (Option 16)
• Probe Cable Length: 1.0 m (Option 10)
• Standoff Adapter: None (Option 00)
• Probe Penetration: 16.2 in (Option 162)
• Fittings: Without fittings (Option 00)
• Mounting Thread: 3/4-14 NPT (Option 02)
• Protection Rating: Type 4X (CSA certified), IP66 verified by SC115582-1 (e) 106
• Electrostatic Dissipation: Meets CENELEC EN50014 for plastic materials in hazardous areas
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel with retaining chain
• Outer Sleeve & Exterior Screws: AISI 303 stainless steel
• Internal Probe Seal: Viton O-ring inside the probe case
• Housing-to-Sleeve Seal: Neoprene® O-ring
• Recommended Torque (retaining nut): 29.4 N·m (260 in·lb)
• Housing Strength: Supports 912 N (205 lb) at 38 mm from unsupported end
• Housing Impact Strength: Withstands two separate 4 Joule impacts at -39°C and 115°C (BASEEFA); withstands 7 Joule impact at room temperature (CSA)
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg (2.6 lb) typical

Frequently Asked Questions (FAQ)

• Is this item new and original?
  Yes, we supply a brand new and original 31000-16-10-00-162-00-02 from Bently Nevada.
• Do you have this housing in stock?
  Yes, we keep the 31000 series housing in stock for immediate orders.
• How soon will you ship?
  We ship within 5 business days after order confirmation.
• What carriers do you use?
  We use FedEx, UPS, and DHL for fast worldwide delivery.
• Can I return this product?
  Yes, we support returns within 30 days of receipt.
• Can this housing withstand internal pressure?
  No, the housing seals differential pressure but does not resist internal or external pressure.
• Does Bently Nevada pressure test this housing before shipping?
  No, probes do not undergo pressure testing prior to shipment.
• What seals does this housing use?
  A Viton O-ring seals the probe tip internally. A Neoprene® O-ring seals the sleeve-to-housing interface.
• Is this housing suitable for hazardous areas?
  Yes, CENELEC EN50014 certifies electrostatic dissipation for plastic materials in hazardous areas.
• What is the maximum probe penetration for this model?
  This configuration provides 16.2 inches of probe penetration (Option 162).
