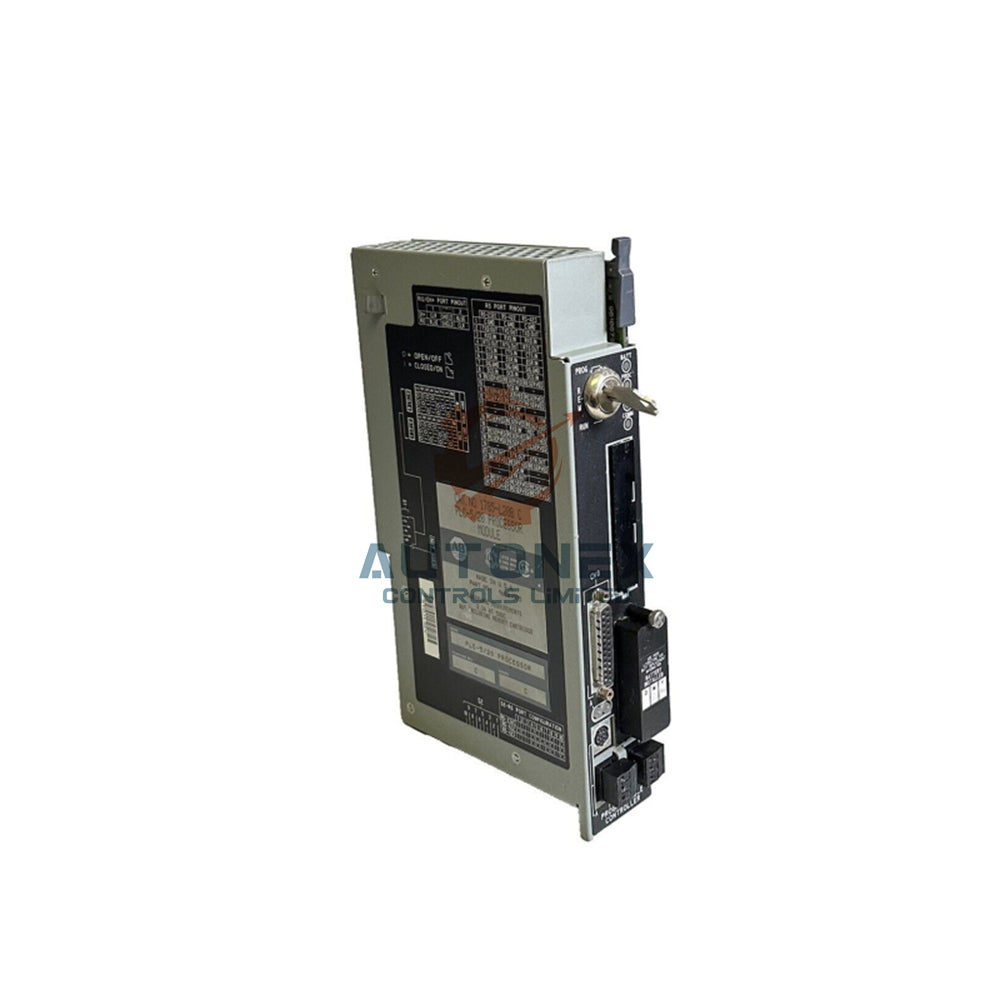

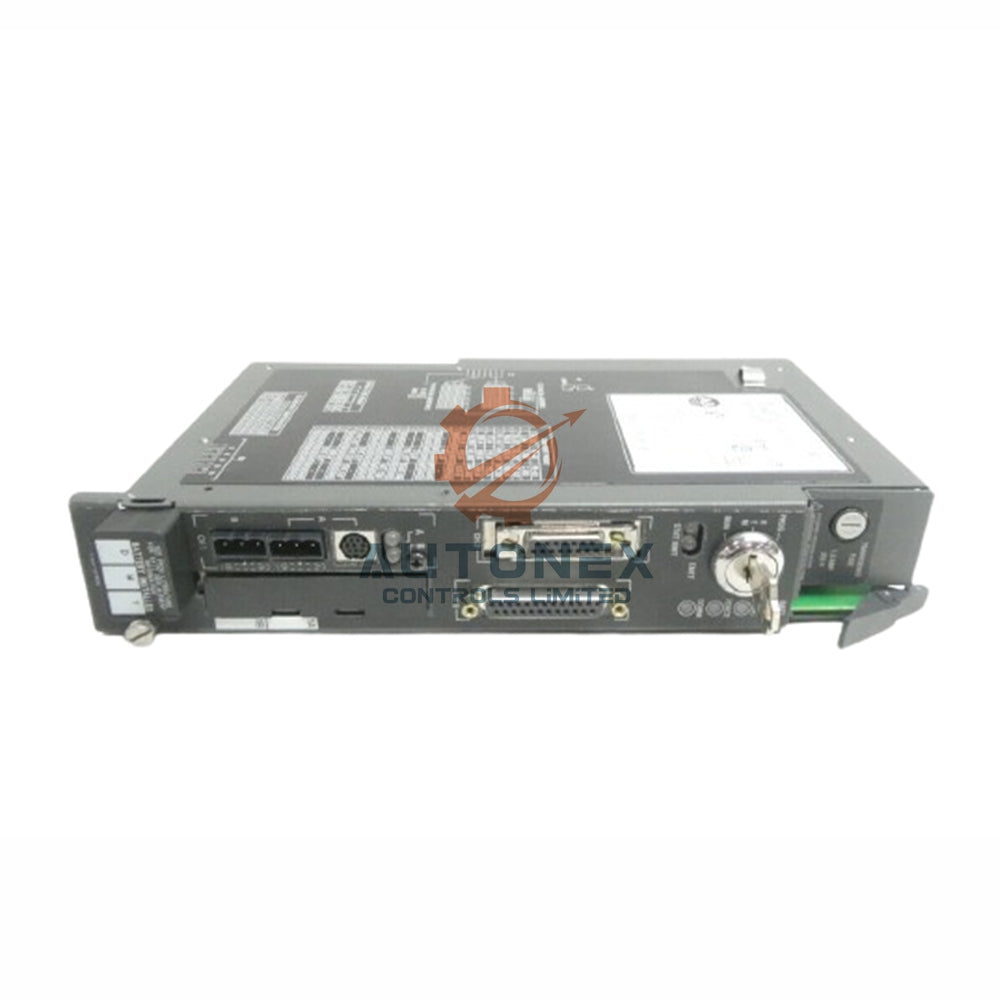

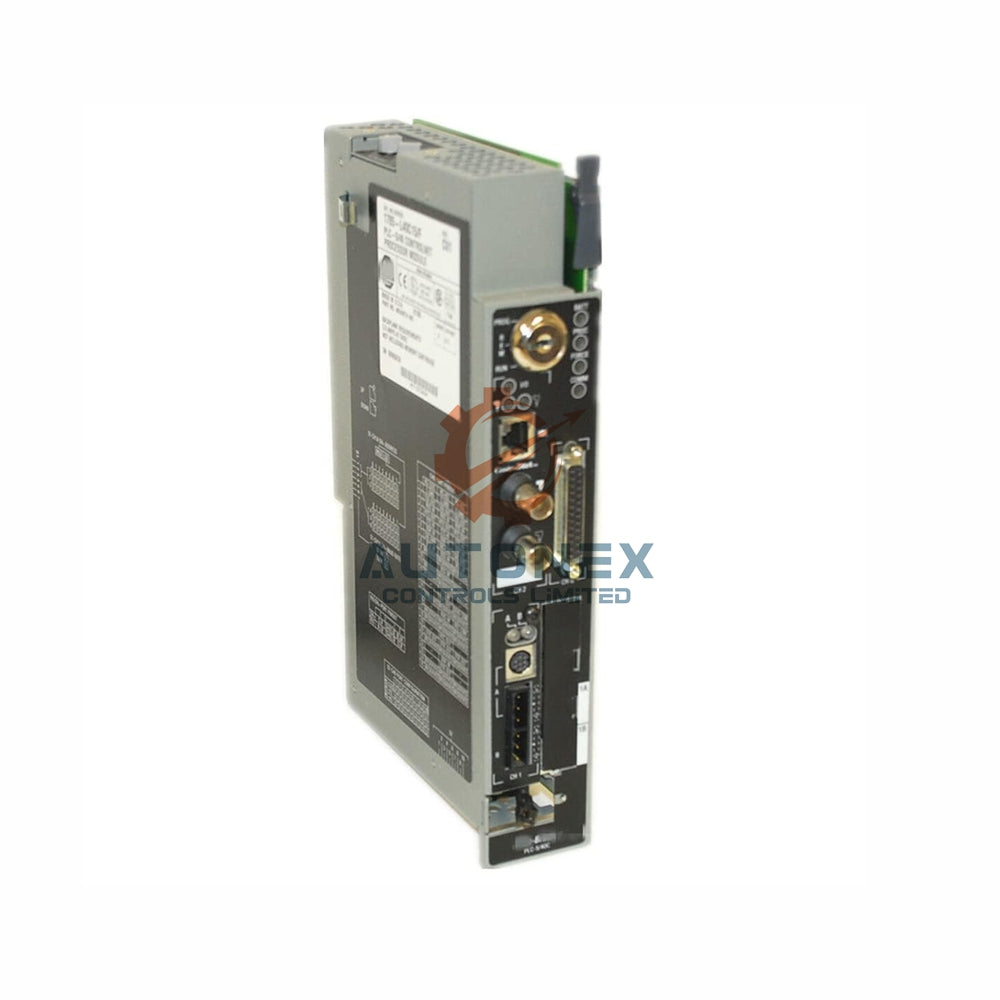

1785-L40L | Allen-Bradley PLC-5/40L 48KW Processor

1785-L40L PLC-5/40L Processor: 48K Memory & Extended Local Link

Technical Specifications of the 1785-L40L Processor

• Brand: Allen-Bradley
• Part Number: 1785-L40L
• Product Type: Standard Processor (PLC-5/40L)
• Max User Memory: 48 Kilowords, battery-backed static RAM
• Max Total I/O: 2048 any mix or 2048 in + 2048 out complementary
• Max Analog I/O: 2048 channels
• I/O Scan Time: 0.5 ms (extended local), 10 ms at 57.6 kbit/s, 7 ms at 115.2 kbit/s, 3 ms at 230.4 kbit/s
• Max I/O Chassis Total: 61 (16 extended local + 32 universal remote per link)
• Backplane Current Load: 3.3 A at 5 VDC
• Power Dissipation: 17 Watts
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Weight: 1.42 kg (3.13 lbs)
• Certifications: UL, CE, C-TICK, CSA
• EEPROM Backup Options: 1785-ME16, -ME32, -ME64, -M100
• Compatible I/O: Bulletin 1771, 1794, 1746, and 1791 modules (8, 16, 32 points)

Frequently Asked Questions (FAQ)

• Q: Is the 1785-L40L brand new and original?
  A: Yes, we supply only new original Allen-Bradley products.
• Q: Do you have stock for the 1785-L40L?
  A: Yes, we have stock available. You can order immediately.
• Q: What is your shipping time?
  A: We process and ship within 5 days after order confirmation.
• Q: Which carriers do you use?
  A: We ship via FedEx, UPS, or DHL. You will receive a tracking number.
• Q: Can I return the 1785-L40L?
  A: Yes, we support 30-day returns from the delivery date.
• Q: Does this processor support protected memory?
  A: No, the 1785-L40L does not include protected memory. Use EEPROM for program backup.
• Q: How many extended local I/O chassis can I connect?
  A: The 1785-L40L supports up to 16 extended local I/O chassis maximum.
• Q: What is the maximum analog I/O capacity?
  A: The 1785-L40L supports up to 2048 analog I/O channels.
