Proximity Probes 330104-00-09-50-02-00 Bently Nevada

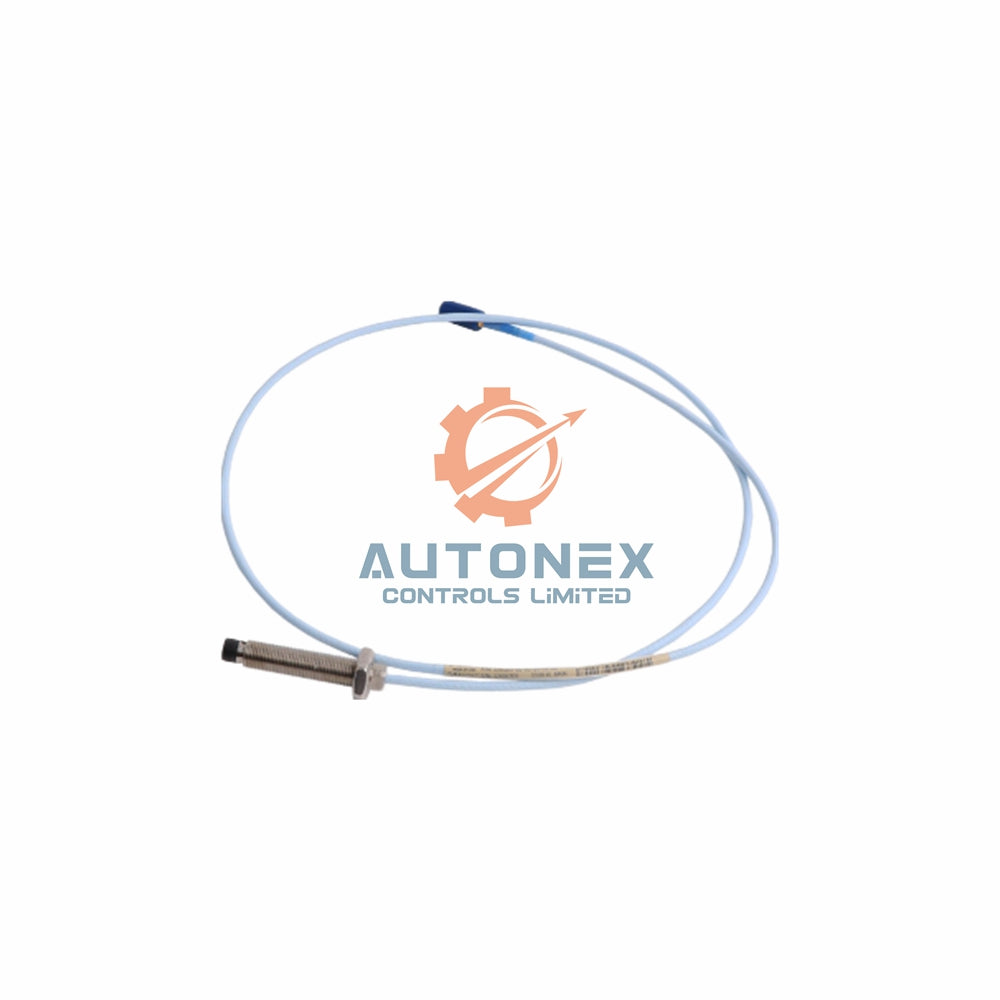

Bently Nevada 3300 XL 8mm Proximity Probe: A Durable Vibration Monitoring Solution

Key Product Specifications

• Brand & Model: Bently Nevada 330104-00-09-50-02-00
• Measurement Range: Standard gap of 1.27mm (50 mils)
• Output Signal: Stable -200 mV/mm (±5%) scale factor
• Temperature Range: Operates from -55°C to +232°C
• Frequency Response: 0 to 10 kHz
• Linearity: Within ±2% of the specified scale factor
• Cable: Integrated 5-meter armored cable for durability
• Case: Compact, zero-unthreaded 90mm length housing

Detailed Model Configuration

• The part number 330104-00-09-50-02-00 defines its build.
• "00" indicates a case with no unthreaded section.
• "09" specifies the 90mm overall case length.
• "02" confirms the ClickLoc quick-connect termination.
• "00" shows it needs no special agency approvals.

Environmental & Electrical Performance

• Power Supply: Requires -17.5V to -26V DC input
• Recommended Voltage: Keep below -23.5V DC for optimal life
• Coil Resistance: 8.73Ω ±0.50 at 25°C
• Environmental Tolerance: Rated for operation up to 2000m altitude
• Construction: Military-grade stainless steel for maximum durability
• Interference Immunity: Excellent resistance to RFI and EMI

Frequently Asked Questions (FAQ)

• What is the operating temperature of this probe?
  The Bently Nevada 3300 XL probe operates from -55°C to +232°C.
• What cable length comes with the sensor?
  It includes an integrated, factory-attached 5-meter armored cable.
• Do you have this model in stock?
  Yes, model 330104-00-09-50-02-00 is typically available for quick shipment.
• What power supply does it need?
  It requires a -17.5V to -26V DC input from a compatible proximitor.
• Is this suitable for hazardous areas?
  Yes, it carries ATEX/IECEx certifications for Zone 0/2 and Class I/II/III areas.

For comprehensive technical drawings, performance curves, and detailed specifications, we recommend downloading the official datasheet. Download the 3300 XL 8 mm Proximity Transducer System Datasheet PDF here.
