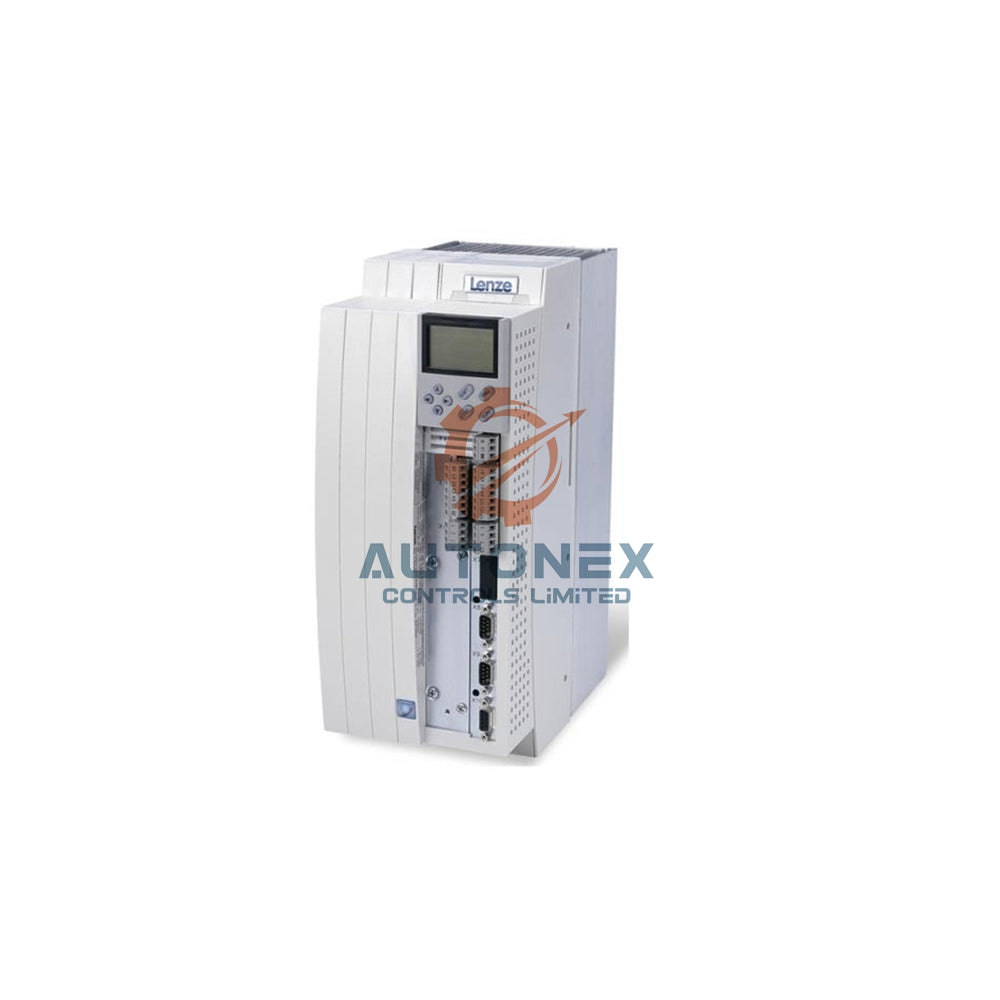

Lenze EVS9327-CSV004 Servo Controller

Lenze EVS9327-CSV004 High-Power Servo Controller

Core Technical Specifications

• Brand: Lenze
• Model: EVS9327-CSV004
• Series: Series 9300
• Product Type: Servo Controller / Inverter
• Rated Active Power: 18.5 kW
• Horsepower Capacity: 24.8 HP
• Rated Supply Voltage: 400 - 480 Volts AC
• Input Phase: 3-phase

Performance & Electrical Ratings

• Input Frequency: 50 to 60 Hz.
• Output Frequency Range: 0 to 480 Hertz for wide operational flexibility.
• Output Voltage Range: 0 to 480 Volts AC.
• Design: Built-in cold-plate cooling technique for reliability.
• Enclosure Rating: IP20 (basic protection against solid objects).

Environmental & Operating Conditions

• Ambient Operating Temperature: -10°C to +60°C.
• Storage Temperature Range: -25°C to +60°C.
• Environmental Tolerance: Designed for stable performance in industrial settings.
• Safety Feature: Includes a safe standstill function to prevent unintended motion.

Frequently Asked Questions (FAQ)

• Q: What is the power rating of the EVS9327-CSV004?
  A: It has a rated active power of 18.5 kW (24.8 HP).
• Q: What input voltage does this servo controller require?
  A: It operates on a 3-phase AC supply from 400 to 480 Volts.
• Q: How does the cooling system work?
  A: It uses a built-in cold-plate technique for effective heat dissipation.
• Q: What is the operating temperature range?
  A: It functions reliably in ambient temperatures from -10°C to +60°C.
• Q: What is your shipping and return policy?
  A: We ship within 5 business days and offer a 30-day return policy.
