330101-00-20-20-02-00 Bently Nevada 3300 XL 8mm Probe

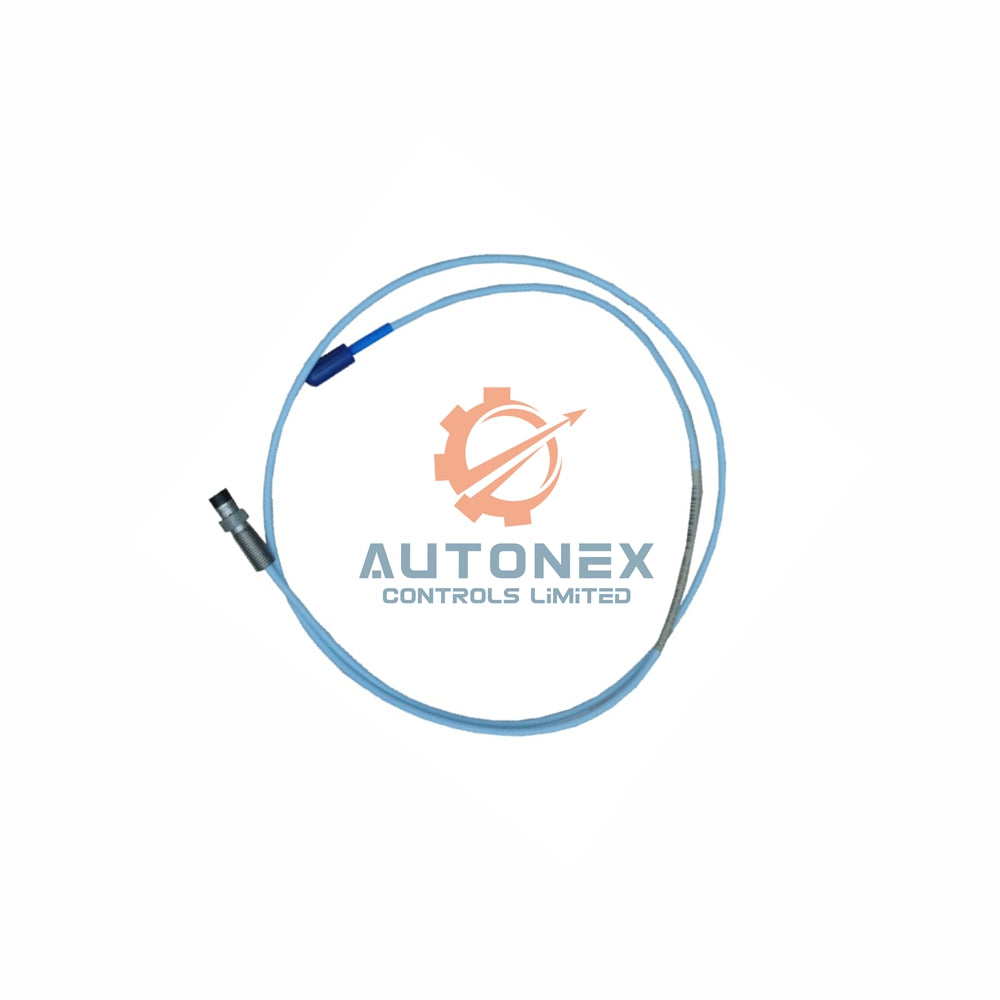

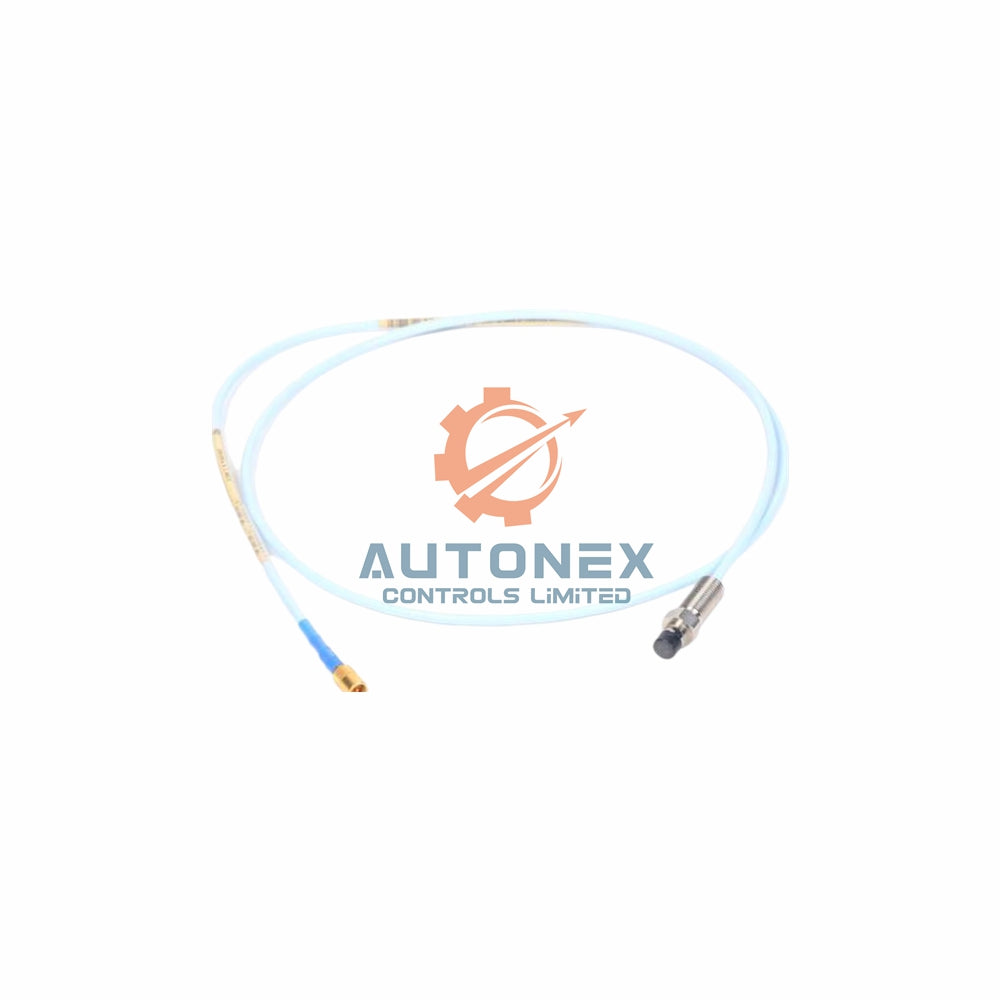

Bently Nevada 330101-00-20-20-02-00: 3300 XL 8 mm Probe Overview

• Brand & Model: Bently Nevada 330101-00-20-20-02-00 – a premium 3300 XL series probe.
• Thread Type: 3/8-24 UNF thread ensures easy and secure installation.
• Unthreaded Length Option: 00 means 0.0 inches unthreaded length.
• Overall Case Length Option: 20 equals 2.0 inches total case length.
• Total Length Option: 20 translates to 2.0 meters (6.6 feet) overall length.
• Connector & Cable Type: 02 provides a Miniature coaxial ClickLoc connector with standard cable.
• Not Required Option: 00 indicates no additional feature needed.

Technical Specifications You Can Rely On

• Nominal Probe DC Resistance: 7.88 ± 0.50 Ω between center and outer conductor.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical value.
• Field Wiring Recommendations: Use 0.2 to 1.5 mm² (16 to 24 AWG) 3-conductor shielded triad cable.
• Maximum Field Wiring Length: Up to 305 meters (1,000 feet) between sensor and monitor.
• Linear Range: 2 mm (80 mils) starting from about 0.25 mm (10 mils) off target.
• Recommended Gap for Radial Vibration: Set at -9 Vdc [approximately 1.27 mm (50 mils)].
• Incremental Scale Factor (ISF) – Standard 5 or 1 Meter System: 7.87 V/mm (200 mV/mil) ±5% over 0°C to +45°C.
• ISF – Standard 9 Meter System: 7.87 V/mm (200 mV/mil) ±6.5% across same temperature range.
• Extended Temperature Range (ETR) System: Same scale factor ±6.5% from 0°C to +45°C.
• Deviation from Best Fit Straight Line (DSL) – 1 or 5 Meter: Less than ±0.025 mm (±1 mil).
• DSL – 9 Meter System: Less than ±0.038 mm (±1.5 mil) under same conditions.
• DSL – ETR 5 and 9 Meter Systems: Less than ±0.038 mm (±1.5 mil) at 0°C to +45°C.
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Weight: 323 g/m (11.4 oz).
• Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F).
• ETR Probe Temperature Range: -52°C to +218°C at tip; -51°C to +260°C for cable and connector.
• Pressure Sealing Note: Viton® O-ring seals differential pressure. Avoid temperatures below –34˚C to protect the seal.
• Relative Humidity Performance: Less than 3% change in ASF after 56 days at 93% humidity (IEC 68 2 3).

Frequently Asked Questions (FAQ)

• Q: Is the 330101-00-20-20-02-00 a genuine Bently Nevada part?
  A: Yes, we supply only 100% genuine new original Bently Nevada probes.
• Q: Do you have this probe in stock?
  A: Yes, we have plenty of stock ready for immediate shipment.
• Q: How long does delivery take?
  A: We dispatch within 5 days, and express couriers (DHL/FedEx/UPS) take 3-7 business days.
• Q: Can I return this probe if it does not fit my system?
  A: Yes, we support 30-day returns from the delivery date.
• Q: What is the linear range of this probe?
  A: It provides a 2 mm (80 mils) linear range starting at 0.25 mm from the target.
• Q: Can I use this probe with a 9-meter extension cable?
  A: Yes, but note the scale factor tolerance changes to ±6.5% for the 9-meter system.
• Q: What happens if I expose the probe to -40°C?
  A: Exposing below –34˚C may cause premature failure of the pressure seal.
• Q: Is the probe pressure tested before shipping?
  A: Bently Nevada does not pressure test standard probes; contact them if you need a custom test.
