IS200TDBTH6A GE Terminal Board | Mark VIe Discrete I/O Module

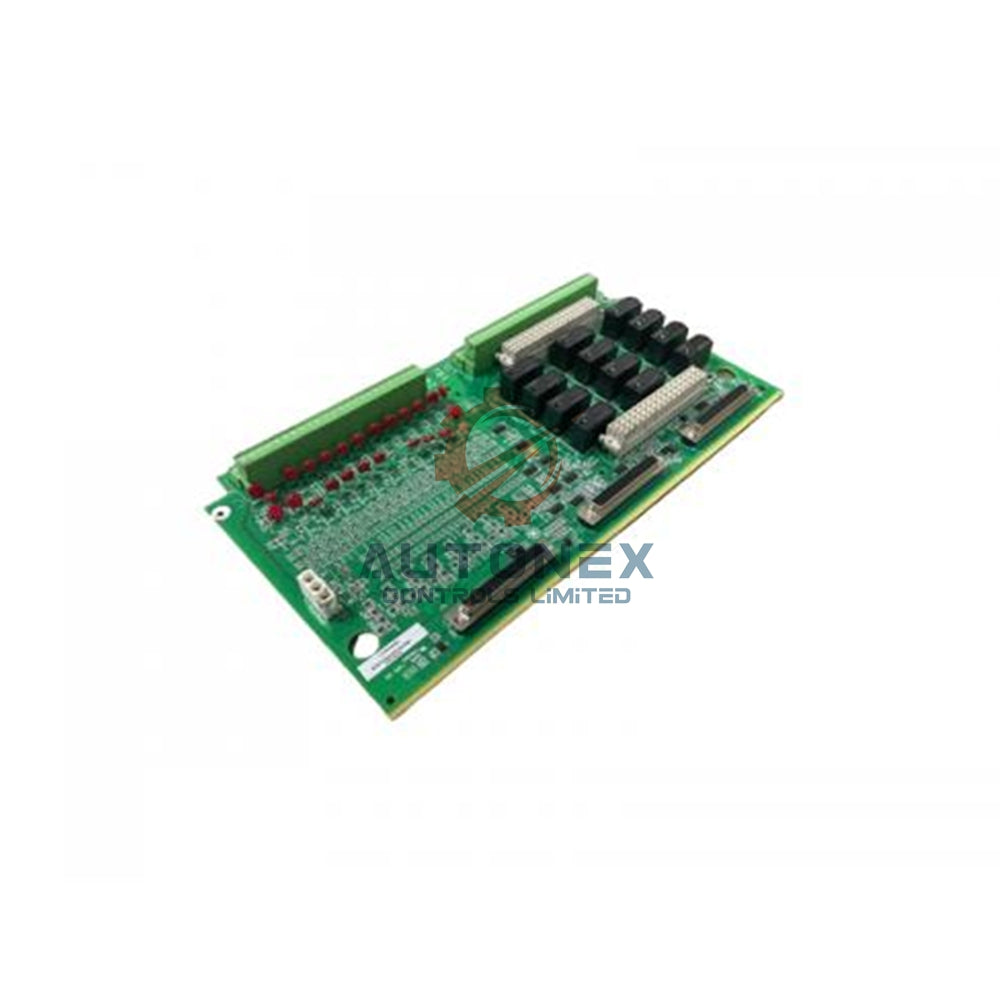

IS200TDBTH6A – General Electric Mark VIe Discrete I/O Terminal Board

The IS200TDBTH6A from General Electric belongs to the Mark VIe Series for distributed control systems. This discrete input/output terminal board offers 24 group-isolated contact inputs and 12 form-C relay outputs. Engineers value its robust noise suppression and flexible mounting options for demanding industrial environments.

Key Technical Specifications

• Brand: General Electric | Model: IS200TDBTH6A
• Number of Channels: 24 discrete input channels
• Input Current & Voltage: 24 V dc nominal, supports 24/48/125 V dc wetting voltage
• AC Voltage Rejection: 12 V RMS hardware filter
• Relay Channels: 12 form-C relay outputs (TB1 terminal block)
• Power Requirements: +5 V dc for internal logic
• Operating Temperature: -30°C to +65°C, suitable for harsh conditions
• Technology: Surface mount design with conformal coating
• Dimensions: 17.8 cm (W) x 33.02 cm (H) – fits standard DIN rail or panel mount
• Country of Origin: United States (GE Salem, VA facility)
• Manual Reference: GEH-6721L

Functional Highlights & System Integration

• The IS200TDBTH6A operates as a TMR contact input/output terminal board for Mark VIe control systems.
• External sources supply nominal 24, 48, or 125 V dc wetting voltage to the 24 group-isolated contact inputs.
• Hardware filters guard against surges and high-frequency noise, ensuring stable signal acquisition.
• Three PDIO I/O packs connect via D-type connectors and communicate with controllers through Ethernet.
• Each PDIO links to a specific TMR controller – JR1 to R controller, JS1 to S controller, and JT1 to R/S controllers.
• Resettable polymer PTC fuses limit the 24 V dc supply to 0.5 A, protecting downstream circuits.

Installation & Mounting Guide

• Mount the IS200TDBTH6A on a DIN rail using the included sheet metal carrier and plastic insulator.
• Alternatively, attach the board assembly inside a cabinet with standard fasteners for permanent installation.
• Use #18 AWG wires to connect to two sets of 48 terminal blocks for reliable field wiring.
• Connect input contact circuits to the lower terminal set (TB2) and relay outputs to the upper set (TB1).
• Use a separate bracket to terminate shields and maintain signal integrity.

Relay Outputs & Optional Board

• When using a relay option board, plug it into JW1 and JW2 connectors on the IS200TDBTH6A for expanded functionality.
• Each relay terminal point on TB1 corresponds to specific relay outputs, detailed in the board's manual.
• If external power is necessary, wire it directly to the connector on the option board.
• Six jumpers on the optional WROBH1 board allow you to enable or disable individual relays.
• Remove a jumper when using dry contacts and no power distribution is required.

Operating Specifications & Signal Conditioning

• The onboard signal conditioning matches the STCI board and supports 24, 48, and 125 V dc wetting voltages.
• Input wetting voltage ranges: 16–32 V dc, 32–64 V dc, and 100–145 V dc respectively.
• Threshold voltage equals half of the wetting voltage for precise switching.
• Contact input currents are resistance-limited to 2.5 mA (first 21 circuits) and 10 mA (circuits 22–24).
• Polymer PTC fuses provide overcurrent protection for the 24 V dc supply, rated at 0.5 A.

Configuration & Physical Characteristics

• The IS200TDBTH6A has no onboard jumpers or hardware configurations – a plug-and-play design.
• Conformal coating protects the PCB against moisture, dust, and chemical contaminants.
• Surface mount technology allows compact component placement and high reliability.

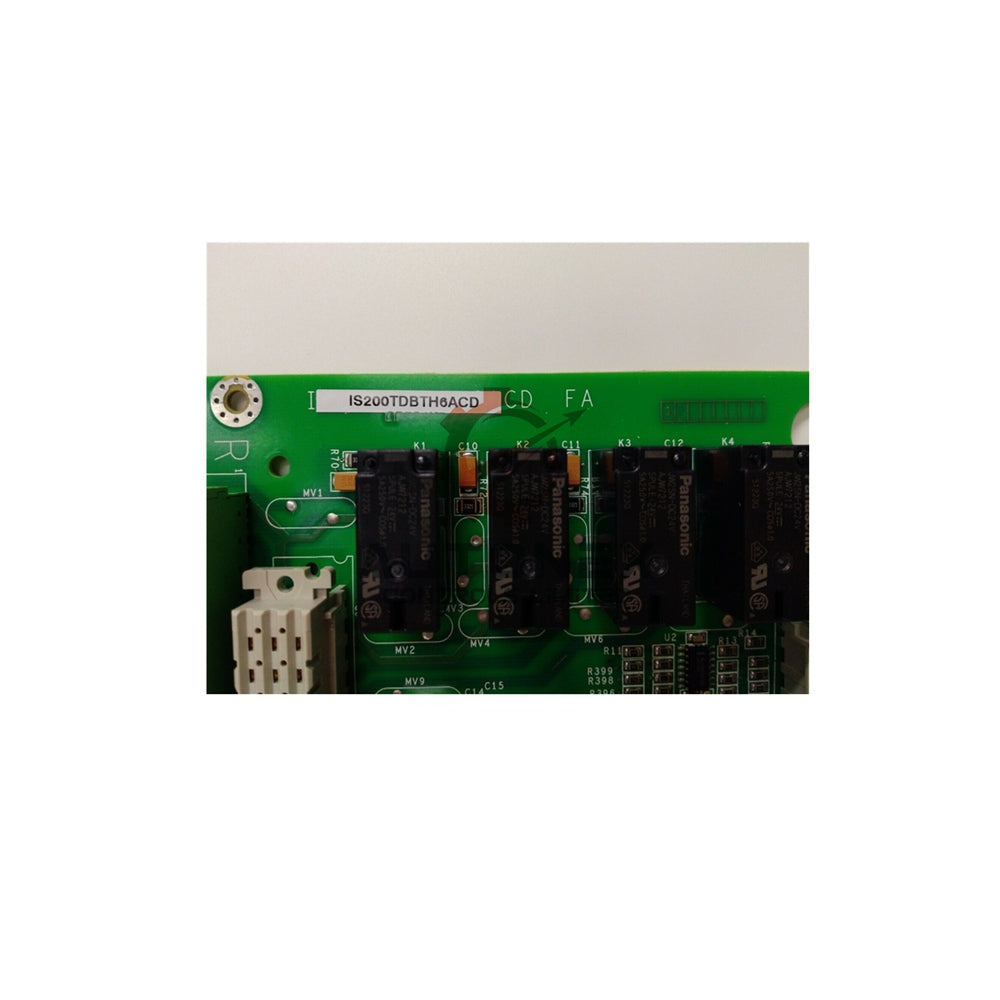

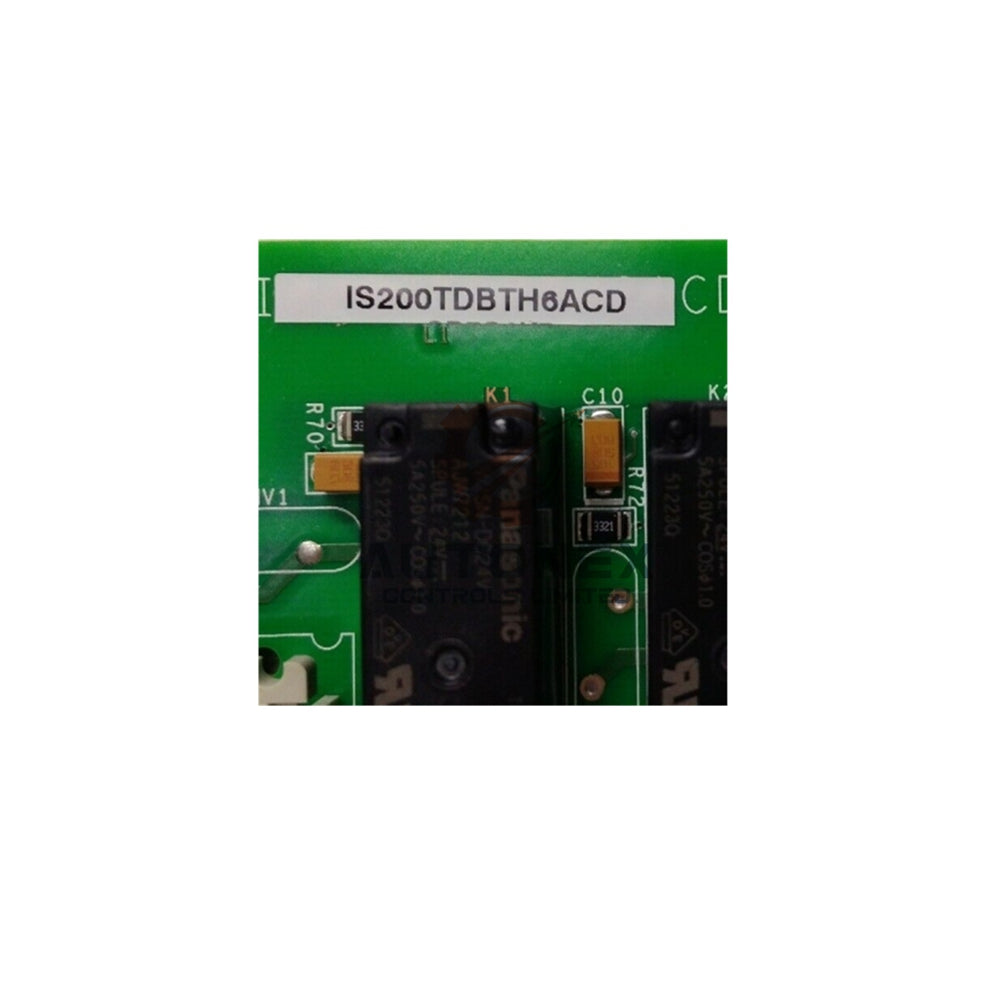

• Visual features include 12 large potentiometers, MOVs for surge protection, and integrated circuits for signal processing.
• This assembly carries a functional revision A and grouping Group 6 under the Mark VI series.

Frequently Asked Questions (FAQ)

• Is the IS200TDBTH6A a brand new original product?
  Yes, we supply IS200TDBTH6A as a brand new original unit, factory-sealed and ready for installation.
• Do you have this model in stock?
  Yes, we keep IS200TDBTH6A in stock for immediate orders. Inventory is regularly updated.
• What is the typical lead time for shipping?
  We process and ship orders within 5 business days after payment confirmation.
• Which carriers do you use for delivery?
  We ship via FedEx, UPS, and DHL to ensure fast and reliable global delivery.
• What is your return policy?
  We support 30-day returns. If you are not satisfied, contact us within 30 days for return instructions.
• Can I use this board with a single PDIO I/O pack?
  No. The IS200TDBTH6A requires three PDIO I/O packs to operate correctly with TMR controllers.
• Does the board include an option relay card?
  The base IS200TDBTH6A does not include the option card; you can purchase it separately for additional relay functions.
