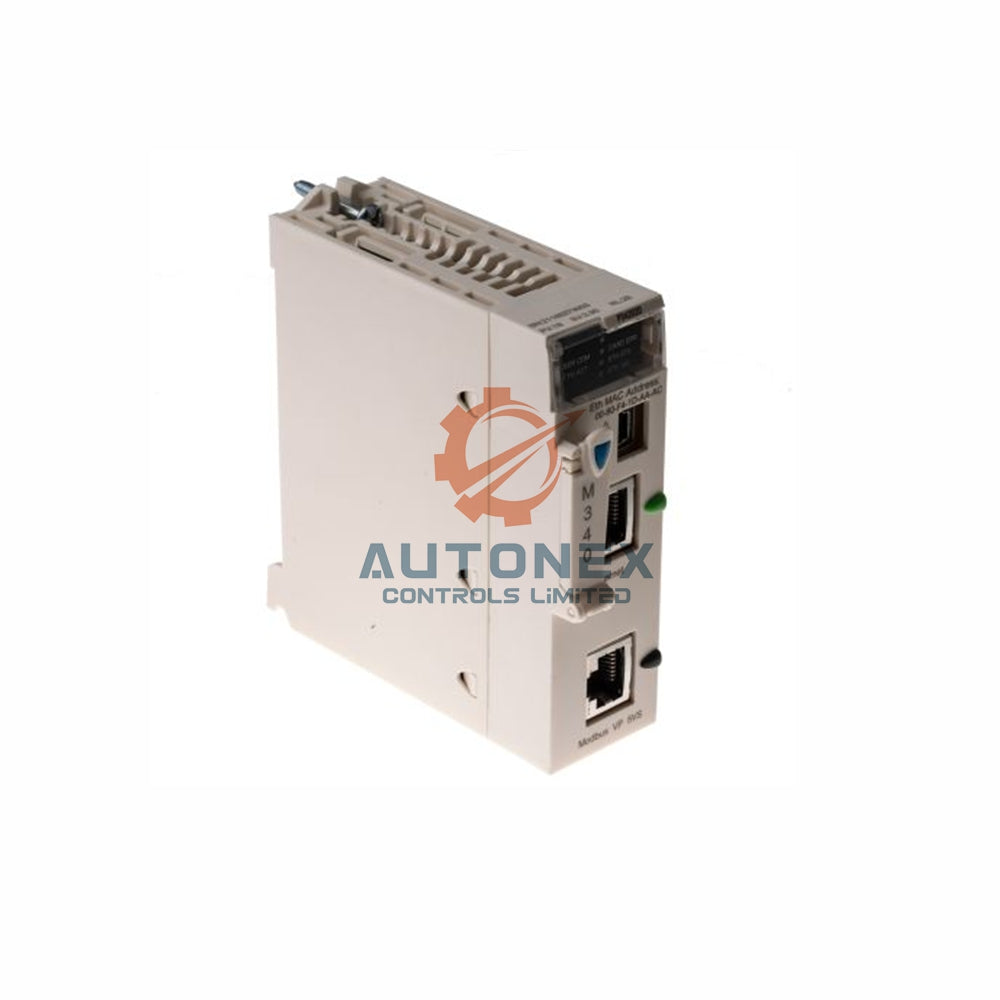

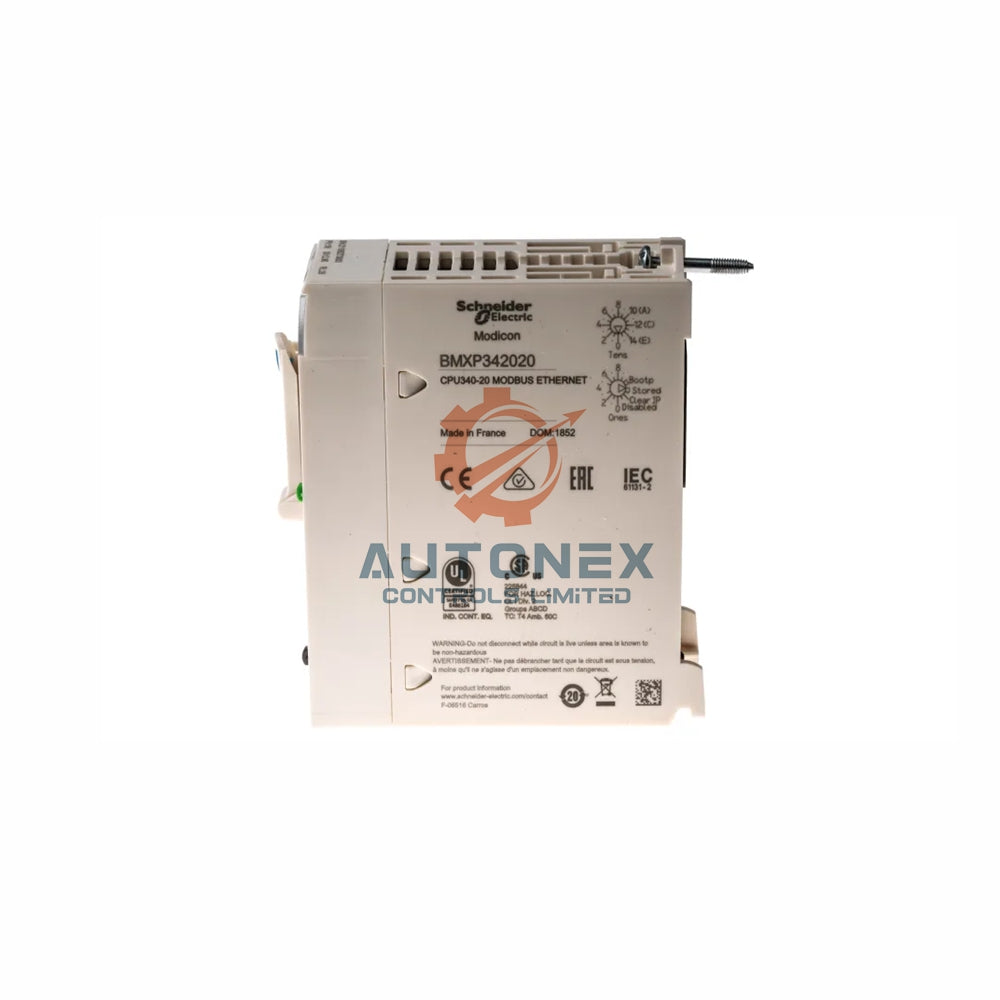

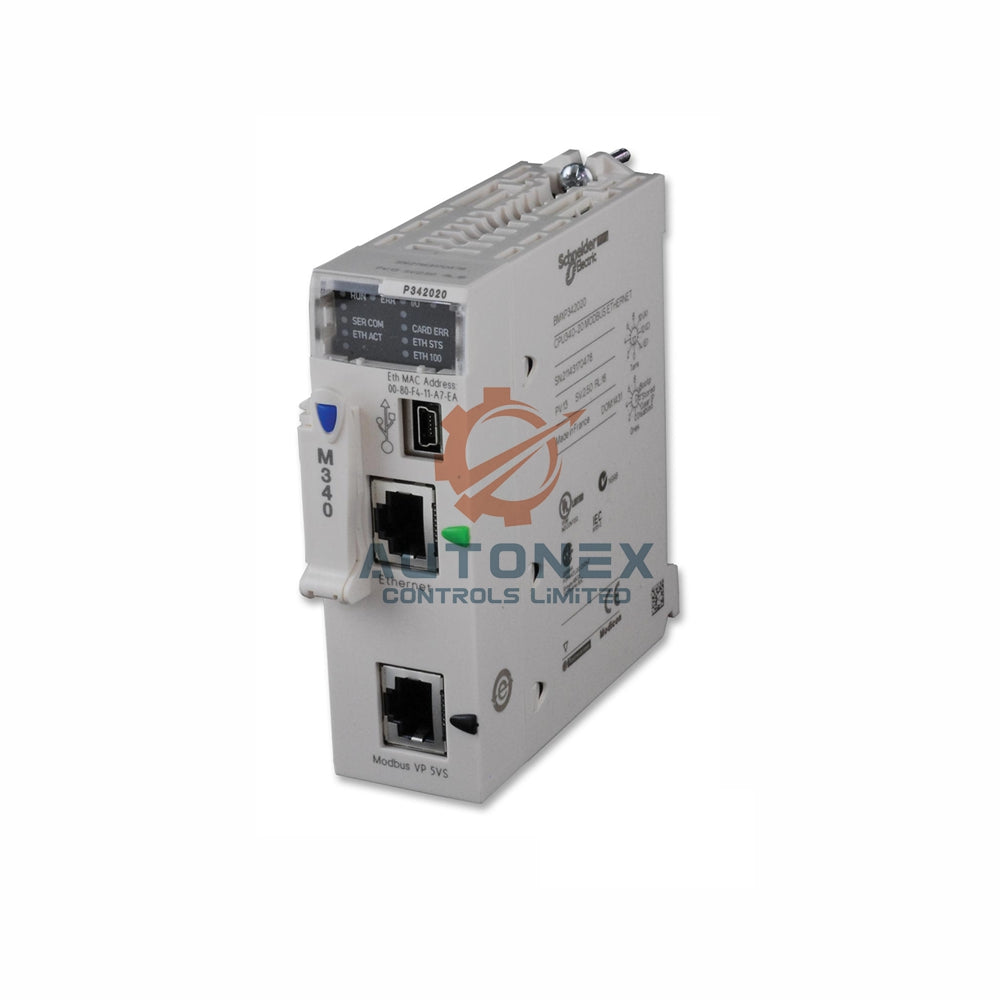

Modicon M340 Processor Module – BMXP342020 Overview

Core Technical Specifications

• Brand & Model: Schneider Electric – BMXP342020 Modicon M340 processor module.
• Discrete I/O Capacity: Up to 1024 I/O for multi-rack systems; 704 I/O for single-rack configuration.
• Analog I/O Capacity: Maximum 256 analog I/O in multi-rack setup; 66 analog I/O for single-rack configuration.
• Application-Specific Channels: Supports up to 36 dedicated channels for specialized functions.
• Execution Performance: Boolean instruction time: 0.12 µs; floating point: 1.16 µs. Handles 8.1 Kinstructions/ms for pure Boolean logic.
• Memory Resources: Internal RAM includes 4096 kB total with 3584 kB for program/constants, 256 kB for data. Includes supplied memory card (BMXRMS008MP) for backup and web server activation.
• Rack & Slot Support: Manages up to 4 racks and 11 slots per configuration.
• Temperature & Environment: Operates between 32 °F to 140 °F (0–60 °C); relative humidity 10–95% non-condensing. Rated IP20 with protective treatment TC.
• Standards & Certifications: Compliant with EN/IEC 61131-2, UL 61010-2-201, CSA C22.2, CE, RCM, and hazardous location Class I Division 2.

Integrated Communication & Fieldbus Interfaces

• Ethernet TCP/IP Port: Built-in RJ45 connector supports 10/100 Mbit/s communication. Provides Modbus TCP messaging, bandwidth management, data editor, and SNMP network administration.
• Modbus Serial Links: Two non-isolated RJ45 ports for Modbus RTU/ASCII, configurable as master or slave. Transmission rates range from 0.3 to 19.2 kbit/s on RS232C or RS485.
• USB Programming Port: Offers 12 Mbit/s connection for fast setup and monitoring.
• Communication Module Expansion: Processor capacity includes 2 Ethernet communication modules and up to 4 AS-Interface modules for extended connectivity.
• Transparent Ready Concept: BMXP342020 supports Transparent Ready technology for simplified web-based monitoring and diagnostics.
• Diagnostic & Event Counters: Built-in Modbus diagnostic counters and event counters simplify network troubleshooting.

Control Architecture & Task Management

• Multitasking Structure: Includes one cyclic/periodic master task, one periodic fast task, and up to 64 event tasks. No auxiliary task required.
• Motion Control: Supports independent axis control via CANopen for integrated motion applications.
• Object Area Sizes: Default areas: 1024 %MWi internal words, 256 %KWi constant words, and 512 %Mi located internal bits.
• System Overhead: Fast task overhead: 0.13 ms; master task overhead: 0.7 ms for deterministic cycle times.

Frequently Asked Questions (FAQ)

• Is the BMXP342020 brand new and original? – Yes, we supply new and original Schneider Electric products, factory-sealed.
• What is the typical stock availability? – We have stock available for immediate orders; high-demand items ready to ship.
• How soon can you dispatch the processor module? – We process orders within 5 business days after payment confirmation.
• Which carriers do you use for shipping? – We ship via FedEx, UPS, and DHL for fast and reliable delivery worldwide.
• What is your return policy? – We support 30-day returns for unopened, undamaged items. Contact support for RMA.
• Does BMXP342020 include an Ethernet port? – Yes, this processor features an integrated 10/100 Mbit/s Ethernet TCP/IP port for Modbus TCP and web server functionality.
• Can BMXP342020 handle both Modbus serial and Ethernet simultaneously? – Absolutely. The processor supports Modbus master/slave through serial ports and Ethernet communication concurrently.
• Does the module come with a memory card? – Yes, BMXP342020 includes a supplied memory card (BMXRMS008MP) for program backup and web server activation.
• What is the maximum number of racks this processor supports? – The module manages up to 4 racks with 11 slots per rack.
