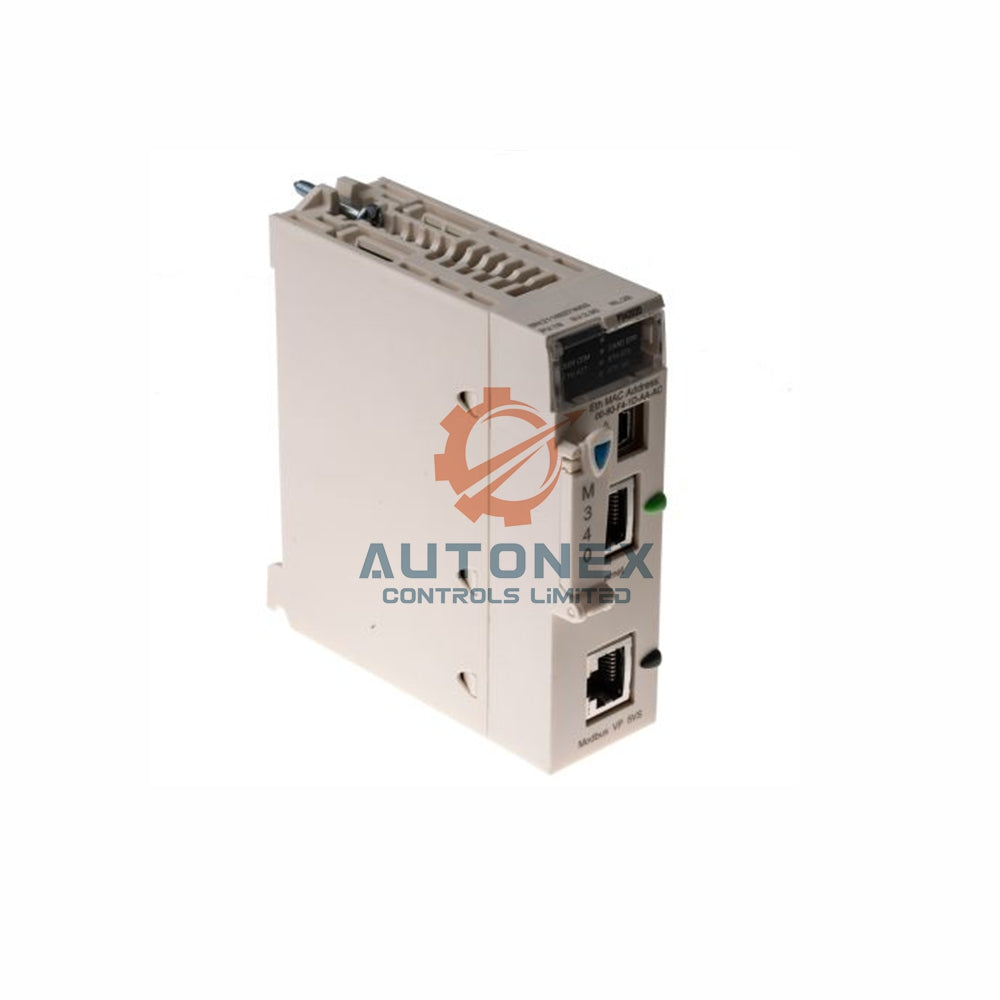

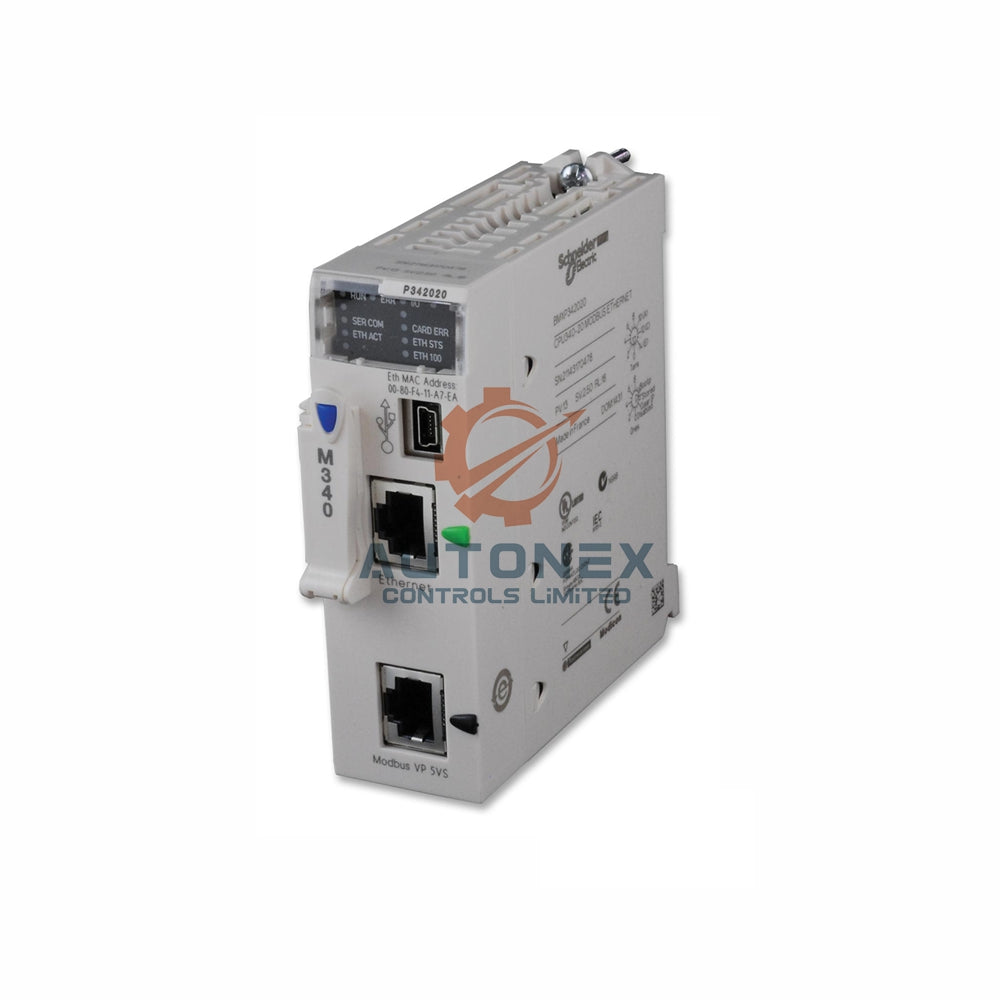

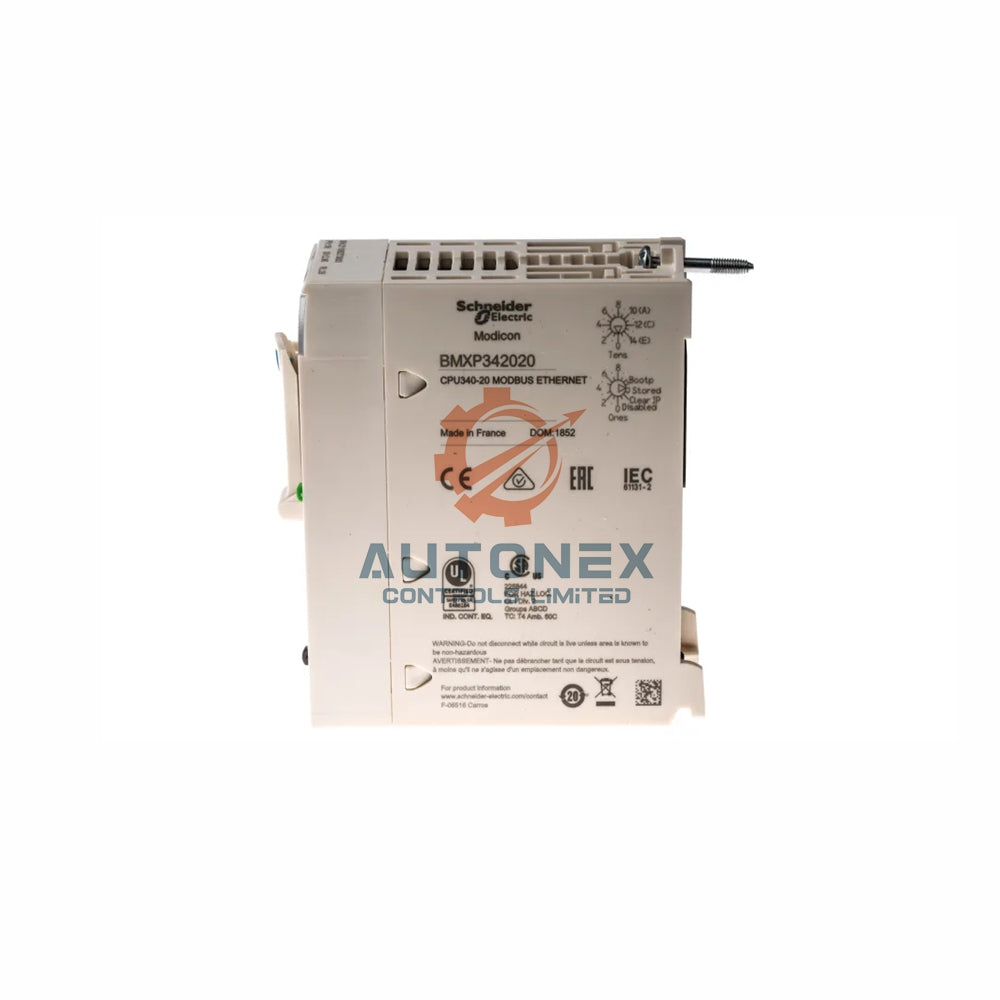

Modicon M340 Processor Module – BMXP3420102 Overview

Core Technical Specifications

• Brand & Model: Schneider Electric – BMXP3420102 Modicon M340 processor module.
• Discrete I/O Capacity: Up to 1024 I/O for multi-rack systems; 704 I/O for single-rack configuration.
• Analog I/O Capacity: Maximum 256 analog I/O in multi-rack setup; 66 analog I/O for single-rack configuration.
• Application-Specific Channels: Supports up to 36 dedicated channels for specialized functions.
• Execution Performance: Boolean instruction time: 0.12 µs; floating point: 1.16 µs. Handles 8.1 Kinstructions/ms for pure Boolean logic.
• Memory Resources: Internal RAM includes 4096 kB total with 3584 kB for program/constants, 256 kB for data. Uses supplied memory card (BMXRMS008MP) for backup.
• Rack & Slot Support: Manages up to 4 racks and 11 slots per configuration.
• Temperature & Environment: Operates between 32 °F to 140 °F (0–60 °C); relative humidity 10–95% non-condensing. Rated IP20 with protective treatment TC.
• Standards & Certifications: Compliant with EN/IEC 61131-2, UL 61010-2-201, CSA C22.2, CE, RCM, and hazardous location Class I Division 2.

Frequently Asked Questions (FAQ)

• Is the BMXP3420102 brand new and original? – Yes, we supply new and original Schneider Electric products, factory-sealed.
• What is the typical stock availability? – We have stock available for immediate orders; high-demand items ready to ship.
• How soon can you dispatch the processor module? – We process orders within 5 business days after payment confirmation.
• Which carriers do you use for shipping? – We ship via FedEx, UPS, and DHL for fast and reliable delivery worldwide.
• What is your return policy? – We support 30-day returns for unopened, undamaged items. Contact support for RMA.
• Can BMXP3420102 handle both Modbus and CANopen simultaneously? – Absolutely. The processor supports Modbus master/slave through serial ports and CANopen master via the dedicated SUB-D 9 port concurrently.
• What is the maximum number of CANopen nodes? – The module supports up to 63 CANopen server devices on the bus, with flexible segment lengths based on baud rate.
• Does the processor support hot-swapping I/O modules? – The Modicon M340 system allows configuration changes while the processor is running, but check compatibility with specific I/O modules.
