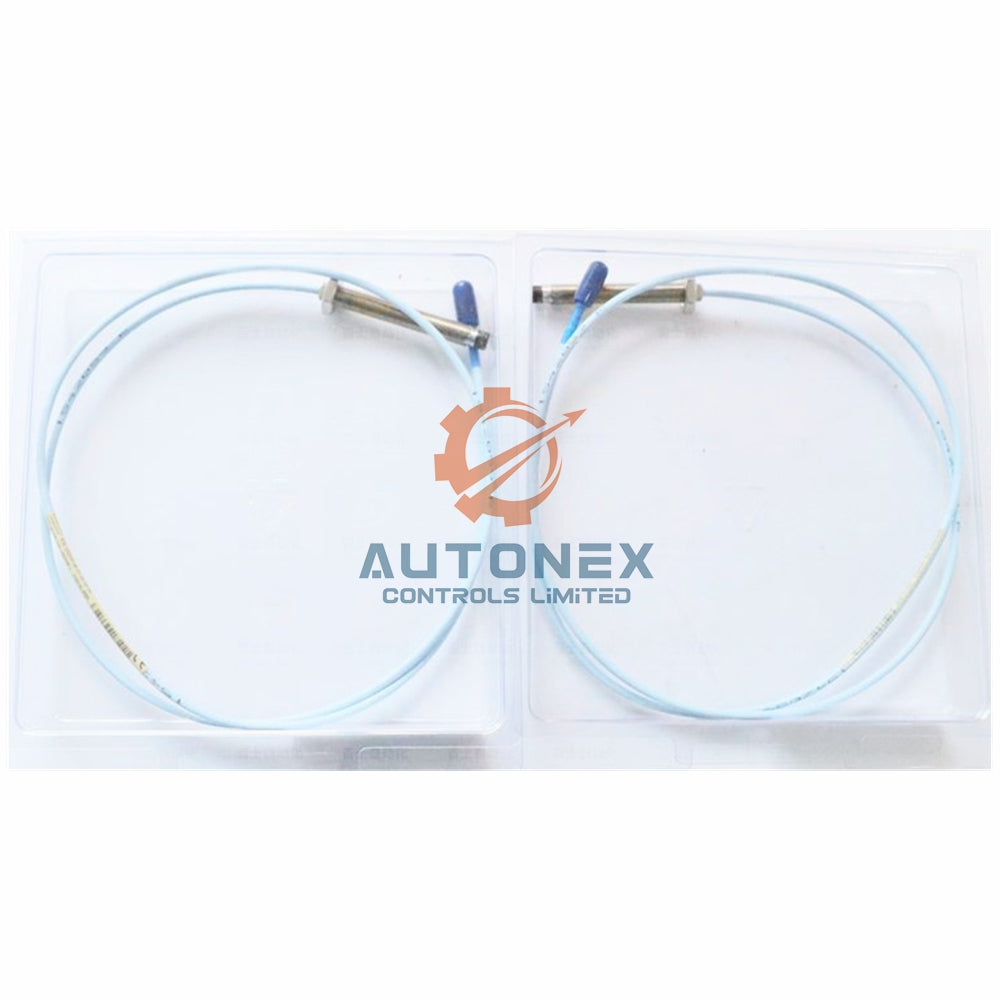

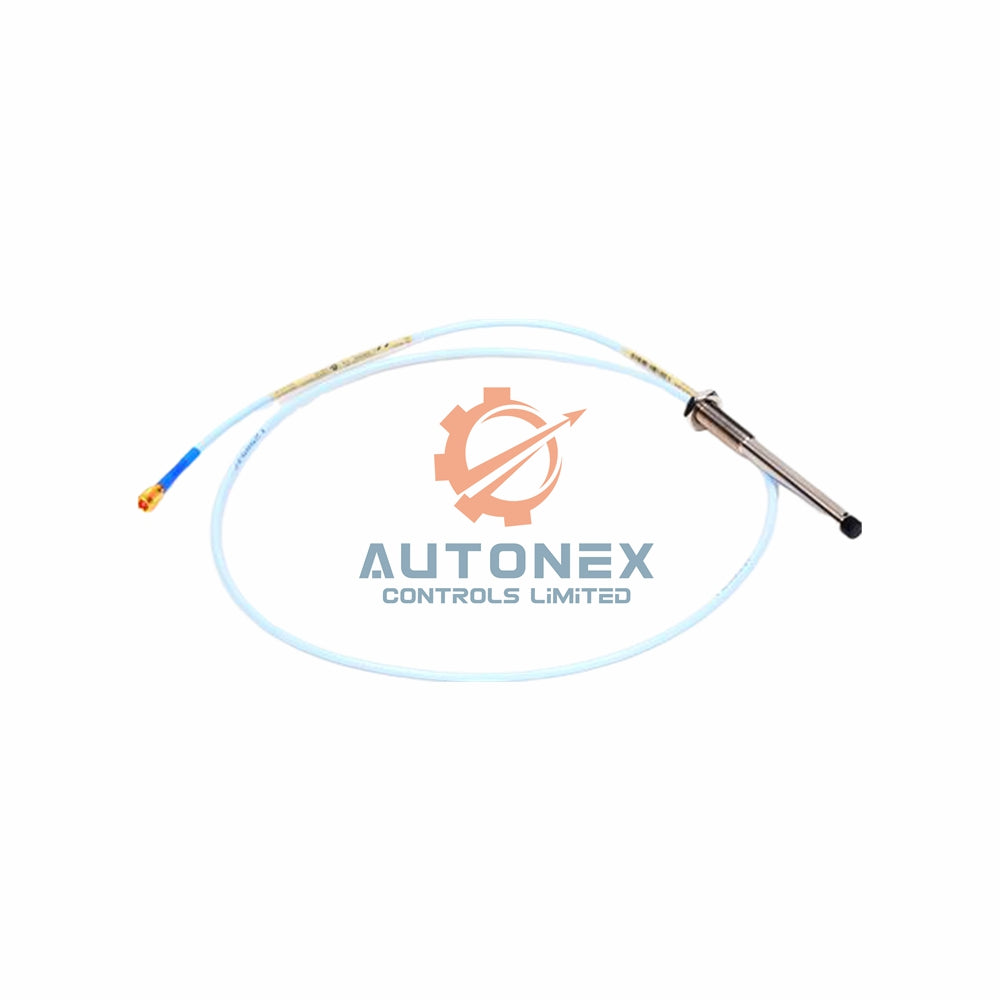

Bently Nevada 330701-00-24-10-11-05 : 3300 XL 11 mm Proximity Probe

• Brand: Bently Nevada – a trusted name in vibration and position monitoring.
• Model Number: 330701-00-24-10-11-05 – 3300 XL series, 11 mm probe.
• Origin: Made in U.S.A, meeting strict quality standards.
• Probe type: 3300 XL 11 mm without armor, 1/2-20 UNF thread.
• Unthreaded Length Option: 00 = 0 inches – simplifies installation.
• Overall Case Length Option: 24 = 2.4 inches – compact case design.
• Total Length Option: 10 = 1.0 meter (3.3 feet) – ready for direct connection.
• Connector and Cable Type: 11 = Miniature coaxial ClickLoc with connector protector and FluidLoc cable.
• Agency Approval Option: 05 = Multiple Approvals – suitable for global use.

Key Technical Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS) – excellent chemical resistance.
• Probe Case Material: AISI 304 stainless steel (SST) – durable and corrosion resistant.
• Probe Cable: 75 Ω triaxial, FEP insulation, total lengths 1m, 5m, or 9m.
• Operating Temperature Range: -51°C to +177°C (-60°F to +351°F).
• Storage Temperature: same as operating range -51°C to +177°C.
• Pressure Capability: Probes seal differential pressure with Viton O-ring at tip-case interface.
• DC Resistance (RPROBE): For 1.0 meter length: 5.9 ± 0.5 ohms from center to outer conductor.
• Probe Case Thread: 1/2-20 UNF, maximum thread engagement 0.750 inch.
• Maximum Torque for 1/2-20 case: 45.2 N•m (400 in•lb), recommended 15.2 N•m (133 in•lb).
• Connector Torque: Finger tight (recommended), maximum 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 inch) with or without SST armor – prevents cable damage.
• Alternative Metric Thread: M16x1.5, max engagement 24 mm.
• Probe Temperature Note: Exposing probe below -34°C (30°F) may cause premature pressure seal failure.

Frequently Asked Questions (FAQ)

• Q: Is the 330701-00-24-10-11-05 a genuine Bently Nevada probe?
  A: Yes, this is a brand new original Bently Nevada 3300 XL 11 mm proximity probe, made in U.S.A.
• Q: Do you have this probe in stock?
  A: Yes, we keep 330701-00-24-10-11-05 in our warehouse for fast delivery.
• Q: What is the typical lead time for shipping?
  A: We ship within 5 days using FedEx, UPS, or DHL. Express delivery takes 2-5 days depending on your location.
• Q: Can I use this probe at temperatures below -34°C?
  A: Avoid exposing the probe below -34°C (30°F) as it may damage the pressure seal. Normal operating range starts at -51°C, but sustained low temperature below -34°C can cause premature seal failure.
• Q: What is the DC resistance of the 1.0 meter probe cable?
  A: For the 1.0m total length, RPROBE is 5.9 ± 0.5 ohms from center conductor to outer conductor.
• Q: Is the probe pressure tested before shipment?
  A: Bently Nevada does not pressure test each probe. Contact their custom design department if you require a pressure seal test for your application.
• Q: What connectors does this probe use?
  A: It uses a miniature coaxial ClickLoc connector with a connector protector and FluidLoc cable.
• Q: Can I return this probe?
  A: Yes, we support a 30-day return policy for unused items in original packaging.
