330103-05-15-50-02-00 Bently Nevada 3300 XL Probe 5m Cable

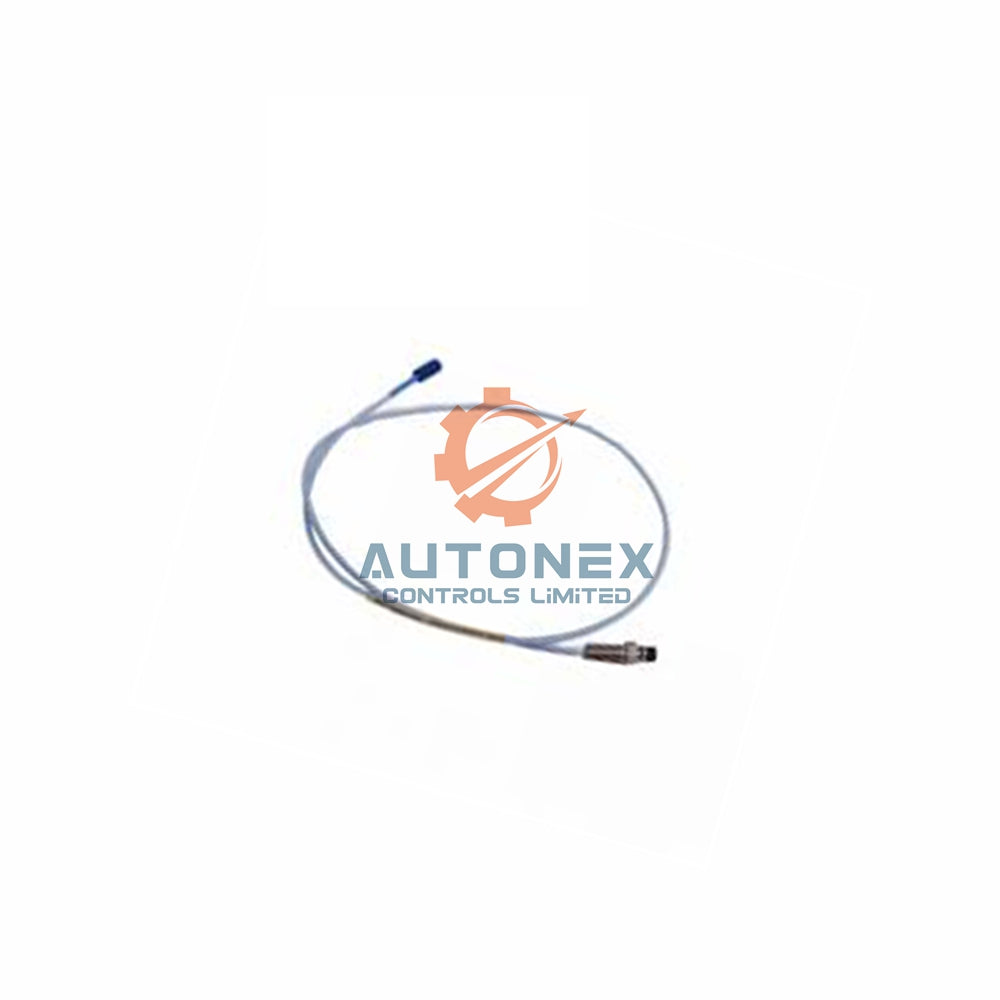

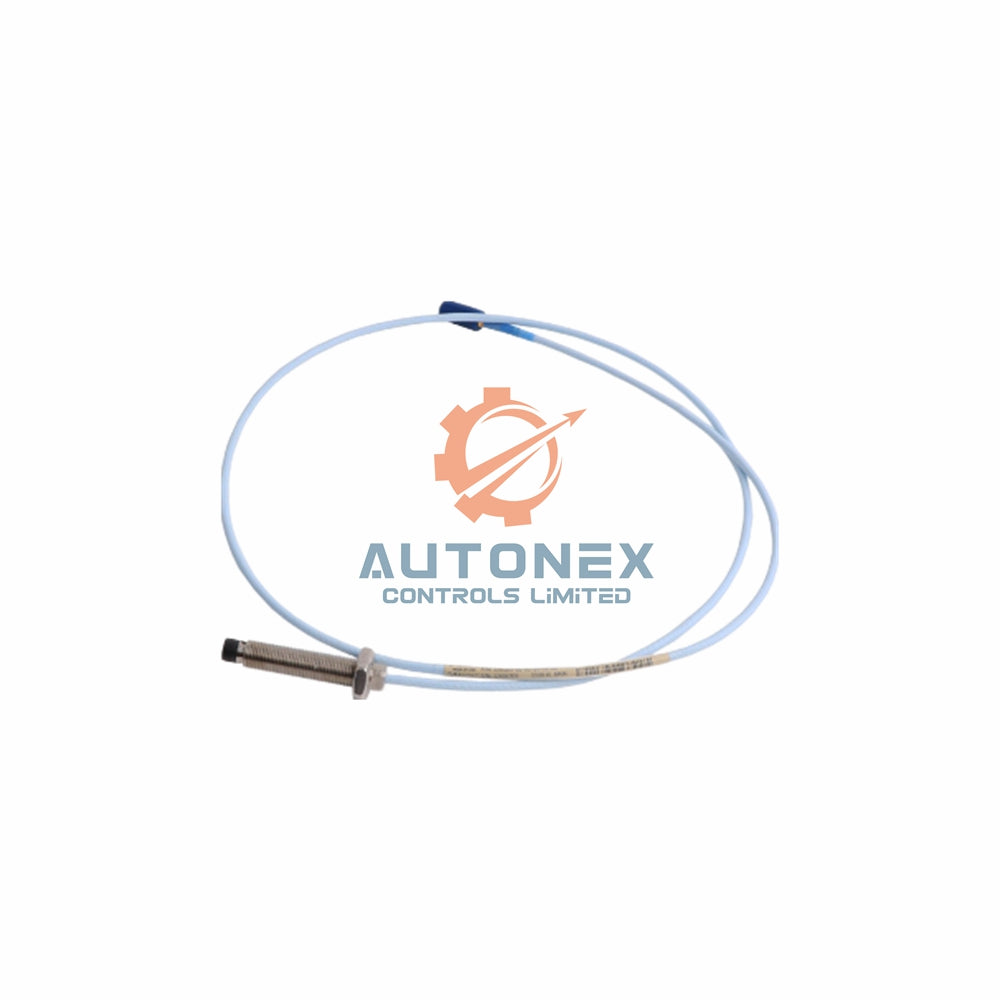

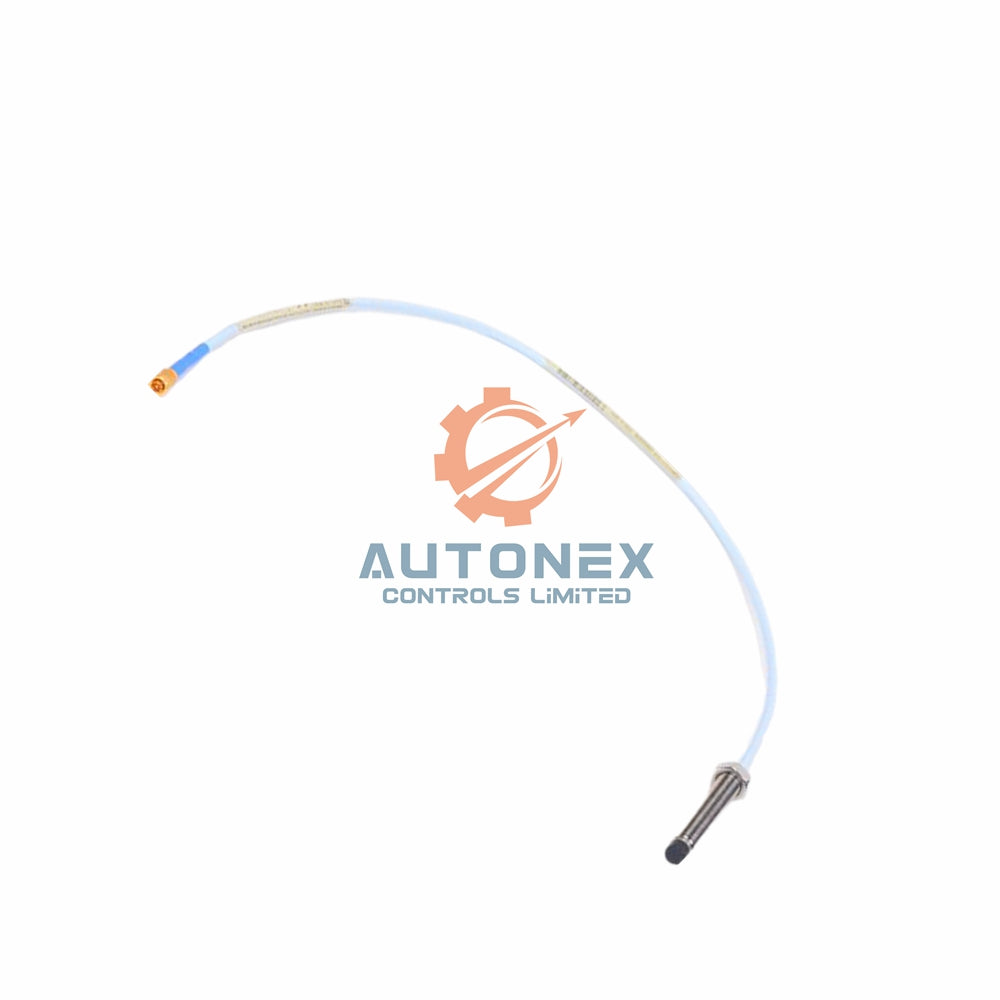

Bently Nevada 3300 XL 8 mm Proximity Probe – Model 330103-05-15-50-02-00

Key Technical Specifications

• Brand & Model: Bently Nevada 330103-05-15-50-02-00 (3300 XL 8 mm Probe, Metric).
• Unthreaded Length: 50 mm minimum unthreaded length option.
• Overall Case Length: 150 mm.
• Total Cable Length: 5.0 meters (16.4 feet) with miniature coaxial ClickLoc connector.
• Linear Range: 2 mm (80 mils) from 0.25 mm (10 mils) to 2.3 mm (90 mils) from target.
• Recommended Gap Setting: -9 Vdc, approximately 1.27 mm (50 mils) for radial vibration.
• Nominal DC Resistance (RPROBE): 8.73 ± 0.50 Ω for this 5.0 meter probe length.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Probe Case Thread: M10x1 with maximum thread engagement of 15 mm.
• Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Tip Range: -52°C to +218°C (-62°F to +425°F).
• Cable and Connector Temperature Limit: -51°C to +260°C (-60°F to +500°F).
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity for up to 56 days per IEC 68-2-3.
• Pressure Seal Design: Uses a Viton® O-ring to seal differential pressure between probe tip and case.
• Field Wiring Recommendation: 0.2 to 1.5 mm² (16 to 24 AWG) with 3-conductor shielded triad cable.
• Maximum Field Wiring Length: 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.
• Agency Approval: 00 = Not required.
• Weight: 323 g/m (11.4 oz).

Frequently Asked Questions (FAQ)

• Q: Do you have this model in stock?
  A: We have this 3300 XL 8 mm probe model in stock right now for immediate orders.
• Q: How long does shipping take?
  A: We will dispatch your order within 5 business days after order confirmation.
• Q: Which carriers do you use?
  A: We use common global carriers like DHL, FedEx, and UPS for fast delivery.
• Q: What is your return policy?
  A: We support returns within 30 days from the delivery date.
• Q: Why does this probe require a 5 meter Proximitor sensor?
  A: The 5.0 meter cable length matches the 5 meter Proximitor sensor's design for accurate signal transmission.
• Q: What is the maximum cable length to the monitor?
  A: The maximum field wiring length between the Proximitor Sensor and the monitor is 305 meters (1,000 feet).
• Q: Are these probes pressure tested before shipping?
  A: No, Bently Nevada does not pressure test probes prior to shipment. Contact their custom design department if you require a pressure seal test.
