31000-28-05-35-032-03-02 Bently Nevada - Probe Housing

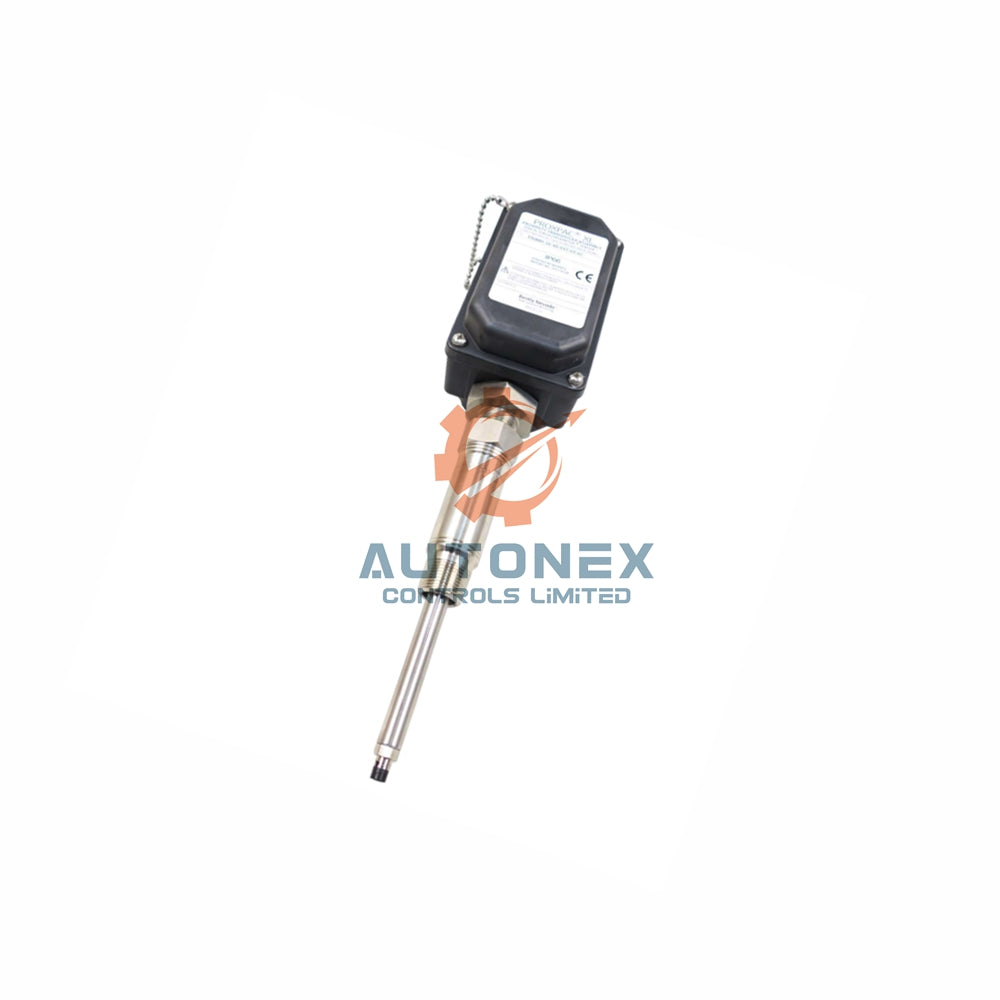

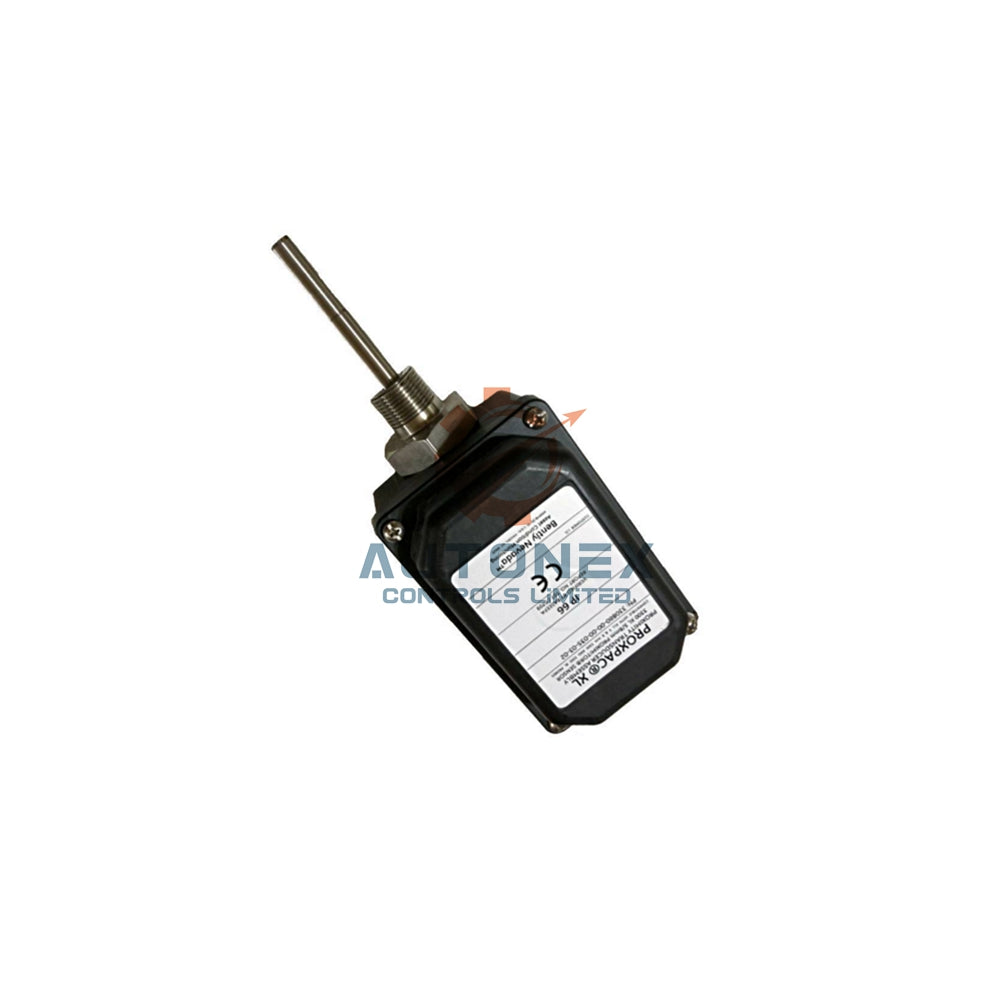

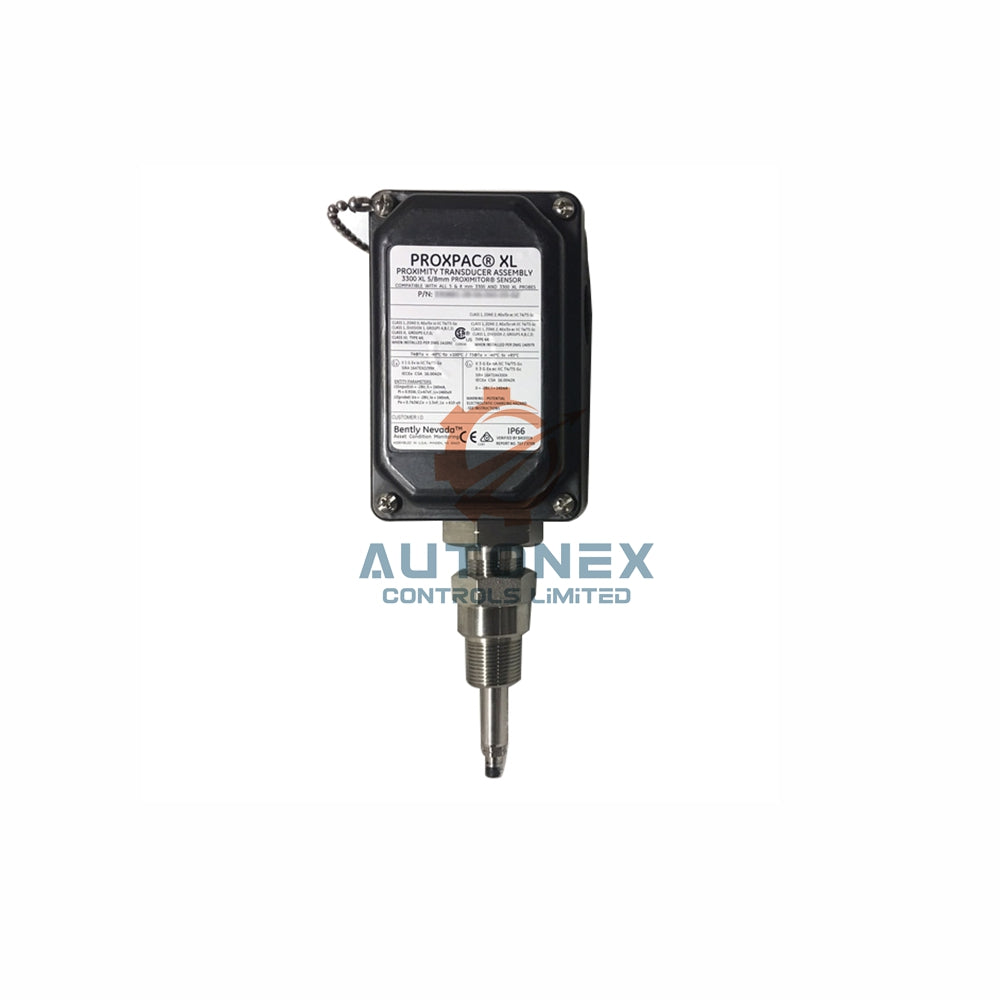

31000-28-05-35-032-03-02 Proximity Probe Housing Overview

• Manufacturer: Bently Nevada (Made in U.S.A).
• Model Number: 31000-28-05-35-032-03-02.
• Product Type: 31000 Proximity Probe Housings.
• Probe Option: 28 = 3300 XL 8 mm probe with multiple approvals.
• Probe Cable Length: 05 = 0.5 m (20 inches).
• Standoff Adapter Option: 35 = 3.5 inches.
• Probe Penetration Option: 032 = 3.2 inches.
• Fittings Option: 03 = Two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, and one cable seal grip with grommets for cable sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, 5/16 to 3/8 inches.
• Mounting Thread Option: 02 = 3/4-14 NPT (Required with Standoff Adapter Option).

Protection and Environmental Ratings

• Protection Ratings: CSA Type 4X certified. IP66 rating verified by SC115582-1 (e) 106.
• CENELEC Compliance: EN50014 rating for electrostatic dissipation of plastic material in hazardous areas.
• Temperature Range: -51°C to +105°C (-60°F to +221°F).
• Housing Impact Strength: BASEEFA certified for two separate 4 Joule impacts at -39°C and +115°C.
• Room Temperature Impact: CSA verified 7 Joule (5.2 ft·lb) impact at ambient temperature.
• Load Capacity: Supports 912 N (205 lb) placed 38 mm from unsupported end with cover fastened.

Materials and Construction

• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers.
• Sleeve and Retaining Chain: AISI 304 stainless steel.
• Outer Sleeve and Exterior Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene.
• Recommended Torque (retaining nut): 29.4 N·m (260 in·lb).
• Weight: 1.2 kg (2.6 lb) typical.

Frequently Asked Questions (FAQ)

• Q: Is this housing brand new and original?
  A: Yes, we supply only brand new and original Bently Nevada parts.
• Q: Do you have the 31000-28-05-35-032-03-02 in stock?
  A: Yes, we keep this model in stock for immediate orders.
• Q: What is the maximum operating temperature?
  A: The housing operates from -51°C to +105°C (-60°F to +221°F).
• Q: Does this housing resist high-pressure water jets?
  A: Yes, it carries IP66 and Type 4X ratings for hose-directed water.
• Q: Does this housing resist internal pressure?
  A: No. It seals against external water but not internal or external pressure.
• Q: Which cable diameters fit the seal grip?
  A: The included grommets fit cable sizes: 1/8-3/16, 1/4-5/16, and 5/16-3/8 inches.
