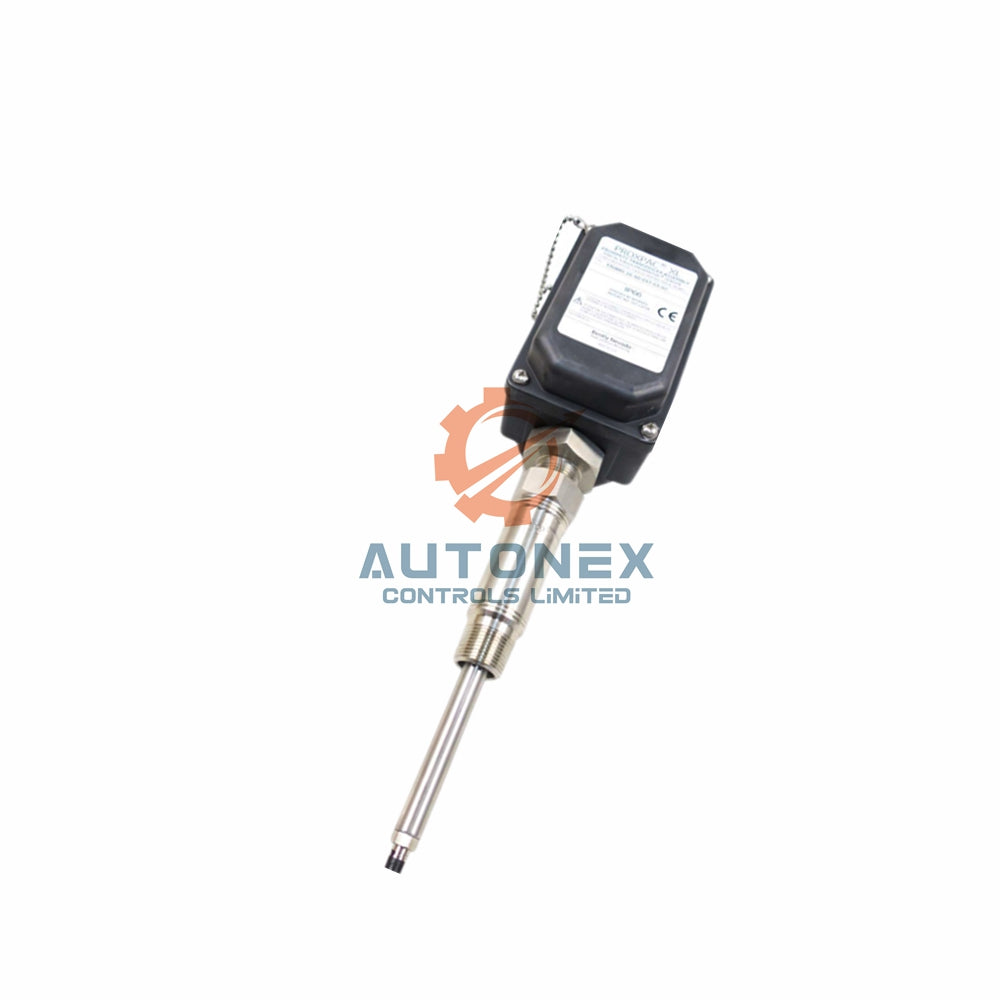

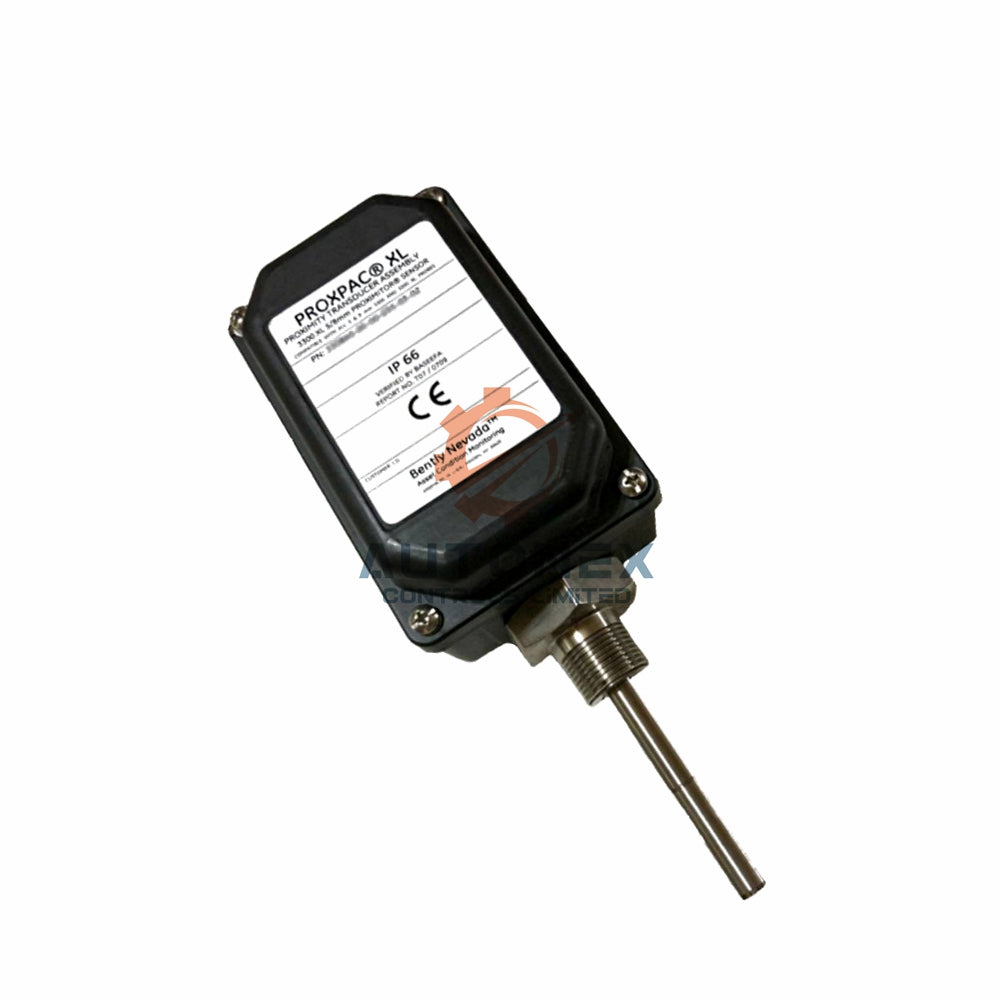

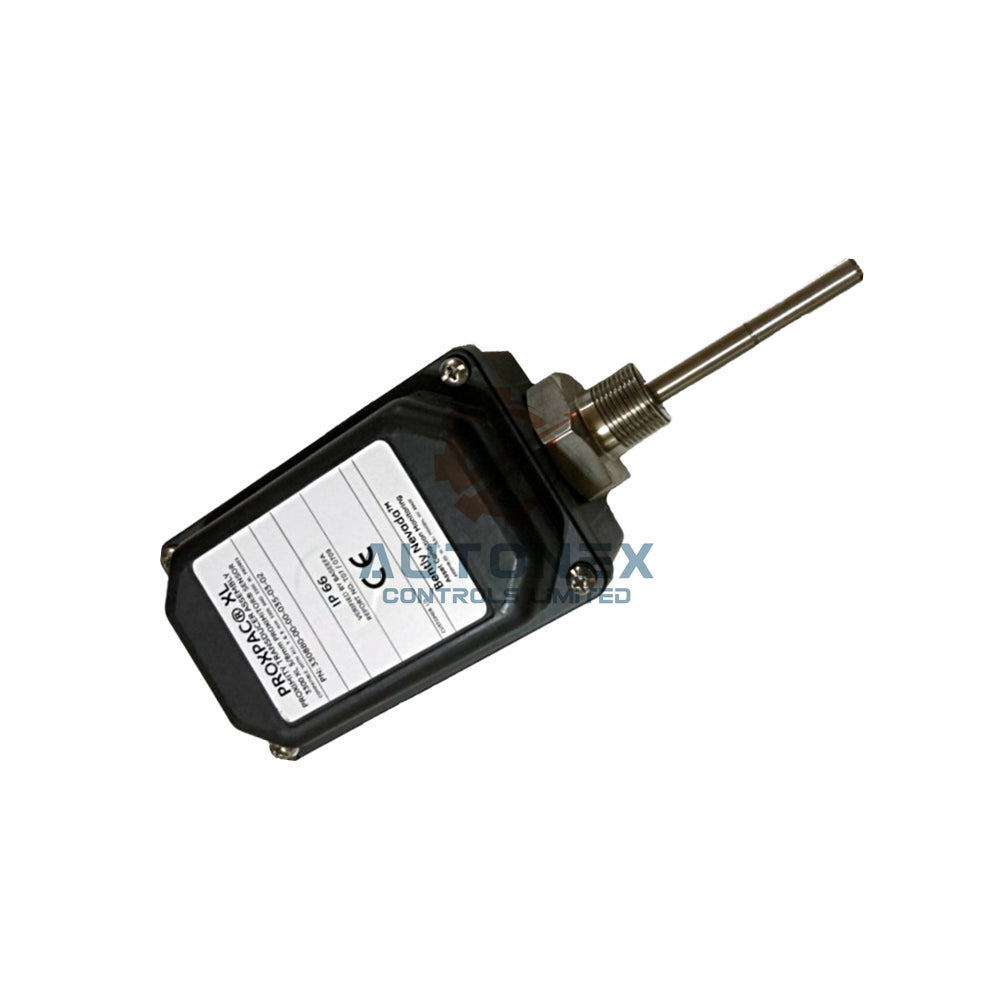

330881-28-06-155-03-02 Bently Nevada PROXPAC XL Transducer

330881-28-06-155-03-02 Bently Nevada PROXPAC XL Proximity Transducer

Key Technical Specifications

• Brand: Bently Nevada
• Model: 330881-28-06-155-03-02
• Product Type: PROXPAC XL Proximity Transducer
• Made in: U.S.A.
• Measurement Range: 0.25 mm to 2.3 mm (10 to 90 mils)
• Frequency Response: 0 to 10 kHz (+0, -3 dB) with 305 m field wiring
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%
• Deviation from Best Fit Straight Line (DSL): ±0.025 mm (±1 mil) at 0°C to +45°C
• Resolution: Equivalent to 0.025 mm linearity error
• Probe Temperature Range: -51°C to +177°C (-60°F to +350°F)
• Housing Rating: IP66 (BASEEFA certified)
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel
• Cable Type: 1 m triaxial, FEP insulated
• Connector: Gold-plated brass ClickLoc
• Probe Tensile Strength: 330 N (75 lb) maximum
• Housing Material: UV-resistant glass-reinforced PPS with conductive fibers
• Sleeve & Retaining Chain Material: AISI 304 stainless steel
• Outer Sleeve & Retaining Screws: AISI 303 stainless steel
• Sleeve O-Ring Material: Neoprene
• Grounding Liner & Retaining Plate: AISI 304 stainless steel
• Vibration Isolation Material: Extra soft cellular silicone
• Lid Label Material: Gloss radiant white polyester
• Housing Strength: Supports 912 N (205 lbf) at 38 mm from unsupported end
• Impact Strength: 4 Joules at -39°C and +115°C (BASEEFA), 7 Joules at room temp (CSA)
• Total System Weight: 1.44 kg (3.2 lbm) typical
• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA max
• Supply Sensitivity: Less than 2 mV output change per 1V input change
• Output Resistance: 50 Ω
• Field Wiring: 0.2 to 1.5 mm² (16-24 AWG), 3-conductor shielded triax
• Maximum Field Wiring Length: 305 m (1000 feet)
• Recommended Gap Setting: 1.27 mm (50 mils)
• Minimum Target Size: 15.2 mm (0.6 in) diameter flat target
• Minimum Shaft Diameter: 50.8 mm (2.0 in)

Frequently Asked Questions (FAQ)

• Can this probe work below -34°C? No, exposing the probe to temperatures below -34°C may cause premature failure of the pressure seal.
• What power supply does the 330881-28-06-155-03-02 need? This device requires -17.5 Vdc to -26 Vdc without barriers. Use -23 Vdc to -26 Vdc with barriers for proper operation.
• How long can I run the field wiring? You can run up to 305 meters (1000 feet) of 3-conductor shielded triax cable between the sensor and monitor.
• What happens if I supply a more positive voltage than -23.5 Vdc? A more positive voltage than -23.5 Vdc will reduce the linear range of the system.
• Is the housing impact resistant for harsh environments? Yes, BASEEFA certified the housing for 4 Joule impacts at -39°C and +115°C. CSA verified 7 Joule impacts at room temperature.
• Do you have this model in stock right now? Yes, we have the 330881-28-06-155-03-02 in stock and ready for immediate orders.
