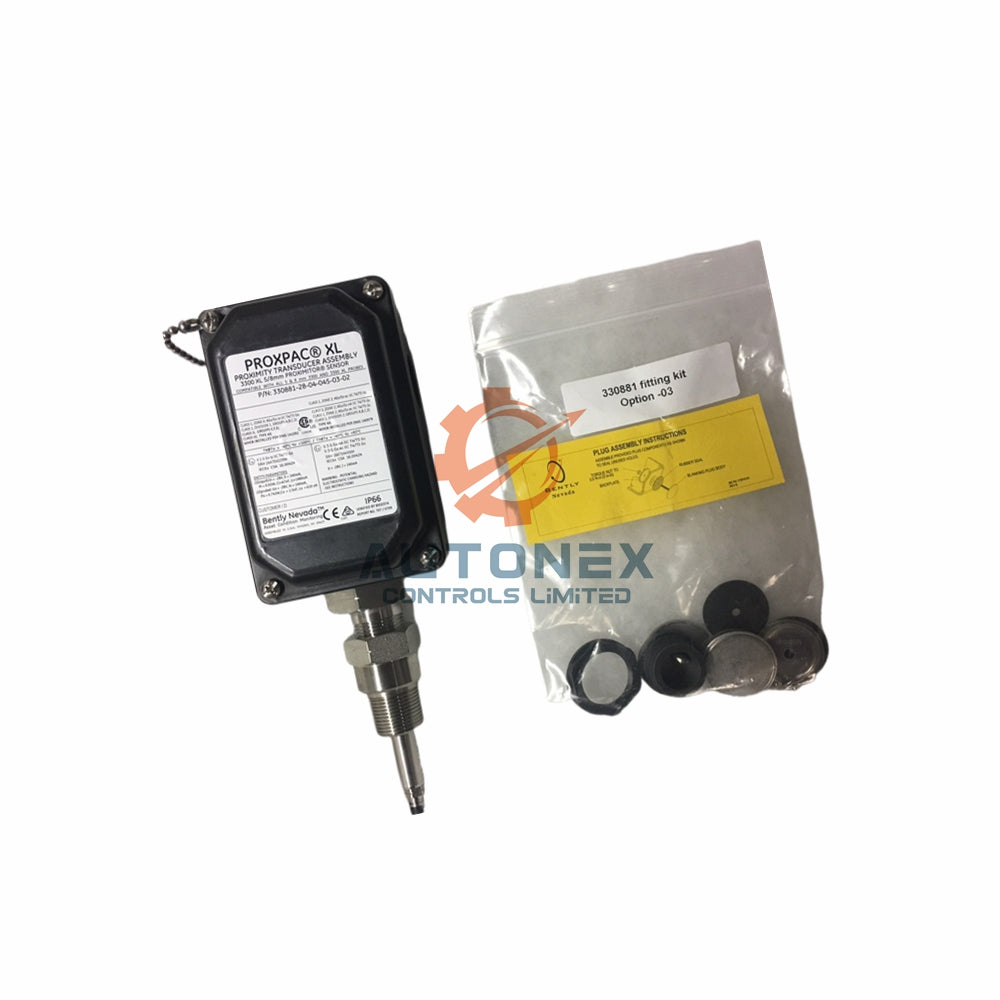

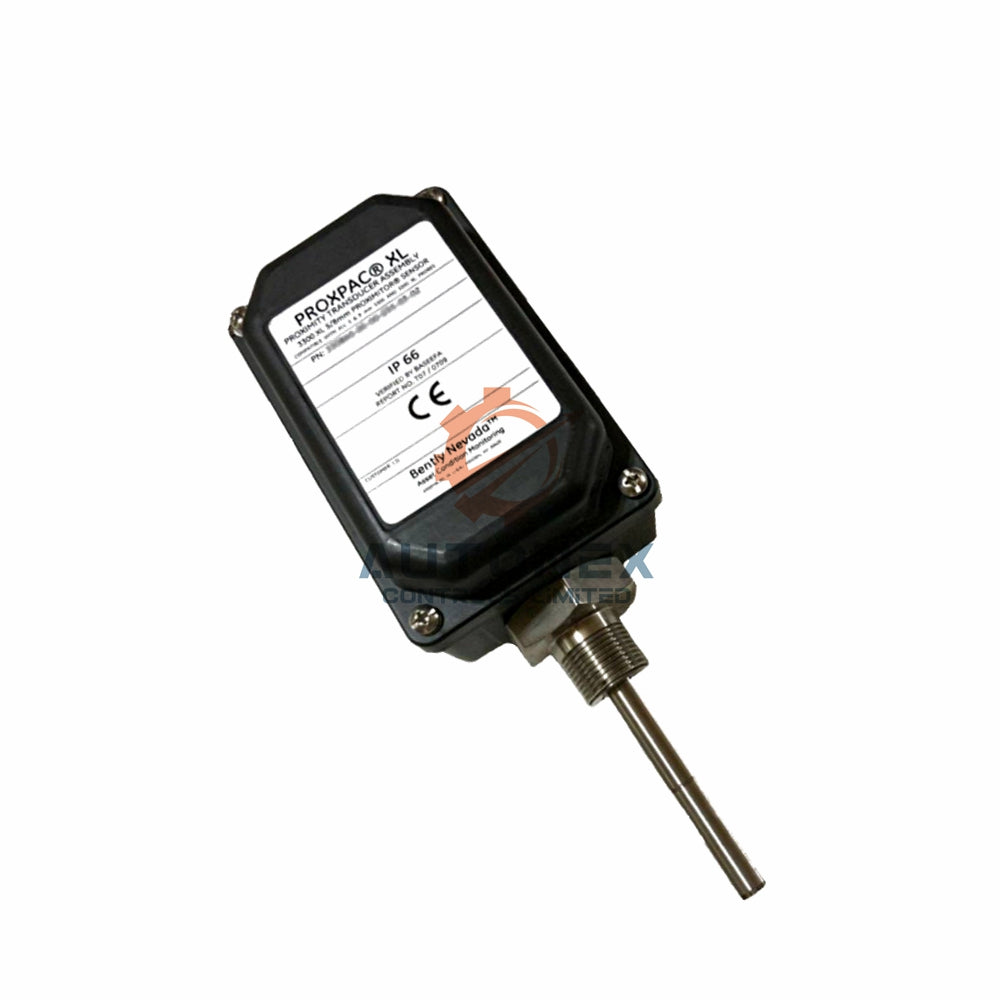

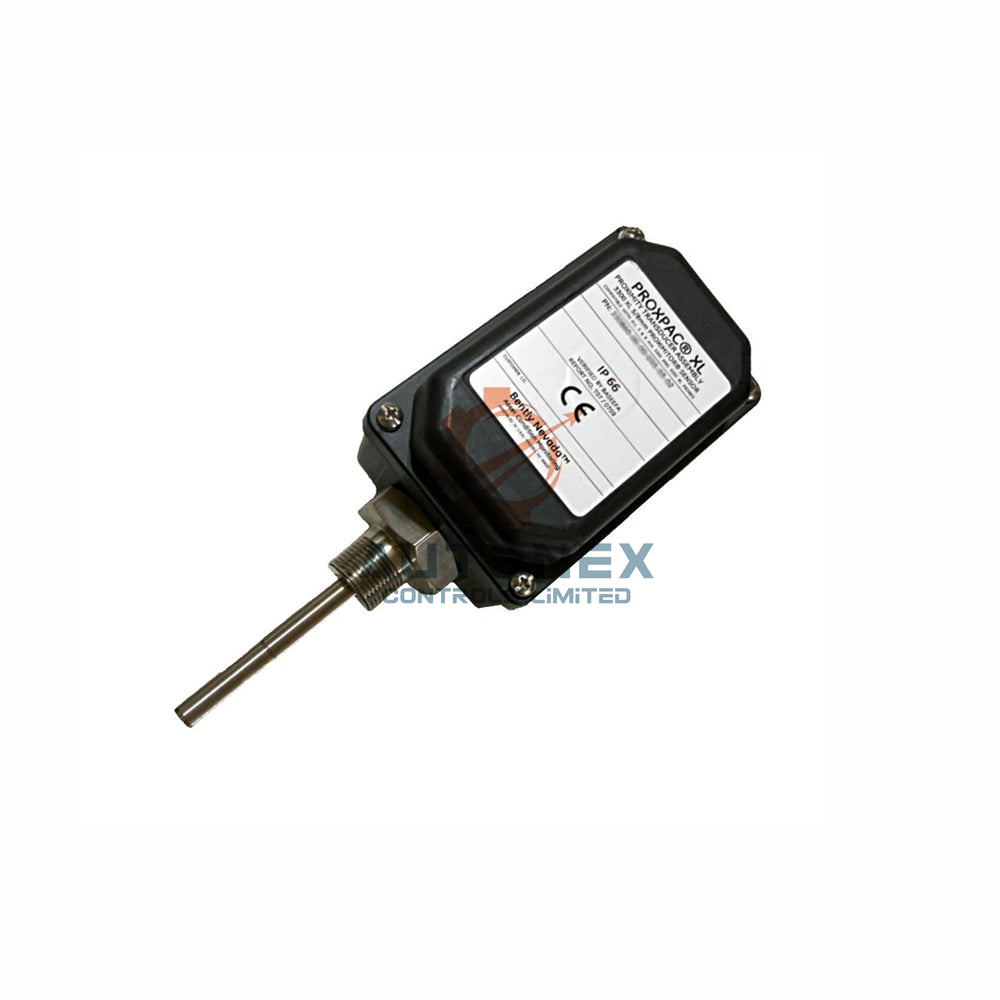

330881-16-04-189-06-02 PROXPAC XL Bently Nevada Proximity Probe

Bently Nevada 330881-16-04-189-06-02 PROXPAC XL Proximity Transducer

Key Technical Specifications

• Manufacturer: Bently Nevada (Made in U.S.A).
• Model Number: 330881-16-04-189-06-02.
• Probe and Approvals Option: 3300 XL 8 mm probe without approvals.
• Standoff Adapter (B Dimension): 40 mm.
• Probe Penetration (C Dimension): 189 mm.
• Fittings Option: One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer, and two plugs.
• Mounting Thread Option: 3/4-14 NPT.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm gap.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%.
• Frequency Response: 0 to 10 kHz with +0, -3 dB rolloff.
• Probe Tip Material: Polyphenylene Sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel.
• Probe Cable: 1-metre triaxial with FEP insulation, 75 Ω.
• Probe Connector: Gold-plated brass ClickLoc connector.
• Housing Material: UV-resistant, glass-reinforced PPS thermoplastic.
• Sleeve and Retaining Chain Material: AISI 304 stainless steel.
• Vibration Isolation Material: Extra soft cellular silicone.
• Power Supply Range: Requires -17.5 Vdc to -26 Vdc without barriers.
• Output Resistance: 50 Ω typical.
• Minimum Target Size: 15.2 mm (0.6 in) diameter flat target.
• Minimum Shaft Diameter: 50.8 mm (2.0 in).
• Total System Weight: 1.44 kg (3.2 lbm) typical.

Frequently Asked Questions (FAQ)

• Is this a genuine Bently Nevada product?
  Yes, this 330881-16-04-189-06-02 is a brand new, original PROXPAC XL transducer from Bently Nevada.
• What is the linear measurement range?
  The probe offers a 2 mm (80 mils) linear range from 0.25 mm to 2.3 mm gap.
• What is the probe penetration length for this model?
  The C dimension is 189 mm for this specific configuration.
• What fittings come with this unit?
  It includes one 3/4-14 NPT fitting, one reducer to 1/2-14 NPT, and two plugs.
• Can I use longer field wiring with this sensor?
  Yes, you can use up to 305 metres (1000 feet) of 3-conductor shielded triax cable.
• What power supply does this transducer need?
  It requires -17.5 Vdc to -26 Vdc without barriers, or -23 Vdc to -26 Vdc with barriers.
• What is the maximum operating temperature?
  The probe tip operates from -51°C up to +177°C (-60°F to +350°F).
• Do you have stock for immediate shipment?
  Yes, we keep this model in stock and ship within 5 business days.
